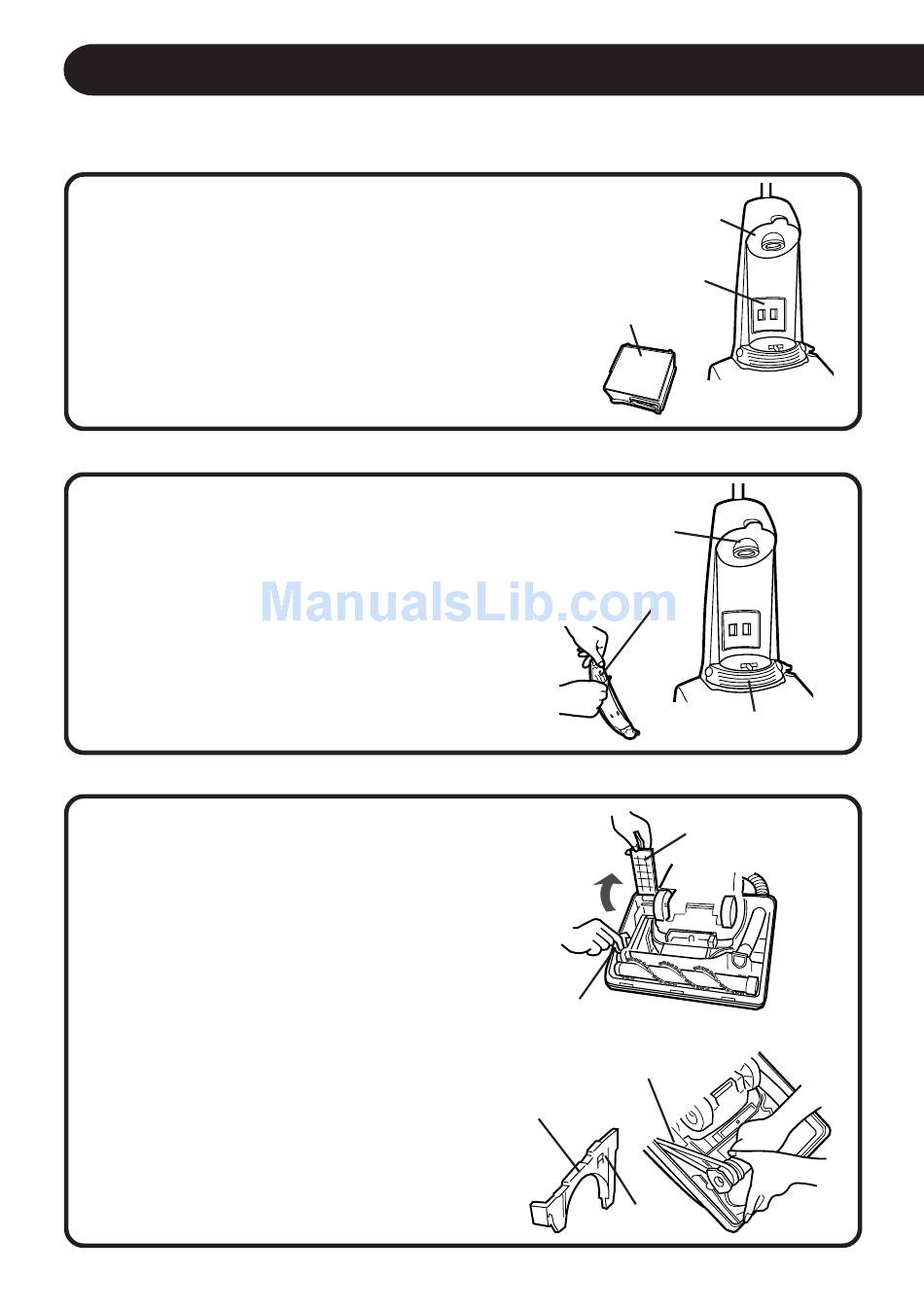

REPLACEMENT INSTRUCTIONS
REPLACEMENT INSTRUCTIONS
HOW TO REPLACE THE MAIN FILTER
1
Release the dirt compartment from the vacuum cleaner.
2
Pull out the main filter case.
3
Remove the main filter from the case.
4
Place a new main filter into the case.
Reposition the filter case in the dust body and then set the
5
dirt compartment into dust body.

HOW TO REPLACE THE EXHAUST FILTER

The exhaust filter consists of an electrostatic Hepa
Type filter. The filter should be replaced at least every
10 months to maintain efficient filtration.
* How to remove/set the filter.
1
Slide the cover forward (away from the unit).
2
The filter is attached to the back of the cover.
3
Remove it from the hold pins.
4
Set the new filter.
5
Replace the cover on the front of the vacuum.
HOW TO REPLACE THE BELT
After removing the bottom plate (see page 13),
1
lift up the belt cover and remove the shelter
plate. (Fig. 36)
2
Pull out the agitator and remove the flat belt
from the motor shaft and agitator pulley.
Loop the new belt around the motor shaft and
3
agitator pulley. (Fig. 37)
4
Re-insert the agitator assembly, making sure
that both ends of the agitator assembly fit in the
groove of the unit.
5
Be sure the belt is not twisted and all rotating
parts move smoothly.
Install the shelter plate completely in the
6
groove with the marking of R side toward
the belt cover.("R" means "Rear".)
After re-installing the shelter plate, close the
7
belt cover, then replace the bottom plate.
14
Dust Body
Main Filter case
Main Filter
Dust Body
Exhaust filter
Exhaust Filter Cover
(CT1200 type)
Shelter plate
New belt
Shelter plate
"R"mark
Fig.34
Fig.35
Belt cover
Fig.36
Fig.37
