INSTALLATION AND MAINTENANCE INSTRUCTIONS
Velociti Series
®
AOM-TELF Firephone Control Module
SPECIFICATIONS
Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
SLC Wiring Resistance:
Supervisory Wiring Resistance:
Handset Offhook Resistance:
External Supply Voltage (between Terminals T10 and T11)
Regulated:
Temperature Range:
Humidity:
Dimensions:
Accessories:
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
Firephone Control Modules are intended for use in intelligent, two-wire
systems, where the individual address of each module is selected using the
built-in rotary switches. This module is used to connect a remote firefighter
telephone to a centralized telephone console. A ringing sound is provided
at each off-hook handset until it is connected to the console. Wiring to indi-
vidual telephone jacks and handsets is supervised, and status is reported to
the panel as NORMAL, TROUBLE, or TELEPHONE. This module has two pairs
of output termination points available for fault-tolerant wiring, and includes a
panel-controlled LED indicator.
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to compatible
Gamewell-FCI system control panels only (list available from Gamewell-FCI).
MOUNTING
This module mounts directly to 4-inch square electrical boxes (see Figure
2A). The box must have a minimum depth of 2
electrical boxes (SMB500) are available.

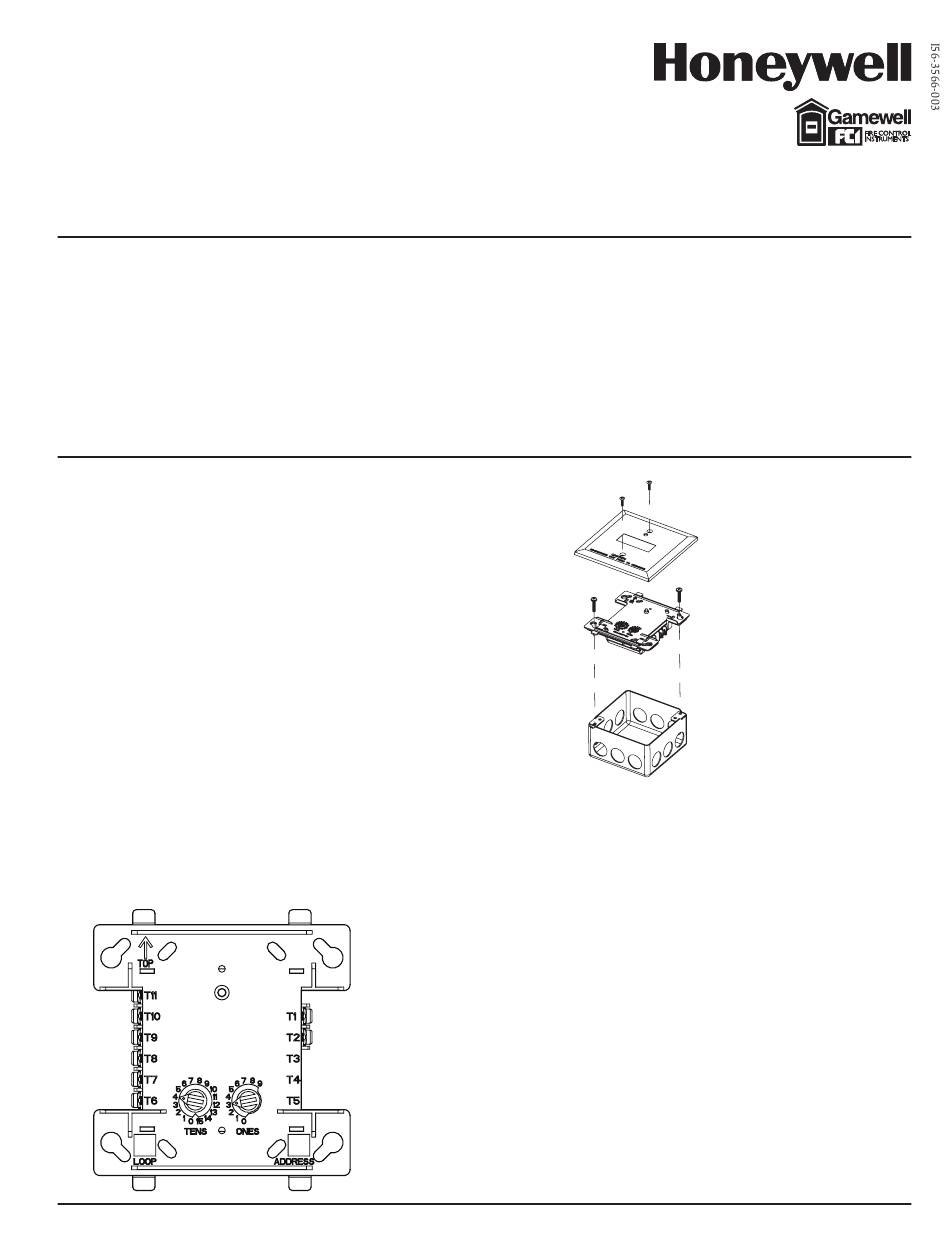

FIGURE 1. CONTROLS AND INDICATORS:
15 to 32 VDC
7.5 mA (LED on)
2.4mA (LED flashing)
40 Ohms
50 Ohms
400 to 1500 Ohms
24 VDC
32˚F to 120˚F (0˚C to 49˚C)
10% to 93% Non-condensing
4.5˝ H × 4.275˝ W × 1.4˝ D (Mounts to a 4˝ square by 2
SMB500 Electrical Box; CB500 Barrier
1 / inches. Flush mounted
8
C1059-00
1 / ˝ deep box.)
8
FIGURE 2. MODULE MOUNTING:
WIRING
NOTE: All wiring must conform to applicable local codes, ordinances and
regulations.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams (Figures 3-4).
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), as shown in
Figure 2.
1
