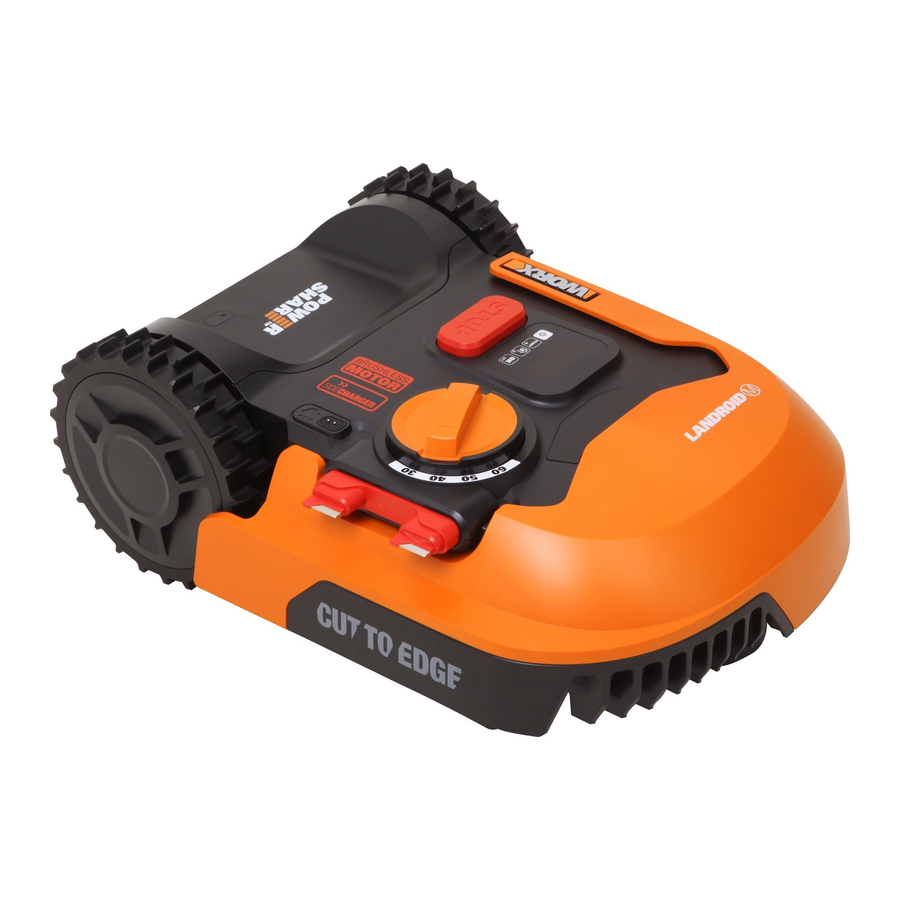

Worx Landroid L1000 WR165E / WR167E / WR148E / WR147E.1 Manual

PRODUCT SAFETY

GENERAL & ADDITIONAL SAFETY INSTRUCTION

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance contains batteries that are only replaceable by skilled persons.

For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

To reduce the risk of injury to persons and damage to the machine, do not remove battery pack before switching off the machine.

READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operation practices

Training

1. Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance.
2. Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator.
3. The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

1. Ensure the correct installation of boundary wire as instructed.
2. Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
3. Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
4. On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
5.
   The lawnmower shall not be operated without the guard in place.

Operation

1. General
   1. Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
   2. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
   3. Never pick up or carry an appliance while the motor is running.
   4. Operate the disabling device from the appliance.
      • Before clearing a blockage;
      • Before checking, cleaning or working on the appliance.
   5. It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
   6. Start robotic lawnmower according to the instructions. When the power key is switched on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
   7. Never lift up robotic lawnmower or carry it when the power key is switched on.
   8. Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
   9. Do not put anything on top of robotic lawnmower or its charging station.
   10. Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.
   11. Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power key is switched on and the correct PIN code has been entered.
   12. Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.
   13. To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
   14. Not to touch moving hazardous parts before these have come to a complete stop.
   15. For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text:
       Warning! Automatic lawnmower! Keep away from the machine! Supervise children!
2. Additionally when the appliance is operating automatically
   1. Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

Maintenance and storage

When the mower is turned upside down the power key must always be switched off.
The power key should be switched off during all work on the mower's underframe, such as cleaning or replacing the blades.

1. Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
2. Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
3. Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
4. Ensure that only replacement cutting means of the right type are used.
5. Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
6. In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
7. Servicing of the appliance should be according to manufacturers' instructions.

Recommendation
To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.

Residual risks
To avoid injuries, wear protective gloves when replacing the blades.

Transport
The original packaging should be used when transporting robotic lawnmower over long distances.
To safely move form or within the working area:

1. Press the STOP button to stop the mower.
   You select the four digit PIN code when you start the mower for the first time.
2. Always switch off robotic lawnmower if you intend to carry the mower.
3. Carry the mower by the handle at the front under the mower. Carry the mower with the blade disc away from the body.

INFORMATION ON THE PRODUCT

	Keep a safe distance from the machine when operating.
	Operate the disabling device before working on or lifting the machine.
	Do not ride on the machine.
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Prohibit disassembling the machine without authorization
	Class III appliance
	Detachable supply unit

Your Landroid can be used with other Worx functional accessories. Visit www.worxlandroid.com to learn more about these available accessory options.

COMPONENT LIST

WHAT'S IN THE BOX

The picture is only for reference

GETTING TO KNOW YOUR PRODUCT

The picture is only for reference

TECHNICAL DATA

Type WR165E WR167E WR148E WR147E.1 (100-199 - designation of machinery, representative of Robotic Lawnmower)

	WR165E	WR167E	WR148E	WR147E.1
Rated voltage	20 V Max.*
No load speed (/min)	2800		2400
Cutting area (m2)	500	700	800	1000
Cutting diameter (cm)	18		20
Cutting height (mm)	30-60
Cutting height positions	4
Battery type	Lithium-ion
Battery model	WA3551.3	WA3553.3	WA3551.3	WA3553.3
Charging time approx. (mins)	75	150	75	75
Charger model	WA3750.1/ WA3755.1			WA3775 / WA3776
Charger rating	Input: 100-240 V~50/60 Hz, 38 W, Output: 20V ,1.5 A			Input: 100-240V~50/60 Hz, 90 W, Output: 20 V 3.0 A
Machinery weight (kg)	9.5	9.8	11.7	12
Protection degree	III
App (Wifi/Bluetooth)	Y
Frequency band of embedded WLAN module	2.412GHz-2.484GHz
Max. radio-frequency power of embedded WLAN module	802.11b: +16±2dBm(@11Mbps) 802.11g: +14±2dBm(@54Mbps) 802.11n: +13±2dBm(@HT20,MCS7)
Frequency band of inductive loop systems	77 Hz
Max. radio-frequency power of inductive loop systems	82 dBµA/m

*Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE DATA

	WR165E	WR167E	WR148E	WR147E.1
A weighted sound pressure	LpA = 50.83 dB(A)		LpA = 40.68 dB(A)
	KPA = 3.17 dB(A)		KPA = 1.36 dB(A)
A weighted sound power	LwA = 61.83 dB(A)		LwA = 61.56 dB(A)
	KwA = 3.17 dB(A)		KwA = 1.36 dB(A)
Wear ear protection when sound pressure is over 80 dB (A).

A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.

ACCESSORIES

We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

INTENDED USE

The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, your Landroid may be programmed to operate at any time or frequency. It is impossible for digging, sweeping or snow cleaning.

MAINTENANCE

Your Landroid works hard and needs to be cleaned and checked from time to time. This section of our guide helps you keep Landroid in good shape so it can last for years without troubles. Here's how to take care of your Landroid. Switch off the machine before carrying out any service or maintenance.

Keep it sharp

Landroid does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity.

1. The blade turning disc makes a clockwise and counterclockwise rotation at random to use both cutting edges and minimize the frequency of replacing the blades
2. Each cutting blade will last up to 2 months when it is programmed to mow every day
3. Always check to see if the blades are chipped or damaged and replace them if they are
4. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landroid. Spare blades are also available at your nearest Landroid retailer

Before cleaning, adjusting, or replacing the blades, turn your Landroid OFF and remove the battery. Always wear protective gloves.

1. Replacing the Blades
   Remove the battery (fig. 1) and gently flip the Landroid over (fig.2)
   Take the screws off the blades with a screwdriver (fig. 3 - 4)
   Firmly screw on the new blades (fig. 5 - 6)


Attention: When fitting new blades, make sure you replace ALL the blades.
Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade turning disc. Failure to use new screws could cause serious injury

After screwing the blade to the blade disc, make sure the blade is able to spin freely

Keep it clean

Your Landroid should be cleaned regularly. This helps keep it in good condition, especially removing dirt, debris and the build-up of grass from daily mowing. Turn Landroid off before cleaning it. For extra safety, remove the battery.

Attention: Make sure the battery pack cover is closed when washing your Landroid.

YOUR Landroid can only be washed by using a hose! DO NOT use high pressure washer on your Landroid. High pressure water can go inside the sealings and damage electronic and mechanical parts.

1. Cleaning the upper body
   1. Clean with a spray bottle filled with water. Don't use solvents or polishers
   2. Use a brush or a clean cloth to remove built-up dirt
2. Cleaning the Bottom
   1. Flip Landroid upside down
   2. Remove debris and grass clippings using a brush to remove
   3. Be careful not to touch the blades with your hands. Wear gloves for protection
   4. Clean the blade disc, the chassis and the front wheel(s) thoroughly with a soft brush or moist rag
   5. Rotate the blade disc to ensure it rotates freely. Remove any obstructions. Remove any lodged debris so that they don't cause a crack in the blade disk. Even the tiniest crack effects mowing performance
   6. Check the blades spin freely around the fixing screws. Remove any obstructions
3. Cleaning the drive wheels
   1. Remove mud from wheels with a brush in order to ensure good grip of the tread
4. Clearing the charging contacts
   1. Clean the contact pins located on the charging pile and the charging strips located on the Landroid using a cloth
   2. Periodically remove any build-up of grass clippings or debris around the contact pins and the charging strips to ensure Landroid successfully charges each time

Keep it charged

The heart of Landroid is its 20V Li-Ion Worx Powershare Battery.

1. For the proper storage of the battery, make sure it is fully charged and kept in a cool dry place.
2. The recommended Landroid operation temperature is between 0-55°C
3. The life-span of Landroid's battery depends on hours of usage and the length of use per day during the mowing season

1. Landroid can be charged manually without the boundary wire
   1. Connect the charging station to a suitable power supply. The green light on the charging station will turn on
   2. Manually dock Landroid into the charging station while Landroid is powered off
   3. The green light on the charging station will flash and Landroid will begin to charge

Keep it stored over the winter

Although Landroid is designed and built to survive the most severe weather conditions, we recommend storing it in your shed or garage during the winter. To prepare it for winter hibernation:

1. Clean it thoroughly
2. Fully charge the battery
3. Turn the power off

1. Getting back to work in the Spring
   When it is time to re-start Landroid for the new season, please perform the following checks:
   1. Update the time and date settings via the app
   2. If you notice signs of oxidation on the charging contacts of Landroid and the charging station, clean these with a fine grade emery clothC. Full charge Landroid's battery before operating

Keep it updated

Landroid is always improving and new software versions are made available for free. Always keep Landroid software updated to makethe most of your machine.

1. Over-the-Air (OTA) updates
   If your Landroid is connected to your Wi-Fi network, you will be notified that new software is available via the app. Once you confirm, the update will happen automatically Over-the-Air.
2. Check which software version you have
   The software version number can be seen when the Landroid is power- on.

3. Manual updates
   1. If your Landroid is not connected to your Wi-Fi network, you can still update it to the latest software version with a USB stick
   2. Regularly visit the Worx Landroid website to check if any new version is available. If you subscribed to Landroid email list, you will be notified when a new version is available
   3. Download the latest software version at our website
   4. Take a blank USB stick formatted in FAT32
   5. Save the zip file and extract the content to your USB stick
   6. Place Landroid on a secure and level surface
   7. Turn off Landroid
   8. Go to the rear of the Landroid to access the USB port.
   9. Insert the USB stick in the port
   10. Place the Landroid on the lawn again, inside the working area delimited by the boundary wire
   11. Turn on Landroid
   12. Without lifting Landroid, remove the USB stick when 'Please remove the USB key' is displayed
   13. The update will begin automatically and may take a while. Landroid will restart automatically after the update is completed
       NOTE: Make sure Landroid is within the boundary when restarting Landroid.

OPERATION MESSAGES

ERROR MESSAGES

Sometimes things can go wrong. Fortunately Landroid is smart enough to tell you if it is enountering an issue, so you can fix it. If in doubt, please visit our website where you will find useful videos and further support.

MESSAGE	CAUSE	ACTION
	Battery pack cover is open	Close the battery pack cover
Outside working area! Press START to reset.	Landroid cannot find the boundary wire signal.	If Landroid is actually outside of its working area: turn power off, take Landroid inside the working area, turn the power on and press start. If Landroid is inside its working area check if the LED on the charging pile is solid green. If red, check if the boundary wire is properly connected to the charging pile and that the pile is connected to a suitable power supply. If they are properly connected, the boundary wire terminals are clamped incorrectly and must be reversed.
WRONG PIN! Please retry.	PIN code is wrong.	Input the correct PIN or re-set your PIN.
Blade motor fault! Press START to reset.	Blade disc is blocked by an object, e.g. a branch.	Turn power off. Turn Landroid upside down and check if there's anything preventing the blade disc from rotating and remove any obstruction. Turn Landroid upright. Turn power on. Press start
	Blade is over-loaded by thick dense grass.	Turn power off. Take Landroid to an area with short grass or adjust the cutting height to a higher setting. Turn power on. Press start.
Wheels motor fault! Press START to reset.	Wheel motor is blocked in some way.	Turn power off and take Landroid to an area free from obstacles. Turn power on. Press start. If the error message is still displayed, turn power off. Turn Landroid upside-down and check if there's anything preventing the wheels from rotating. Remove any obstruction, turn Landroid upright, turn power on.
Upside down! Press START to reset.	This could have happened when Landroid came into contact with a sloping surface which made it overturn.	Turn Landroid upright and remove any obstacle that might have caused Landroid to overturn.
Mower trapped! Press START to reset.	Landroid is trapped.	Turn power off. Take Landroid to an area of your lawn free of obstacles, then turn power on. Press start. If the error message is still displayed: turn power off, turn Landroid upside-down. Check if there is anything preventing the wheels from rotating. Remove any obstruction, turn the Landroid upright, turn power on.
Mower lifted! Press START to reset.	Landroid is lifted up.	Turn power off. Take Landroid to an area clear of obstacles, turn power on. Press start. If the error message is still displayed: turn power off, turn Landroid upside-down and check there's anything that can cause Landroid to be lifted up. Remove any possible object, turn Landroid upright, turn power on.
Battery voltage too low! Please change battery.	Battery exausted.	In this case you must turn Landroid off and place it in the charging station, then 'Emergency charging' will be displayed and it will start charging. If the battery error still persist, your battery is damaged and need to be changed.
Wire missing! Press START to reset.	Machine can't find boundary wire signal.	If the LED light is red, check if the boundary wire is well connected to the clamps on the charging pile. If the problem persists, check that the boundary wire hasn't been cut.
Battery temperature out of range! Please wait.	Temperature is too high (more than 550C)or too low(less than 00C) when charging.	Place the charging station in a shady area or wait until it reaches the normal temperature.
Can't find charge station press START to reset.	Boundary wire is beyond its maximum length (300m or machine doesn't have enough power to go back to charging station.	Take Landroid to the charging station.
Mower locked!	With the 'Lock Function' enabled, if your Landroid does not receive a signal from your Wi-Fi router for 3 days, then it gets locked as a security measure. This could be because your router lost its power or because you changed your Wi-Fi router or network provider.	Please reconnect Landroid to the Wi-Fi networtk it has been originally paired with. If this is not possible, contact Cutomer Service.

NOTES

1. Before turning power on, always check Landroid is inside its working area. If not, the message "Outside working area! Press START to reset" will be displayed. This message is also displayed when Landroid is partly but not completely inside its working area
2. If for any reason — i.e. a party, children playing... — you want to park your Landroid in the charging station: press home then . Landroid will go to its base and stay there. Please note Landroid will now wait until the next scheduled mowing session. If you want to re-start it at anytime, press start then to start your Landroid
3. If an error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire so please refer to the installation instructions and check your set up is correct with its help
4. If your lawn is divided in two separated areas, connected by a corridor less than 1m wide, one of which is not provided with the charging station: when Landroid runs out of charge, take it manually to the charging station
5. If Landroid runs abnormally once in a while, please reset it by turning it off and removing the battery for 30 seconds, then restart it. If the problem cannot be solved, please contact our Customer Service for help

TROUBLE SHOOTING

If your Landroid does not work correctly, follow the trouble shooting guide below. If the fault persists, contact Customer Service.

SYMPTOM	CAUSE	SOLUTION
The LED light on the charging pile does not turn on.	There is no power.	Check the charging station is connected properly to the charger and the charger is connected to a suitable power supply.
Red light on the charging pile.	The boundary wire isn't connected.	Check that the boundary wire has been connected correctly to the charging station. Check there are no breaks in the boundary wire.
Landroid turns on, but the blade disc does not spin.	Landroid is searching for the charging station.	This is normal: when Landroid needs to recharge, the blade disc does not rotate while it is searching for the charging station automatically.
Landroid vibrates.	The blade disc is unbalanced. Blades may be damaged.	Check the blades and replace them if damaged. Remove debris and foreign objects from the blades and blade disc.
Grass is being cut unevenly.	Landroid does not work enough hours per day to cut the grass.	Try adding more hours to the mowing schedule.
	Mowing area is too big for the size of Landroid you have.	Try decreasing the size of the mowing area or increasing working time.
	The blades are dull and not sharp.	Change all the blades and screws in order to balance the bade disc.
	The cutting height is set too low for the length of the grass.	Raise the cutting height and then gradually lower.
	Grass or another object has wrapped around the blade disc.	Check the blade disc and remove any grass or other objects that might prevent it spinning.
	There is a build-up of grass in the blade disc or motor frame box.	Make sure the blade disc rotates easily. If need be, you may take off the blade disc and then remove the debris.
Your Landroid is inside its working area and the boundary wire is connected, but the display says 'Outside working area! Press START to reset'	The boundary wire ends are clamped incorrectly.	Reverse the boundary wire ends and reconnect to the charging station.
The charging time is far more than the rated charging time.	Poor connection caused by debris on the charging strip.	Clean the contact pins located on the charging pile and the charging strip on Landroid using a cloth.
	The charging protection program is activated due to high temperature.	Place the charging station in a shady area or wait until the temperature has cooled down.
The mower does not charge.	There is no power.	Check the power cord is connected properly to the charger and the charger is connected to a suitable power supply. Make sure both the charging strips on the mower touch the center of the contact strips on the charging pile.
Landroid is starting to have shorter run-times between charges.	Something is clogging in the blade disc creating friction and increasing power consumption.	Take off the blade disc and clean it. Maybe the grass is too high and too thick.
	Landroid is shaking heavily because the blade disc is unbalanced.	Check the blade disc and blades, remove debris and foreign objects from the blades and blade disc. Replace the blades with a new set.
	The battery may be exhausted or old.	Replace battery.
	The working time is up	reset the working time
Landroid is not operating at the correct time.	The clock is not set to the correct time.	Set the clock to the correct time.
	Programmed cutting times for Landroid are not correct.	Change the time settings for the mower to start and stop.
	the percentage of weekly operating time set through APP has changed.	set the correct percentage through APP.
Landroid cannot correctly dock with the charging pile.	Environmental influences.	Restart Landroid.
	Poor connection caused by debris on the charging strip.	Clean the contact pins located on the charging pile and the charging strip on Landroid using a cloth.
The green light on the charging pile turns on before charging is complete.	the charging station is overheating or overcooling	Place the charging station in a shady area or wait until it reaches the normal temperature
Landroid wheels skid or repeatedly slip.	Foreign obstacles, such as twigs and branches may be lodged under Landroid.	Remove foreign objects from underside of Landroid.
	The lawn is too wet.	Wait until lawn has dried.
Landroid runs outside the boundary wire. Landroid does not mow an area within a boundary wire zone. Landroid reverses or rotates erratically near the boundary wire.	The boundary wire of another Landroid or robotic mower is positioned too closely.	Ensure at least 1m clearance is provided in between your boundary wire and that of your neighbor.
	In wet conditions, the boundary wire electric signal may leak where the wire has been joined or repaired incorrectly.	Check boundary wire joints. Insulate to provide a fully waterproof connection.
	There is boundary wire electric signal leakage due to broken insulation.	Repair damaged boundary wire with the wire connectors supplied.
Landroid slips out of its working area going down a hill.	Low grip of Landroid drive wheels.	Please check the wheels are clean and free of mud in order to have the maximum grip possible.
Landroid operative system crashes when charging or on standby.	Software or display fault.	Restart Landroid.
Landroid shuts off when docking in the charging pile.	Landroid fails to charge due to over temperature protection and is powered off.	Place the charging station in a shady area or wait until the temperature has cooled down.
	Poor connection.	Check the LED light on the charging pile. Check the connection between the contact pins located on the charging pile and the charging strip.
Landroid stops in the working area.	There is an obstacle in the working area.	Remove the obstacle from Landroid's working area.
	The cutting height is set too low for the length of the grass or the grass is too dense.	Raise the cutting height and then gradually lower.
	The extended boundary wire should not exceed 300m or it may cause signal problem.	Reduce the lenght of the boundary wire.
	The distance between the center of the lawn and the boundary wire should not exceed 25m or it may cause signal attenuation.	Reduce the distance between the center of the lawn and the boundary wire perimeter within 25m.
Landroid flips over.	There is an inclined obstacle on the lawn.	Exclude the obstacle from Landroid's working area.
Landroid fails to connect to the internet.	Please check your router has the correct settings.	Make sure your router is 2.4GHz. If your router has two settings, please enable the 2.4GHz band. Make sure your router is set to 802.11 mode and wireless setting is b/g/n mixed. Make sure your router has the SSID Broadcast function enabled when you connect the machine with the app. You can close it after you connect successfully. Make sure DHCP function is enabled. If you changed your Wi-Fi network, you need to connect Landroid to the new network. If you have a "Fritz!box" router, please make sure activate "Allow communication between devices in same network" in the settings.
	Please check whether the router is disconnected or WIFI SSID is changed	Make sure the router is connected and WIFI SSID is correct
Your Landroid beeps when you are adjusting "month/hour/minute"	It is normal	Anticlockwise the to adjust.

Documents / Resources

References

• Landroid robot lawnmower by Worx | Worx

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Worx Landroid L1000 WR165E / WR167E / WR148E / WR147E.1 Manual
