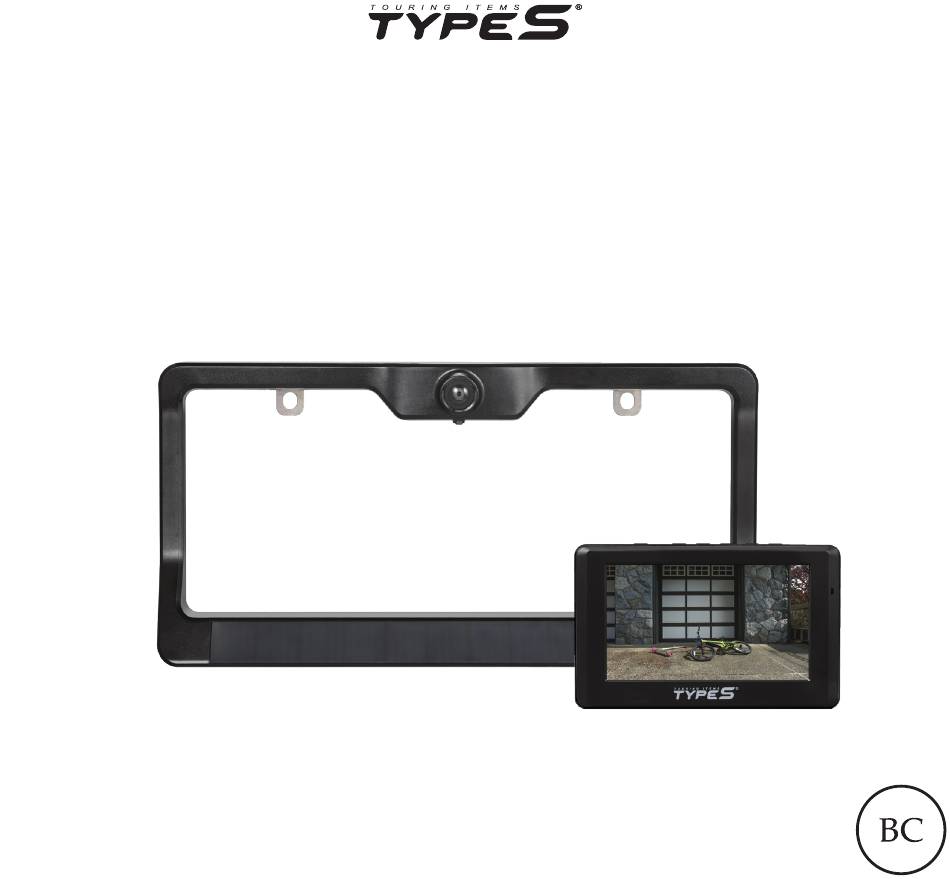

- Page 1 Solar Powered Quick-Connect Wireless Backup Cam With 4.3” Hand Gesture Activated Monitor WP ITM. BT56617 Care & Use Instructions Important, retain for future reference: Read carefully...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ....................................1 2. Package Contents ...................................2 3. Product Specifications ................................3 4. Installation Guide ..................................3 5. Settings and Operation ................................6 6. Safety Information ................................11 7. Maintenance & Warranty ..............................14 8. General Information ................................18... -
Page 3: Introduction
Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. -
Page 4: Package Contents
2. PACKAGE CONTENTS 1. 4.3” Dash Color Monitor 2. Quick-Connect Wireless Backup Cam 3. 12V/24V Power Adapter for Monitor 4. Windshield Mount for Monitor 5. USB Cable for Charge License Plate Power 6. User’s Manual 7. Quick Install Guide Solar Powered HD Quick-Connect Wireless Backup Cam With 5”... -
Page 5: Product Specifications
3. PRODUCT SPECIFICATIONS 1. Frequency: 2.4GHz 2. Operating Voltage: Monitor - DC 12V/24V, Backup Cam - DC 5V 3. Operating Temperature: 14ºF~122ºF (-10ºC~50ºC) 4. Camera Water Resistance: IP65 rating 5. Battery Capacity: 2000 mAh 6. Maximum Signal Range: 30 feet/10 meters (without interference or obstruction) 4. - Page 6 QUICK-CONNECT WIRELESS BACKUP CAM INSTALLATION 1. Unscrew your license plate. 2. Secure the Quick-Connect Wireless Backup Cam and license plate with screws back onto the rear of your vehicle.
- Page 7 3. Next, turn on the license plate with the power button. The blue LED light will flash 2 times and power on the monitor with the 12V/24V adapter. Then, you can see the parking view when you wake up the license plate camera through wake-up button or motion trigger in front of monitor. *Please follow your local laws and regulations regarding constant monitoring while driving.
-
Page 8: Settings And Operation
5. SETTINGS AND OPERATION Power Menu Parking Aid Line / Enter Down Wake-up Button POWER ON/OFF • The dash color monitor will automatically turn ON when it is connected to a power source. • Hold the power button to turn ON/OFF the unit, if necessary. •... - Page 9 PAIRING The Quick-Connect Wireless Backup Cam included is already paired with the monitor. If you can not see the Camera image, pair the Camera with the following steps: Turn off the power of Quick-Connect Wireless Backup Cam Press and hold the Quick-Connect Wireless Backup Cam power button more than 5 seconds. When the Quick-Connect Wireless Backup Cam LED blue light flashes, that means the Quick- Connect Wireless Backup Cam is in pairing mode for one minute.
-
Page 10: To Adjust Brightness
ROTATE CAMERA Press “MENU” Go to “Rotate Camera” by pressing “– “ Press “Parking Aid Line” to enter Press “+ “ to rotate vertical direction Press “- “ to rotate horizontal direction Press “Parking Aid Line” to confirm and exit TO ADJUST BRIGHTNESS Press “MENU”... -
Page 11: To Adjust Contrast
TO ADJUST CONTRAST Press “MENU” Go to “Contrast” by pressing “– “ Press “Parking Aid Line” to enter Press “+ “ or “– “ to adjust the contrast level Press “Parking Aid Line” to confirm and exit OPERATION TIME The monitor’s parking view operation time will start to count down when you wake up the license plate camera. -
Page 12: Motion Detection
MOTION DETECTION Motion detection range can help you adjust the detection distance between you and the monitor when you drive. You can also disable the function without disturbing you. Press “MENU” Go to “Motion Detection” by pressing “– “ Press “Parking Aid Line” to enter Press “+ “... -
Page 13: Safety Information
• SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions for battery charger Model BT56617. • Before using battery charger, read all instructions and cautionary markings on battery charger, battery, and product using battery. - Page 14 Wireless Backup Cam. Always make sure your intended path is clear. If you back up while looking only at the monitor, you may hit a vehicle, pedestrian, bicyclist, child, pet or other object resulting in injury or death. Always back up slowly. •...
- Page 15 • Consult local laws and regulations for any restrictions on installation or use. • Never allow children to play with the device. Small parts may be a choking hazard. • If you replace the tires, the area displayed on the monitor may change and you may need to adjust the Camera.
-
Page 16: Maintenance & Warranty
• Walk completely around your vehicle before getting in. Check for kids, toys, and pets before entering the vehicle and starting the engine. • Know where children are. Have children stand in a place where they are in full view. •... -
Page 17: Conditions Of Warranty
NOTE: Warranty only applies for North American customers of purchases made in North America. CONDITIONS OF WARRANTY If during the 1 year warranty period your new product is found to be defective, Winplus North America will repair such defect, or replace the product, without charge for parts or labor subject to the following conditions: 1. - Page 18 needed, the support representative will issue a Return Authorization and instruct on how to get a new unit. Winplus North America makes no other warranty of any kind aside from the limited express warranty stated herein. DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIES, IS MADE AS TO THE QUICK-CONNECT WIRELESS BACKUP CAM.
-
Page 19: Limited Warranty
America and/or its affiliates have any liability for any decision, action or inaction taken by any person in reliance on the Quick-Connect Wireless Backup Cam, or for any delays, inaccuracies and /or errors in connection with the Quick-Connect Wireless Backup Cam and its functioning. Winplus North America and/or its affiliates shall have no responsibility or liability for damage and/or injury resulting from accidents occurring with vehicles having the installed, and Winplus North America and/or its affiliates, the manufacturer, distributor and seller shall not be liable for... -
Page 20: General Information
3. Please include a detailed explanation of the problem you are having. 4. If your product is found by Winplus to have a defect in material or workmanship, within the warranty period, it will be repaired or replaced at no charge and returned to you prepaid. Winplus makes no other warranty of any kind aside from the limited express warranty stated herein. - Page 21 IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT WINPLUS DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/EXCHANGE THE PRODUCT. FCC / IC Compliance Statement: This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s).
- Page 22 20cm between the radiator and your body. Solar Powered Quick-Connect Wireless Backup Cam With 4.3” Hand Gesture Activated Monitor BT56617 Responsible Party: Winplus North America Inc. 820 South Wanamaker Avenue, Ontario, CA 91761...
- Page 24 NORTH AMERICA 820 South Wanamaker Avenue, Tel: 866-294-9244 Ontario, CA 91761 Fax: 310-496-2740 EUROPE The Officers’ Mess Business Centre, Tel: 44-1223-919711 Royston Road, Duxford, Cambridgeshire, CB22 4QH 6 Prospect Place, Boronia Victoria, AUSTRALIA Tel: 61-3-8727-7600 Australia, 3155 Fax: 61-3-9720-4165 Suites 6-11, 7th Floor, Corporation Park, ASIA Tel: 852-2798-8932 11 On Lai Street, Shatin, N.T., Hong Kong...
