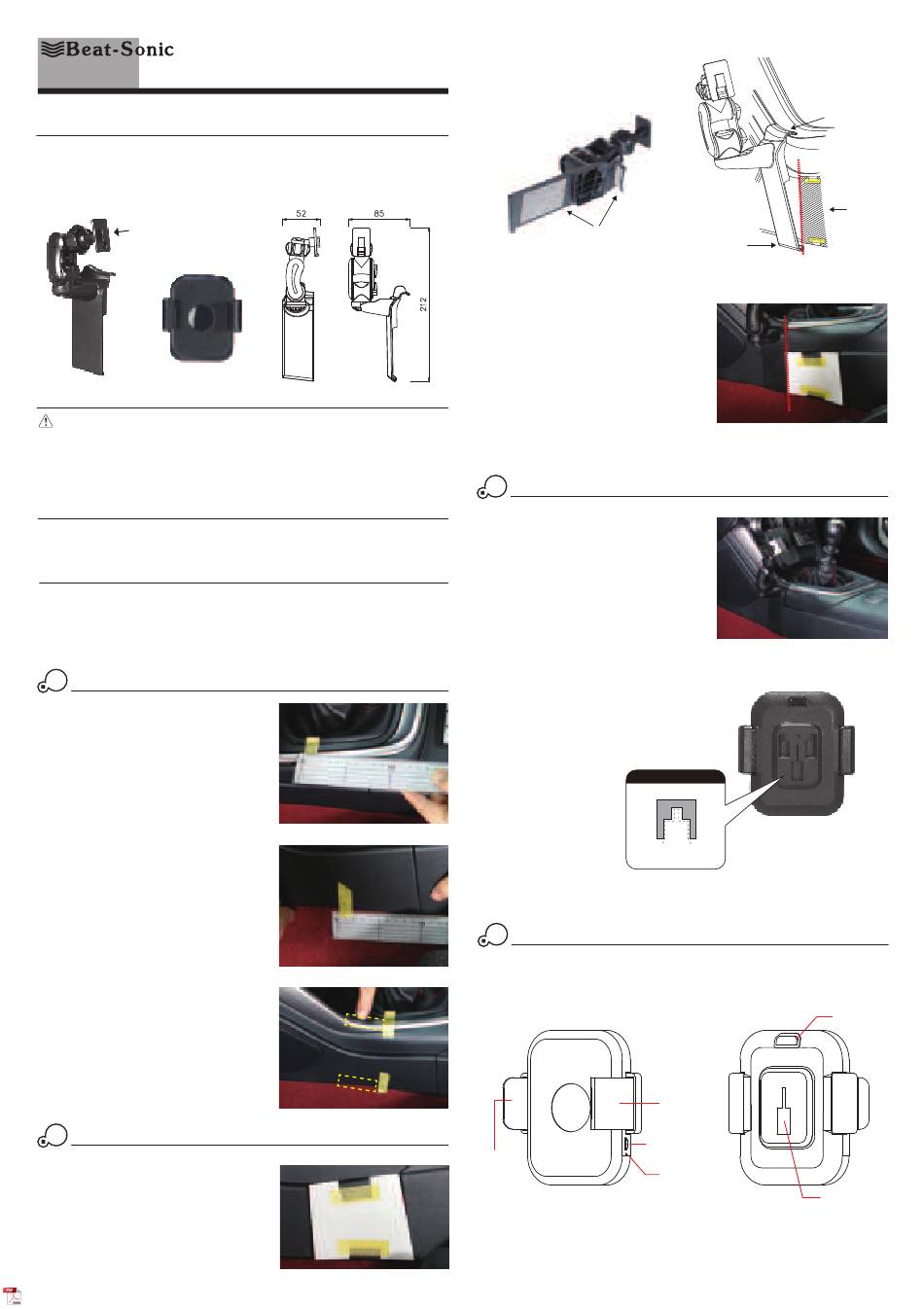

Beat-Sonic BSA50 Instruction Manual

BSA50
Phone Holder
Thank you for purchasing the Beat-Sonic BSA50 mobile device holder. Designed and made in
Japan, this product represents our commitment to quality and excellence. Please read this
manual carefully prior to installing this product to ensure correct operation.
■ Features
● Designed specifically for Toyota GR86 (ZN8) & Subaru BRZ (ZD8)
● Secure mounting position does not obstruct visibility or block air vents
● Wireless charging holder automatically charges Qi-enabled Smartphones
● "L-Bracket" provides option to attach a variety of Beat-Sonic mobile device holders
L-Bracket
Stand Wireless Charging
Holder
Precautions
● Adjust Carefully: Ensure the mobile device does not interfere with the gear shift lever operation.
● Check Regularly: Extreme temperature changes and road vibrations may loosen the stand
joints. Periodically check and tighten if necessary.
● Obey Traffic Laws: Follow local driving regulations, including those related to cell phone use
while operating a vehicle.
● Disclaimer: Beat-Sonic and its affiliates are not responsible for any consequences resulting
from the installation and/or use of this product.
■ Specifications
Stand Dimensions:
- 85mm(W) x 212mm(H) x 52mm(D)
- Material: ABS Plastic
■ Contents
- RHD GR86 / BRZ Stand x 1
- Wireless Charging Phone Holder x 1
- USB-C to USB-A cable (1m) x 1
Apply Anti-Scratch Protective Film
1
1.1 Parallel to the edge of the passenger side gear
shift surround trim, measure 14cm (5.5 in.) from
the panel seam where the shift surround panel
meets the center console box. Mark the
location with masking tape.
1.2 On the lower section of the passenger side
center console side panel, measure 9.5cm
(3.74 in.) from the seam where the center
console side panel joins the center console
box. Apply another piece of masking tape to
mark the location.
1.3 Apply the clear protective film strips to the
plastic trim forward of the masking tape
position markers, as shown in the illustration on
the right, then remove the masking tape
markers.
Attach the Paper Template
2
2.1 Cut out the supplied paper template. Align
the back edge of the template with the seam
where the center console side panel joins the
center console box. Use masking tape to
temporarily hold in place.
Instruction Manual
Right-hand drive (RHD) version
Holder Dimensions:
- 122mm(W) x 90mm(H) x 45mm(D)
- Material: ABS Plastic
- Protective Film x 2
- Paper Template x 1
- Instruction Manual x 1 - L-Bracket Stickers x 2
- Plastic Tweezers x 1
2.2 Remove the double-sided tape backing
NO:000001
film from the stand. Using the template as
a guide, (a) clip the lower edge of the
stand under the center console side
panel then (b) clip the upper section of
the stand over the gear shift surround
trim.
use tweezers to
remove backing film
2.3 Apply medium pressure to the side of the
stand for at least 20 seconds to ensure
strong adhesion of the double-sided tape.
In cold weather, use a hair dryer to warm
the mating surfaces.
Attach the Holder
3
3.1 Complete the installation by attaching the
mobile device holder to the stand.
3.2 If the holder does not fit tightly to the
L-Bracket, apply 1 or 2 pieces as required
of the supplied packing stickers to the
back of the holder. The stickers act as
shims to remove any play.
Using the Holder
4
4.1 Wireless Charging Holder Components
holder
arm
(b) clip upper section
(a) clip lower edge
L-Bracket
In case of loose fitment
Affix the packing
stickers as required
holder
arm
micro USB
LED
paper
template
arm
release
L-bracket
