Beat-Sonic encore a ENA-2T1 Instruction Manual

ENA-2T1
Thank you for purchasing the Beat-Sonic Encore Alpha Plug & Play Power Amplifier. Designed
and made in Japan, this product represents our commitment to quality and excellence.
Please read this manual carefully prior to installing this product to ensure correct operation.
■ Features
- Designed for Toyota 10-pin / 6-pin radio connectors
- Class AB high efficiency car audio amplifier
- Easy to install plug & play installation
- Retains factory head unit, speakers and connectors
- Manufactured using premium hi-fi audio grade components
- Made in Japan
■ Important
- This product is installed using the factory harness connectors, however there are multiple
factory harness connectors of the same size and shape. Do not plug into the wrong connector or
serious damage may result. Contact Beat-Sonic if unsure.
- Check the Beat-Sonic website for the latest vehicle compatibility information before installing.
- Some vehicles may require extensive disassembly to install this product. Installation should be
performed by an experienced motor vehicle technician or auto electrical professional.
■ Precautions
- This amplifier is suitable for negative ground 12V DC operation only.
- Wrap cables in protective electrical tape when routing near metal brackets and sharp edges.
- Do not install main unit or harness near moving mechanisms such as the steering column,seat
rails, pedals etc.
- Do not install this product where it may get wet or in areas where it is likely to get dusty or dirty.
- Do not open, disassemble or modify this product.
- Ensure the car battery is in good condition. A weak battery will cause a significant drop in
power output and sound quality.
■ Protection Circuit
This amplifier is provided with a protection circuit that operates in the following conditions:
- When the speaker output terminals are short circuited
- When the battery is connected in reverse polarity
- When the amplifier is overheated
If this occurs, turn off the ignition and determine the cause of the malfunction. In case of
overheating, wait until the amplifier has cooled off before using.
■ Contents
Wire Harness x 1
Amplifier x 1
Padding Strips x 2
Instruction Manual x 1
1 Specifications
Class AB amplifier 4 channels
Power output 45W x 4ch (4Ω)
Speaker impedance 4 ~ 8Ω
Input sensitivity 0.5 ~ 5V
Bandwidth 15 ~ 80kHz (+0, -1dB)
Total harmonic distortion 0.01% (1kHz / 4 Ω )
Operating voltage DC11V ~ 15V
200mA
Quiescent current
Fuse 15A
Audio input AUX (Line Level RCA)
Speaker High Level
Short circuit / reverse polarity / heat protection
Protection
96mm (W) x 114mm (D) x 40mm (H)
Dimensions
Weight 420g (exc. harness)
2

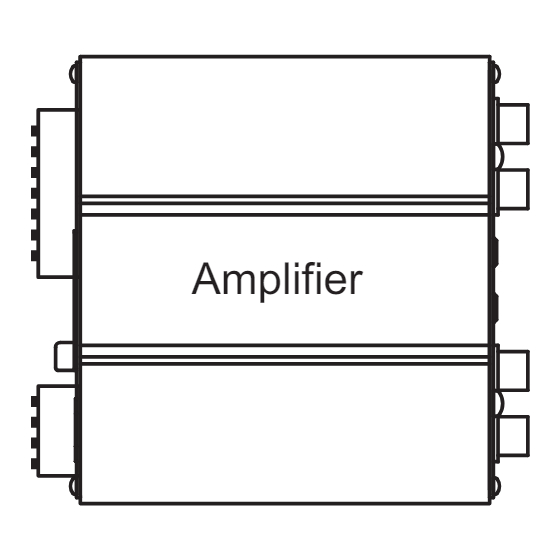

Parts Location
High Level
① ② ③
REAR FRONT
GAIN
R F
⑤ ⑥ ⑦ ⑧
Instruction Manual
Double Sided Tape x 2
Carpet Mounting Tape x 2
① Power Indicator
② Power / Speaker Output Connector
Input
③ Fuse (15A)
④ High Level Input Connector
④
⑤ Rear Channel RCA Input
⑥ Rear Channel Gain
⑦ Front Channel Gain
⑧ Front Channel RCA Input
３
Connection Diagram
NO:000001
10-pin
connector
6-pin
connector
Factory
head unit
4 Installation
4.1 Remove all necessary parts to gain access to the rear of the factory head unit. The
method of disassembly varies for each vehicle. If unsure, please contact Beat-Sonic
for advice for vehicle specific instructions.
4.2 Locate the 10-pin connector and the 6-pin connector on the back of the factory
head unit. Disconnect the 10-pin connector and 6-pin connector from the back of
the factory head unit and connect the wire harness connectors inline with the factory
connectors in a daisy chain configuration (see section 3).
10-pin
connector
4.3 Attach the chassis ground terminal to the mounting bracket for the factory head unit.
Loosen one of the fasteners using the correct size socket or spanner then slide the
chassis ground terminal underneath before retightening the fastener.
Chassis Ground
Chassis Ground
Diagram for illustration purposes.
Actual radio and panels will vary
according to model and grade.
Photos are for illustration purposes.
Actual radio, number of connectors
and connector positions will vary
according to model and grade.
6-pin
connector
Factory
head unit
Factory
10-pin
connector
Factory
6-pin
connector
16-pin
connector
(grey)
Amplifier
8-pin
connector
(white)
