Leviton GreenConnect ZBK00-CSW Manual

GreenConnect
TM
WARNINGS:
• TO AVOID PERSONAL INJURY OR DEATH, keep new and used batteries out of the reach of
children. Seek immediate medical attention if a battery is ingested and follow
medical advice.
• This product is to be installed and/or used in accordance with electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
Cat. No.
ZBK00-CSW GreenConnect Wireless Companion Switch
ZBK00-CDW GreenConnect Wireless Companion Dimmer
ZBK00-4DW GreenConnect Wireless Companion Keypad (ON, Raise, Lower, OFF)
GreenConnect Wireless Companion Keypad with Preset Levels (ON, 50%,
ZBK00-4PW
20%, OFF)
Product Description
The GreenConnect™ wireless companion switch (ZBK00-CSW), dimmer (ZBK00-CDW) and
4-button keypads (ZBK00-4DW and ZBK00-4PW) pair with GreenConnect load controllers to
provide lighting control where needed. These devices can be mounted in an existing wallbox or
to flat wall surface near an entry point. In addition, these devices are battery powered and do not
require any wiring to a power source or to the GreenConnect load controllers.
NOTES:
• Two replaceable CR2025 batteries with 5-year battery life are included.
• Use to connect to Leviton's GreenConnect load controllers.
Installation Notes
• The ZBK00's are battery-powered companion devices that use wireless RF technology for
communication to GreenConnect load controllers.
• These devices do not connect directly to the load or lights. Control of the load or lights is through
the GreenConnect load controllers, which are line voltage devices (sold separately).
• For best results, mount these devices within 50 ft of a GreenConnect load controller
or sensor.
• Do not install these devices in metal wall boxes or with metal wallplates, as this may result in
poor RF performance.

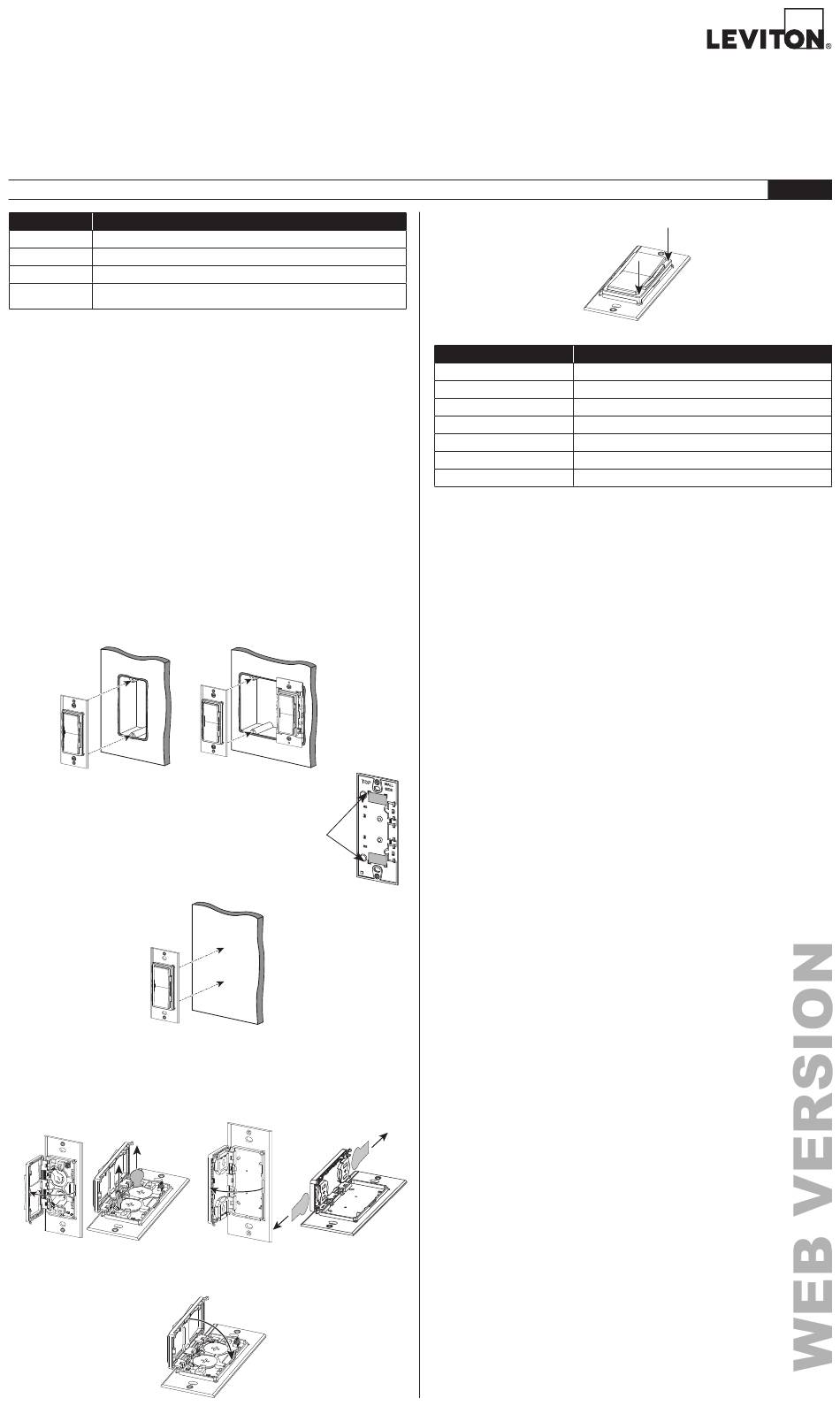

Installation in a Wallbox
WARNING: TO AVOID FIRE, SHOCK, OR DEATH, turn OFF power at the circuit breaker.
To install in a standard NEMA electrical box in single-gang or multi-gang installation:
1. Take note of the TOP marking on the reverse side of the device.
NOTE: Make sure the device is within 50 ft of the GreenConnect load controller.
2. Line up the device with the screw holes in the desired location on the wallbox.
3. Insert and tighten the screws in the innermost screw holes of the wallbox. Do NOT overtighten
the screws.
NOTE: Installation in a metal wall box can weaken the RF signal and reduce the
wireless range.
Installation on a Wall Surface
1. Select a clear wall surface within 50 ft of the GreenConnect load controller
or sensor.
2. Place the included adhesive tape on the reverse side of the device, and
align the top and bottom pieces of tape with the corner markings molded
into the base.
3. Take note of the TOP and WALL SIDE markings on the back of the device
and gently affix the device to the wall surface with the tape. Make sure the
device is secure and leveled.
NOTE: Cat. No. ZBK00-CDW shown.
Powering ON
The device comes with two CR2025 batteries (already installed).
1. To power ON the device, place your finger on the indent in the base.
2. Open the device by gently rotating the frame to the left using the hinges.
3. Grasp and pull up each pull tab by its circular portion to remove. Remove both pull tabs (one
for each battery).
Cat. No. ZBK00-Cxx
4. Close the device by gently rotating the frame to the right using the hinges.
Wireless Companion Switch, Dimmer, and Keypads
Cat. Nos. ZBK00-CSW, ZBK00-CDW, ZBK00-4DW and ZBK00-4PW
INSTALLATION INSTRUCTIONS
Description
Front View
Cat. No. ZBK00-4xx
Ratings: Battery 3VDC
CAUTIONS:
• These devices rely on wireless RF communication.
• Use two CR2025 coin cell batteries ONLY. Do not use a rechargeable battery. Use of an
improper battery may cause damage to the device.
• For indoor use only.
• These devices are for surface mount or wallbox mount. They are not suitable for retrofit wall box
installation where Class 1 wiring is present.
5. Press down firmly in the corners until the device snaps closed.
Specifications
Type
Operating Temperature
Operating Humiditiy
Storage Temperature Range
Batteries
Network
Range
IP Rating
Pairing
Follow the steps below to pair the device with a compatible GreenConnect load controller.
System Programming
1.
Required components
a.
GreenConnect systems require one load controller to create a wireless network and
function as the network manager. This can be a wireless power pack or line voltage wall
station. Receptacles and battery-powered devices cannot create a network.
b.
A maximum combination of 16 load controllers, wall stations, or sensors can be enrolled
into the network.
c.
GreenConnect devices are also compatible with GreenMAX DRC Wireless for systems
that require more than 16 devices.
2.
Creating a GreenConnect network
a.
Ensure no other networks within the building are open before proceeding.
b.
Enter programming mode by pressing and holding the test button on the load controller
or the top paddle of the wall station until the LED blinks amber once, then release
(approximately seven seconds). The LED will begin blinking amber rapidly.
c.
Tap the test button or top paddle twice to create a new network and designate the device
as the network manager. The load will toggle ON and OFF twice and the LED will begin
to blink green slowly once the network has been created and is open for enrollment.
d.
Proceed to device enrollment.
3.
Enrolling devices to a GreenConnect network or GreenMAX DRC Wireless network
a.
Enter programming mode on the device.
b.
Tap the test button or top paddle once to enter enrollment mode. The LED will begin
blinking green slowly while searching for a network to join. Upon successful enrollment
into a GreenConnect network, the LED will blink green rapidly three times and all enrolled
devices will toggle their load ON and OFF twice.
Back View
c.
Battery-powered entry stations create a direct connection to the network manager or load
controller that opened the network.
d.
To enroll the device into a GreenMAX DRC network, use the GreenMAX DRC App to
scan the QR code and follow the instructions included with the GreenMAX DRC
room controller.
e.
While the network is open, the LED on all connected devices will blink green slowly.
Every 60 seconds the LED of the network manager will pause and blink red once for
each device enrolled in the network.
f.
If after 60 seconds the device does not find a network to join, the LED will blink red three
times and exit enrollment mode.
g.
To end enrollment and close the network, tap the test button or top paddle once on the
network manager. The LED will stop blinking green, blink red three times and all devices
will toggle their load ON and OFF.
h.
The network will automatically close if after 10 minutes no new devices have
been enrolled.
4.
Adding a device to an existing network
a.
Enter programming mode on any line voltage device within the network.
b.
Tap the test button or top paddle once to open the network. Battery-powered devices
cannot open a network
c.
Proceed to device enrollment.
5.
Resetting device
To remove a device from a network, press and hold the test button on the load controller, or
sensor, or top paddle of the wall station until the LED blinks amber twice (approximately 12
seconds) then release. The LED will blink red rapidly while the device leaves the network
and resets to factory default settings. If the device was a network manager, the network is
also deleted.
6.
Sensor settings
a.
Device settings are saved in the load controller managing the network.
b.
Default settings
i. Mode: Auto-ON/Auto-OFF
ii. Sensitivity: High
iii. Occupancy time-out: 15 minutes
iv. Partial Off: Disabled
v. Auto-ON level: 50%
vi. Photocell: Disabled
Specification
32°F - 104°F (0°C - 40°C)
Relative humidity (non-condensing): 10%-90%
14°F - 185°F (10° - 85°C)
CR2025 x2; 3 V
2.4 GHz
50 ft
IP20
DI-000-ZBK00-00A
ENGLISH
