Leviton powerswitch 6080A-NF Manual

powerswitch
®
WARNINGS:
• TO AVOID FIRE, SHOCK OR DEATH, disconnect all power supplies to enclosure before exposing interior. More than one supply disconnect may be required to
de-energize this equipment before servicing.
CAUTIONS:
• For installation only by an electrician in accordance with the National Electrical Code (NEC
• Separate over current protection must be provided in accordance with the NEC article 220 or CEC, Section B as appropriate.
• Use this device WITH COPPER OR COPPER-CLAD WIRE ONLY.
• Ensure that the rating marked on the device is correct for the intended installation.
• For Short Circuit Current Rating (SCCR) see instruction sheet that corresponds withdisconnect switch model or visit Leviton.com.
• The enclosure cover cannot be removed when the handle is in the "on" position.
• Always remove the switch from the enclosure when attaching or replacing all auxiliary contacts.
100A non-fused
disconnect switch
Cat. No. 100SW
Installation
WARNING: TO AVOID FIRE, SHOCK OR DEATH, disconnect all power supplies to
enclosure before exposing interior. More than one supply disconnect may be required to
de-energize this equipment before servicing.
1.
Open enclosure door.
LDS10 - Non-Metallic boxes
MDS10 - Metallic boxes
LDS10 - Boîtiers non métalliques
MDS10 - Boîtiers métalliques
LDS10 - Cajas No Metálicas
MDS10 - Cajas Metálicas
2.
Remove switch.
Keep screws for installing new switch.
3.
Loosen set screw, then transfer shaft to new switch per measurements shown below.
Set screw
Vis de fixation
Tornillo de fijación
Enclosure Type
LDS10 - Non-Metallic boxes
MDS10 - Metallic boxes
NOTE: Flag only used on switched installed inside LDS-10 non-metallic boxes.
4.
Install replacement switch.
NOTE: Match cross pin orientation to illustrations in step 1.
TRADEMARK DISCLAIMER: Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their respective
owners; such use is not meant to imply affiliation, sponsorship, or endorsement.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada ULC to the attention of the Quality Assurance Department, 165 Hymus
Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1-800-405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and
proper use for one year from the purchase date. Leviton's only obligation is to correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty
excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a
particular purpose, is limited to three years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,
lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.

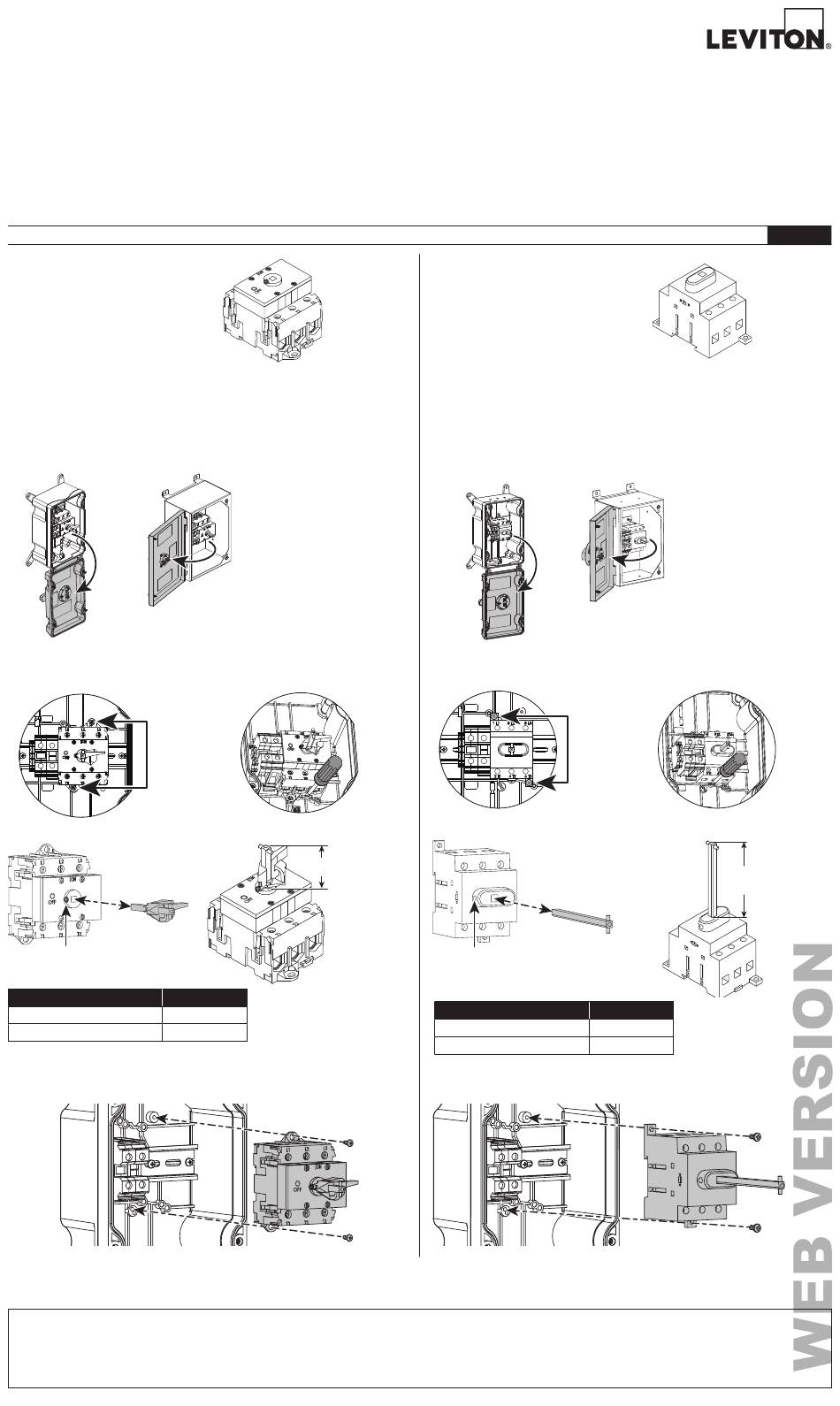

For 60, 80 and 100 Amp Non-Fused Metallic and Non-Metallic Disconnects
INSTALLATION INSTRUCTIONS
Pull up tension spring.
Distance
Distance
Distancia
Distance
1.085 in.
1.263 in.
LIMITED 3 YEAR WARRANTY AND EXCLUSIONS
For Technical Assistance Call: 1-800-824-3005 (USA Only) or 1-800-405-5320 (Canada Only) www.leviton.com

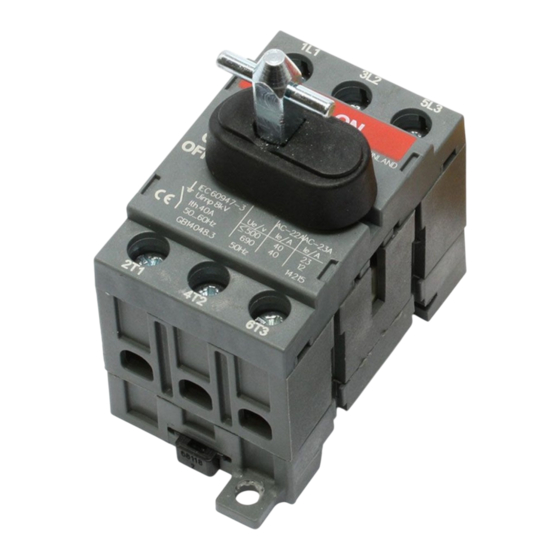

Replacement Switch
Cat. Nos. 6080A-NF, 100SW-NF
® ) or the Canadian Electrical Code (CEC
60/80A non-fused
disconnect switch
Cat. No. 6080A
Installation
WARNING: TO AVOID FIRE, SHOCK OR DEATH, disconnect all power supplies to
enclosure before exposing interior. More than one supply disconnect may be required to
de-energize this equipment before servicing.
1.
Open enclosure door.
LDS60 - Non-Metallic boxes
LDS60 - Boîtiers non métalliques
LDS60 - Cajas No Metálicas
2.
Remove switch.
Keep screws for installing new switch.
3.
Loosen set screw, then transfer shaft to new switch per measurements shown below.
Set screw
Vis de fixation
Tornillo de fijación
Enclosure Type
LDS60 - Non-Metallic boxes
MDS6/MDS8 - Metallic boxes
4.
Install replacement switch.
NOTE: Match cross pin orientation to illustrations in step 1.
® ) local codes.
MDS6/MDS8 - Metallic boxes
MDS8/MDS8 - Boîtiers métalliques
MDS6/MDS8 - Cajas Metálicas
Pull up tension spring.
Distance
Distance
Distancia
Distance
1.989 in.
1.334 in.
PK-A3268-10-02-4B
ENGLISH
