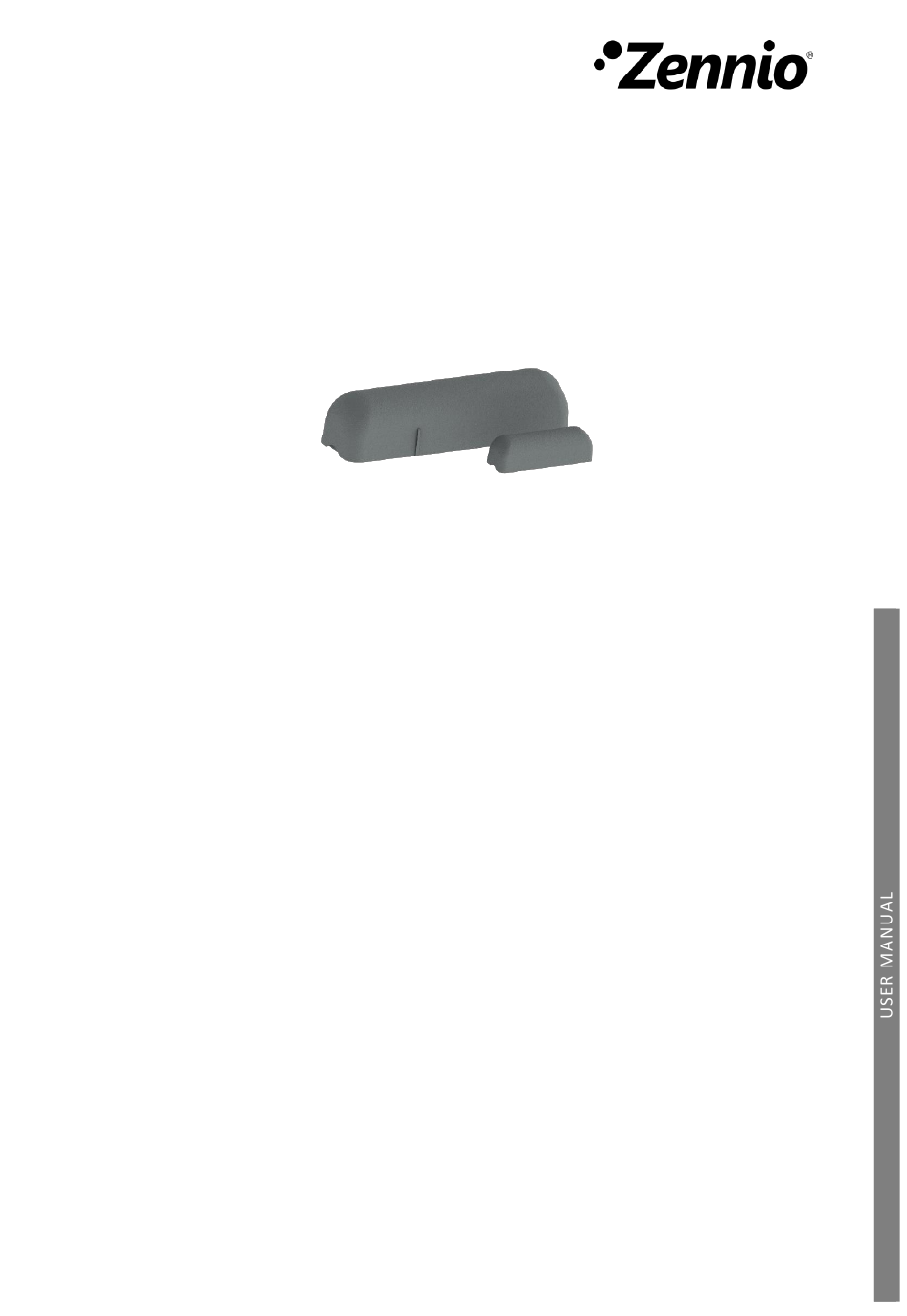

- Page 1 WinDoor RF v2 KNX-RF magnetic contact for door or window ZRFWDV2 Application program version: [1.0] User manual edition: [1.0]_a www.zennio.com...
-
Page 2: Table Of Contents
WinDoor RF v2 CONTENTS Contents ............................2 Introduction .......................... 3 WinDoor RF v2....................... 3 Device programming ..................... 3 Start-up and power loss ....................4 Battery replacement ..................... 4 Configuration......................... 5 General .......................... 5 ANNEX I. Communication objects ....................8 https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 3: Introduction
To do this WinDoor RF v2 must be in “active” state. As long as there are no open/close events, the WinDoor RF v2 remains in a low consumption idle state in which it does not respond to orders or reading requests, therefore, it is necessary to force it out of this idle state in order to perform the downloading. -
Page 4: Start-Up And Power Loss
After the first window/door closing. The first time the closed window/door contact is detected since the last reset, there will be several flashes of the programming LED. After this blinking, WinDoor RF v2 enters in active state. 1.3 START-UP AND POWER LOSS During the start-up of the device, the programming LED will blink. -
Page 5: Configuration
WinDoor RF v2 2 CONFIGURATION After importing the corresponding database in ETS and adding the device into the topology of the desired project, the configuration process begins by entering the parameters window of the device. 2.1 GENERAL In “General” tab all the functionality of the device will be configured, being its main function the sending of window/door state after each opening or closing. - Page 6 WinDoor RF v2 Note: higher transmission power increases the transmission distance of the WinDoor RF but also shortens battery life. Heartbeat (Periodic Alive Notification) [disabled / enabled]: incorporates a one-bit object to the project (“[Heartbeat] Object to Send ‘1’”) that will be sent periodically with a value of “1”...
- Page 7 WinDoor RF v2 ➢ Periodic Send (0 = Disabled) [0…24][h]: allows to configure a periodic sending in hours of the window/door status. / enabled]: enables the object “Alarm: Battery Alarm: Battery [disabled (Status)” through which a '1' is sent when the battery level is about to run out.
-
Page 8: Annex I. Communication Objects
0 = Closed; 1 = Open 1 Bit C - - T - DPT_Window_Door Window/Door (Status) 0 = Open; 1 = Closed; 1 Bit C - - T - DPT_Alarm Alarm: Battery (Status) 0 = No Alarm; 1 = Alarm https://www.zennio.com Technical Support: https://support.zennio.com... - Page 9 Join and send us your inquiries about Zennio devices: https://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo, Spain. Tel. +34 925 232 002. www.zennio.com info@zennio.com...
