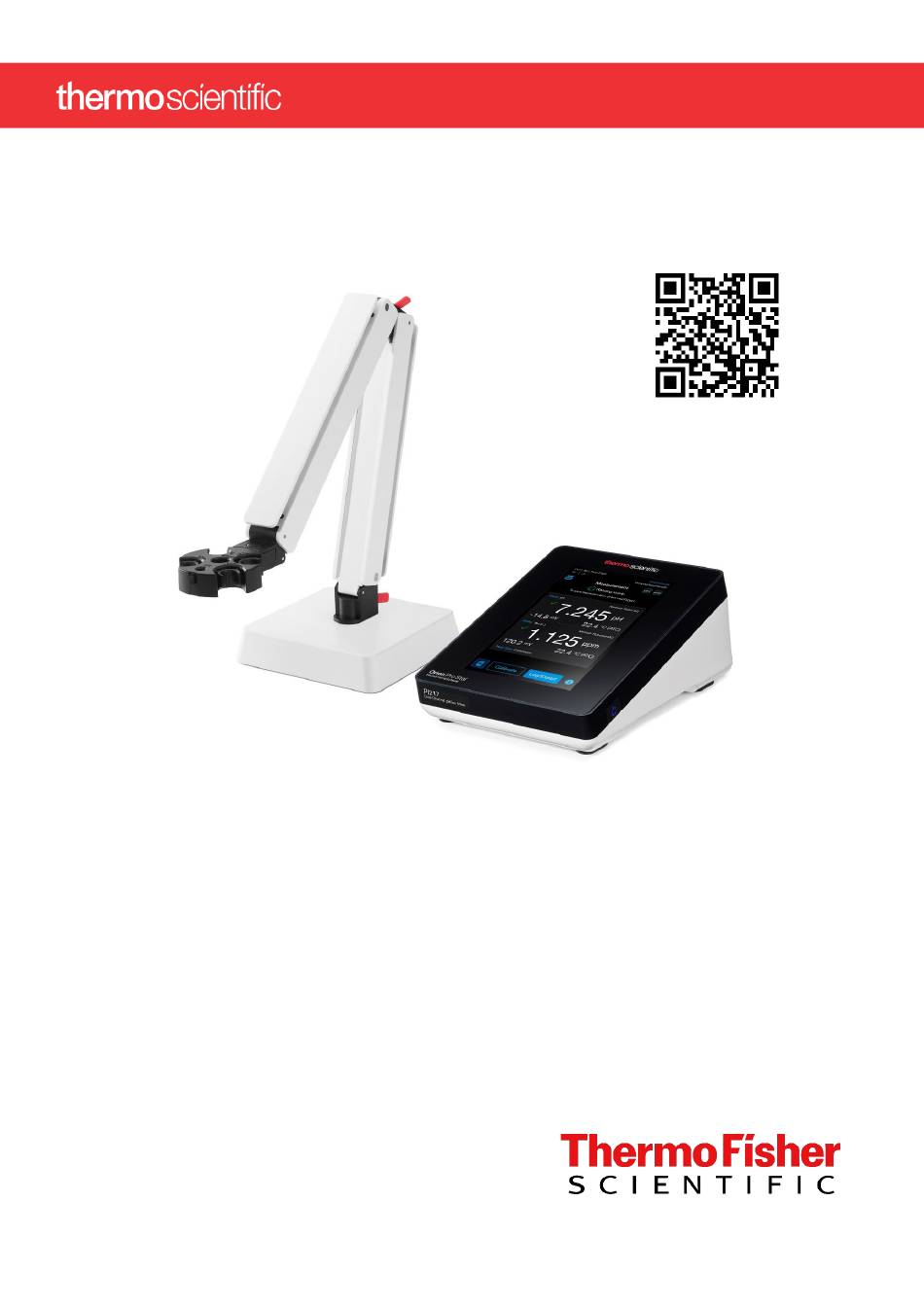

Operations Manual
Electrochemistry Meters
Update Meter Software to
Ensure Optimum Performance
www.thermofisher.com/orionsoftware
Orion Pro Star PI217 Dual
Channel pH/Ion Bench Meter
User Manual
68X002731 | Revision 01 | December 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Pro Star PI217 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermo Scientific Orion Pro Star PI217

Summary of Contents for Thermo Scientific Orion Pro Star PI217

  • Page 1 Operations Manual Electrochemistry Meters Update Meter Software to Ensure Optimum Performance www.thermofisher.com/orionsoftware Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter User Manual 68X002731 | Revision 01 | December 2024...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 ........................ 7 Introduction ....................7 1.1 Intended Use ..................8 1.1.1 Intended Use ....................8 1.1.2 Non-Intended Use ..................8 1.1.3 Safety ......................8 1.1.4 Power Connection ..................9 1.2 Cleaning Instructions (Meter Only) ............9 Chapter 2 ......................
  • Page 4 3.4 Data Logs ..................34 3.4.1 Filter the Data Log ..................35 3.4.2 View Individual Data Logs ................35 3.4.3 Export the Data Log ..................36 3.5 Calibration Logs ................37 3.5.1 Filter the Calibration Log ................37 3.5.2 View Individual Calibration Logs ..............38 3.5.3 Export the Calibration Log ................39 3.6 Methods ..................
  • Page 5 Chapter 4 ......................56 Calibration ....................56 4.1 pH Calibration ................. 56 4.1.1 pH Calibration Overview .................56 4.1.1.1 Determined pH Buffer Value ..............56 4.1.2 pH Calibration Procedure ................57 4.1.3 pH Value vs. Temperature ................58 4.2 ORP Calibration................60 4.2.1 ORP Calibration Overview ................60 4.2.1.1 Determined ORP Standard Value ..............60 4.2.2 ORP Calibration Procedure ................60 4.3 Ion Calibration .................
  • Page 6 Chapter 7 ......................78 Troubleshooting ..................78 7.1 Meter Troubleshooting ..............78 7.2 Measurement Troubleshooting ............79 7.3 Calibration Troubleshooting ............. 79 7.4 Technical Support ................80 Chapter 8 ......................81 Meter Info ....................81 8.1 Meter Specifications ................ 81 8.2 Meter Dimensions ................

  • Page 7: Chapter 1

    ™ Pro Star PI217 dual channel pH/ion bench meter. Orion Pro Star PI217 dual channel pH/ion bench meters are designed to provide accurate and reliable testing in laboratories that need a modern, easy-to-operate meter with advanced performance and reliable data reporting.

  • Page 8: Intended Use

    Secure a wide range of electrodes using the various electrode holder options. Neatly organize electrode cables in the built-in side channels of the stand. All Orion Pro Star PI217 meters include an electrode stand, USB flash drive, computer cable and universal 100-240V 50/60 Hz power adapter with wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China.

  • Page 9: Power Connection

    Wipe the display panel with a clean microfiber cloth, taking care to wipe lightly to avoid scratching the meter display. The meter housing can also be cleaned using a clean microfiber cloth dampened with IPA (isopropyl alcohol) for disinfection purposes. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 10: Chapter 2

    Chapter 2 Getting Started Refer to the 3.10 Information & Help section and Meter Tours to access onscreen tours that explain how to use important meter functions including meter connections, electrode stand assembly, pH electrode preparation, pH electrode storage and pH electrode cleaning. 2.1 Universal Power Supply Assembly A universal power adapter (catalog number PSTAR-PWR) with US/Japan, Euro, UK/Singapore, Australia/New Zealand and China wall plug plates is included with the meter.
  • Page 11 CAUTION: Use of a surge protector or uninterrupted power supply (UPS) is recommended, as an unintended power surge of electricity to the meter may damage the meter and void the warranty. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 12: Electrode Stand Installation

    2.2 Electrode Stand Installation The included electrode stand (catalog number PSTAR-ARM) facilitates secure, smooth movement of electrodes into and out of solutions. A weighted base provides flexible placement of the stand around the meter. Several electrode holder and clip options accommodate a wide range of electrode types. Built-in side channels allow electrode cables to be neatly organized inside the stand.
  • Page 13 15mm diameter. e. The 20° angled holder secures gas-sensing ion selective electrodes (ISEs) including the ammonia electrode, catalog number 9512BNWP and high performance ammonia electrode, catalog number 9512HPBNWP. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 14 The RDO clip holds optical dissolved oxygen electrodes. Attach the RDO clip to the holder head by sliding the clip down on top of the tab on the front of the holder head. Use the side channels built into the electrode arm to organize the electrode cables. Press the electrode cables into the 4 grips inside the arm channels to secure the cables in place.

  • Page 15: Meter Inputs

    • Connect 1 USB flash drive with a USB-A plug to the meter for data transfer. • Connect 1 USB accessory (barcode scanner, mouse or keypad) with USB-A plug to the meter for alphanumeric character entry into meter fields including sample ID. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 16: Back Panel Meter Inputs

    2.3.3 Back Panel Meter Inputs Most meter inputs are located on the back panel of the meter. Each input has a protective cap that protects the meter from dust and water intrusion. For maximum protection, keep the protective caps securely closed unless the input is in use. Power Input: Connect the power adapter, with twist-and-lock plug, to the meter.
  • Page 17 This meter input is only needed when using a reference half-cell electrode paired with a sensing half-cell electrode. o Lift the protective cap labeled Ref 2. o Insert the reference electrode plug fully into the meter input. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 18: Meter Startup Sequence

    2.4 Meter Startup Sequence When the meter is powered on, it displays a startup screen and proceeds to the main measure mode. The first time the meter is powered on, it launches the meter setup wizard. Follow the displayed steps to set critical meter and measurement settings.

  • Page 19: Touchscreen Functions

    2.5.1 Main Measure Mode Note: User-selectable information (i.e. instrument name) will only be shown on the measure mode display if it is entered in the settings menus. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 20 Connectivity Icons: Indicate connectivity status of USB devices and export device with the meter. Indicates a USB flash drive is connected and communicating with USB Flash Drive: the meter. Indicates a USB accessory (USB mouse, USB keyboard or USB USB Accessory: barcode scanner) is connected and communicating with the meter.

  • Page 21: Single Measure Mode View

    Graph (Single Channel View Only): Tap the blue Graph text to view the current measurement as a graph with temperature. • Select the Read Type to change how the graph tracks measurements over time. • Tap the Display Temperature button to show or hide temperature measurements. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 22: Basic Measure Mode View

    2.5.1.2 Basic Measure Mode View Refer to the 3.2.1 Instrument Settings section and Display settings and select Basic as the Custom Measure Layout to view a simplified version of the measure mode. The default meter setting is Advanced as the Custom Measure Layout and all user-selectable information (i.e. instrument name, sample ID, electrode ID, method) will only be shown when it is entered in the settings menus.

  • Page 23: Electrode Information

    2.6 Electrode Information The Orion Pro Star PI217 meter is compatible with two sets of a pH electrode, ORP (redox) electrode or ion selective electrode (ISE) with BNC connector; ATC temperature probe with 8-pin MiniDIN connector and reference half-cell electrode with pin-tip connector. The Orion Pro Star PI217 meter is available in a meter only configuration (purchase electrode separately) or in meter kits with electrodes and solutions included for different applications.

  • Page 24: Chapter 3

    Chapter 3 Main Menu 3.1 Main Menu Tap the Main Menu icon in the measure mode to access the Main Menu. • Settings: View and customize instrument and measurement settings. • Calibrate: Perform all calibration functions, including temperature and barometer calibrations. •...

  • Page 25: Settings

    • pH/Ion Channel 2 Settings: View and customize measurement settings for the pH, mV, ORP or ion concentration channel 2, including temperature, measure mode, sample ID, alarms, resolution, calibration points, electrode type, stability criteria, stirrer, electrode ID, isopotential value, slope type and slope guidance. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 26: Instrument Settings

    3.2.1 Instrument Settings Tap the Instrument Settings option in the Settings list to access the instrument settings. • Read Type: Set the Read Type as Continuous, Auto-Read or Timed to define how measurements are performed, saved and exported. If Timed is selected, set the time interval from 3 seconds (0:00:03) to 2 hours (2:00:00).
  • Page 27 Select All Data when exporting data to LIMS software. exported from the data log. Basic: Only critical data is exported from the data log including date, time,  primary reading and temperature. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 28 Intermediate: Moderate data is exported from the data log including basic data  plus log #, username, measure mode, secondary reading (if applicable) and short calibration log summary. Advanced: Significant data is exported from the data log including intermediate  data plus read type, read time, sample ID, method, electrode ID, full calibration log summary and instrument ID.

  • Page 29: Ph/Ion Settings

    Temperature Units: Set temperature units as °C (Celsius) or °F (Fahrenheit). o Alarm Settings: Set alarm settings for high and/or low temperature values and calibration due reminder as needed. o Temperature Input: Select the source of temperature readings from the list. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 30 Automatic: When ATC sensors are connected to the meter, all available sensors  are shown in the list. The meter will default to ATC sensor connected to the active channel and the ATC sensor from the other channel can be selected. Ambient: The meter’s built-in sensor is used to measure ambient air ...
  • Page 31 If Custom is selected, enter up to 5 values that are at least 1 decade Note: During an ion calibration, values can also be manually apart (i.e. 1.000 and 10.000). entered for each point. o 1.000, 10.00, 100.0, 1000, 10000 Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 32 o Custom: Up to 5 custom standard values • Stability Criteria: Select the Measurement Stability and Measurement Averaging functions. o Measurement Stability: Select Automatic, Fast, Medium or Slow Stability for measurements. The meter will use specific resolution criteria to determine the wait time before indicating measurements are stable.

  • Page 33: Calibrate

    Tap the Calibrate option in the Main Menu to access the complete list of calibrations available. The Orion Pro Star PI217 dual channel pH/ion bench meter is capable of performing: • 1 to 5 point pH calibration on channel 1 and channel 2 •...

  • Page 34: Data Logs

    3.4 Data Logs Tap the Data Logs option in the Main Menu to access the data logs. The meter’s data log will store up to 10000 data logs with time and date stamps. Each data log includes measurements from the active channels when the data log was saved as well as settings, measurement information and meter details.

  • Page 35: Filter The Data Log

    Tap a log on the list to view the individual data log details. You may need to scroll down to view all the included information. Tap the blue arrows to scroll up or down through the individual data logs. Tap the Export button to export the individual data log. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 36: Export The Data Log

    3.4.3 Export the Data Log Tap the Export button to export the data log to a USB flash drive, computer or printer. • Use the Instrument Settings / Data Transfer Settings to view and modify the Export Destination, Output Format, Baud Rate (when applicable) and Custom Data Log Export settings. Secure Mode Example Open Mode Example When in Secure Mode, if an Administrator or Level 1 user account is active, that account will have the...

  • Page 37: Calibration Logs

    3.5.1 Filter the Calibration Log From the parameter-specific calibration log list, filter the list (Secure Mode only), view individual calibration logs and export the calibration log. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 38: View Individual Calibration Logs

    Secure Mode Example Open Mode Example Tap the Filter By field to set parameters for Username (Secure Mode only) to filter the calibration log list. 3.5.2 View Individual Calibration Logs Tap a log on the list to view the individual calibration log details. You may need to scroll down to see all included information.

  • Page 39: Export The Calibration Log

    When in Secure Mode, if an Administrator or Level 1 user account is active, that account will have the option to delete the calibration log after it is exported. When the calibration log becomes full, it must be exported and then deleted before new calibration logs can be saved. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 40: Methods

    3.6 Methods Tap the Methods option in the Main Menu to access the methods list. Methods offer the option to save measurement settings to standardize analyses and SOPs. From the methods list, create new methods; load, view and edit existing methods; export existing methods to a USB flash drive and import methods from a USB flash drive.

  • Page 41: View And Load An Existing Method

    Tap the Delete button to delete the selected method. Confirm you want to delete the method by tapping the Delete button again. The meter will return to the methods list and the selected method will be removed. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 42: Incremental Techniques

    3.7 Incremental Techniques Tap the Incremental Techniques option in the Main Menu to access the incremental techniques list. From the incremental techniques list, create new incremental techniques; run, view and edit existing incremental techniques; export existing incremental techniques to a USB flash drive and import incremental techniques from a USB flash drive.
  • Page 43 The reaction ratio of the measured ion to the added standard ion must be entered. Two aliquots of sample are added to the standard, so the electrode slope is calculated Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 44: Incremental Technique Tips

    in addition to the sample concentration. DKS Recommendations The subtraction ability of the chosen standard concentration and standard volume must not exceed the concentration of the sample. The sample volume should be 100 mL. The concentration of the standard (in Molarity or Normality) should be 50 times the expected sample concentration when the reaction ratio is 1.

  • Page 45: Create A New Incremental Technique

    Start button to begin performing the incremental technique or tap the Edit button to make changes to the incremental technique. The new incremental technique will be added to the incremental techniques list. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 46 Parameters for Known Addition and Known Subtraction Analysis SKA DKA SKS DKS Technique Type: Type of incremental technique to be performed. • • • • Sample ID (optional): Identification for the sample to be measured. • • • • Electrode ID (optional): Identification for the electrode to be used. •...

  • Page 47: View And Run An Existing Incremental Technique

    Transfer Settings in the Instrument Settings menu. Tap the Repeat button to run the same incremental technique on a new sample or tap the Measure button to return to the measure mode. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 48: Delete An Existing Incremental Technique

    3.7.5 Delete an Existing Incremental Technique From the incremental technique list, tap the edit (pencil) icon to delete an existing incremental technique on the list. Tap the Delete button to delete the selected incremental technique. Confirm you want to delete the incremental technique by tapping the Delete button again. The meter will return to the incremental techniques list and the selected incremental technique will be removed.

  • Page 49: Secure Mode

    3 security questions for the first admin account. a. The password must contain at least 1 number, 1 uppercase letter, 1 lowercase letter, and 1 special character and must be 6-12 characters long. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 50: Create New Account (Admin Only)

    Tap the Save button. Login to the meter using the created username and password. Create new admin or user accounts, set the password expiration time, set the sleep mode in instrument settings and verify the date and time in instrument settings. 3.8.1.2 Create New Account (Admin Only) Create up to 2 additional admin accounts and up to 30 user accounts.

  • Page 51: Edit Existing Account (Admin Only)

    Tap the back arrow to return to the Secure Mode Parameters screen. 3.8.1.5 Set Password Expiration Time (Admin Only) Set the password expiration time to 1 month, 3 months, 6 months or 12 months. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 52: Deactivate Secure Mode (Admin Only)

    Tap the Secure Mode option in the Main Menu to access the secure mode list for admins. Tap the Secure Mode Parameters option. Expand the Password Expiration Time option and select the desired expiration period. Tap the Save button. 3.8.1.6 Deactivate Secure Mode (Admin Only) Deactivate the secure mode and revert the meter to open mode.

  • Page 53: Notifications

    Error notifications are triggered when there is a critical issue that needs immediate attention that the user must address before continuing to use the meter. Example: When the pH measurement is outside the acceptable range of -2 to 20 pH. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 54: Information & Help

    3.10 Information & Help Tap the Information & Help option in the Main Menu to access the meter information, user manual, meter tours, meter tests and troubleshooting guides, setup wizard, software updates and meter reset. • Meter Information: View the meter model, type, serial number and current software version. •...
  • Page 55 Note: If Secure Mode is enabled, not all options may be accessible to users in the Information & Help list, depending on each user’s meter permissions. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 56: Chapter 4

    Chapter 4 Calibration 4.1 pH Calibration Refer to the 3.10 Information & Help section and Meter Tours to access onscreen tours that explain how to use important meter functions including pH calibration. Refer to the 3.2.2 pH/Ion Settings section and Alarm Settings to use the Calibration Reminder Alarm to set a reminder if calibration is not performed within the selected time interval.

  • Page 57: Ph Calibration Procedure

    (4, 3, 2 or 1), only the Next button will appear for each calibration point until the set number of points is completed, at which point the Done button will appear. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 58: Ph Value Vs. Temperature

    4.1.3 pH Value vs. Temperature The following tables list theoretical values for pH buffers at various temperatures. Actual values shown on the meter may vary due to rounding deviations from the actual pH and temperature measurements. USA Buffer Set (Orion pH Buffers) Temp.
  • Page 59 9.120 4.135 6.945 9.080 4.150 6.940 9.040 4.165 6.940 9.000 4.180 6.940 8.960 4.200 6.940 8.920 4.220 6.940 8.880 4.245 6.940 8.840 4.270 6.940 8.800 4.295 6.940 8.760 4.320 6.940 8.720 Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 60: Orp Calibration

    4.2 ORP Calibration Refer to the 3.2.2 pH/Ion Settings section and Alarm Settings to use the Calibration Reminder Alarm to set a reminder if a calibration is not performed within the selected time interval. 4.2.1 ORP Calibration Overview The ORP calibration is a millivolt (mV) offset adjustment. Oxidation reduction potential (ORP) or redox is useful as a relative indicator of the oxidizing or reducing nature of a sample solution.
  • Page 61 This may be helpful if the electrode is responding more slowly than usual. Tap force stabilize text to accelerate the reading stability (may give less accurate calibration results). Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 62: Ion Calibration

    4.3 Ion Calibration Refer to the 3.2.2 pH/Ion Settings section and Alarm Settings to use the Calibration Reminder Alarm to set a reminder if a calibration is not performed within the selected time interval. 4.3.1 Ion Calibration Overview For best results, periodic calibration with known, accurate and fresh standards is recommended. Calibrate with ion concentration standards that bracket the expected sample concentration and are 1 decade (10 times) apart in concentration.

  • Page 63: Ion Calibration Procedure

    (4, 3, 2 or 1), only the Next button will appear for each calibration point until the set number of points is completed, at which point the Done button will appear. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 64: Temperature Calibration

    4.4 Temperature Calibration 4.4.1 Temperature Calibration Overview The thermistor sensor used for automatic temperature compensation (ATC) and measurements is both accurate and stable, so frequent calibration is not required. If desired, perform a temperature calibration to calibrate the ATC sensor when it is connected to the meter. A 1 to 2 point temperature offset calibration can be performed, up to ±5.0°C for each calibration point.

  • Page 65: Chapter 5

    3.10 Information & Help section and Meter Tours to access onscreen tours that explain how to use important meter functions including measurements. The Orion Pro Star PI217 meter offers 2 measurement channels, capable of measuring the following parameters: • Channel 1 (pH1): pH, mV, ORP or ion concentration with temperature •...
  • Page 66 Change the Measurement Mode Tap the blue Mode text to change the measurement mode for each channel. Set the mode for the pH/Ion Channel 1 to pH, mV, ORP or ion concentration. Set the mode for the pH/Ion Channel 2 to pH, mV, ORP or ion concentration.

  • Page 67: Measure Mode Read Types

    • Tap the Stirrer button to turn the Orion stirrer probes on and off. Continuous, Reading Stabilizing Continuous, Reading Stable Auto-Read Read Type When Auto-Read is selected as the read type: Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 68 • Tap the Measure button to start a measurement. • When the measurement is stable, the stable icon is shown and the measurement is locked on the display until the Measure button is tapped again. • The stable measurement is automatically saved to the data log and exported to an external device according to the Data Transfer Settings in the 3.2.1 Instrument Settings section.

  • Page 69: Sample Id

    Select the Apply ID to Multiple Readings option to use the same sample ID for subsequent readings and stop the Sample ID entry field from appearing. o Timed Read Type: Sample ID entry field will appear when the Start button is tapped and Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 70: Stirrer Button

    each time interval is reached (3 seconds to 2 hours). Select the Apply ID to Multiple Readings option to use the same sample ID for subsequent readings and stop the Sample ID entry field from appearing. • Off: No sample ID is shown for measurements, logs or exported records. In the measure mode, when sample ID is set to auto-incremental or manual, the sample ID can also be entered by tapping the blue Sample ID...

  • Page 71: General Measurement Procedure

    Record the displayed measurements as required. Remove the electrode from the sample. Repeat steps 1-5 for all samples. When all samples have been measured, store the electrode according to the instructions in the electrode manual. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 72: Data Viewing

    5.3 Data Viewing Data Log When saving measurements to the meter data log, refer to the 3.4 Data Logs section for detailed information and instructions on viewing and exporting the meter’s data log. Save up to 10000 data logs in the meter’s non-volatile memory. Each data log is saved with its associated date and time stamp.

  • Page 73: Chapter 6

    Select the “All Data” option when exporting data to LIMS software. • Custom Calibration Log Export: Select the amount of information to be exported from the calibration log. Select the “All Data” option when exporting data to LIMS software. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 74: Connect The External Device

    6.1.2 Connect the External Device USB Flash Drive For data transfer using a USB flash drive: • Power on the meter. • Insert a USB flash drive with USB-A plug into the USB meter input. Computer For data transfer using a computer: •...

  • Page 75: Verify The Data Destination

    • Empty commands (i.e. just a <CR>) will be ignored and a new prompt will be issued. • <CR> (Carriage Return, ASCII 13) is used to terminate a command. Whenever this character is received, the internal buffer will be processed. • Remote commands are not case sensitive. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 76 Remote Commands List Remote Command Action Example Command PGETMEAS <CR> Prints the current measurement immediately Prints the current measurement for a set number of PGETMEAS Data times PGETMEAS 2 Count <CR> Data Count = 1, 2, 3, etc. Prints all current calibration data GETCAL <CR>...

  • Page 77: Meter Software Update Procedure

    Wait while the meter software is updating. Do not remove the USB flash drive while the meter software is updating. Once the meter software update is complete, follow any onscreen prompts. The meter will restart and then the software update process is complete. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 78: Chapter 7

    Chapter 7 Troubleshooting 7.1 Meter Troubleshooting Meter display not powering on: • Use a surge protector or uninterrupted power supply (UPS) so an unintended power surge of electricity does not damage the meter or meter power supply. • Check that the wall outlet is functional. •...

  • Page 79: Measurement Troubleshooting

    • Ensure the calibration solutions are at the same temperature as the samples you are measuring. Temperature variations can affect readings. • Rinse the electrode with distilled or deionized water before and after immersing it in each calibration solution. This prevents contamination and ensures accurate readings. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 80: Technical Support

    • Stir the calibration solutions gently to ensure uniformity but avoid creating air bubbles, which can affect the reading. • Enable automatic temperature compensation (ATC) during calibration or manually adjust the value of each buffer or standard based on the buffer/standard versus temperature charts. •...

  • Page 81: Chapter 8

    Relative accuracy ± 0.2 mV or ±0.05 % of the reading, whichever is greater Calibration points 1 point Calibration ORP or E method Calibration offset ±250 mV Range 0.0001 to 19999 Resolution 0.0001 minimum, 1 to 5 digits Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 82 Relative accuracy ± 0.2 mV or ±0.05 % of the reading, whichever is greater Units ppt, ppm, ppb, mg/L, M, mM, %, none or user-defined Calibration points 1 to 5 points Calibration Automatic standard recognition, manual entry option method Calibration 1.000, 10.00, 100.0, 1000;...
  • Page 83 1 USB-A port for USB flash drive; 1 export port for computer or Orion ink printer Accessory input 1 USB-A port for USB mouse, USB keyboard or USB barcode scanner Memory Non-volatile, to preserve data and settings in case of power loss Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 84 Chinese, English, French, German, Italian, Japanese, Korean, Portuguese or Display languages Spanish Meter warranty 2 years Certifications CE, TUV 3-1, FCC Class A Enclosure IP-54 Power 100-240 VAC, 50-60Hz, 9 DC adapter, 2.0A Dimensions 218.9 mm x 153.2 mm x 91.62 mm, 8.62” x 6.03” x 3.61” (L x W x H) Weight 1.00 kg, 2.20 lbs.

  • Page 85: Meter Dimensions

    The warranty on your meter shall not apply to defects resulting from: • Improper or inadequate maintenance by customer • Unauthorized modification or misuse • Operation outside of the environment specifications of the products Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 86: Return Of Items

    8.3.1 Return of Items Authorization must be obtained from our Technical Support Team or authorized distributor before returning items for any reason. Please include data regarding the reason the items are to be returned. For your protection, items must be carefully packed to prevent damage in shipment and insured against damage or loss.

  • Page 87: Chapter 9

    9.3 Electromagnetic Compatibility The meter requires special precautions regarding electromagnetic compatibility (EMC) and needs to be installed and put into service according to the EMC information provided in this instruction manual. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 88: Fcc Statement (Usa)

    Recommendations for actions to ensure the product remains safe regarding electromagnetic disturbances: Do not modify the product beyond the intended user-adjustable settings. It is important to use only accessories as supplied or recommended by Thermo Fisher Scientific. The equipment should be visually inspected regularly for damaged cables and connectors. Damaged cables should be replaced.

  • Page 89: Environmental Compliance

    EN 63000:2018. This confirms that any potential trace contamination levels of the substances listed above are below the maximum level set by the latest regulations or are exempt due to their application. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 90: Weee Compliance

    Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito http://www.thermofisher.com.

  • Page 91: Proper Product Disposal

    Safety Data Sheets (SDS), or regulations applicable to your country and region. • This product has materials and components that may be recycled or reused according to local guidelines and regulations. • Clean up any chemical safety hazards using appropriate methods. Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...

  • Page 92: Chapter 10

    1000 ppm standard; ammonia ISA; ammonia electrode storage solution Orion Pro Star PI217 dual channel pH/ion bench meter pH and fluoride kit; includes meter with stand (PSTAR2170); ROSS Ultra Triode refillable epoxy-body pH/ATC electrode (8157BNUMD); fluoride ion selective electrode (9609BNWP); stirrer probe (096019-WA);...

  • Page 93: Electrode And Solution Ordering Info

    Micro ATC temperature probe with stainless steel tip 928007MD ORP/ATC Triode single junction epoxy-body refillable electrode 9180BNMD ORP Sure-Flow combination single junction epoxy-body refillable electrode 9678BNWP Ammonia combination ion selective electrode 9512BNWP Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 94 Description Catalog Number Ammonia high-performance combination ion selective electrode 9512BNWP Chloride Ionplus Sure-Flow combination ion selective electrode 9617BNWP Fluoride Ionplus Sure-Flow combination ion selective electrode 9609BNWP Sodium ROSS Sure-Flow combination ion selective electrode 8611BNWP Standard All-in-One pH buffer kit: 475 mL each pH 4.01, 7.00 and 10.01 buffers 910199 and pH electrode storage solution ROSS All-in-One pH buffer kit: 475 mL each pH 4.01, 7.00 and 10.01 buffers...
  • Page 95 User Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter...
  • Page 96 Orion Pro Star PI217 Dual Channel pH/Ion Bench Meter Scientists have trusted Thermo Scientific Orion Lab Products for over 60 years to provide them with accurate and reliable analytical testing instruments in the lab and in the field. Since 1962, Thermo Scientific Orion products have set the standard for quality in electrochemistry.
