Allen + Roth 1227VA-60-242-905 Assembly Instructions Manual
60-in vanity with top, sl cntby lt gry 60-in vty tzo top, sl cntby lt gry 60-in vty eng top, sl cntby lt gry 60-in vty wht top, sl cntby lt gry 60-in vty mbl top, sl cntby wht 60-in vty wht top, sl cntby wht 60-in vty eng top, sl cntby wht 60-in vty tzo t
Table of Contents
Advertisement
Quick Links
welcoming
MODEL NUMBER
1227VA-60-242-905
1227VA-60-242-903
1227VA-60-242-901
1227VA-60-242-900
1227VA-60-201-905
1227VA-60-201-903
1227VA-60-201-901
1227VA-60-201-900
60-IN VANITY WITH TOP
ITEM # 1028419; 864278; 864276; 864277; 1028420; 864282; 864279; 864281
MODEL # 1227VA-60-242-905; 1227VA-60-242-903; 1227VA-60-242-901; 1227VA-60-242-900;
1227VA-60-201-905; 1227VA-60-201-903; 1227VA-60-201-901; 1227VA-60-201-900
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
DESCRIPTION
SL CNTBY LT GRY 60-IN VTY TZO TOP
SL CNTBY LT GRY 60-IN VTY ENG TOP
SL CNTBY LT GRY 60-IN VTY WHT TOP
SL CNTBY LT GRY 60-IN VTY MBL TOP
SL CNTBY WHT 60-IN VTY TZO TOP
SL CNTBY WHT 60-IN VTY ENG TOP
SL CNTBY WHT 60-IN VTY WHT TOP
SL CNTBY WHT 60-IN VTY MBL TOP
1
•
inspiring
Advertisement
Table of Contents
Related Manuals for Allen + Roth 1227VA-60-242-905
Summary of Contents for Allen + Roth 1227VA-60-242-905

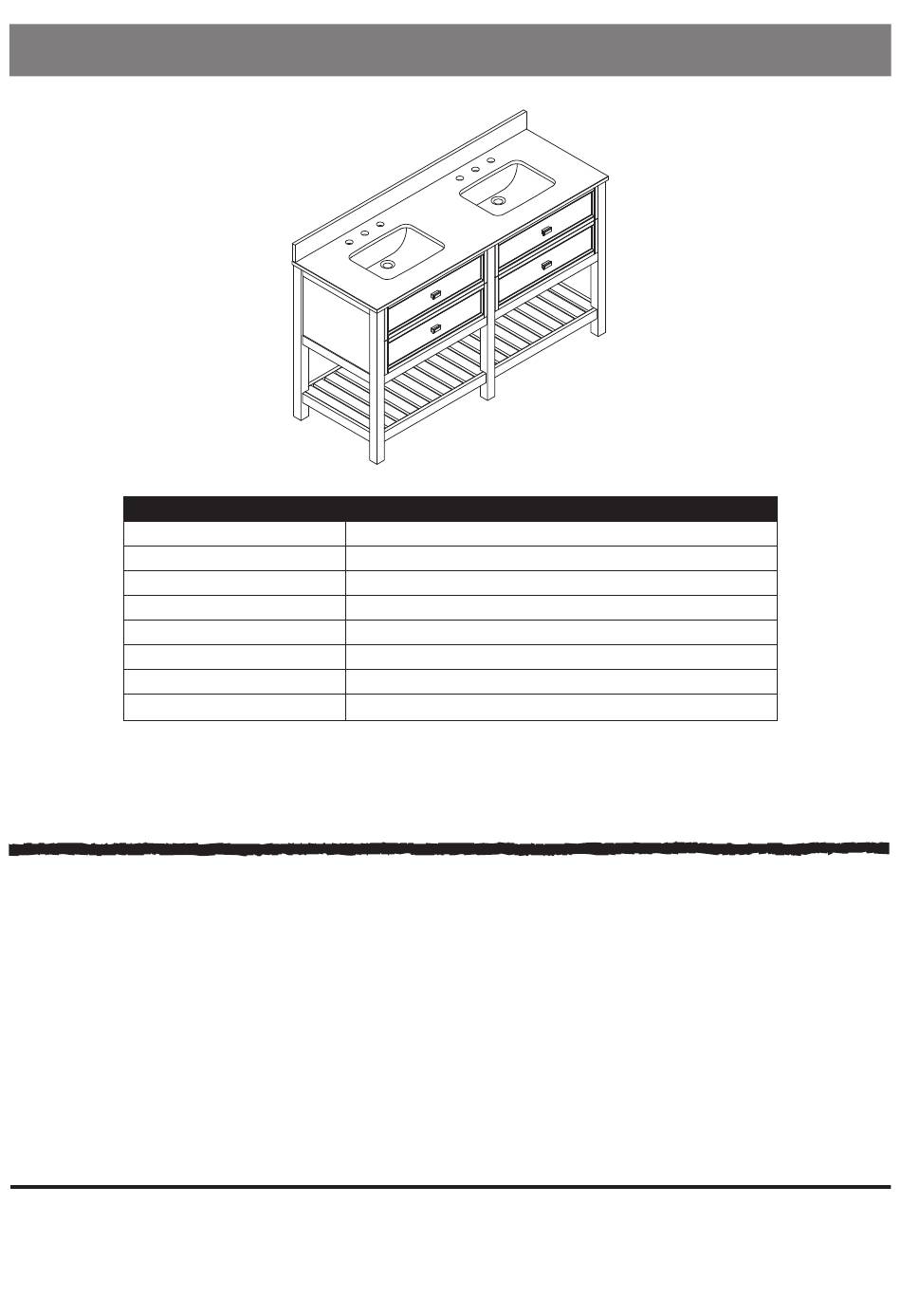

- Page 1 1227VA-60-201-900 SL CNTBY WHT 60-IN VTY MBL TOP 60-IN VANITY WITH TOP ITEM # 1028419; 864278; 864276; 864277; 1028420; 864282; 864279; 864281 MODEL # 1227VA-60-242-905; 1227VA-60-242-903; 1227VA-60-242-901; 1227VA-60-242-900; 1227VA-60-201-905; 1227VA-60-201-903; 1227VA-60-201-901; 1227VA-60-201-900 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-439-9800, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Information..........................3 Preparation............................4 Assembly or Installation Instructions ....................4 Care and Maintenance........................9 Warranty............................9 Replacement Parts List........................10... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Top Drawer (preassembled to Vanity(A)) Box 2 of 3 Bottom Drawer (preassembled to Vanity(A)) HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen Allen Wrench Bolt... -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS... - Page 5 INSTALLATION INSTRUCTIONS 3. Using hardware appropriate for your wall type (not included), secure Vanity Cabinet (A) to two wall studs anywhere through the Vanity Mounting Plates. Be careful not to disturb any electrical or water lines that may be concealed in the wall. P l a i n g u n t...
- Page 6 INSTALLATION INSTRUCTIONS 5. Apply silicone caulk (not included) to the top edge of sink (D). With the help of another adult, lower the sink onto the back side of the stone top. Make sure the sink over-flow hole is facing the front of stone top.
- Page 7 INSTALLATION INSTRUCTIONS 7. Lower the sink brackets (LL) over the bolts (KK) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (NN) over bolts (KK) and secure with nuts (MM). Hand tighten nuts (MM) with included wrench (OO).
- Page 8 INSTALLATION INSTRUCTIONS 9. To re-install top drawer (E) and bottom drawer (F). Fully extend lower drawer glide tracks. With the help of another adult, hold the extended glide in one hand and the drawer in the other. Gently place the back of the drawer box into the metal hook located on the back of the drawer track.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 10: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1227VA-60-201 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Complete Set 60" Carrara Marble Top 2550VT-60-900 Complete Set 60" Engineered White Top 2550VT-60-901 Complete Set 60"... - Page 11 REPLACEMENT PARTS LIST FOR 1227VA-60-242 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Complete Set 60" Carrara Marble Top 2550VT-60-900 Complete Set 60" Engineered White Top 2550VT-60-901 Complete Set 60"...
