Allen + Roth SUMTER 21-B461H-BN-AR Manual
Available languages
Frequently Asked Questions (15)
-
What should I do if parts are missing from my Allen + Roth SUMTER 21-B461H-BN-AR package?
If any part is missing or damaged from your Allen + Roth SUMTER 21-B461H-BN-AR package, you should not attempt to assemble the product and instead contact customer service for replacement parts.
For more information, see page 3 of the manual. -
Why is my Allen + Roth SUMTER 21-B461H-BN-AR faucet leaking underneath the handle?
If your Allen + Roth SUMTER 21-B461H-BN-AR faucet is leaking underneath the handle, the bonnet may have come loose or the O-ring on the cartridge might be dirty or twisted. To resolve this, first move the handle to the OFF position, unscrew and remove the handle. Then, tighten the bonnet by turning it clockwise. If the leak stops, reinstall the handle. If not, shut off the water supply, remove the bonnet, and inspect the O-rings on the cartridge bonnet and stem for debris or twisting. Clean or straighten them. If damaged, replace the cartridge. Position the cartridge back into the faucet body, ensuring ridges fit into grooves, and tightly screw the bonnet, then reinstall the handle.
For more information, see page 6 of the manual. -
What should I do if my Allen + Roth SUMTER 21-B461H-BN-AR faucet does not completely shut off?
If your Allen + Roth SUMTER 21-B461H-BN-AR faucet does not completely shut off, the rubber valve seat may be dirty, stuck, or broken. To fix this, first shut off the water supply. Remove the handle and loosen the bonnet, then lift out the cartridge assembly. Inspect the rubber valve seat for debris or brass scrap and remove it. If the seat is stuck, gently push it to move smoothly. Ensure the spring is placed back underneath. If the rubber valve seat is worn out or broken, replace the cartridge. Finally, position the cartridge back into the faucet body, making sure the ridges fit into the grooves, tightly screw the bonnet, and reinstall the handle.
For more information, see page 6 of the manual. -
How do I connect the water supply lines to the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
To connect the water supply lines for the Allen + Roth SUMTER 21-B461H-BN-AR faucet, attach the end of each integrated supply line (8.1) from the faucet body (A) to the hot and cold water supply valves (8.2) under the sink, ensuring the supply valves are clear of debris. Thread the nut on the end of the integrated supply line (8.1) onto the outlet of the water supply valve (8.2) and tighten with a wrench. Do not overtighten. A watertight seal is achieved by compression, so do not use PTFE pipe tape, plumber's putty, pipe dope, or any other type of sealing compound on the water inlets or threads.
For more information, see page 5 of the manual. -
What parts are included with the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
The package contents for the Allen + Roth SUMTER 21-B461H-BN-AR include one faucet body, one push pop-up drain assembly, one Allen wrench, one deckplate, and one gasket. The hardware contents include one washer, one mounting nut, and one wrench.
For more information, see page 2 of the manual. -
How do I prepare my sink for installing the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
To prepare your sink for installing the Allen + Roth SUMTER 21-B461H-BN-AR faucet, first shut off the water at the supply valves under the sink or at the main water supply. Then, disconnect the supply lines and remove the existing faucet from the sink. Finally, clean and dry the surface area where the new faucet will be mounted.
For more information, see page 4 of the manual. -
What should I do after installing the Allen + Roth SUMTER 21-B461H-BN-AR faucet to check for leaks?
After installing the Allen + Roth SUMTER 21-B461H-BN-AR faucet, turn on the water supply and adjust the handle (9.1) on the faucet body (A) to the warm position. Allow the water to run for at least one minute to flush away any debris. While the water is running, check for leaks; if leaks occur, gently tighten the nut on the connection that is leaking. Then, fill the sink with water to check the drain for leaks. If water is leaking from the drain, tighten the nut on the drain assembly. Finally, turn off the water and empty the sink.
For more information, see page 5 of the manual. -
How do I install the drain assembly for the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
To install the drain assembly for the Allen + Roth SUMTER 21-B461H-BN-AR faucet, first insert the drain assembly (B) into the drain hole in the sink, ensuring the top gasket (6.2) rests securely between the top of the sink and the top of the drain assembly (B). From underneath the sink, screw the bottom gasket (7.1) and mounting nut (7.2) onto the drain assembly (B) by twisting until secure against the bottom of the sink. Remember to reconnect the drain body to the P-Trap drain assembly before testing the faucet.
For more information, see page 5 of the manual. -
How do I install the Allen + Roth SUMTER 21-B461H-BN-AR faucet with a deckplate?
For installation with a deckplate, apply a thin bead of silicone to the gasket (E). Place the gasket (E) and deckplate (D) over the mounting holes in the sink, aligning the center hole. Then, insert the water supply inlets and mounting bolt on the faucet body (A) through the hole in the deckplate (D) and the mounting hole in the sink until the faucet sits on top of the deckplate (D).
For more information, see page 4 of the manual. -
How do I secure the Allen + Roth SUMTER 21-B461H-BN-AR faucet body to the sink?
From underneath the sink, secure the faucet body (A) to the sink using the metal washer (AA) and lock nut (BB). You should then tighten the lock nut (BB) with the wrench (CC) provided.
For more information, see page 4 of the manual. -
What tools are required for installing the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
For installing the Allen + Roth SUMTER 21-B461H-BN-AR faucet, you will need an adjustable wrench, slip joint pliers, a pipe wrench, a Phillips screwdriver, and silicone. These tools are not included with the product.
For more information, see page 3 of the manual. -
How should I clean my Allen + Roth SUMTER 21-B461H-BN-AR faucet?
You should clean your Allen + Roth SUMTER 21-B461H-BN-AR faucet periodically with a soft cloth. It is important to avoid abrasive cleaners, steel wool, and harsh chemicals as these can dull the finish and void your warranty.
For more information, see page 6 of the manual. -
Is the Allen + Roth SUMTER 21-B461H-BN-AR faucet lead-free?
The Allen + Roth SUMTER 21-B461H-BN-AR faucet is manufactured to include no more than 0.25% weighted average lead content on wetted surfaces.
-
How long does it take to assemble the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
The estimated assembly time for the Allen + Roth SUMTER 21-B461H-BN-AR faucet is 30 minutes.
-
What is the maximum flow rate of the Allen + Roth SUMTER 21-B461H-BN-AR faucet?
The Allen + Roth SUMTER 21-B461H-BN-AR faucet has a maximum flow rate of 1.2 GPM (4.54 LPM) at 60 PSI.
Related Manuals for Allen + Roth SUMTER 21-B461H-BN-AR
Summary of Contents for Allen + Roth SUMTER 21-B461H-BN-AR

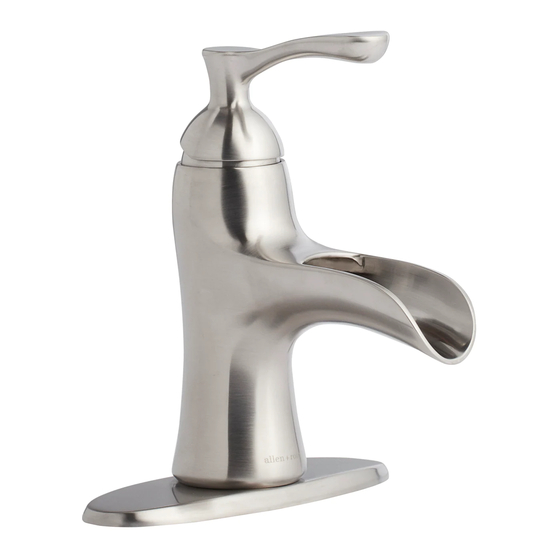

- Page 1 ITEM # 2596143, 2596144 SINGLE HANDLE BATHROOM FAUCET ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. MODELS 21-B461H-BN-AR, 21-B461H-ORB-AR, 21-B461H-CP-AR SUMTER Español p. 9 ATTACH YOUR RECEIPT HERE Serial Number ___________________________ Purchase Date ___________________________ Questions, problems, missing parts? Before returning to the store, call our customer service department at 1-866-439-9800, 8 a.m.
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Faucet body Deckplate Push pop-up drain assembly Gasket Allen wrench Due to constant design and quality improvements, the product inside may look slightly different from the picture. HARDWARE CONTENTS (not shown actual size) Washer Mounting nut Wrench... -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. CAUTION • If you solder the joints during installation of the faucet, the seats, cartridges, and washers must be removed before using a flame or the warranty will be voided on these parts. •... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Shut off the water at the supply valves under the sink or at the main water supply. Disconnect the supply lines. Remove the existing faucet from the sink. Clean and dry the surface area where the new faucet will be mounted. To install with the optional deckplate for a 3-hole sink, skip to Step 3. - Page 5 INSTALLATION INSTRUCTIONS (continued) Insert the drain assembly (B) into the drain hole in the sink (6.1). Ensure the top gasket (6.2) rests securely between the top of the sink and the top of the drain assembly (B). From underneath the sink, screw the bottom gasket (7.1) and mounting nut (7.2) onto the drain assembly (B) by twisting until secure against the bottom of the sink.
-
Page 6: Care And Cleaning
CARE AND CLEANING Clean periodically with a soft cloth. Avoid abrasive cleaners, steel wool, and harsh chemicals as these will dull the finish and void your warranty. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Faucet leaks underneath Bonnet has come loose or O-ring on cartridge 1. -
Page 7: Replacement Parts
ROUGH-IN 5-5/8" 6-3/8" 4-1/2" 7-1/2" 2-5/8" 2-3/8" MAX. 2-1/2" REPLACEMENT PARTS For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # PART # PART # 21-B461H-BN-AR 21-B461H-ORB-AR 21-B461H-CP-AR Handle RP13211BN RP13211ORB... -
Page 8: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The distributor warrants to the original consumer purchaser this product to be free from defects in material and workmanship under normal use in residential applications. At its option, the Company will provide repair parts or replace defective product when the product is used in accordance with the manufacturer’s specifications. - Page 9 ARTÍCULO # 2596143, 2596144 GRIFO PARA BAÑO DE UNA SOLA MANIJA ALLEN + ROTH y el diseño del logo son marcas comerciales o marcas registradas de LF, LLC. MODELOS 21-B461H-BN-AR, Todos los derechos reservados. 21-B461H-ORB-AR, 21-B461H-CP-AR SUMTER NSF/ANSI 61 CUMPLE...
-
Page 10: Contenido Del Paquete
CONTENIDO DEL PAQUETE PARTE DESCRIPCIÓN CANTIDAD PARTE DESCRIPCIÓN CANTIDAD Cuerpo del grifo Placa Ensamble desagüe Junta emergente a presión Llave Allen Debido a las constantes mejoras de diseño y calidad, es posible que el producto en el interior se vea ligeramente diferente de la imagen. ADITAMENTOS (no se muestran en tamaño real) Arandela Tuerca... -
Page 11: Información De Seguridad
INFORMACIÓN DE SEGURIDAD Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto. PRECAUCIÓN • Si suelda las juntas durante la instalación del grifo, se deben retirar los asientos, los cartuchos y las arandelas antes de usar la llama. De lo contrario, se anulará la garantía de dichas piezas. •... -
Page 12: Instrucciones De Instalación
INSTRUCCIONES DE INSTALACIÓN Cierre el agua en las válvulas de suministro debajo del fregadero o el suministro de agua principal. Desconecte las líneas de entrada. Retire el grifo existente del lavamanos. Limpie y seque el área superficial donde se colocará el nuevo grifo. Para instalar con la placa de cubierta opcional para un lavamanos de 3 orificios, diríjase al paso 3. - Page 13 INSTRUCCIONES DE INSTALACIÓN (Continuación) Inserte el ensamble del desagüe (B) en el orificio del desagüe en el lavamanos (6.1). Asegúrese de que la empaquetadura superior (6.2) se asiente de manera segura entre la parte superior del lavamanos y la parte superior del ensamble del desagüe (B).
-
Page 14: Cuidado Y Limpieza
CUIDADO Y LIMPIEZA Limpie periódicamente con un paño suave. Evite utilizar limpiadores abrasivos, lana de acero y químicos agresivos, ya que pueden dañar el acabado y anular su garantía. SOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA POSIBLE SOLUCIÓN El grifo gotea debajo de El casquete se ha soltado o la junta de anillo 1. -
Page 15: Piezas De Repuesto
PACKAGE CONTENTS DIBUJO DE INSTALACIÓN 5-5/8" 6-3/8" 4-1/2" 7-1/2" 2-5/8" 2-3/8" MAX. 2-1/2" PIEZAS DE REPUESTO Para piezas de repuesto, llame a nuestro departamento de servicio al cliente al 1-866-439-9800, de 8 a.m. a 8 p.m., EST, de lunes a domingo. PIEZA DESCRIPCIÓN Nº... -
Page 16: Garantía Limitada De Por Vida
GARANTÍA LIMITADA DE POR VIDA El distribuidor garantiza al comprador/consumidor original que este producto está libre de defectos en cuanto a los materiales y la mano de obra en condiciones de uso normales en aplicaciones residenciales. A su elección, la Compañía proporcionará piezas de repuesto o reemplazará...
Need help?
Do you have a question about the SUMTER 21-B461H-BN-AR and is the answer not in the manual?
Questions and answers
I tried to tighten down the cartridge but water is still getting by.
To fix a leaking Allen + Roth SUMTER 21-B461H-BN-AR cartridge:
1. Move the handle to the OFF position.
2. Unscrew the handle screw and remove the handle.
3. Tighten the bonnet by turning it clockwise.
4. Move the cartridge stem to the ON position and check if the leak stops.
5. If the leak continues, turn off the water supply.
6. Unscrew the bonnet counterclockwise and remove the cartridge.
7. Inspect the larger O-ring on the cartridge bonnet and the smaller O-ring on the cartridge stem.
8. Remove any debris and straighten any twisted O-rings.
9. If O-rings are damaged, replace the cartridge by calling customer service at 1-866-439-9800.
These steps should stop the leak.
This answer is automatically generated
My sumter faucet is leaking water from under the handle. I think I need to replace the cartridge.
To replace the cartridge in an Allen + Roth Sumter 21-B461H-BN-AR faucet that is leaking water from under the handle, follow these steps:
1. Turn Off the Water Supply – Move the handle to the OFF position.
2. Remove the Handle – Unscrew the set screw and detach the handle.
3. Inspect and Tighten the Bonnet – If the bonnet is loose, tighten it by turning it clockwise. Check if the leak stops.
4. Remove the Cartridge – If the leak persists, turn off the water supply completely. Unscrew the bonnet counterclockwise and lift out the cartridge.
5. Inspect the O-Rings – Check the large O-ring on the cartridge bonnet and the small O-ring on the cartridge stem. Remove debris, straighten twisted O-rings, or replace them if damaged.
6. Replace the Cartridge – If the cartridge is worn or damaged, replace it with part RP20090.
7. Reassemble the Faucet – Place the new cartridge into the faucet body, ensuring its ridges align with the grooves. Screw the bonnet tightly.
8. Reinstall the Handle – Secure the handle with the set screw.
9. Turn On the Water Supply – Test the faucet to ensure the leak is resolved.
For replacement parts, contact customer service.
This answer is automatically generated
