Frequently Asked Questions (14)
-
How do I begin the installation of the Allen + Roth 67693W-614408 faucet?
To begin installation, first shut off the water supply and remove the old faucet. Then, clean the mounting surface and place the faucet (A) through the mounting holes in the sink.
For more information, see page 3 of the manual. -
How should I flush the water lines and check for leaks after installing the Allen + Roth 67693W-614408 faucet?
After installation, remove the aerator (1) from the faucet with a coin to flush the water lines. Turn on the water supply and allow both hot and cold water to run for at least one minute each to flush away any debris. While the water is running, check for leaks. After flushing, turn off the water and replace the aerator.
For more information, see page 8 of the manual. -
What tools are required to install the Allen + Roth 67693W-614408 faucet?
The tools required for assembly (not included) are an Adjustable Wrench. Helpful tools (not included) are Safety Goggles.
For more information, see page 3 of the manual. -
How do I secure the faucet assembly for the Allen + Roth 67693W-614408 to the sink?
Secure the faucet assembly to the sink using the spout quick install nut (C) provided. Push up the nut to the sink and hand-turn to tighten.
For more information, see page 4 of the manual. -
How do I connect the water lines to the Allen + Roth 67693W-614408 faucet?
You can make connections to water lines using 1/2" I.P.S. faucet connections (2) or supply line coupling nuts (3) with a 3/8" O.D.ball-nose riser (1). Use wrenches to tighten connections, but do not overtighten.
For more information, see page 6 of the manual. -
Why is my Allen + Roth 67693W-614408 faucet leaking underneath the handle?
If there are leaks underneath the handle, the bonnet nut may have come loose or the O-ring on the cartridge may be dirty or damaged. To correct this, tighten the bonnet nut or clean or replace the O-ring.
For more information, see page 9 of the manual. -
Why is the aerator on my Allen + Roth 67693W-614408 faucet leaking or showing an inconsistent water flow pattern?
This can happen if the aerator is dirty or misfitted, or if the cartridge is clogged. To resolve this, remove the aerator and check for debris in the aerator screens, then remove the cartridge and check for debris. Finally, ensure the aerator is properly installed.
For more information, see page 9 of the manual. -
Why is the water pressure low on my Allen + Roth 67693W-614408 faucet?
Low water pressure can be caused by a clogged connector underneath the deck or a clogged aerator. To troubleshoot, turn off the water supply and disconnect the connector/aerator. Unscrew the connector/aerator and clean under running water, then screw it back. If water pressure is still low after testing, replace the connector/aerator.
For more information, see page 9 of the manual. -
What should I do if parts are missing or damaged from my Allen + Roth 67693W-614408 package?
-
How do I clean and maintain my Allen + Roth 67693W-614408 faucet?
To clean the faucet, wipe carefully with a grit-free damp cloth and use only mild soap with water. Do not use acids, harsh chemicals, or abrasive detergents to clean the faucet surface.
For more information, see page 9 of the manual. -
Why is there no hot or cold water from my Allen + Roth 67693W-614408 faucet?
If there is no hot or cold water, it's possible that the water inlet hose was accidentally kinked during installation, limiting water flow. You should reinstall the water inlet hose.
For more information, see page 9 of the manual. -
How do I install the pop-up drain assembly for the Allen + Roth 67693W-614408?
First, remove the bottom gasket (3) and nut (4) from the top gasket (1) and pop-up body (2). Attach these pieces together by pushing the bottom gasket (3) down into the top of the nut (4) and twisting together. Next, insert the pop-up body (2) into the sink, ensuring the top gasket (1) rests securely between the top of the sink and the top of the pop-up body (2). Finally, from underneath the sink, screw the bottom gasket (3) and nut (4) assembly onto the pop-up body (2) by twisting clockwise until secure.
For more information, see page 7 of the manual. -
How long does it take to install the Allen + Roth 67693W-614408 faucet?
The estimated assembly time for the Allen + Roth 67693W-614408 faucet is 35 minutes, which includes the removal of the old faucet.
-
How can I identify replacement parts for my Allen + Roth 67693W-614408 faucet?
You can identify replacement parts by referring to the REPLACEMENT PARTS LIST on page 9 of the manual. This list provides a description and a part number for each component, such as the Handle assembly (RP13448*), Aerator (RP30187), and Pop-up assembly (RP40269*).
For more information, see page 10 of the manual.
Related Manuals for Allen + Roth 67693W-614408
Summary of Contents for Allen + Roth 67693W-614408

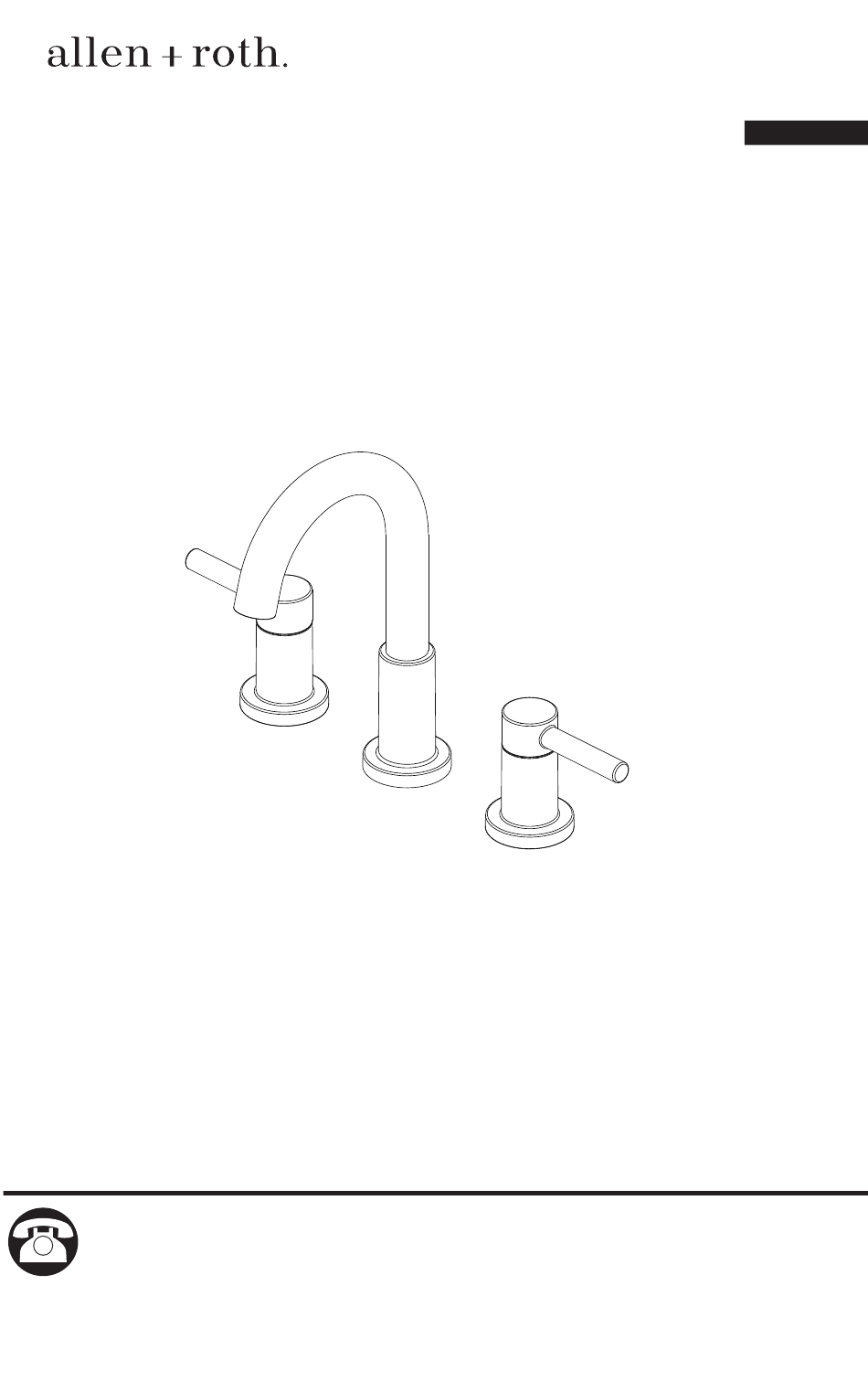

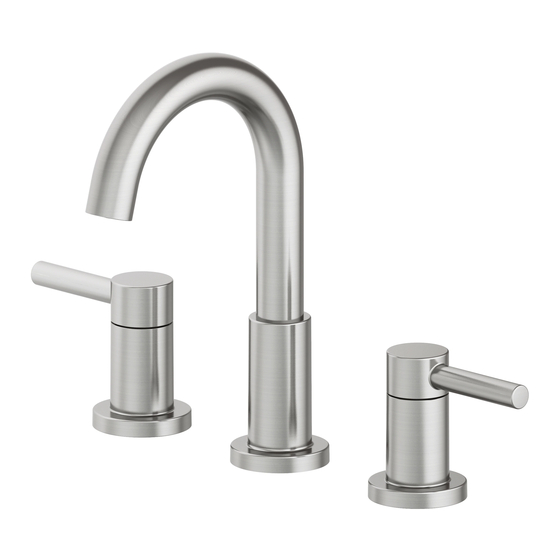

- Page 1 ITEM # 0702753 / 5287418 / 1102764 / 5287442 Widespread Bath Faucet MODEL # 67693W-6104 / 67693W-614408 ALLEN & ROTH and logo design are 67693W-617001 / 67693W-6101 trademarks or registered trademarks of LF, LLC. Español p. 11 All rights reserved.
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Faucet Handle assembly Spout quick install nut (Black) Handle assembly quick install nut (Gray) Quick connecting assembly Pop-up assembly... -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. WARNING • Follow the installation instructions carefully. Proper installation is the installer’s responsibility. • Failure to follow correct installation procedures can result in the faucet being loose, which can result in serious injury. - Page 4 ASSEMBLY INSTRUCTIONS 2. Secure the faucet assembly to the sink with the spout quick install nut (C) provided. Push up the spout quick install nut (C) to sink and hand-turn to tighten. Sink Push Sink 3. Place the handle assembly (B) through the mounting holes in the sink.
- Page 5 ASSEMBLY INSTRUCTIONS 4. Secure the handle assembly to the sink with the Sink handle assembly quick install nuts (D) provided. Push up the handle assembly quick install nuts (D) to sink and hand-turn to tighten. Push Sink...
- Page 6 ASSEMBLY INSTRUCTIONS 5. Attach the T-union (2) to the Spout (1) connection, the hot faucet handle (3) connection,and cold faucet handle (4) connection. Push until the connections snap together. Pull down moderately to ensure the connection has been made. Click Click Click 6.
- Page 7 POP-UP DRAIN INSTRUCTIONS 1. Remove the bottom gasket (3) and nut (4) from the top gasket (1) and pop-up body (2). Attach these pieces together by pushing the bottom gasket (3) down into the top of the nut (4) and twisting together. 2.
- Page 8 OPERATION INSTRUCTIONS 1. Flushing and checking for leaks： Important: After installation is complete, remove the aerator (1) from the faucet with a coin to flush the water lines. Turn on the water supply and allow both hot and cold water to run for at least one minute each. This flushes away any debris that could cause damage to internal parts.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE • Clean carefully by gently wiping with a grit-free damp cloth. • Use only mild soap with water. • Never use acids, harsh chemicals, or abrasive detergents to clean the faucet surface. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION There are leaks The bonnet nut has come loose and Tighten the bonnet nut. -
Page 10: Warranty
WARRANTY This faucet has been manufactured under the highest standard of workmanship. All parts of this faucet are warranted to be free from leaks or drips during domestic use for as long as the original purchaser owns this product. THIS EXCLUDES INDUSTRIAL, COMMERCIAL, OR BUSINESS USE. The manufacturer will replace FREE OF CHARGE, under the warranty conditions the entire unit or any part (at our option) which proves defective in material and/or workmanship under normal installation, use and service. - Page 11 ARTÍCULO # 0702753 / 5287418 / 1102764 / 5287442 Grifo para baño con manijas separadas ALLEN & ROTH y el diseño del logotipo MODELO # 67693W-6104 / 67693W-614408 son marcas comerciales o marcas comerciales 67693W-617001 / 67693W-6101 registradas de LF, LLC. Todos los derechos reservados.
-
Page 12: Contenido Del Paquete
CONTENIDO DEL PAQUETE PIEZA DESCRIPCIÓN CANTIDAD Grifo Ensamblaje de la manija Tuerca de instalación rápida de la boquilla (negra) Tuerca de instalación rápida del ensamblaje de la manija (gris) Ensamblaje de conexión rápida Ensamblaje emergente... -
Page 13: Información De Seguridad
INFORMACIÓN DE SEGURIDAD Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto. ADVERTENCIA • Siga atentamente las instrucciones de instalación. El instalador tiene la responsabilidad de realizar una instalación adecuada. • Si no sigue los procedimientos correctos de instalación, el grifo puede soltarse y provocar lesiones graves. - Page 14 INSTRUCCIONES DE ENSAMBLAJE 2. Asegure el conjunto de grifo al lavamanos con la tuerca de instalación rápida de la boquilla (C) provista. Empuje hacia arriba la tuerca de instalación rápida de la boquilla (C) en el lavamanos y gire a mano para apretar.
- Page 15 INSTRUCCIONES DE ENSAMBLAJE 4. Asegure el ensamblaje de la manija al lavamanos Lavamanos con las tuercas de instalación rápida del ensamblaje de la manija (D) provistas. Empuje hacia arriba las tuercas de instalación rápida del ensamblaje de la manija (D) al lavamanos y gire a mano para apretar. Empuje hacia arriba...
- Page 16 INSTRUCCIONES DE ENSAMBLAJE 5. Fije la unión T (2) a las conexiones de salida (1) y de las manijas para agua caliente (3) y fría (4). Presione hasta que las conexiones se aseguren entre sí. Jale hacia abajo ligeramente para comprobar que la conexión es segura.
- Page 17 Instalación del desagüe levadizo 1. Retire la junta inferior (3) y la tuerca (4) de la junta superior (1) y del cuerpo emergente (2). Sujete las dos piezas empujando la junta inferior (3) hacia abajo en la parte superior de la tuerca (4) y enroscándolas juntas.
-
Page 18: Instrucciones De Funcionamiento
INSTRUCCIONES DE FUNCIONAMIENTO 1. Cómo purgar las tuberías y comprobar que no haya fugas： Importante: después de completar la instalación, retire el aireador (1) del grifo con una moneda para enjuagar las tuberías de agua. Abra el suministro de agua y deje correr agua fría y caliente durante al menos un minuto cada corriendo, Esto elimina cualquier residuo que pueda dañar las partes internas. -
Page 19: Cuidado Y Mantenimiento
CUIDADO Y MANTENIMIENTO • Limpie cuidadosa y suavemente con un paño limpio. • Lave solo con agua y jabón suave. • Nunca limpie la superficie con ácidos, agentes químicos fuertes ni detergentes abrasivos. SOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA POSIBLE ACCIÓN CORRECTIVA Hay filtraciones La tuerca ciega se aflojó... -
Page 20: Lista De Piezas De Repuesto
GARANTÍA Este grifo ha sido fabricado bajo los estándares de mano de obra más elevados. Todas las piezas de este grifo están garantizadas contra fugas o goteos durante el uso doméstico mientras lo posea el propietario original. ESTO EXCLUYE EL USO INDUSTRIAL, COMERCIAL O EN OFICINA. El fabricante reemplazará...
