Summary of Contents for BAFANG M300

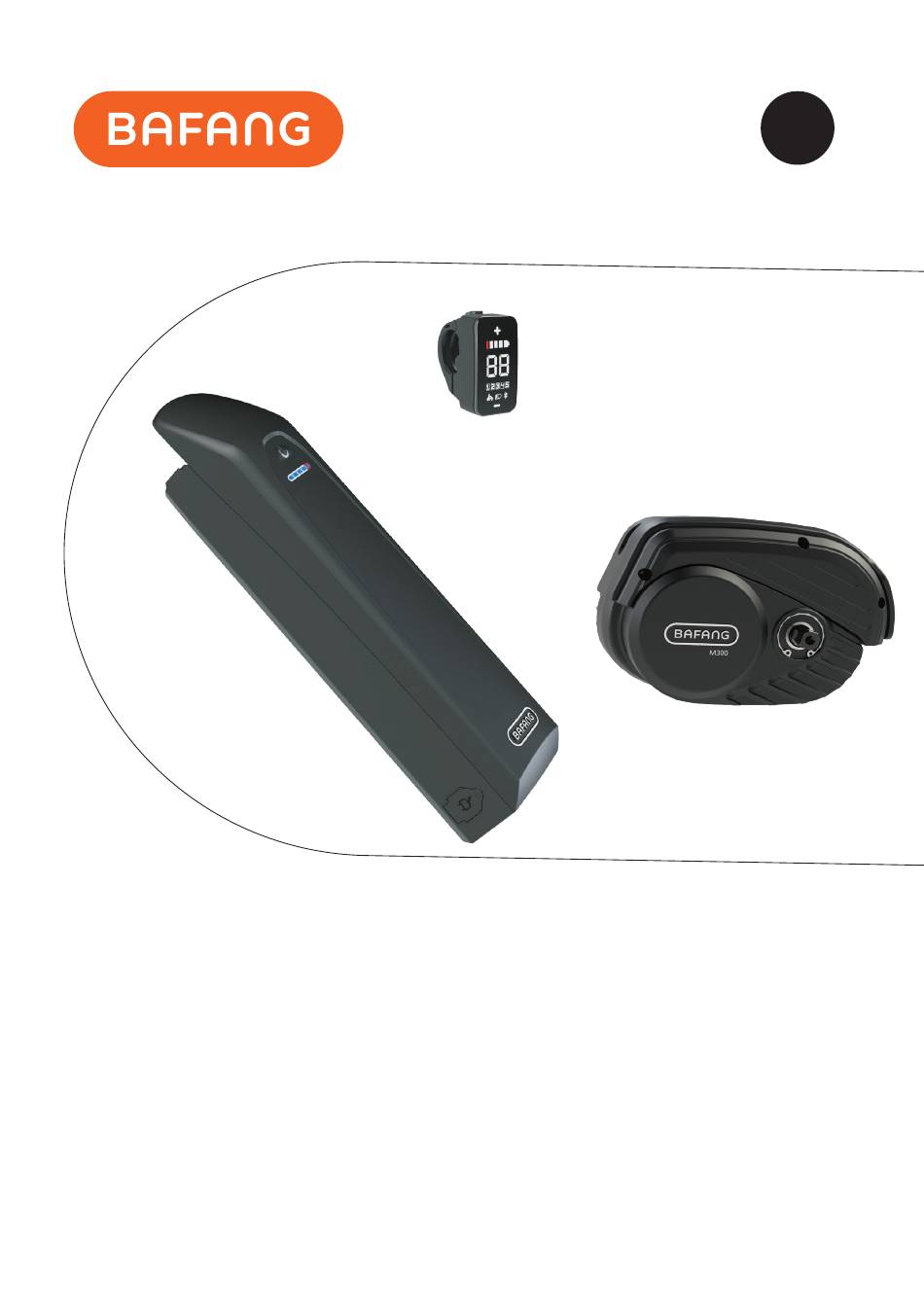

- Page 1 USER MANUAL M300 Drive System Original instruction manual Read carefully before use. Keep for later reference. BF-UM-S-M300-EN, July 2024...
-
Page 2: Symbol Instruction
SYMBOL INSTRUCTION If you see the following symbols there is always a Danger: This symbol indicates possible health and safety hazards that may arise, if certain possibility of danger. measures are not taken into consideration. The warning symbols are as follows: User Manual: Please read the manual before Note: This symbol indicates information about using the pedelec. -
Page 3: Quick Start
1 GUIDE 1.1 Quick start This section provides important information and instructions that will allow you to use your pedelec in a safe manner. First, please read the safety instructions to find out about the legal regulations that apply to you. Perform all safety checks in accordance Practice using the pedelec in a quiet and safe with the "Before each trip"... -
Page 4: Important Notice
2 IMPORTANT NOTICE Be sure to follow the instructions in the manual 2.2 Pedelec modifications when using this product. are prohibited • If you are lending your pedelec to third par- ties, please give them the instruction manual Do not change the pedelec drive system in any along with the pedelec. -
Page 5: Laws And Regulations
The authorized retailer can only use the original spare parts Before driving on public roads, please read the from Bafang for maintenance. applicable countries regulations carefully. The use of pedelecs on public roads must comply with Do not use no high-pressure water jet or local regulations. -
Page 6: Vehicle Transport
3 VEHICLE TRANSPORT Remove the battery during transport and store When transporting the pedelec by train, the relevant laws and regulations must be complied the battery in a safe and dry place. with. Before using public transport, please find Do not transport a battery without the correct out which means of transport are suitable for procedure. - Page 7 5 GUARANTY All warranty and guarantee conditions are Warranty and warranty exclusions: subject to applicable laws and regulations from • Modification, manipulation or improper your brand. repair of the product. The condition for warranty and guarantee • Improper use of the product. claims is that the instructions for the system are •...
- Page 8 6 MOTOR M300 (MM G360.250/350.C) page 7 USER MANUAL – DRIVE SYSTEM...
- Page 9 Please do not remove Applies only to electrically powered pedelecs the information from the motor. developed or licensed by Bafang. It is suitable for city and trekking bikes, which have been developed for road use. The engine is not suitable for sport competitions.
-
Page 10: Specifications
6.2 SPECIFICATIONS ① Motor model: MM G360.250.C Rated power (W) Rated voltage(V) 36 / 43 / 48 Waterproof IP65 Certification CE / ROHS / EN14764 Outdoor Temperatures -20℃~45℃ ② Motor model: MM G360.350.C Rated power (W) Rated voltage(V) 36 / 43 / 48 Waterproof IP65 Certification... -
Page 11: Maintenance
6.3 MAINTENANCE • Maintenance must be carried out by autho- rized personnel with the correct equipment. • Do not disassemble the motor. • Do not use thinners or other solvents to clean the components. Such substances can damage the surfaces. •... - Page 12 7 DISPLAY DP E161.CAN page 11 USER MANUAL – DRIVE SYSTEM...
-
Page 13: Introduction Of Display
7.1 IMPORTANT NOTICE • If the error information from the display • Please use this product with care. cannot be corrected according to the inst- • Do not use thinners or other solvents to ructions, please contact your retailer. clean the display. Such substances can •... -
Page 14: Product Description
7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Battery capacity indicator • Operating temperature: -20℃~45℃ • Indication of support level • Storage temperature: -20℃~50℃ • Walk assistance • Waterproof: IP65 • Automatic sensors explanation of the light- • Storage room Humidity: 30%-70% RH ing system •... -
Page 15: Key Definition
7.4 DISPLAY Battery capacity indicator Speed indicator Support level indicator Walk assistance Indicator for lighting system Bluetooth indicator 7.5 KEY DEFINITION E161 Display has three buttons: System On/Off , Up and Down System On/Off Down page 14 USER MANUAL – DRIVE SYSTEM... -
Page 16: Normal Operation
7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF 7.6.3 Headlights / backlighting Press and hold (>2S) on the display to Hold the (>2S) button to activate the turn on the system. headlight and taillights. Press and hold (>2S) again to turn off Hold the (>2S) button again to turn off the system. - Page 17 When the mobile phone is connected to the display by Bluetooth, the Bluetooth symbol will be displayed, and the disconnected symbol will disappear automatically. This display can be connected to the Bafang Go APP through Bluetooth. More information can be viewed on the APP, such as the information of battery, remaining capacity, single-trip distance.
- Page 18 7.7 Thro le opera on Intended use The thro le is a control lever for ac va ng the walking aid of the Bafang M300 motor conveniently without having to carry out complicated opera ng steps on the display. Ac va on of the pushing aid Press and hold the control lever to ac vate the push assistance.
-
Page 19: Error Code Definition
7.7 ERROR CODE DEFINITION DP E161.CAN display can provide warning for failures. The error code flickers when an error is detected. Note: please read carefully the description of the error code. When the error code appears, please first restart the system. If the problem is not eliminated, please contact your dealer or technical personnel. - Page 20 Error Declaration Troubleshooting 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer. Error with the temperature sensor Please contact your retailer.
- Page 21 Error Declaration Troubleshooting Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer. an error WDT circuit is faulty Please contact your retailer. Total voltage from the battery is too Please contact your retailer.
- Page 22 8 BATTERY BT F07.450.C/ BT F08.600.C page 21 USER MANUAL – DRIVE SYSTEM...
- Page 23 ·Please carefully read manual before use. carefully with clean water and consult a doctor or a hospital. Please only use the original BAFANG charger A faulty battery can lead to overheating, to charge the battery. The battery is not fully smoking or burning.
- Page 24 Do not disassemble the battery. • Avoid direct sunlight from the sun, as it may The battery contains protective components to cause it to overhead, and cause internal avoid danger. Incorrect handling, such as problems in the battery. It can lead to abnor- improper disassembly, can destroy the protective mal chemical reactions or malfunctions that functions and lead to overheating, smoke and...
- Page 25 • Disconnect the charger from the power supply when not in use. • Use only the original Bafang charger that came with your pedelec. • Do not cover the charger while in use. There is the possibility of short circuits or fires.
-
Page 26: Operation
8.2 OPERATION 8.2.1 Installing the battery 8.2.2 Removing the battery 1. Turn the key on the battery holder to open For correct insertion, the battery must be lock. connected, ensuring all pins are correctly connected to the battery holder. When pushing the battery into position. -
Page 27: Charging The Battery
8.2.3 Charging the battery The charging time depends on several factors. It can vary greatly depending on the temperature, age, use and capacity of the battery. For information on Use only the original battery charger supplied to the charging time of your battery, see "SPECIFICA- you, as there is a risk of fire or explosion if the incorrect charger is used. - Page 28 The battery must be charged at least once every If the charging process takes longer than usual, 3 months to avoid damage or destruction of the the battery may be damaged. In this case, stop cells. charging immediately. Have the battery and charger checked by your retailer to prevent further damage.
-
Page 29: Specification
8.3 SPECIFICATION 8.3.1 Battery Primary Settings BT F07.450.C BT F08.600.C Rated voltage 43 DCV 43 DCV Nominal Capacity 10.5 Ah 14Ah Rate Capacity 8.5Ah (1C Discharge) 11Ah (1C Discharge) Power 450 Wh 600Wh Charging time 6.5h with 2A Charger 8.5h with 2A Charger Storage (At 35% SOC &-10°...
