HAMPTON BAY CRESTRIDGE FCS60619R-ST Use And Care Manual

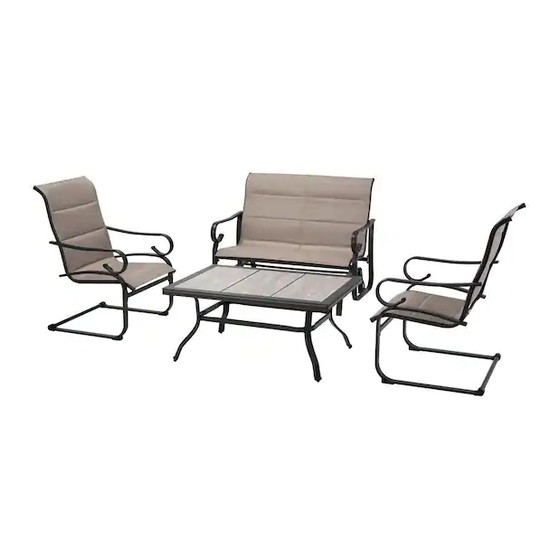

4pc deep seating set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item #1005 605 239
Model #FCS60619R-ST

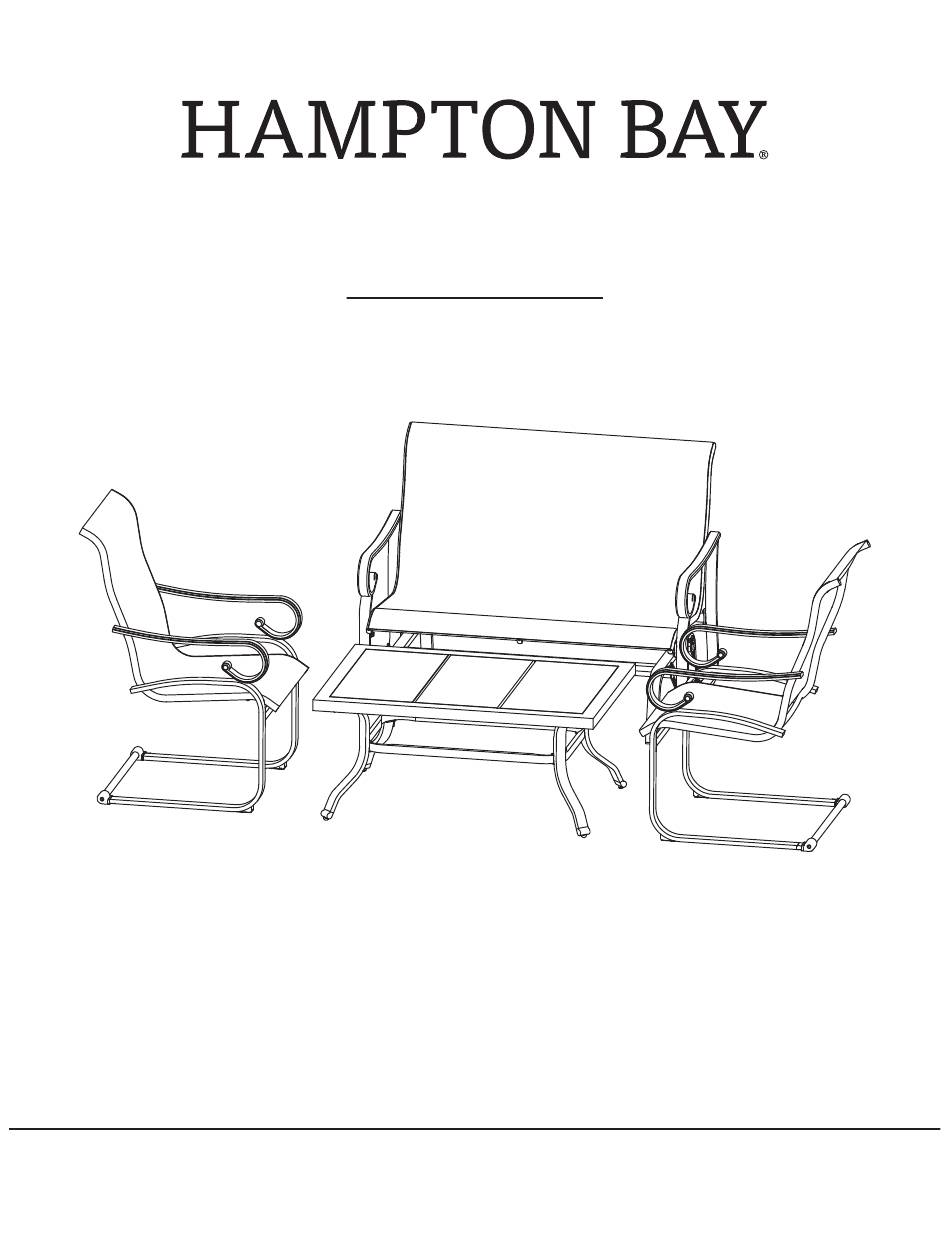

USE AND CARE GUIDE
CRESTRIDGE 4PC DEEP SEATING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRESTRIDGE FCS60619R-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY CRESTRIDGE FCS60619R-ST

Summary of Contents for HAMPTON BAY CRESTRIDGE FCS60619R-ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Hardware Included .

  • Page 3: Warranty

    Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames and fabric to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty of the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Hardware Included

    Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 24+1 M6x30 Combination Bolt 10+1 M6x25 Bolt M8x30 Combination Bolt M8x20 Combination Bolt Plastic Washer M8x30 Countersunk Bolt Hex Wrench Wrench CHAIR PACKAGE CONTENTS Part Description Quantity...

  • Page 5: Glider Chair Package Contents

    Pre-assembly (continued) GLIDER CHAIR PACKAGE CONTENTS Part Description Quantity Glider Chair Right Arm Glider Chair Left Arm Glider Chair Sling Bucket Glider Chair Connector Bar Glider Base TABLE PACKAGE CONTENTS Part Description Quantity Table Rim Table Leg Leg Connector Tile HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly Connecting The Sling Bucket, Connector Bar And Support Bar To The Right Arm Place the right arm (B) on a soft surface. Attach the sling bucket (A) to the right arm (B) using M6x30 combination bolts (BB) and an M8x30 combination bolt (DD), as shown below.
  • Page 7 Chair Assembly (continued) Securing The Support Bar Turn the chair right side up. Tighten the support bar (E) to the two chair arms (B&C) using M6x25 bolts (CC). Do not fully tighten all bolts at this step. Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using hex wrench (HH).

  • Page 8: Glider Chair Assembly

    Glider Chair Assembly Connecting The Glider Chair Sling Bucket And Glider Chair Connector Bar To The Glider Chair Right Arm Place the glider chair right arm (F) on a soft surface. Attach the glider chair sling bucket (H) to the glider chair right arm (F) using an M6x30 combination bolt (BB) and an M8x20 combination bolt (EE).
  • Page 9 Glider Chair Assembly (continued) Attaching The Glider Base To The Two Glider Chair Arms Attach the glider base (J) to the two glider chair arms (F & G) using M8x30 countersunk bolts (GG) and plastic washers (FF). Do not fully tighten all bolts at this step. Checking The Glider Chair Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (HH) and wrench (II).
  • Page 10 Table Assembly Attaching The Table Legs To The Table Rim Place the table rim (K) upside down on a soft surface. Attach the table legs (L) to the table rim (K) using M6x15 combination bolts (AA). Do not tighten all bolts at this step. Attaching The Leg Connector To The Table Legs Attach the leg connector (M) to the table legs (L) using M6x15 combination bolts (AA).

  • Page 11: Care And Cleaning

    Table Assembly (Continued) Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using hex wrench (HH). Turn the table right side up and carefully place the tiles (N) into the table rim (K). Ensure all connections are secure before use.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
