Item # 1004 308 537
1004 308 533
Model # FCS60619S-2PK
FCS60619S-2PK-B
USE AND CARE GUIDE

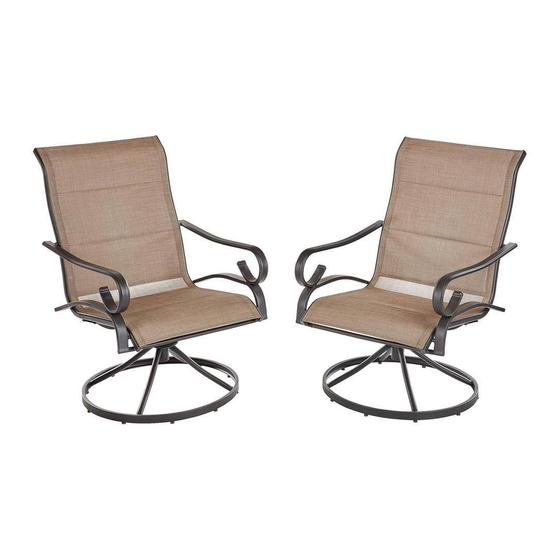

CRESTRIDGE STEEL SLING PADDED SWIVEL LOUNGE CHAIR, 2PK
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and conidence you have placed in Hampton Bay through the purchase of this pergola. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FCS60619S-2PK
Summary of Contents for HAMPTON BAY FCS60619S-2PK
- Page 1 THANK YOU We appreciate the trust and conidence you have placed in Hampton Bay through the purchase of this pergola. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Table of Contents Table of Contents........2 Pre-Assembly.
- Page 3 Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.
- Page 4 Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x30 Combination Bolt 12+1 M8x20 Combination Bolt Hex Wrench Wrench PACKAGE CONTENTS Part Description Quantity Chair Bucket Right Arm Left Arm Support Bar Connector Bar Swivel Base...
- Page 5 Assembly Attaching The Support Bar To The Chair Bucket NOTE: Loosely tighten all bolts using the wrench (DD). Place the chair bucket (A) upside down on a soft surface. Attach the support bar (D) to the bottom of the chair bucket (A) using M8x20 combination bolts (BB).
- Page 6 Assembly (continued) Connecting The Chair Bucket To The Left Arm NOTE: Loosely tighten all bolts using the hex wrench (CC). Attach the chair bucket (A) to the left arm (C) using M6x30 combination bolts (AA). Insert the connector bar (E) into the other side of the chair bucket (A).
- Page 7 Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrrasive materials, bleach or solvents. Store the chair in a dry sheltered place when not in use.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
