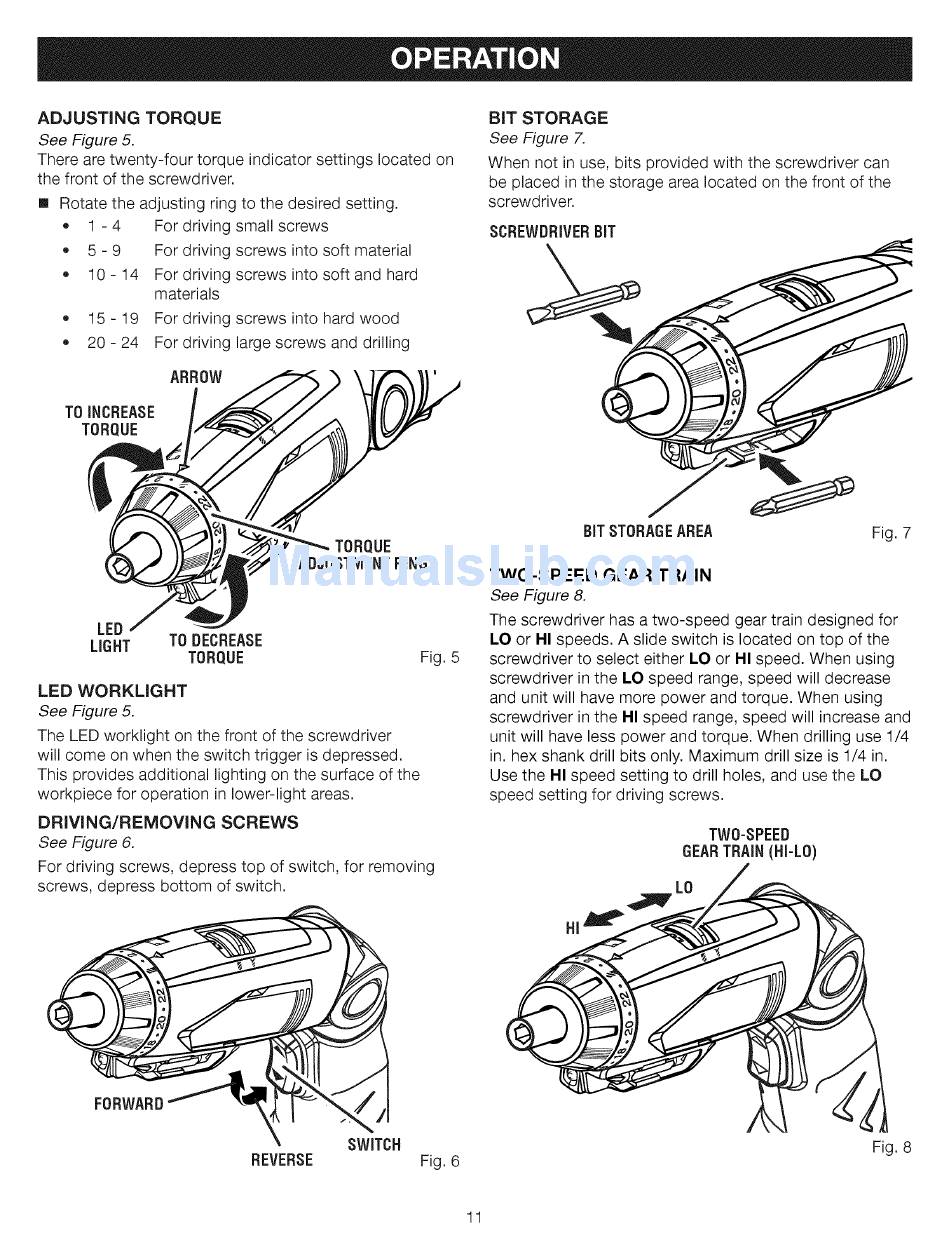

ADJUSTING
TORQUE
See Figure 5.
There are twenty-four
torque indicator settings located on
the front of the screwdriver.
[] Rotate the adjusting ring to the desired setting.
.
1-4
,
5-9
,
10-14
.
15-19
.
20 - 24
For driving small screws
For driving screws into soft material
For driving screws into soft and hard
materials
For driving screws into hard wood
For driving large screws and drilling
ARROW
TOINCREASE
TORQUE
BIT STORAGE
See Figure 7.
When not in use, bits provided with the screwdriver can
be placed in the storage area located on the front of the
screwdriver.
SCREWDRIVER BIT
TORQUE
ADJUSTMENT RiNG
LED
LIGHT
TO DECREASE
TORQUE
Fig. 5
LED WORKMGHT
See Figure 5.
The LED worklight on the front of the screwdriver
will come on when the switch trigger is depressed.
This provides additional lighting on the surface of the
workpiece for operation in lower-light areas.
DRIVING/REMOVING
SCREWS
See Figure 6.
For driving screws, depress top of switch, for removing
screws, depress bottom of switch.
FORWARD
BIT STORAGE AREA
Fig. 7
TWO-SPEED
GEAR TRAIN
See Figure 8.
The screwdriver has a two-speed
gear train designed for
LO or HI speeds. A slide switch is located on top of the
screwdriver to select either LO or HI speed. When using
screwdriver in the LO speed range, speed will decrease
and unit will have more power and torque. When using
screwdriver in the HI speed range, speed will increase and
unit will have less power and torque. When drilling use 1/4
in. hex shank drill bits only. Maximum drill size is 1/4 in.
Use the HI speed setting to drill holes, and use the LO
speed setting for driving screws.
Hi
TWO-SPEED
GEARTRAIN(HI-LO)
SWITCH
REVERSE
Fig. 6
Fig. 8
11
