Summary of Contents for Ubiquiti UniFi UMA-D

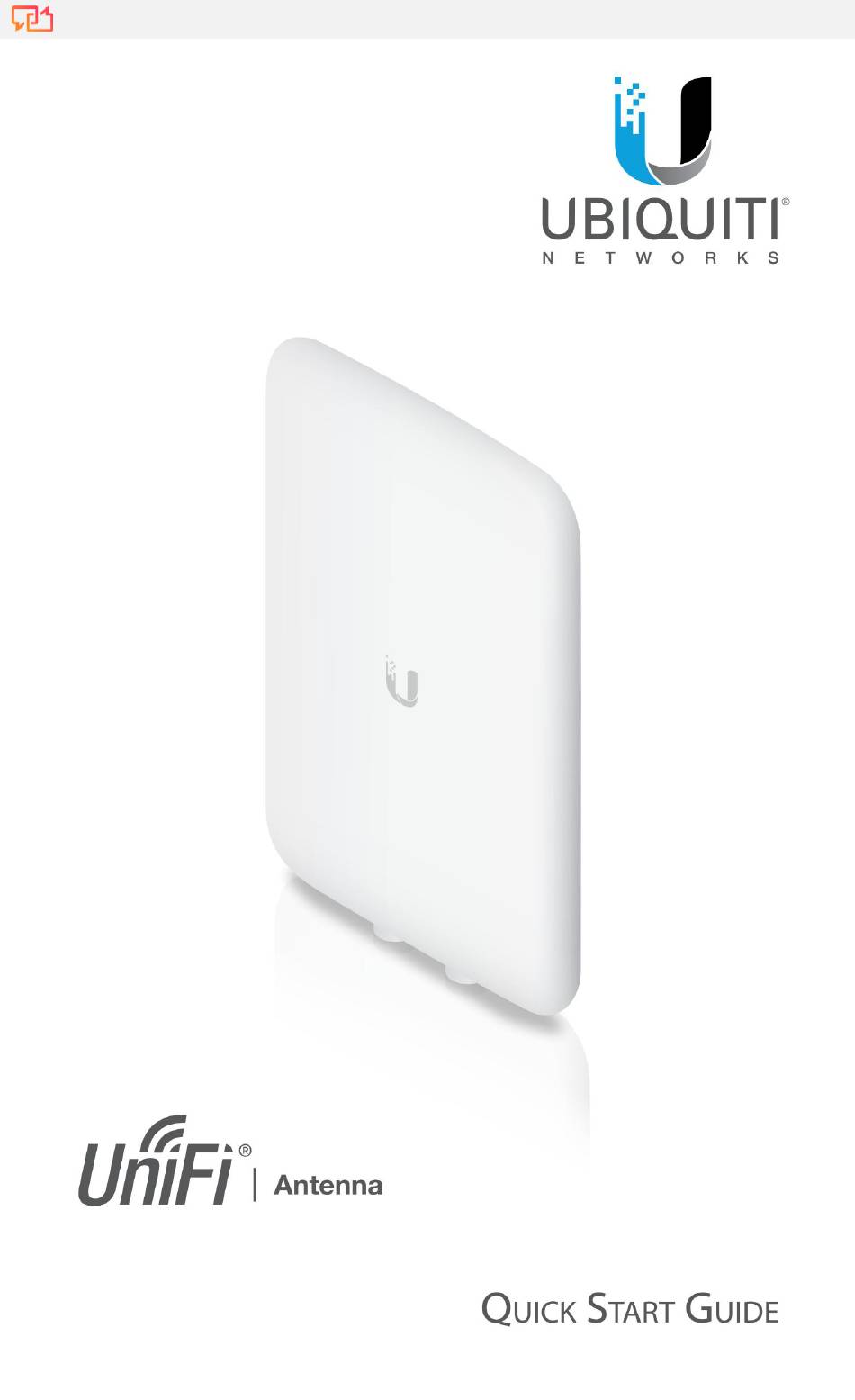

- Page 1 Translated from Spanish to English - www.onlinedoctranslator.com Dual band directional antenna for UAP-AC-M Model: UMA-D...
-
Page 2: Package Content
Guide (Qty. 2) TERMS OF USE: Ubiquiti radio devices must be installed by a professional. Shielded Ethernet cable and grounding must be used as a condition of the product warranty. TOUGHCable™ is designed for outdoor installations. It is the professional installer's responsibility to follow local country regulations, including operation within legal... -
Page 3: Installation Requirements
AC ground connection of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with a Ubiquiti Networks Industrial Grade Shielded Ethernet Cable. • Surge protection must be used for all outdoor installations. -
Page 4: Hardware Installation
hardware installation The UniFi antenna can be mounted on a wall or pole. Perform the following steps to a correct installation: wall mount To mount the UniFi antenna on a wall, use the wall mounting plate, screws screw anchors included. andthe 1. - Page 5 ball joint support in it safety ring. 5. Insert the to the wall mounting plate with 6. Set thesupport of ball joint the hex bolt.
- Page 6 7. Attach the antenna to the ball joint support and turn the lock ring to secure it. Hold the lock ring slack enough to allow the antenna to rotate for aiming. 8. Connect one end of the RF cables to the antenna.
- Page 7 Machine Translated by Google 9. Connect the other end of the RF cables to the UAP-AC-M.
- Page 8 pole mount 1. Insert the medium patellain it ring securitywith the threads of ring securitylooking towards the kneecap. 2. Open the metal strap and pass it through the base of the ball joint support.
- Page 9 3. Wrap the metal strap around the pole. Use a 7mm socket wrench to turn the screw clockwise to securely clamp the clamp to the post. 4. Attach the antenna to the ball joint support and turn the lock ring to secure it. Hold the lock ring slack enough to allow the antenna to rotate for aiming.
- Page 10 5. Connect one end of the RF cables to the antenna.
- Page 11 Machine Translated by Google 6. Connect the other end of the RF cables to the UAP-AC-M.
