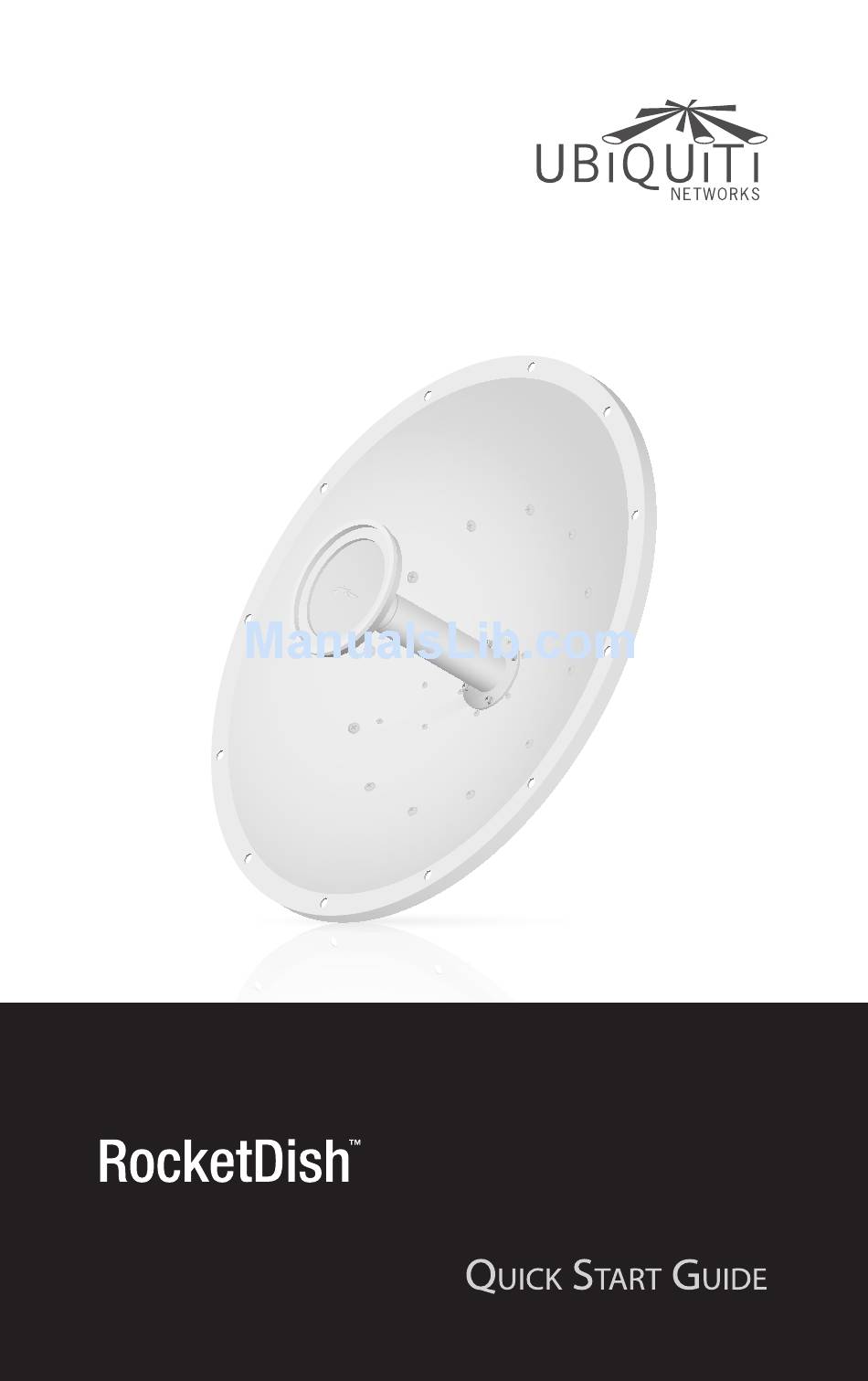

- Page 1 airMAX Carrier Class 2x2 ™ PtP Bridge Dish Antenna Model: RD-5G30...
-
Page 3: Package Contents
Introduction Introduction Thank you for purchasing the Ubiquiti Networks RocketDish ™ an airMAX Carrier Class 2x2 PtP Bridge Dish Antenna, model: ™ RD-5G30. This Quick Start Guide is designed to walk you through the installation of the RocketDish. Package Contents... -
Page 4: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks . For more details, visit www.ubnt.com/toughcable ™... -
Page 5: Hardware Installation
Hardware Installation Hardware Installation Important: Handle the Dish Reflector with care. Deformations in its shape may reduce the RocketDish's effectiveness. 1. The Dish Reflector and Antenna Feed are keyed so the Antenna Feed can only be installed in a single orientation. Attach the Antenna Feed to the Dish Reflector in the following steps: a. - Page 6 RocketDish RD-5G30 Quick Start Guide ™ 2. Attach the RF Cables to the connectors labeled Chain 0 and Chain 1 on the RocketM. 3. Attach the RocketM to the Dish Reflector. a. Align the mounting tabs on the back of the RocketM with the Rocket Mounting Bracket located below the Antenna Feed.
- Page 7 Hardware Installation 4. Attach the other ends of the RF Cables to the RF connectors on the Antenna Feed. 5. Attach the Protective Shroud. a. Align the arrow on the top of the shroud with the short hash mark on the Dish Reflector. b.
- Page 8 RocketDish RD-5G30 Quick Start Guide ™ 6. Attach the Elevation Rod to the Main Mounting Bracket. a. Attach one M16 nut and one M16 washer to the Elevation Rod. b. Insert the Elevation Rod into the Main Mounting Bracket. c. Secure the Elevation Rod with one M16 washer, one M16 spring lock washer, and one M16 nut.
- Page 9 Hardware Installation 8. Attach the RocketDish to the Main Mounting Bracket. a. Insert one M10x25 Carriage Bolt into the RocketDish and Elevation Rod. b. Insert two M10x25 Carriage Bolts into the RocketDish and lower section of the Main Mounting Bracket. c.
- Page 10 RocketDish RD-5G30 Quick Start Guide ™ 9. Attach the Stabilizer Brackets to the pole just beneath the area where the RocketDish will be attached. Note: The mounting assembly can accommodate a Ø 1.5" - 4.0" pole. a. Place one Stabilizer Bracket on each side of the pole. b.
- Page 11 Hardware Installation 10. Attach the Main Mounting Bracket to the pole just above the Stabilizer Brackets. a. Slide a Pole Clamp over each pair of M10x150 Carriage Bolts. b. Secure each M10x150 Carriage Bolt with one M10 washer, one M10 spring lock washer, and one M10 nut.
- Page 12 RocketDish RD-5G30 Quick Start Guide ™ 11. Visually align the azimuth and elevation. To adjust the azimuth, rotate the RocketDish while it is supported by the Stabilizer Brackets. To adjust the elevation angle, tighten or loosen the M16 nuts on the Elevation Rod so that the RocketDish is set to the desired tilt.
-
Page 13: Specifications
Specifications Specifications RocketDish RD-5G30 Dimensions 650 x 650 x 304 mm Weight 9.8 kg Frequency 5.1 - 5.8 GHz Gain 30 dBi HPOL Beamwidth 5° (3 dB) VPOL Beamwidth 5° (6 dB) Front-to-Back Ratio -34 dB Max. VSWR 1.4:1 Wind Survivability... -
Page 14: General Warranty
Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid). -
Page 15: Rf Exposure Warning
Compliance Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of the products is error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products for buyer’s application and/or... - Page 16 RocketDish RD-5G30 Quick Start Guide ™ Deutsch Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist , nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.
-
Page 17: Declaration Of Conformity
Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p [Czech] íslu n mi ustanoveními sm rnice 1999/5/ES. - Page 18 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
-
Page 20: Ubiquiti Networks Support
Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com w w w . u b n t . c o m © 2012 Ubiquiti Networks, Inc. All rights reserved.
