15/1/2020

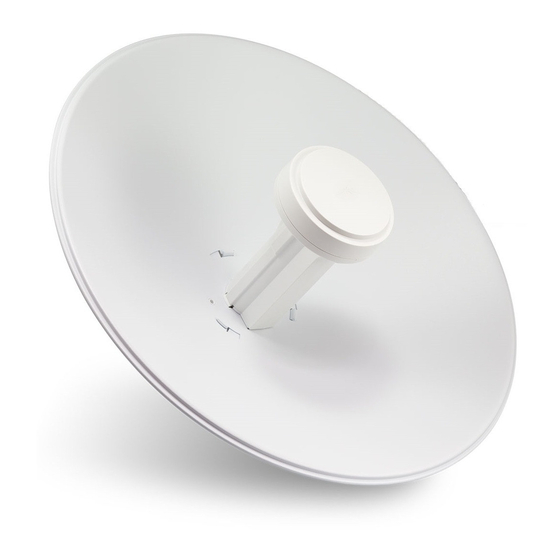

PBE-2AC-400 Quick Start Guide
PBE-2AC-400 Quick Start Guide

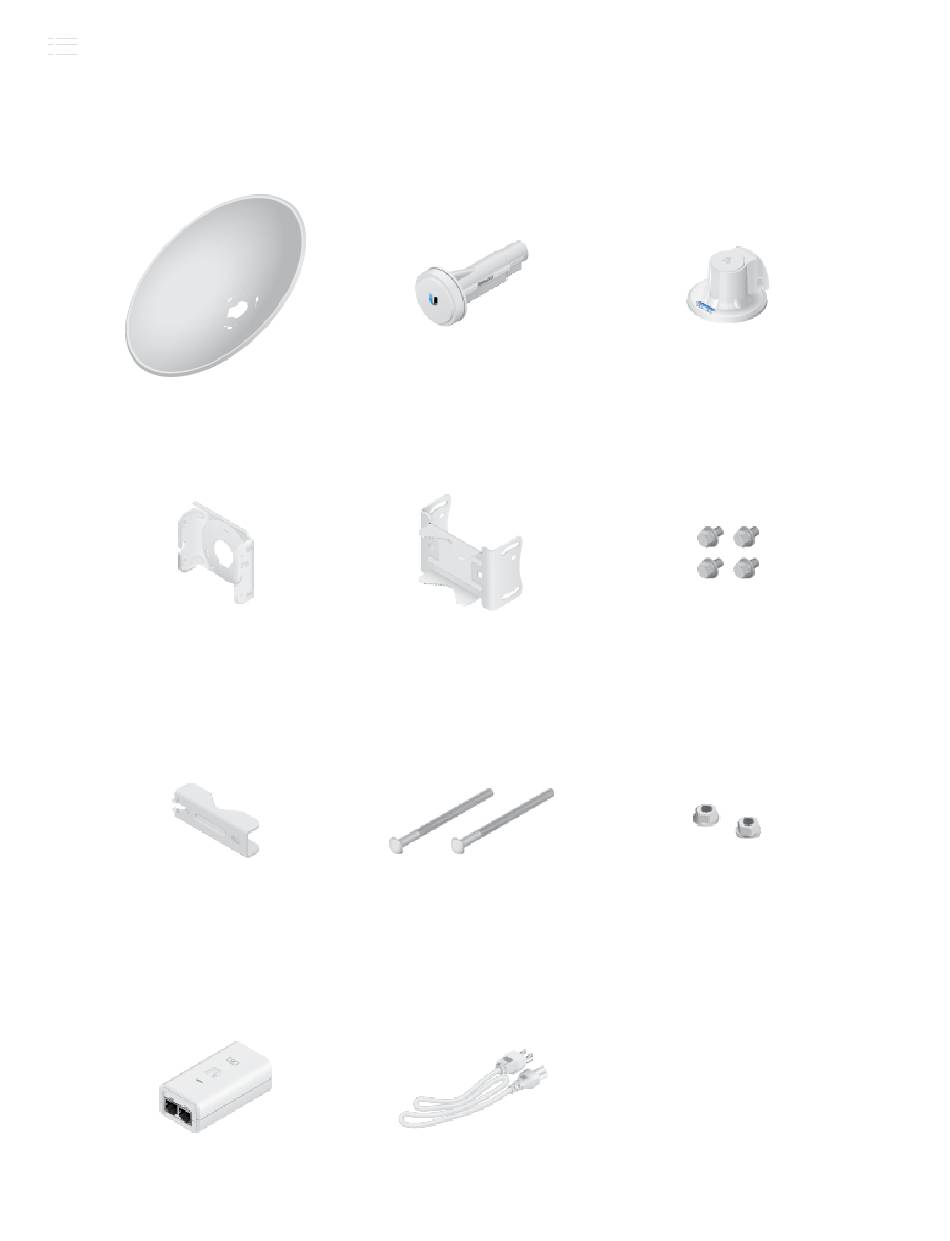

Package Contents
Dish Reflector
Antenna Feed
Rear Housing
Adjustment Bracket
Mounting Bracket
Hex Bolts with Washers (Qty.
4)
Pole Clamp
Carriage Bolts (Qty. 2)
Flange Nuts (Qty. 2)
Gigabit PoE (24V, 0.5A) with
Power Cord
https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html
1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBE-2AC-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti PBE-2AC-400

Summary of Contents for Ubiquiti PBE-2AC-400

  • Page 1 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Package Contents Dish Reflector Antenna Feed Rear Housing Adjustment Bracket Mounting Bracket Hex Bolts with Washers (Qty. Pole Clamp Carriage Bolts (Qty. 2) Flange Nuts (Qty. 2) Gigabit PoE (24V, 0.5A) with Power Cord https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html...

  • Page 2: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the PowerBeam and the other at the entry point to the building.
  • Page 3 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Ethernet This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on.

  • Page 4: Application Examples

    15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Signal In airOS®, you can modify the threshold value for the wireless signal strength LEDs on the Wireless tab under Signal LED Thresholds. Each LED will light when the wireless signal strength is equal to or greater than the LED’s threshold value.

  • Page 5: Installation

    15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide The PowerBeam mounted outdoors without the Dish Reflector installed provides outdoor-to-indoor coverage using the 3 dBi Antenna Feed only. Installation https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 5/21...
  • Page 6 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 6/21...
  • Page 7 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Note: In high-wind environments, you can add support with additional hardware (not included): 1. Using the four holes in the Adjustment Bracket as a template, drill four holes into the Dish Reflector with a 4.4 mm or 11/64" drill bit.
  • Page 8 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 8/21...
  • Page 9 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 9/21...
  • Page 10 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 10/21...
  • Page 11 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 11/21...

  • Page 12: Connecting Power

    15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Connecting Power WARNING: The switch port must comply with the power specifications listed in the Specifications section of this Quick Start Guide. https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 12/21...
  • Page 13 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Optional Accessing airOS via Wi-Fi https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 13/21...
  • Page 14 15/1/2020 PBE-2AC-400 Quick Start Guide Verify connectivity in the airOS® Configuration Interface using the UNMS™ app or PBE-2AC-400 Quick Start Guide Web Portal. Both are available for 15 minutes immediately after you power on the device. If necessary, you can power cycle the device to re-enable its Wi-Fi.
  • Page 15 15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide 4. Create a username and password. Confirm your new password and then click Save. The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For additional details, refer to the User Guide available at ui.com/download/airmax-ac...

  • Page 16: Installer Compliance Responsibility

    15/1/2020 PBE-2AC-400 Quick Start Guide Installer Compliance Responsibility PBE-2AC-400 Quick Start Guide Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. Antenna Select your antenna from the list. If Calculate EIRP Limit is enabled, transmit output power is automatically adjusted to comply with the regulations of the applicable country.

  • Page 17: Specifications

    15/1/2020 PBE-2AC-400 Quick Start Guide Antenna Frequency Gain PBE-2AC-400 Quick Start Guide Dish 2.4 GHz 18 dBi Specifications PBE-2AC-400 Dimensions 420 x 420 x 289 mm (16.54 x 16.54 x 11.38") Weight (Mount Included) 1.795 kg (3.957 lb) Gain 18 dBi...

  • Page 18: Electrical Safety Information

    15/1/2020 PBE-2AC-400 Quick Start Guide WARNING: Do not use this product in location that can be submerged by water. PBE-2AC-400 Quick Start Guide WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Page 19 15/1/2020 PBE-2AC-400 Quick Start Guide This equipment has been tested and found to comply with the limits for a Class A digital device, PBE-2AC-400 Quick Start Guide pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 20: Australia And New Zealand

    15/1/2020 PBE-2AC-400 Quick Start Guide PBE-2AC-400 Quick Start Guide Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 28 cm entre l’élément rayonnant et vous.

  • Page 21: Weee Compliance Statement

    15/1/2020 PBE-2AC-400 Quick Start Guide Other countries listed may use the 5.8 GHz frequency band. PBE-2AC-400 Quick Start Guide WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/PBE-2AC-400/PBE-2AC-400_EN.html 21/21...
