Danfoss RX1, RX2, RX3 Manual

Commissioning Instructions

Thermostat (refer to thermostat type)

Type A Press & hold buttons and + for 3 seconds
Type B Press & hold LEARN button for 3 seconds
Type C Remove dial, press & hold LEARN button for 3 seconds (located under setting dial)
Do not replace knob until Learn process is complete
NOTE: Thermostat now transmits continuously for 5 minutes.

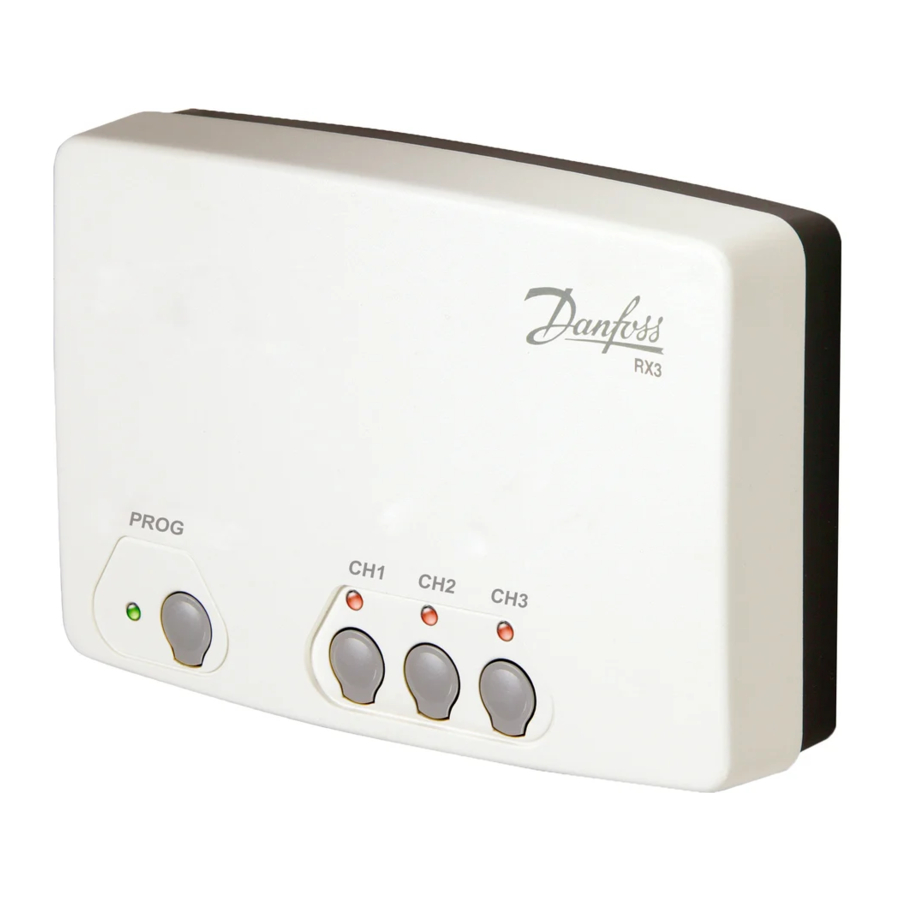

Receiver

RX1
Press and hold buttons PROG and CH1 for 3 seconds until green light fl ashes
RX2 / RX3 (if applicable)
Stat 1 - perform steps 1-2 for CH1
Stat 2 (RX2 & RX3)
Wait 5 mins, perform step 1, then press PROG + CH2 on RX2/RX3
Stat 3 (RX3 only) Wait 5 mins, perform step 1, then press PROG + CH3 on RX3

Setting Up

Wiring Details

Wiring Details - Part 1
Note: For mains voltage applications link terminals L and 2.

Wiring Details - Part 2
warning ATTENTION: If replacing a previous version of the RX2 receiver please use the new backplate supplied and wire as illustrated above.

Wiring Details - Part 3

Wiring Details - Part 4
Wiring Details - Part 5

Specification

Radio Controlled Room Thermostat Receiver Module for: see list
Supply Voltage	230 Vac ± 15%, 50Hz
Construction	BS EN 60730-2-1, EN 300-220-1
Maximum Ambient Temperature	45°C
Switch Type	RX1 - 1 x SPDT, type 1B
	RX2 - 1 x SPDT, 1 x SPST, type 1B
	RX3 - 1 x SPDT, 2 x SPST, type 1B
Switch Rating	264 Vac, 3 (1) A (Total current)
IP Rating	IP 40
Control Pollution Situation	Degree 2
Max. Range	30 metres
Operating Frequency	433.92 MHz
Software Classifi cation	Class A
Rated Impulse Voltage	2.5kV
Ball Pressure Test	75°C
