Summary of Contents for Depstech DS530

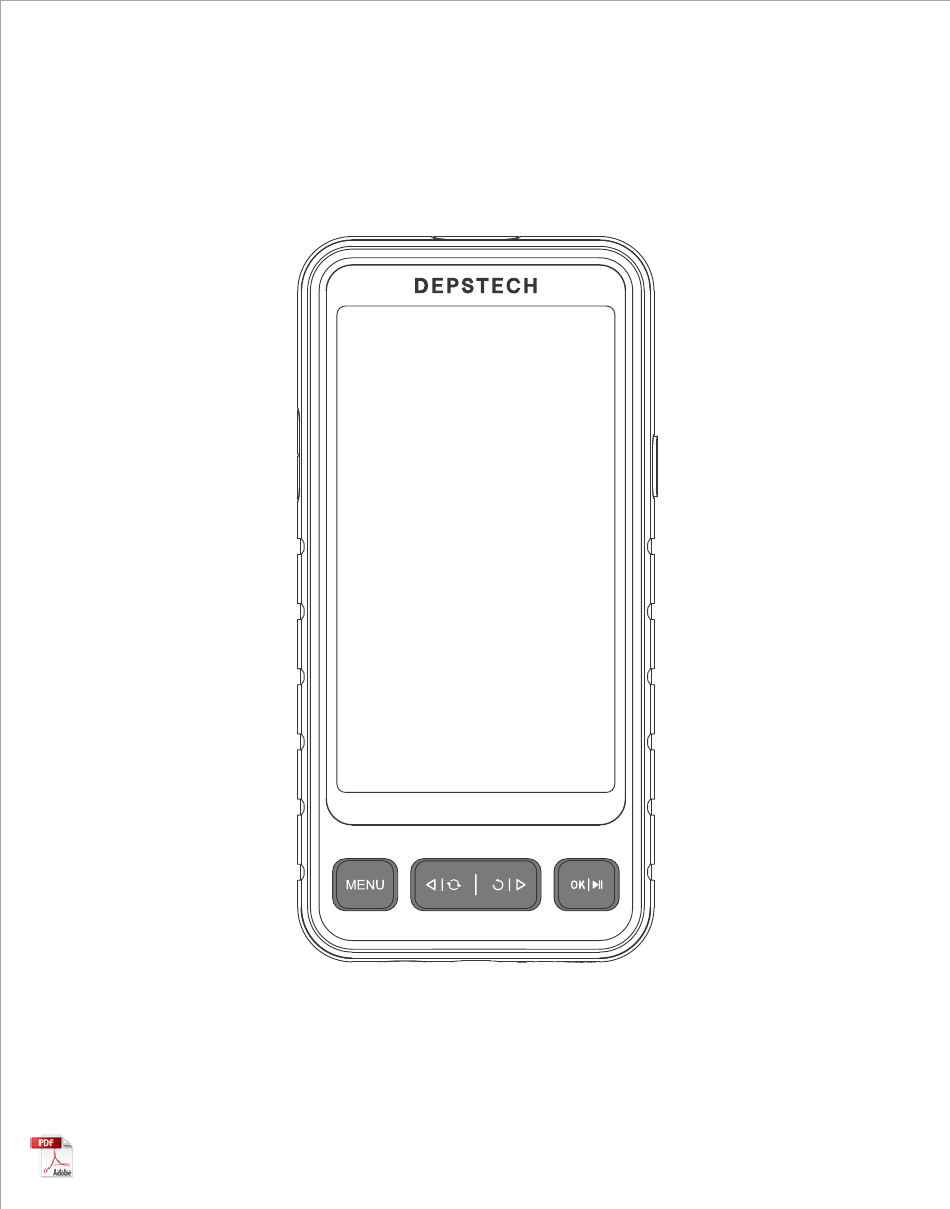

- Page 1 Industrial Endoscope DS530 User Manual...
- Page 2 TF memory card (Micro-SD card). • DS530 is also fitted with microphone and loudspeaker to bring clearer audio and video effect. • It is also designed with 2,200mA ultra-large capacity battery to ensure long endurance and premium experience.

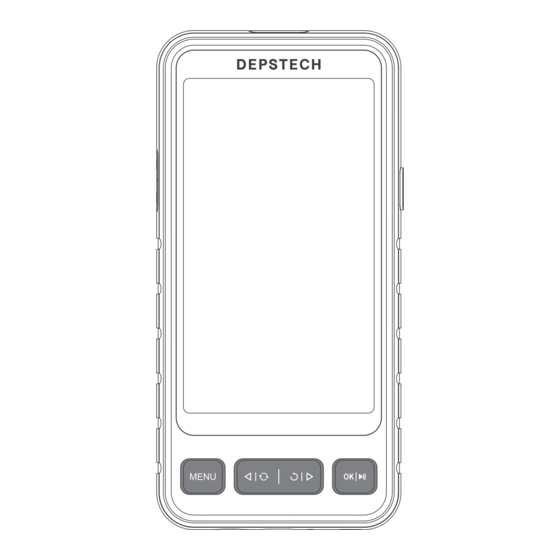

- Page 3 Product Appearance • Click to enter the menu. • Hold this button for 2s to power on / off the endoscope. • Click to switch main / side camera • Move the cursor up. (In the menu) • Click to adjust the brightness of LED light in the lens.
- Page 4 • Short click the reset button • Support up to 32G TF card to shut down the device • Please format it on first use • For charging (Type-C cable connected • Connect the camera cable to the adapter) • For data transmission (Type-C cable connected to PC client) UI Introduction Album...
- Page 5 Power on Hold this button for 2s to power on / off the endoscope. Tips: It is recommended to fully charge the equipment before first use. Language Setting Default language of the device is English; If other language is required, please follow the steps below: 1.
- Page 6 TF Card Formatting 1. Click button to enter the menu. 2. Click to select “Format” options. 3. Click to enter the option interface, Select “OK”. 4. Wait for the formatting to complete. Tips: TF card’s maximum support is 128G expansion. Memory cards with more than 32G capacity need to be formatted before use, otherwise they cannot be used.
- Page 7 Photo / Video 1. Take photos by click button. 2. Long press to start a video recording, single click to the end video recording. View Photo / Video 1. Long press in preview mode to enter the photo album. 2. Click to view photos, Click to play videos.
- Page 8 Lens Switching Only available for dual and triple lens products. When the product is turned on, it opens the main lens by default. Click to the button can switch the lens. Lens LED Light Brightness Adjustment 1. The LED light of the lens defaults to the brightest state. 2.
- Page 9 2. Use a Type-C cable to connect to computer. 1. Please connect the product to your computer. 2. Select “Data Transmission”. Charging Instructions 1. Red LED indicator flashes: Charging. 2. Red LED indicator stays on: Charging finished. 5V 2A Tips: Connect the device to the DC 5V 2A adapter for charging.
- Page 10 Turn Off The Microphone 1. Click button to enter the menu. 2. Click to select “Microphone” options. 3. Select “Turn off” and click to confirm the setting. 4. When the microphone is turned off, appears in the preview interface. Tips: Please note that when the microphone is turned off, the recorded video will be asonant.
- Page 11 Tutorial 1. Click button to enter the menu. 2. Click to select “Tutorial Video” “Product Tutorials” options. Electronic version Function Tutorial of instructions Video After Sales Service If you have a problem with your device, please scan the QR code below and fill in the relevant problem description.
- Page 12 Specifications Model Dual Camera Triple Camera Camera Diameter 7.9 mm (0.31 in) A: 3-10 cm (1.18-3.93 in) A: 3-10 cm (1.18-3.93 in) Best Focal Range B: 2-6 cm (0.79-2.36 in) B: 2-6 cm (0.79-2.36 in) C: 1.5-2.5 cm (0.59-0.98 in) Camera View 80°...
- Page 13 ※ FCC Requirement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 14 Please contact us if you have any questions, we love to hear from you www.depstech.com support@depstech.com Facebook Official Page: @DEPSTECH. FANS Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN Made in China...
