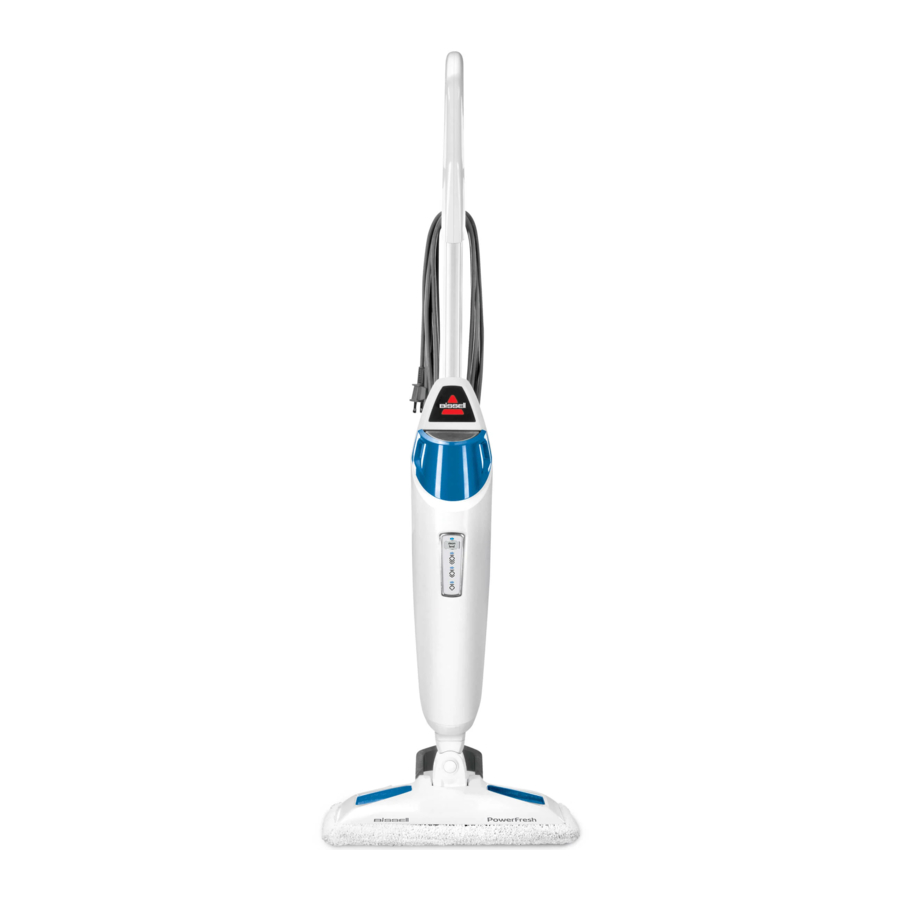

Bissell POWERFRESH 1940 Series Manual

Product View

1. Strain Reliever Handle™
2. Quick Release™ Cord Wrap
3. Removable Water Tank
4. Lower Cord Wrap
5. Smart Set™ Steam Control
6. Low Profile, Edge-Cleaning Mop Head
7. Maneuverable Swivel
8. Easy Scrubber
9. Washable Microfiber Mop Pads (quantity may vary)
10. Spring Breeze Fragrance Discs (quantity may vary)

Plastic film can be dangerous. To avoid danger of suffocation, keep away from babies and children.

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Do not plug in your hard floor cleaner until you are familiar with all instructions and operating procedures.

Assembly

Your PowerFresh® Steam Mop assembles quickly and easily.

1. Attach lower body to mop head by snapping it into place.

2. Slide handle assembly down and screw until tightened.


PowerFresh Steam Mop assembly is now complete.

Exercise extreme care when using your steam mop on hardwood floors. Prolonged application of steam in one area increases the risk of damage to the surface treatment on timber floors. Test steam mop in an inconspicuous area before mopping a large area. The steam mop generates hot steam, so move the unit continuously when depressing the trigger. The trigger does not need to be depressed at all times. Regular foot traffic and direct sunlight will wear down timber floor surface treatment, making it more susceptible to steam damage. Check with your timber floor treatment and application specialist prior to steam mop operation. We recommend checking with the flooring manufacturer prior to use for any specific cleaning instructions.

Do not plug in your hard floor cleaner until you are familiar with all instructions and operating procedures.

Removable Water Tank
The water tank is located on the top of the PowerFresh® Steam Mop. It can be refilled with water any time during use. Distilled or demineralized water is recommended in place of tap water.

Do not use chemicals in the water tank of your PowerFresh Steam Mop.

SmartSet™ Steam Control
(Low, Medium, High) SmartSet™ Steam Control indicator light will stop blinking when PowerFresh® Steam Mop is ready to use. Then press the Steam Level button to choose the level of steam you desire.

Microfiber Mop Pads
Reusable microfiber mop pads are machine washable and safe for virtually all hard floor surfaces. Your PowerFresh may have come with two different pads. Use the soft, white pad to clean everyday messes. Use the scrubby, striped pad to clean tougher, stuckon messes.

Easy Scrubber
Quickly clean sticky messes by flipping down the Easy Scrubber with your foot and locking it into position. Clean grout and crevices easily with this effective tool.

Do not attempt to use your PowerFresh Steam Mop without water in the tank. You may hear a knocking sound indicating there is no water.

Operations

Getting Ready

The mop pad may have already come attached to the mop head, if not follow steps 1a and 1b below.

1. Add Fragrance Disc and attach mop pad
   1. Insert Spring Breeze Fragrance Disc into pocket inside mop pad. Use the whole disc for a refreshing scent or cut in half for a lighter scent.
   2. Set mop head in mop pad, making sure quick-grip release tab is located on the back.
      NOTE: Use of distilled water in place of tap water is recommended to prolong the life of your steamer. To add a fresh scent as you clean, try BISSELL® Demineralized Waters in scents like Citrus, Eucalyptus Mint and Spring Breeze. Do not use chemicals in the water tank of your machine. Other solutions may harm the machine.
2. Fill the water tank

3. Twist the Quick Release™ cord wrap clockwise to unwrap the power cord completely and plug into a 120-Volt outlet as described on the Important Safety Instructions.
4. SmartSet™ Steam Select Indicator light will glow when PowerFresh Steam Mop is ready to use. Press the Steam Level button to choose the High Steam level of steam you desire.


NOTE: Upon first use of the PowerFresh® Steam Mop or first use after refilling the water tank, the pump may make a "knocking" sound. This is normal and should only last a few seconds.

Never put descaling, alcoholic, or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.

Steam Cleaning & Sanitizing

*Your handheld steam cleaner was tested by third-party laboratories under controlled conditions to ensure it sanitizes and kills 99.9% of germs, bacteria and viruses, including Coronavirus and Influenza viruses*. Please use as directed; your results may vary.

CLEANING TIPS:
Before using your steam mop to clean and sanitize*, thoroughly sweep or vacuum floor.

Your steam mop is designed to clean hard flooring such as ceramic tile, laminate, marble, stone, and sealed hardwood floors. Use of your steam mop on waxed or some unwaxed floors may result in a diminished glossiness. The steam mop is not for use on unsealed floors. For best results, test in an inconspicuous area and check the care instructions from your flooring manufacturer.

1. Plug the unit in and wait 30 seconds for it to heat up. Choose the level of steam to clean your floor: Low (delicate floors), Medium (regular cleaning), High (durable floors or sticky messes). Begin cleaning by slowly passing the unit over the floor surface.
2. To be sure to sanitize* an area of your floor, use the microfiber cloth pads and slowly and evenly stroke the Powerfresh Steam Pet back and forth at least three times over the area using continuous steam. For best results, remove the pad and wash after use.

3. To thoroughly clean dried-on sticky spots place the scrubby pad on the steam mop. Then press and lock the Easy Scrubber brush into place and slowly move the brush over the sticky spot to remove.
4. To turn off the PowerFresh® Steam Mop, continue to press the Steam Level button until the blue light is illuminated above the Steam Level button.
5. When the PowerFresh® Steam Mop stops emitting steam, unplug the unit. Simply remove the water tank, refill, and continue steaming.

*Kills 99.9% of Human Coronavirus (Strain 229E), Influenza A Virus (H1N1), Staphylococcus aureus, Klebsiella aerogenes, and Aspergillus niger when used as directed. Testing conducted in a third-party laboratory under controlled conditions. Results may vary.

Tinted plates on foot may get hot while steam mop is in use. Do not touch while hot.

Carpet Refresher Attachment (select models)

This accessory is recommended for the refreshing of carpets. Once the steam mop is cradled in the carpet refresher attachment, it will easily glide over the carpet.

NOTE: Always be sure a mop pad is in place before placing in carpet refresher attachment. Only white mop pads should be used with the carpet attachment. Do not use carpet attachment on spots or stains, or glide it over the same spot for longer than 20 seconds.

1. Place the swivel mop head, with mop pad attached, in the carpet refresher attachment.
   NOTE: The PowerFresh® Steam Mop rests in the carpet refresher attachment (select models) and may not stay attached to the swivel mop head. It is meant to glide over the carpet.
2. Fill the water tank with water. Begin refreshing your carpet or rug by pushing the PowerFresh® Steam Mop in a forward and backward motion, releasing steam as you go.
3. When you have finished refreshing your carpet or rug, unplug the steam mop and remove from the carpet or rug.
   NOTE: Move the PowerFresh® Steam Mop and carpet refresher attachment in a continuous motion until you are finished. This product is not intended to be used as a carpet cleaner, only a carpet refresher or deodorizer. Never attempt to use the PowerFresh® Steam Mop on carpet without the carpet refresher attachment in place. DO NOT leave the mop in a stationary position.

Maintenance and Care

When You're Done

1. Unplug power cord from outlet.
2. Carefully remove the mop pad using the Quick Release™ tab from the mop head. The mop pad and lower assembly may be hot. Remove Spring Breeze Fragrance Disc from mop pad.
3. Any water remaining in the water tank should be emptied prior to machine storage.
4. Mop pad can be machine washed in warm water. Use only liquid detergents. Do not use fabric softeners or bleach. For best results, air dry.
5. Wrap power cord around quick release cord wrap on back of PowerFresh® Steam Mop.
6. Wipe all surfaces of PowerFresh® Steam Mop with a soft cloth.
7. Store upright in a protected, dry area.

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Upright storage of the cleaner with a wet mop pad may result in the formation of white marks on your floor. To remove the white marks, clean area with vinegar.

Note: Any other servicing should be performed by an authorized service representative.

Limited 2-year warranty, may vary by state. Visit support. BISSELL.com or call 1-800-237-7691 for complete warranty information.

Please do not return this product to the store. Other maintenance or service not included in the manual should be performed by an authorized service representative.

If your BISSELL product should require service: Visit support.BISSELL.com or call 1-800-237-7691 for warranty information, BISSELL Authorized Service Centers, and replacement parts.

Register Your Product

Registering is quick, easy and offers you benefits over the lifetime of your product.

BISSELL® Rewards Points
Automatically earn points for discounts and free shipping on future purchases.

Product Support Reminders and Alerts
We'll contact you with any important product maintenance reminders and alerts.

Faster Service
Supplying your information now saves you time should you need to contact us with questions regarding your product.

Special Promotions
Optional: Register your email to receive notice of offers, contests, cleaning tips, and more!

Visit BISSELL.com/registration!

For Parts and Supplies, go to BISSELL.com and enter your model number in the search field.

Love 5your BISSELL® product?
Don't keep it a secret. Let us, and millions of others, know what you think! Leave your star-rating on BISSELL.com.

SAVE THESE INSTRUCTIONS
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
COMMERCIAL USE OF THIS UNIT VOIDS THE MANUFACTURER'S WARRANTY.

THIS APPLIANCE HAS A POLARIZED PLUG
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change the plug in any way.

Thanks for buying a BISSELL^® PowerFresh^®
We love to clean and we're excited to share one of our innovative products with you. We want your BISSELL PowerFreshto work like new for the years to come, so this guide has tips on how to use, maintain and, if there's a problem, troubleshoot.

Your BISSELL PowerFresh needs a little assembly before getting to work, so flip to the "Assembly" section and let's get started!
