Bissell Steam Shot, 2994 / 39N7 Series Manual

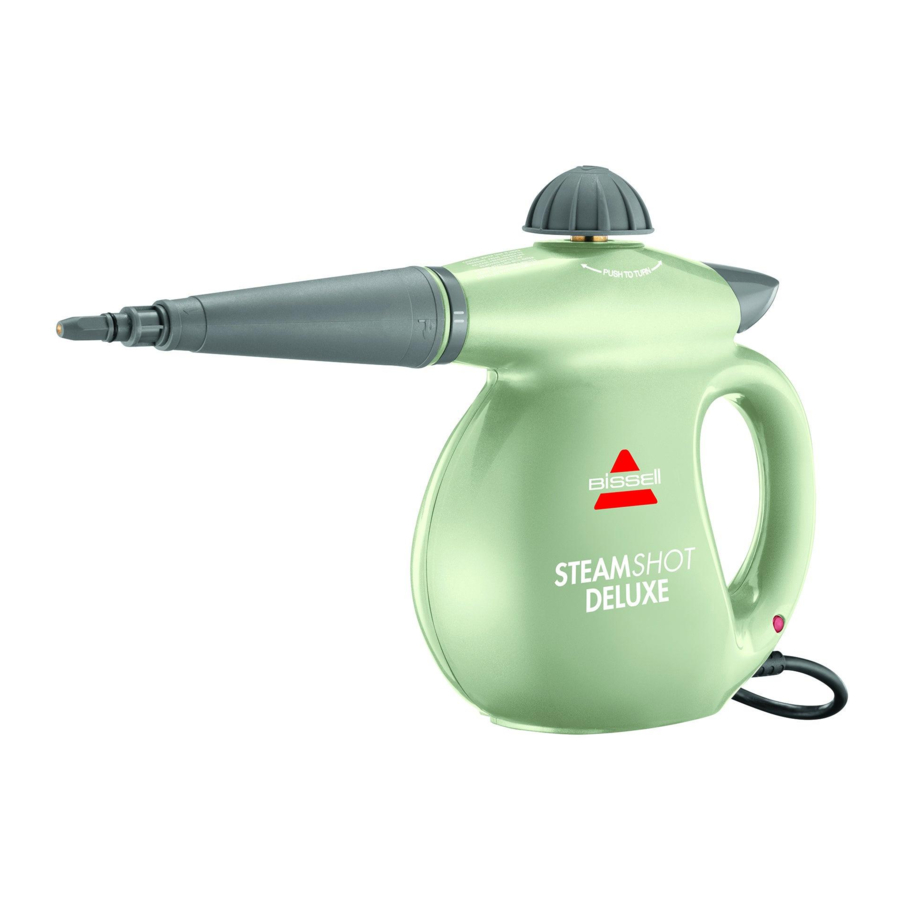

Product Overview

1. Safety Cap
2. Steam Trigger
3. Steam Nozzle
4. Indicator Light

What's in the Box?

Recommended Usage Areas

General
Dirt, grime, grease, dried on or stuck on messes, golf clubs, wallpaper removal, narrow spaces, tight crevices, old gum, ceiling fans, mattresses, doorknobs, drapes, upholstery, plants, and more.

Kitchens
Floor grout, counters, backsplashes, sinks, faucets, ovens, oven hoods, stovetops, microwaves, windows, slider door tracks, and more.

Bathrooms
Floor grout, counters, backsplashes, sinks, faucets, tubs, showers, shower doors, toilet exteriors, and more.

Kids & Pets
Kid and pet toys, sports equipment, pet beds, food and water bowls, pet crates, and more.

Clothes, Fabric & Upholstery
Clothing, fabric, upholstered surfaces, drapes, curtains, furniture, pillows, mattresses, bedding, car seats, and more.

Windows, Mirrors, Glass & Smooth
Surfaces Windows, mirrors, shower walls and doors, glass cooktops, kitchen countertops, glass and marble tables, and any other nonporous, solid, flat surfaces in the home.

Accessories and Tools

Round Detail Brush
Nylon bristles scrub tough messes. Comes with up to three different colors you can designate for specific messes or rooms.

Angle Concentrator Tool
Direct steam at an angle for hard-to-reach areas or surfaces.

Fabric Steamer (wide nozzle + cloth)
De-wrinkle and refresh clothing, fabric, upholstery and more. The cloths are washable and reusable.

Flat Scraping Tool
Scrape and remove tough dried- or baked-on messes.

Grout Brush
Concentrated nylon bristles scrub grout lines and other tight, narrow spaces.

Steam Squeegee (wide nozzle + window squeegee)
Clean windows, mirrors, shower walls, and any other non-porous, solid, flat surfaces in the home.

Attaching Accessories and Detail Tools

1. Attach accessory nozzle directly to machine or extension hose

2. Push desired tool onto end of the accessory nozzle.


Attaching Fabric Steamer

1. Attach the cloth onto wide nozzle.

2. Push fabric steamer onto end of the accessory nozzle.


Attaching Steam Squeegee

1. Align tabs of wide nozzle and squeegee.

2. Push nozzle down until tab on top of squeegee locks into place.

3. Push fabric steamer onto end of the accessory nozzle.


Filling with Water

Use of distilled water in place of tap water is recommended for optimal steam performance and to prolong the life of your steamer. Do not use chemicals in the water tank of your machine. Other solutions may harm the machine.

Your handheld steam cleaner features a water tank with a boiler system to create powerful, pressurized steam for cleaning and sanitizing.* To properly heat up and build pressure, the water tank MUST NOT BE OVERFILLLED. DO NOT FILL WITH MORE THAN 300 mL or 10 oz.

If overfilled, water replaces the air space in the tank required to heat up and build pressure. If this happens, you will experience the following:

1. Hot water will leak out of the vents on the safety cap.
2. When the stream trigger is pressed, a stream of water will release out of the steam nozzle.
3. Once the water is cleared, it will change to a spitting and sputtering steam/water mixture.

After the above steps have cycled through, proper steam will start to release out of the steam nozzle for optimal steam cleaning.

1. Make sure steam cleaner is unplugged.

2. Push down on safety cap while turning counter clockwise.

3. Measure 300 mL or 10 oz distilled water.

4. Slowly pour 300 mL or 10 oz distilled water into steamer. Do not overfill.

5. Reattach safety cap by pushing down while turning clockwise until the cap is tightly secured. If cap is not tightly secured, steam will leak out of vents on cap.

6. Plug into a properly grounded outlet.


*Use as instructed. Results may vary. Tested under controlled laboratory conditions with accessory nozzle only.

Never put descaling, alcoholic, vinegar, or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.

Refilling Water During Use

Your handheld steam cleaner features a water tank with a boiler system to create powerful, pressurized steam for cleaning and sanitizing.* For safety, the water tank MUST be depressurized before opening the safety cap to refill with water during use.

1. Unplug your steam cleaner and wait 5 minutes.

2. After 5 minutes, press stream trigger to release all built up pressure in the water tank. When steam is no longer present, all pressure has been released and water tank is depressurized.

3. Push down on safety cap while turning counter clockwise. If safety cap is still hot, use an oven mitt to remove.

4. Measure 300 mL or 10 oz distilled water.

5. Slowly pour 300 mL or 10 oz distilled water into steamer. Do not overfill.

6. Reattach safety cap by pushing down while turning clockwise until the cap is tightly secured. Be sure safety cap is tightly secured before plugging back in.


*Use as instructed. Results may vary. Tested under controlled laboratory conditions with accessory nozzle only.

Steam Cleaning and Sanitizing

Your handheld steam cleaner was tested by third-party laboratories under controlled conditions to ensure sanitization and elimination of 99.9% of germs* and bacteria.

Before using your handheld steam cleaner, please note:

• Do not use on porous, hard surfaces.
• Do not use on painted, plastic or vinyl covered surfaces, wax polished furniture or floors, synthetic materials and fabrics, velvet, leather or other delicate, heat or steam sensitive surfaces, materials or fabrics.
• To sanitize, use on non-porous, non-food contact hard surfaces with the accessory nozzle only.
• Test on an inconspicuous area before first use on a surface. If hard surface is effected, do not use the steam cleaner to clean.
• Thermal shock can shatter glass. Before cleaning cold glass surface, carefully warm the surface by directing the steam jet on the glass from a distance of no less than four to six inches.

1. Plug into a properly grounded outlet.

2. Indicator light will turn on and remain solid while the tank heats up to operating temperature.

3. After 2 to 3 minutes, the tank will reach operating temperature and the indicator light will turn off.

   Note: Indicator light will occasionally turn on and off while maintaining temperature as you clean.
4. Optional: Attach tools and accessories.

5. Press trigger to release steam.

6. For general cleaning, apply steam within 3 inches of surface. To sanitize a non-porous, non-food contact hard surface, apply steam directly above the surface for 45 seconds.

   Note: If steam nozzle is more than 3 inches from the surface, steam cleaning will be diminished.

*Kills 99.9% of Staphylococcus aureus, Klebsiella aerogenes, and Aspergillus niger when used as directed. Testing conducted in a third-party laboratory under controlled conditions. Results may vary.

After-Cleaning Care

1. Unplug from grounded outlet. Wait 5 minutes for the machine to cool down.

2. Press stream trigger to release all built up pressure in water tank.

3. When steam is no longer coming out of steam nozzle all pressure has been released. Water tank is depressurized and remaining water can be emptied. See "Refilling Water During Use" to safely depressurize the tank.

   Note: Machine, tools and safety cap may be hot.
4. After 5 minutes, remove any tools and accessories. Rinse tools and allow to dry.

5. If you used the fabric steamer, be sure to remove cloth pad.

6. Hand wash fabric steamer cloth in warm water with liquid detergent. Do not use fabric softeners or bleach. Allow to air dry.

7. Wipe down machine with soft, damp cloth.


To reduce the risk of fire, electric shock or injury, disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Troubleshooting

Note: Any other servicing should be performed by an authorized service representative.

Limited 1-year warranty, may vary by state.
Visit support. BISSELL.com or call 1-800-237-7691 for complete warranty information.

To reduce the risk of fire, electric shock or injury, disconnect plug from electrical outlet before performing maintenance or troubleshooting.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.
When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Unplug from electrical socket when not in use, before cleaning, maintaining or servicing the appliance, and if your appliance has an accessory tool with a moving brush, before connecting or disconnecting the tool.
• Do not immerse in water or liquid.
• If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Do not use with damaged cable or plug.
• Do not pull or carry by cable, use cable as a handle, close door on cable, or pull cable around sharp edges or corners.
• Keep cable away from heated surfaces.
• Do not leave appliance when plugged in.
• Unplug after use and before carrying out user maintenance on the appliance.
• Keep out of reach of children when it is energised or cooling down.
• Do not direct steam at people, animals or equipment containing electrical components.
• Always connect to a properly earthed electrical socket. Do not modify earthed plug.
• The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Do not open the filling aperture during use.
• To unplug, grasp the plug, not the cable.
• Do not handle plug or appliance with wet hands.
• Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.
• Use only as described in this user guide.
• Use only manufacturer's recommended attachments.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water; do not attempt to operate it and have it repaired at an authorised service center.
• Use extra care when cleaning on stairs.
• Do not use appliance in an enclosed space filled with vapours given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapours.
• When using electrical appliances, be cautious due to steam discharge.
• Unplug the machine when filling and cleaning.

SAVE THESE INSTRUCTIONS IMPORTANT INFORMATION
THIS MODEL IS FOR HOUSEHOLD USE ONLY.
COMMERCIAL USE OF THIS UNIT VOIDS THE MANUFACTURER'S WARRANTY.

• To reduce the risk of a leaking condition, do not store appliance where freezing may occur. Damage to internal components may result.
• Do not turn ON your appliance until you are familiar with all instructions and operating procedures.
• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet, or other delicate, steam-sensitive materials.

Go to support.BISSELL.com for a walkthrough of your new purchase, including videos, tips, support, and more.
