Bissell Steam Mop Deluxe 31N1 Series Manual

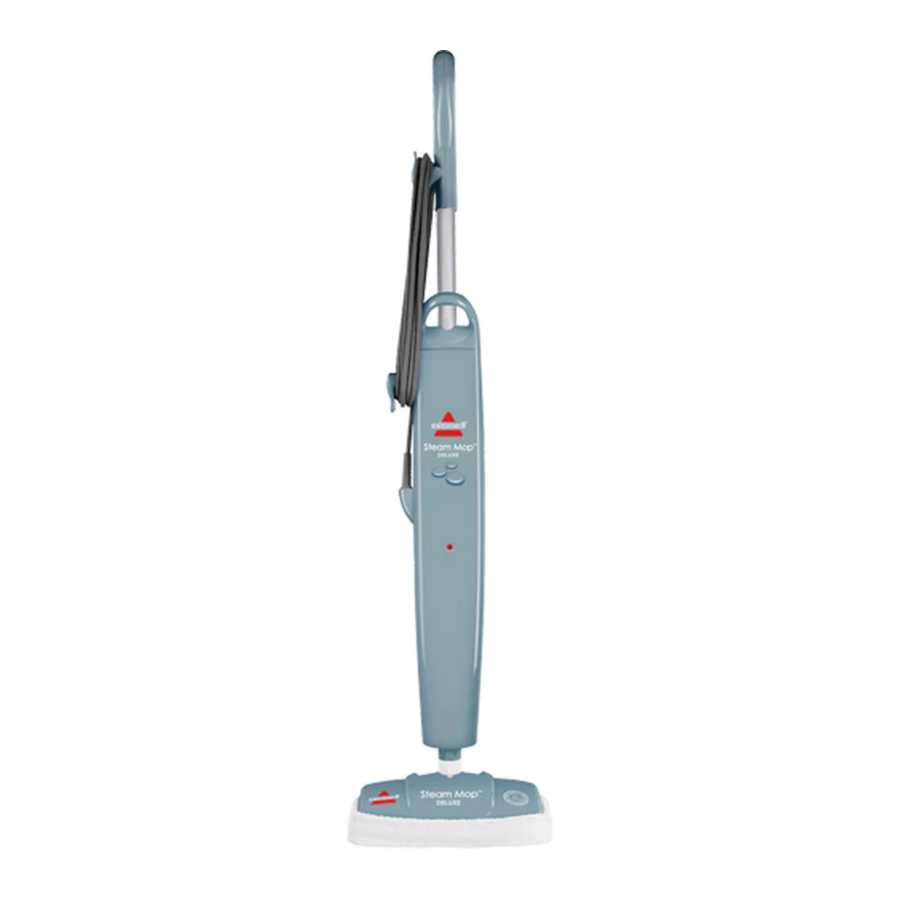

Product view

Optional Accessories:

Assembly

Your Steam Mop Deluxe assembles quickly and easily. The only thing you will need for assembly is a Phillips head screwdriver.
Your Steam Mop Deluxe is packaged with the following items:

• Handle Assembly
• Lower Body with Water Purification System
• Maneuverable Swivel Head
• Removable Water Tank
• 1 large Phillips Head Screw taped to handle
• 1 small Phillips Head Screw taped to handle
• 2 Deluxe Mop Pads

1. Attach lower body to maneuverable swivel head.

2. Secure maneuverable swivel head with small Phillips head screw. Tighten until secure.

3. Slide handle assembly down into lower body until it will go no further.

4. Secure the handle by placing the large Phillips head screw through the screw opening in the lower body and into the rear of the handle assembly. Tighten with screwdriver until secure.

5. Slide water tank onto lower body by lining up vertical glides and gently sliding tank into place.


Steam Mop Deluxe assembly is now complete.

Special features

Tip: Do not attempt to use your Steam Mop Deluxe without water in the tank.

Removable water tank
The water tank is located on the back of the Steam Mop Deluxe. It can be refilled with water any time during use. Distilled or demineralized water may be used in place of tap water.
Do not use chemicals with your Steam Mop Deluxe.

Water purification system
This filter removes minerals and other impurities from tap water, preventing water deposits from damaging your Steam Mop Deluxe. It should be replaced when the bright green grains turn blue. To maximize performance of the filter, distilled water may be used.

Ready light
The ready light will glow when the Steam Mop Deluxe is ready to use.

Steam on demand trigger
Press to release steam.

Maneuverable Swivel head
Allows you to clean in tight spaces and under cabinets.

Deluxe mop pads
Reusable microfiber mop pad is machine washable and safe for all hard floor surfaces.

Operation

Getting ready

The mop pad may have already come attached to the swivel head, if not follow steps 1A and 1B below.

1. Attach mop pad.
   1. Set swivel head in mop pad, making sure toggle is located on the back.

   2. Tighten mop pad by pulling on elastic cord while pressing on toggle.



2. Fill the water tank
   1. Remove tank by lifting straight up and away from unit.

   2. Unscrew cap at bottom of water tank and remove the insert assembly.

   3. Fill water tank with water. For best results, water should be at room temperature.
   4. Replace insert assembly and cap, tighten until snug.
   5. Replace water tank by lining up vertical

3. Twist the quick release cord wrap clockwise to unwrap the power cord completely and plug into a 120-Volt grounded outlet as described on the Important Safety Instructions.
4. The ready light will illuminate when the Steam Mop Deluxe is ready for use.

Before you clean

Thoroughly sweep or vacuum floor prior to cleaning with the Steam Mop Deluxe.

Cleaning hard floors

Your Steam Mop Deluxe is designed to clean hard flooring such as ceramic tile, vinyl, laminate, marble, stone and sealed hard wood floors. Use of your Steam Mop Deluxe on waxed or some unwaxed floors may result in a diminished glossiness. The Steam Mop Deluxe is not for use on unsealed wood floors. For best results test in an inconspicuous area and check the care instructions from your flooring manufacturer.

Never put descaling, aromatic, alcoholic, or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.

Tip:
During first use, it may take several seconds for the Steam Mop Deluxe to begin steaming. The water needs to flow through the filter to the heater. This delay will only occur during initial use or when using a new filter.

1. When the ready light illuminates, begin cleaning by slowly passing over surface while pressing the steam on demand trigger to emit steam as needed.
2. To sanitize an area of your floor, (attack invisible germs and bacteria) place the center of the Steam Mop deluxe directly over the spot for a minimum 15 seconds, but no longer than 20 seconds. For larger areas, overlap swivel head placement.
3. When the Steam Mop Deluxe stops emitting steam, simply remove the water tank, refill, and continue cleaning.

Carpet Refresher Attachment

This accessory is recommended for the refreshing of carpets. Once the steam mop is cradled in the carpet refresher attachment, it will easily glide over the carpet.

NOTE: Always be sure a mop pad is in place before placing in carpet refresher attachment. Only white mop pads should be used with the carpet attachment. Do not use carpet attachment on spots or stains, or glide it over the same spot for longer than 20 seconds.

1. Attach the mop pad to the swivel mop head. As directed in step 1 in "Getting ready" section.
2. Place the swivel mop head, with mop pad attached, in the carpet refresher attachment.

   Note: that the Steam Mop rests in the carpet refresher attachment and may not stay attached to the swivel mop head. It is meant to glide over the carpet.
3. Fill the water tank with water. Begin refreshing your carpet or rug by pushing the Steam Mop in a forward and backward motion, releasing steam as you go.

4. When you have finished refreshing your carpet or rug, unplug the steam mop and remove from the carpet or rug.

NOTE: Move the Steam Mop and carpet refresher attachment in a continuous motion until you are finished. This product is not intended to be used as a carpet cleaner, only a carpet refresher or deodorizer. Never attempt to use the Steam Mop on carpet without the carpet refresher attachment in place. DO NOT leave the mop in a stationary position.

Maintenance and care

When you're done

Upright storage of the Steam Mop Deluxe with a wet mop pad may result in the formation of white marks on your floor. To remove the white marks, clean area with vinegar.

1. Unplug power cord from outlet.
2. Carefully remove mop pad from swivel head, as mop pad and lower assembly will be hot.

3. Any water remaining in the water tank should be emptied prior to machine storage.
4. Mop pad can be machine washed in warm water. Use only liquid detergants. Do not use bleach or fabric softeners, For best results, air dry.
5. Wrap power cord around quick release cord wrap on side of Steam Mop Deluxe.
6. Wipe all surfaces of Steam Mop Deluxe with a soft cloth. Store upright in a protected, dry area.
   NOTE: If steam output is reduced, the nozzle may be blocked. To remedy, unplug unit, remove swivel head from lower body and pour vinegar through center tube of swivel head "neck". Clear nozzle by inserting a paper clip into the brass spray tip located in bottom of lower body.

Replacing the water purification system

If you fill your Steam Mop Deluxe cleaner with normal tap water, it is essential to check the water purification system and replace it when it is no longer effective. Change the filter when the bright green grains turn blue. If the filter is not changed at the appropriate time, calcium deposits will accumulate on the heating element, causing damage or reduced performance.
Using distilled or demineralized water will maximize the performance of your filter.

To order a replacement water purification system refer to the Replacement parts section.

Tip: Using distilled or demineralized water will maximize the performance of your filter.

Tip: Be sure to use only a BISSELL water filter in your Steam Mop Deluxe.

Troubleshooting

Reduced steam or no steam.

Other maintenance or service not included in the manual should be performed by an authorized service representative.

For any questions or concerns, BISSELL is happy to be of service.
Contact us directly at 1-800-237-7691. BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty, call:
BISSELL Consumer Services
1-800-237-7691
monday - Friday 8 a.m. — 10 p.m. et
Saturday 9 a.m. — 8 p.m. et

Or visit the BISSELL website - www.bissell.com

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

Please register your new BISSELL product at www.bissell.com/productregistration

Replacement parts - BISSELL Steam Mop Deluxe

Item		Part No.	Part Name
1		3252-2	Water Filter
2		203-2167	Handle assembly with Screw
3		203-2159	Water tank with Cap and Insert
4		603-2046	Cap and Insert assembly
5		203-2168	Storage Hook with Screws

Additional Accessories

These items are available for purchase as accessories for your BISSELL Steam Mop:
To purchase call 1-800-237-7691 or visit www.bissell.com.

Item		Part No.	Part Name
1		3252-3	White microfiber mop pads - 2 pack
2		3252-4	Carpet Refresher attachment with pad
3		3252-1	eucalyptus mint Natural aroma
4		3252-5	Deluxe mop pads - 2 pack
5		59V4	Steam mop Scented Water eucalyptus mint 32 FL oz

Earn Rewards Points!
To qualify you for discounts, rebates, and other BISSELL perks.
Visit www.bissell.com/rewards to learn more.

Warranty - BISSELL Steam Mop Deluxe

If your BISSELL product should require service:
Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your area.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services.

Website or E-mail: www.bissell.com
Use the "Customer Service" tab.

Or Call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. - 10 p.m. ET Saturday 9 a.m. - 8 p.m. ET

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:

Read all instructions before using your Steam mop Deluxe™

to reduce the risk of fire, electric shock, or injury:

• Do not direct steam at people, animals, or at electrical outlets.
• Do not expose to rain.
• Store indoors.
• unplug from outlet when not in use and before conducting maintenance or troubleshooting.
• Do not leave steam cleaner unattended.
• Do not leave the steam cleaner connected to an electrical outlet when not in use.
• Do not service steam cleaner when it is plugged in.
• Do not use with damaged cord or plug.
• Do not use steam cleaner if it has been dropped, damaged, left outdoors or dropped into water, return it to a service center.
• Do not handle steam cleaner with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces.
• Do not unplug by pulling on cord.
• Do not use appliance in an enclosed space filled with vapor given off by oil-base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not allow to be used as a toy.
• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam-sensitive materials.
• Do not immerse.
• Do not use for any purpose other than described in this user's Guide.
• use only manufacturer's recommended attachments - use of attachments not provided or sold by BISSELL may cause fire, electric shock or injury.
• Never put descaling, aromatic, alcoholic or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.
• unplug by grasping the plug, not the cord.
• Close attention is necessary when used by or near children.

SAVE THESE INSTRUCTIONS
Commercial use of this unit void the manufacturer's warranty.

GROUNDING INSTRUCTIONS

this appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. the cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren't sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the drawing above. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.
This model is for household uses only.
