Carrier 37VMH-1P Service Manual

Carrier 37VMH-1P Service Manual

Full dc inverter for variable refrigerant flow (vrf) sizes 36k-60k
Hide thumbs Also See for 37VMH-1P:
Table of Contents

Advertisement

Quick Links

Download this manual

Table of Contents

GENERAL INFORMATION ..................................................... 2
ACCESSORIES .......................................................................... 5
SPECIFICATIONS ..................................................................... 8
DIMENSIONS ............................................................................ 9
CLEARANCE SPACE REQUIREMENTS ............................. 10
ELECTRICAL CHARACTERISTICS ..................................... 11
CONTROL................................................................................ 22
FIELD SETTINGS.................................................................... 37
OPERATING LIMITS.............................................................. 58
SOUND LEVELS ..................................................................... 59
DIAGNOSTICS AND TROUBLESHOOTING....................... 61
Fig. 1 -Unit Image (Size 036)
Full DC Inverter for Variable Refrigerant Flow (VRF)
Service Manual
NOTE: Carrier is committed to continuously improving its
Specifications subject to change without notice.

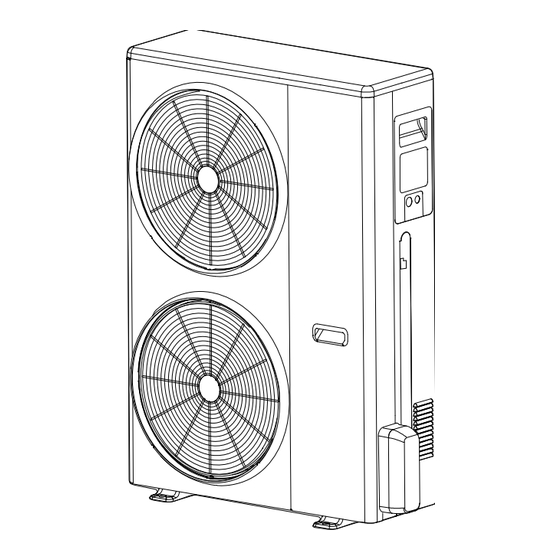

Fig. 2 -Unit Image (Size 048/060)
products to ensure the highest quality and
reliability standards, and to meet local regulations
and market requirements. All features and
specifications are subject to change without prior
notice.
37VMH-1P
Sizes 36K-60K
