Osaki OP-Xrest 4D Instruction Manual

Hide thumbs

Advertisement

Table of Contents

OP-Xrest �D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OP-Xrest 4D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osaki OP-Xrest 4D

Summary of Contents for Osaki OP-Xrest 4D

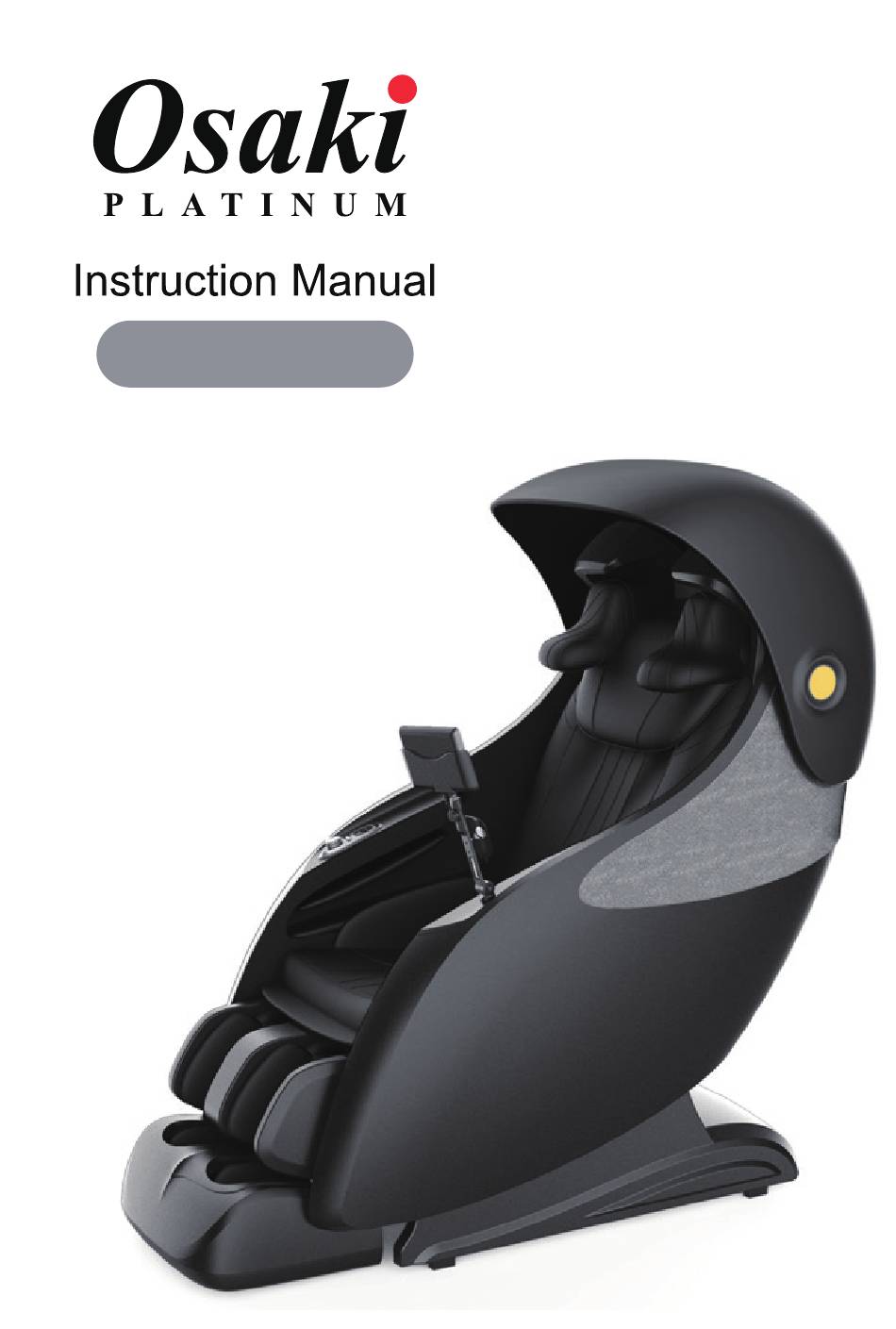

  • Page 1 OP-Xrest �D...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER-To reduce the risk of electric shock: • Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
  • Page 6 Persons with a pacemaker cannot use this Persons with any injuries should not use product. The chair may cause an electronic this appliance; malfunction to the medical device; Persons with higher or lower body Patients with malignant tumors; temperature, fever, inflammation, cold symptoms, high blood pressure or any poor Patients with heart disease；...
  • Page 7 People with the following health issues should NOT use this chair: Persons for whom massage is not advisable by doctors. Such as persons with thrombosis, serious aneurysm, acute venous aneurysm, various skin inflammations (such as subcutaneous tissue inflammation) or various skin infections. Otherwise it may aggravate or cause serious injury.
  • Page 8 The following persons (even if they are physically healthy at present) should consult a physician before using the product. (1) Persons with muscular atrophy due to old age or below normal weight; (2) Persons feeling lumbago with pain in the muscles and joints of the lower back; (3) Persons suffer from sprains or bruising easily;...
  • Page 9 Do not put hands or feet between footrest and seat base. Do not put hands or feet between footrest and side panel. Do not put hands or feet between seat base and side panel. Do not put hands or feet between the upper and the lower part of the footrest. Do not put hands or feet in the gap of seat base.

  • Page 10: Grounding Instructions

    GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord with an equipment-grounding conductor and a grounding plug.
  • Page 11 Hood Voice Control Speaker&Mic Pillow Controller Back cushion Muscle Tension Monitor Shortcut keys Wireless charge Armrest Seat pad Side panel Side panel Footrest...
  • Page 12 10 Air bags (Shoulder & Neck) 4 Air bags (Mechanism) 12 Air bags (Armrest & Seat side) 20 Air bags (Footrest)

  • Page 13: Chair Installation

    Chair Installation Hood Installation 1. Locate the screws first, 4 screws needed by each side. 2. Connect all wires. 3. Install the decorative cover. ① ① ② ② Screw Decorative wires cover...
  • Page 14 Footrest Installation 1. Connect the air connector: A2 (on the legrest) and A1 (on the main unit). 2. Connect the electrical connector: B1 (on the legrest) and B2 (on the main unit).
  • Page 15 3. Align the hole C2 (on the legrest) to the shaft C1 (on the main unit). Let H1 pass through H2. Lock the shafts with the circlips provided. Circlip 4. Zip the zipper connecting legrest and seat cushion. 5. Installation completed.

  • Page 16: Installation Position

    Installation position Make sure there is enough space to recline the chair and for the user to get in and out of the chair freely. PLEASE MAKE SURE TO USE A MAT OR RUG UNDER CHAIR IF YOU PLACE THE CHAIR ON TOP OF A HARD SURFACE LIKE HARWOOD AND CERAMIC FLOORS. 18.1”...
  • Page 17 Do not bend or twist the power cord for any reasons. Do not place the power cable under heavy objects Please make sure the such as the chair itself. Keep the power cord away powerline is untangled. from any heating sources such as the heater vents, motors and anything that may generate heat.
  • Page 19 portion wear Even if the fabric is slightly damaged, stop using the product immediately. Pull out the power...
  • Page 20 the top of the controller ● ON/OFF button ● Press this button to start massage chair. Touch any massage function icon to start massage. ● Press this button again to turn off the massage chair, and it will return to its original position.
  • Page 21 Auto ● Touch [Auto] , enter to Auto programs. ● There are 16 auto massage programs: Master's Choice, Signature,Sleeping, Stretching, Spine, Deep tissue, Core, The Golfer, Pilates, Mobile mode, Relax, Chinese, Sports, Morning, Evening. Select one of them to start massage. Note: There are 4D Mechanism, Strength, Intensity, Speed to control when massage.
  • Page 22 ● Select [Health Pro] to start muscle tension detection ① Please lean back and hold the body against the pain sensors to make sure all the testing points are covered. Press the button to start detection. ② You will be prompted to firmly press your palm against the electro plate, do not remove your palm until you receive the Health Pro diagnostics screen.
  • Page 23 2. Neck ● Touch this icon, the screen will turn to the page of [Neck]. ● There are 3 modes next page: Slight, Focus, Shoulder Concentrated, you can select [Slight] / [Focus] directly to start neck massage program, when touch [shoulder Concentrated] icon, there are left and right for options, select one to start [shoulder Concentrated] massage.
  • Page 24 3. Lower Back ● Touch the icon, the screen will turn to [ Lower Back ] page. ● There are 4 auto massage programs. Select any one to start massage. 4. Manual ● Touch this icon, the screen will turn to [ Manual ] page. ●...
  • Page 25 NOTE: (1) 4D Mechanism: ● There are 4 adjustable levels for the 4D mechanism intensity. ● In massage mode, the mechanism intensity will set to default. (2) Intensity /Strength / Speed: ● There are 5 different levels for adjustment. (3) Upward /Downward icon: ●...
  • Page 26 6. Air massage ● Touch the [ Air Massage ] icon and the screen will turn to the according page. ● There are 3 programs to select from. ● Select the program you prefer to start the massage. ● There are 5 different levels of air intensity available for adjustment. 7.
  • Page 27 8. Settings ● Touch the icon on the top left corner, the screen will change to the [ Setting ] menu. ● Users can select Sleep Mode, Touch volume, Screen sleep and Screen brightness in this page as needed. 9. Bluetooth ●...
  • Page 28 NOTE: 1- Warning Reminder Power on the controller, there will be two pages of warning reminder words as below. Pls read more carefully before you start massage. Press "OK" to continue next program. 2- Sometimes, you will find a warning sign shown like below. That means a foreign subject is preventing the footrest from functioning properly.
  • Page 29 Connect Osaki OP Xrest 4D to Alexa Guide 1. Download App ● Download the “Osaki Platinum Xrest 4D” app from either the app store or google play store. ● IOS： https://apps.apple.com/app/id6443444227 ● Android： https://play.google.com/store/apps/details?id=com.easepal.project8701c 2. Open App ● Open the “Osaki Platinum Xrest 4D” app from your device.
  • Page 30 ● Login into your Osaki account by clicking the “sign in/sign up” button. ● If you do not have a current account, please click the “Sign Up” button. Then, input an email and password. NOTE: You must make an Osaki account in order to connect your Xrest chair to Alexa.
  • Page 31 5. Smart Speaker Page ● On the setting page, click on “Smart Speaker” to go to the Smart Speaker page. 6. Connect to Alexa ● From the Smart speaker page, complete the three steps listed in the Instructions tab.
  • Page 32 7. First Step to Connect to Alexa ● Connect the Xrest to bluetooth by pressing the first step, “Connect to bluetooth”. Then select OP-Xrest 4D from the Choose the device menu and press OK. Apple Watch Mac Studio ** Make sure Bluetooth is turned on the massage chair to have bluetooth be properly connected.
  • Page 33 9. Third Step to Connect to Alexa ● Connect the chair to the smart speaker, Alexa, by pressing the “Connect the chair to smart speaker”. Then, you will be directed to the steps to connect your Xrest chair to Alexa. ●...
  • Page 34 10. To activate Alexa: Go to your Alexa app and go to “More” tab at the bottom. ● Tap “Skills and Games” and search “Osaki Massage” in the search engine. ● Tap “Osaki Titan Voice Commands” and launch it. ●...
  • Page 35 ② To activate the voice command for the massage chair, say ● “Hey Alexa, start Osaki Massage” into your Alexa app. ** Do this before using any voice command. To wake up Alexa and the Xrest: “Hey Alexa, start Osaki Massage”...
  • Page 36 11. Smart Speaker Page Refer to the voice command menu in the Osaki Xrest App or the following page ● to view all commands that can be used with Alexa.
  • Page 37 Voice Control Commands ** Please say “Hey Alexa, start Osaki Massage” to activate Alexa and Xrest before using voice commands. Voice Commands Activate the massage Turn On Turn On Osaki massage Power On Power On Power On Osaki massage Turn Off...
  • Page 38 Power: ON/OFF button Foot roller Heating Masterchoice Spine Upright Recline Spine Masterchoice Pause: Massage function pause/start button More 4D Strength Wireless Charge USB Charge Wireless Charge...
  • Page 39 microcloth or...
  • Page 40 They will not fit comfortably an air pump...
  • Page 41 If above solutions are not applicable, kindly refer to “Product Warranty Card” and contact service center.
  • Page 42 The product upholstery is deformed or abnormally hot.
  • Page 43 OP-Xrest 4D Product name 110-120V~ 60Hz Rated Current L Shape 53.3” Forward arc 4 Levels Approx 4.13” distance 65.0” × 31.5” × 60.6” 81.1” × 31.5” × 54.3” Approx 7.9” BOX 1: 55.3” × 33.9” × 50.0” BOX 2: 23.4” × 20.3” × 22.4”...
