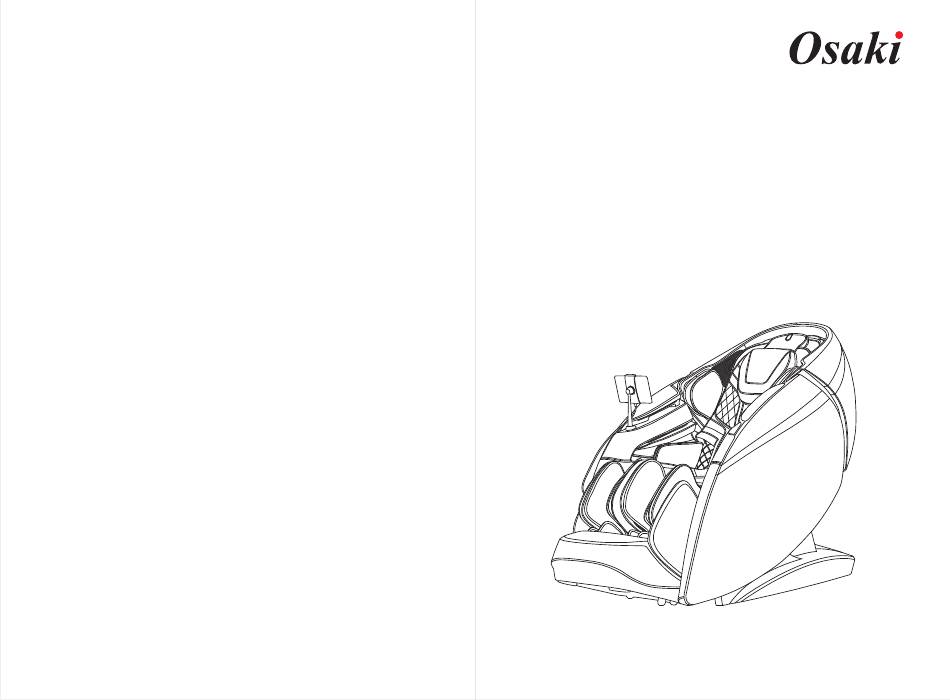

- Page 1 OS-Pro 4D DuoMax MASSAGE CHAIR Operation Instructions SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Thank you for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. -
Page 3: Safety Precautions
Safety Precautions Safety Precautions must be observed must be observed Important safety warnings ■Please read all relevant instructions carefully before use. ■The notes marked here will help you to use the product safely and correctly. ■Do not allow children to touch any movable part of this product. ■In order to clearly indicate the extent of harm and damage, precautions are ■Use the well-grounded power supply unit suitable for this product. -
Page 4: Installation Parts
Installation Parts Safety Precautions must be observed Calf Installation Instructions Product service and maintenance 1、 After power-on, lay the backrest frame down with the remote control. ■This product should be maintained by the service center designated 2、 Insert the harness connector and the air pipe on the side of the steel frame respectively by the manufacturer only. - Page 5 Installation Parts Installation Parts Calf mechanism installation instructions Installation instructions for touch screen remote control holder 1、 Align the holder with the front hole of armrest (right) and lock it with M5 screws 1、 Insert the cable and air pipe of the calf mechanism, respectively, into the sockets (Figure1);...
-
Page 6: Place Massage Chair
Place massage chair Place massage chair Installation placement Move method Use the rear casters to move the Make sure there is enough massage chair.Move the chair by tilting it space for the massage chair can down and backward about 45° as shown be tilted at least 4inches. -
Page 7: Before Use
Before use Before use Check around Turn on the power Make sure that there are no people, pets and other objects around the unit. FU SE FU SE : T5 : T5 CAUTION 25 0V 25 0V /O F /O F W ER W ER IN PU... -
Page 8: Product Structure
Product Structure Product Structure Description of Components Schematic view of functional distribution 13.Shoulder 19.Arm · · Airbag massage Wireless charger · USB charging port 14.Arm 1.Large head cushion 8.Armrest Shortcut Keys · · Remote control holder Arm simulator massage 2.Small head cushion 9.Health sensor ·... - Page 9 Product Structure Product Structure How to use the shawl ·It is provided with a unique shawl assembly, with innovative heating functions on the shoulder, back, waist and abdomen and heating with graphene. Users can place the shawl at different massage positions according to massage requirements.
- Page 10 Product Structure Product Structure Remote controller keys instruction Main information interface Shoulder Foot Code Area Manual Shoulder Foot Code Area Manual Home Health Upper Air + Upper Air + 4D + 4D + 00:30 00:30 Speed + Speed + Auto Lower Air + Customise Lower Air +...
-
Page 11: Operation Instructions
Product Structure Operation Instructions I. Start massage Armrest shortcut key description 1. Press the remote controller side button on/off key or long press the armrest on/off key Select level Gentle Soothing Strong 01.On/off key ·Long press this key for 3 seconds to turn on or off the massage chair. After the massage is turned on, press the pause/run key briefly. - Page 12 Operation Instructions Operation Instructions 4. Wait until body shape detection is completed, or you can press the skip key Skip to skip detection and start massage directly. Position too low Proper position Body sensing Position too high Checking, Please wait II.
- Page 13 Operation Instructions Operation Instructions Massage scenes(AI Intelligent) Massage scenes(Relaxing and Activating) Description Description Function Function The upper mechanical core is used to massage the neck, Massage the shoulders, neck and back and waist by means shoulders and Fengchi acupoint by kneading, and then work Meridian of kneading, tapping and Shiatsu techniques to the effect of with tapping and Shiatsu to massage the whole body.
- Page 14 Operation Instructions Operation Instructions Massage scenes(Exclusive for Family) Massage scenes(Overall Relaxation) Description Description Function Function Massage the shoulders, neck, back and waist by means of kneading, tapping, kneading and tapping mainly, to relieve Deeply massage the whole body by means of kneading, Energy Boost fatigue, promote blood circulation, and release stress by tapping and Shiatsu techniques, to wake up the vitality of the...
- Page 15 Operation Instructions Operation Instructions IV. remote program (please use this function after the equipment is turned on) Massage roller adjustment Function Remote program selection Press this key to massage without Stop Select the remote key in the left menu bar and click to enter the remote menu any technique.
- Page 16 Operation Instructions Operation Instructions 2.The massage area menu has five options: Spot, Partial, Full, Upper and Lower. Select the corresponding massage area for massage. Area Shoulder Foot Code Manual Home Upper Air + 4D + Manual Spot 00:30 Manual Speed + Auto Lower Air + Home...
- Page 17 Operation Instructions Operation Instructions 4. For massage hand adjustment, select the Up arrow or the Down arrow down to upwards or downwards fine-adjust the massage hand position. Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Manual Manual Home Description...
- Page 18 Operation Instructions Operation Instructions (1)The width can be adjusted only when the user enters the remote mode in Description selecting massage technique or massage area. (2)The massage width is available from 1 to 5 gears, with 1 being the narrowest and Press this key to increase massage speed which is adjustable from 1 to 5.
- Page 19 Operation Instructions Operation Instructions 7.Air pressure massage, enter into the air pressure massage menu to choose the Note: You press also air massage key in the “Home " interface, and Full air pressure mode as shown in the following figure. Air pressure mode include upper select corresponding air mode in the pop-up menu.
- Page 20 Operation Instructions Operation Instructions Description Lower Air Press this key to increase the air intensity which is adjustable from 1 to -5. Upper Air Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Press this key to decrease the air intensity which is adjustable from 1 to -5. Upper Air Lower Air Description...
- Page 21 Operation Instructions Operation Instructions 2.Telescopic adjustment of footrest 6.Backrest unit angular adjustment Description Description Backrest unit Up key: press and hold this key to slowly raise the Footrest shortening button: Manually adjust the footrest to shorten; backrest unit and release it to stop rising. press and hold this button to move the footrest slowly upward, and Back up release it to stop.
-
Page 22: Massage Close
Operation Instructions Operation Instructions 3.Voice control Voice Control Entry (1) Near the right armrest, say “Hi Alice” or “Hey Alice”to wake up the voice assistant, or press the voice key on the left armrest to wake up the voice assistant, and the Entry: “Hi Alice”... - Page 23 Operation Instructions Operation Instructions 4.Low-power mode switch VII. Health detection (please use this function after the equipment is turned on) Low-power mode on: In a low-power state, the armrest shortcut keys, voice voice 1.Health detect starts control functions can not be used, need to be used in the state of power on.Low- Click the "Health "...
- Page 24 Operation Instructions Operation Instructions 2.Recommended program 4. Exit health detection. When normal detection is completed, it will display the heart rate, blood oxygen, and Exit During health detection, press the key to exit the detection and return to the the fatigue level, respectively. The blood oxygen means with the blood oxygen massage state before the health detection.
- Page 25 Operation Instructions Operation Instructions Click Custom I Setting or Custom II Setting to enter the Custom Setting interface, then select the preferred massage technique whose icon will be highlighted after Manual selection, and select the massage interval, 4D intensity, air massage, massage Memory Health width, massage speed, air intensity, back heating, calf kneading and other...
- Page 26 Operation Instructions Operation Instructions In the “Home " interface, select the "Coer heat " key to turn on or off In the “Home " interface, click the "Roller " button to turn on or off the foot Mechanical core heating function (jade heating). There will be warmth after turning on roller massage function, with three adjustable speeds.
- Page 27 Operation Instructions Operation Instructions In the “Home " interface, select the "Calf " button to turn on or off the calf In the “Home " interface, select the “Shoulder Position Adjustment " button, Shoulder rubbing massage function; in The inner side of the calf is provided with rubbing and press the up and down arrow buttons in the pop-up menu to adjust the shoulder massage function, and the outer side is provided with airbag squeeze massage position, with a total of 11 adjustable levels.
- Page 28 Operation Instructions Operation Instructions XI. End massage In the “Home " interface, select the "massage time adjustment " button, press the plus and minus arrow head button in the pop-up menu, you can increase or During massage, press the remote controller touch switch key or press the right decrease the massage time.
-
Page 29: Cleaning And Maintenance
Cleaning and Maintenance Troubleshooting Cleaning synthetic leather and plastic parts When the calf mechanism or the backrest reaches a certain position, Fault press the corresponding adjustment button and it will no longer change, Wipe the leather with a soft, dry cloth. and a continuous "beep, beep"... -
Page 30: Product Specifications
Product Specifications Model: OS-Pro 4D DuoMax Name: Massage Chair Rated voltage: 110-120V~ 60Hz 220-240V~ 50Hz/60Hz Rated power: 220W Rated time: 20min Safety structure: Class I...
