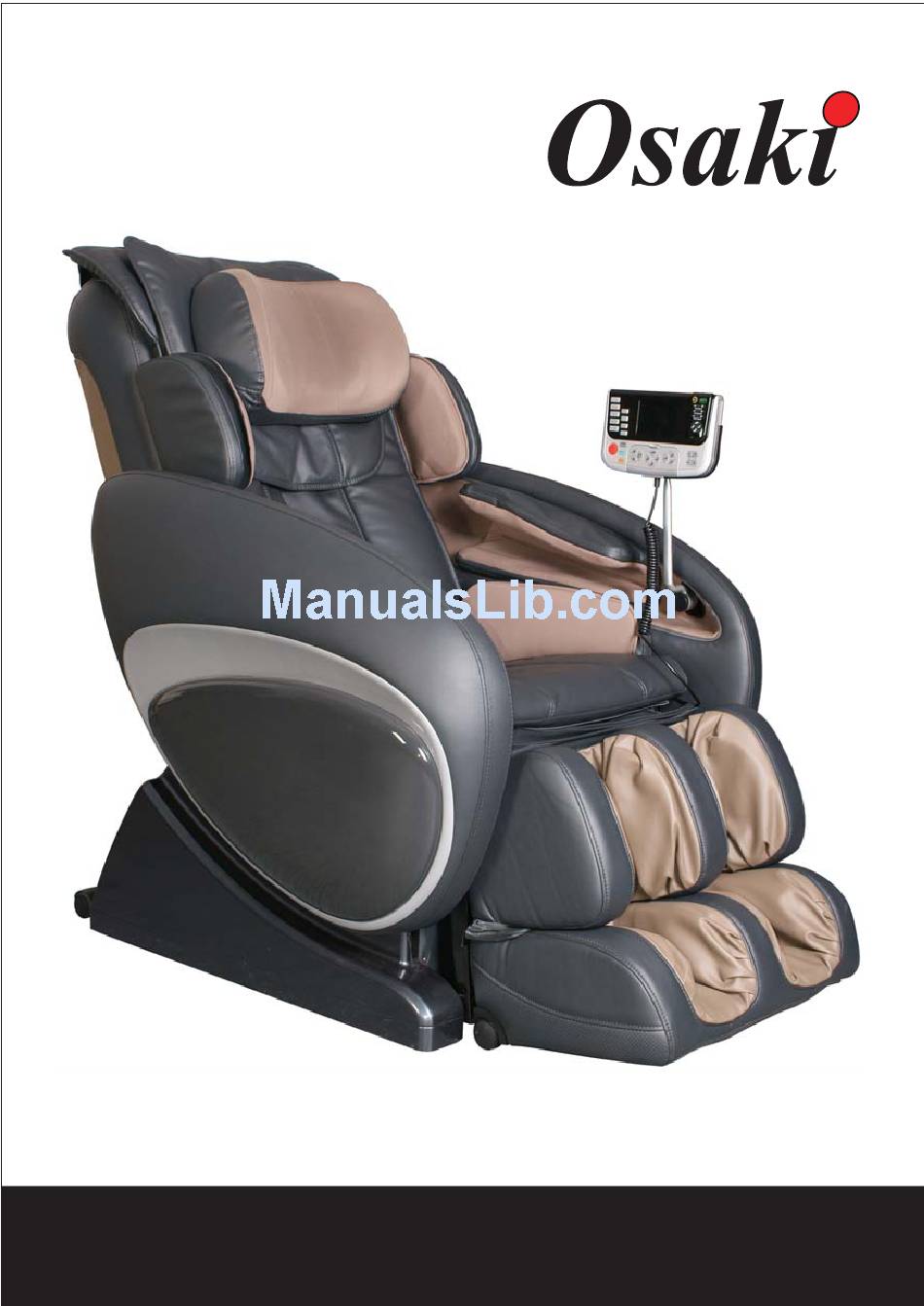

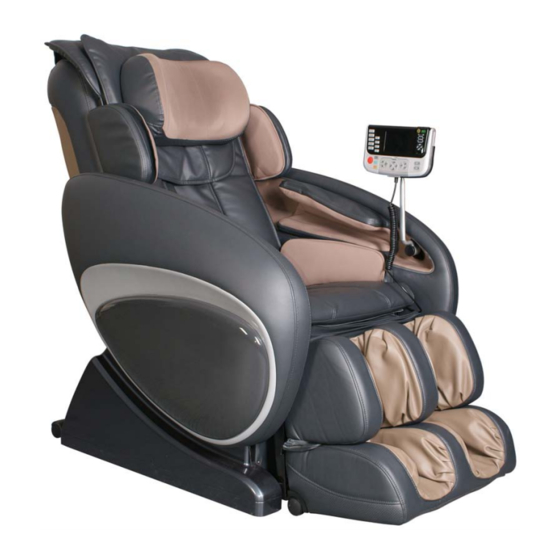

  • Page 1 Instruction Manual OS-4000...

  • Page 2: Table Of Contents

    Thank you for purchasing the OS-4000 Massage Chair. Before using your massage chair, please read the contents of this instruction manual and refer to it when needed. Table of Contents Luxury Features ........... 2 Safety Precautions ..........3-4 Chair Components ..........5-6 Chair Installation &...

  • Page 3: Luxury Features

    Luxury Features The operation of massage chair is controlled by a microcomputer that performs various intelligent massage methods and combinations, like Kneading, Tapping, Clapping, Shiatsu, Rolling, Vibration and Air Massage. All these methods massage acupressure points accurately to effectively alleviate fatigue, promote metabolism and improve blood circulation.

  • Page 4: Safety Precautions

    Safety Precautions When using the massage chair, basic precautions should always be followed to reduce the risk of electric shock, burns, fire or injury to persons. Please read the following precautions before using the massage chair. Make sure the power plug is securely inserted into a proper electrical outlet to reduce the risk of short-circuit and fire.
  • Page 5 This massage chair is designed for household use and should not be used in non-residential settings. Please consult your doctor if you are in doubt as to whether or not you should use this massage chair. Please consult a doctor before using the massage chair if you are pregnant, undergoing any medical treatment, using a medical electronic device such as a pacemaker, or are experiencing any of the following: Malignant tumor, heart disease, back pain, abnormal or curved back bone, osteoporosis or acute illness.

  • Page 6: Chair Components

    Chair components Pillow Pad Shoulder Air Bags Backrest Controller Armrest Air Bags Armrest Backrest Pad Calvesrest Legrest Wheel Footrest Seat Pad...
  • Page 7 Massaging Position Heater 21 Air Bags Vibration 20 Air Bags...

  • Page 8: Chair Installation & Moving

    Chair Installations 1. When positioning the chair, please leave 80cm of space behind the backrest to allow free reclining of the backrest. 2. Unplug from outlet when installing the Chair parts. Step 1: Remove the following contents from two cartons: 1) The chair 2) The side boards Step 2: Install the side boards.
  • Page 9 Step 4: Attach the connecting rod and the u stay fork of the reclining actuator with the flat head rivet, and secure with a split pin as demonstrated in PIC I and PIC 2. A. Connecting rod (on the backrest) B.
  • Page 10 Step 6: Unfold the backrest until you hear it click into place. Step 7: Attach the backrest pad and the pillow pad. A) Attach the backrest pad with the zipper. B) Attach the pillow pad using the hook and loop fasteners. Step 8: Connect the wire plugs.
  • Page 11 Step 9: Fix the remote controller to the holder by securing the screws. The back massage strength-control pad has been inserted into the backseat cover. If strong massage is desired, remove the back massage strength-control pad from the cover; this strengthens the massage.

  • Page 12: Moving The Chair

    Moving the Chair 1. Lift up the Calves Rest. 2. Then recline the chair to approximately to 45 degrees, so that you can easily move the chair around the house with a slight pull push. Caution: 1) Before you move the chair, please put the footrest back into the original position first. Otherwise, injuries might occur in the process of moving.

  • Page 13: Grounding Instructions

    Grounding Instructions Fully insert the plug into an appropriate outlet. An improper equipment-grounding conductor may result in electric shock. Contact a qualified electrician if you are not sure that the product is properly grounded. Do not modify the plug that is included with the massage chair. If the plug does not fit the outlet, contact a qualified electrician to install an outlet to fit the massage chair plug.

  • Page 14: Chair Specifications

    Chair Specifications Specifications Description Model No. OS-4000 Rated Voltage 120V AC 60HZ Rated Frequency Rated Power Consumption 250W Timer 5/10/15/25/30 minutes 60 minutes Max Time Rate Product carton: 52.4” X 30.3” X 37.2” Dimensions(LxWxH) Side panel carton: 37.8” X 25.6” X 15”...

  • Page 15: Controller Diagram

    Controller Diagram Full Body Auto Localised Auto Programme Programme 39 40...

  • Page 16: Operation Guide

    Operation Guide Connect to the power supply, and turn the switch to “I” position. The chair is now in idle mode. During idle mode, there are only seven funtions: ON/OFF, Foot Extend, Pause, Recline, Sit Up, Lift Leg or Recline Leg that can be operated. CONTROL BUTTONS FOR THE MASSAGE CHAIR 1.
  • Page 17 8. Length Auto Adjustment Control Button It’s equipped with an Auto Function that length of footrest can be adjusted according to the user’s leg length for a more effective massage. Every time the button is pressed, the auto function will detect the best massage length. 9.
  • Page 18 A. Full Body Auto Programme If one of the five Auto Programmes is activated before the Auto Scan of the entire body, the machine will automatically do a height scan for the back. At the same time the user can manually adjust the massage height to the prefered level. The following are the Auto Programmes available: 15.
  • Page 19 24. Tapping Tapping funtion Start/Stop Control Button- 3 sizes of width, 5 levels of speed to be adjusted. Press this button once to active the tapping function for a full back massage at medium speed. Press the button again to stop the tapping massage function. 25.
  • Page 20 30. Width The Width Adjustment button for Tapping, Clapping, Shiatsu, Rolling mode. After activating the Tapping, Clapping, Shiatsu or Rolling function, every time the button is pressed, the width can be adjusted in the cycle. 31. Kneading Kneading function Start/Stop Control Button- 5 strength levels to be adjusted Press once on “Kneading”...
  • Page 21 35/36. Upward/Downward Position Adjustment Buttons for Spot or Partial Massage When the spot or partial massage functions are activated, these buttons will move the massage rollers. Press and hold the Upward or Downward button to move the massage rollers up or down.
  • Page 22 41. Arms Arms Air Squeeze Start/Stop Control Button-5 levels of intensity Press this button once to activate the arms air squeeze function. Press the button again to stop the arms air squeeze function. 42. Calves Calves Air Squeeze Start/Stop Control Button-5 levels of intensity Press this button once to activate the calves air squeeze function.

  • Page 23: Troubleshooting

    Troubleshooting & Product Maintenance This massage chair is controlled by a microcomputer and is susceptible to power surges of +10 to –15%. The following situations may display in the event of a power surge: Situation Solution 1. Check to see that the plug is well The massage chair is connected connected and working.

  • Page 24: Warnings

    Warnings * Do not use water and other cleaning detergents on the massage chair. * Do not stack, stab, slit or harshly pull on the surface of the massage chair. * Gently press the buttons during operation and avoid hitting the buttons with hard objects.
