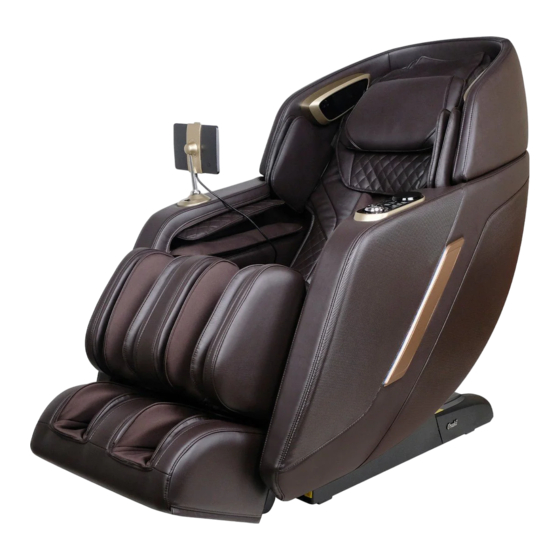

Summary of Contents for Osaki PLATINUM OP-4D Ultima

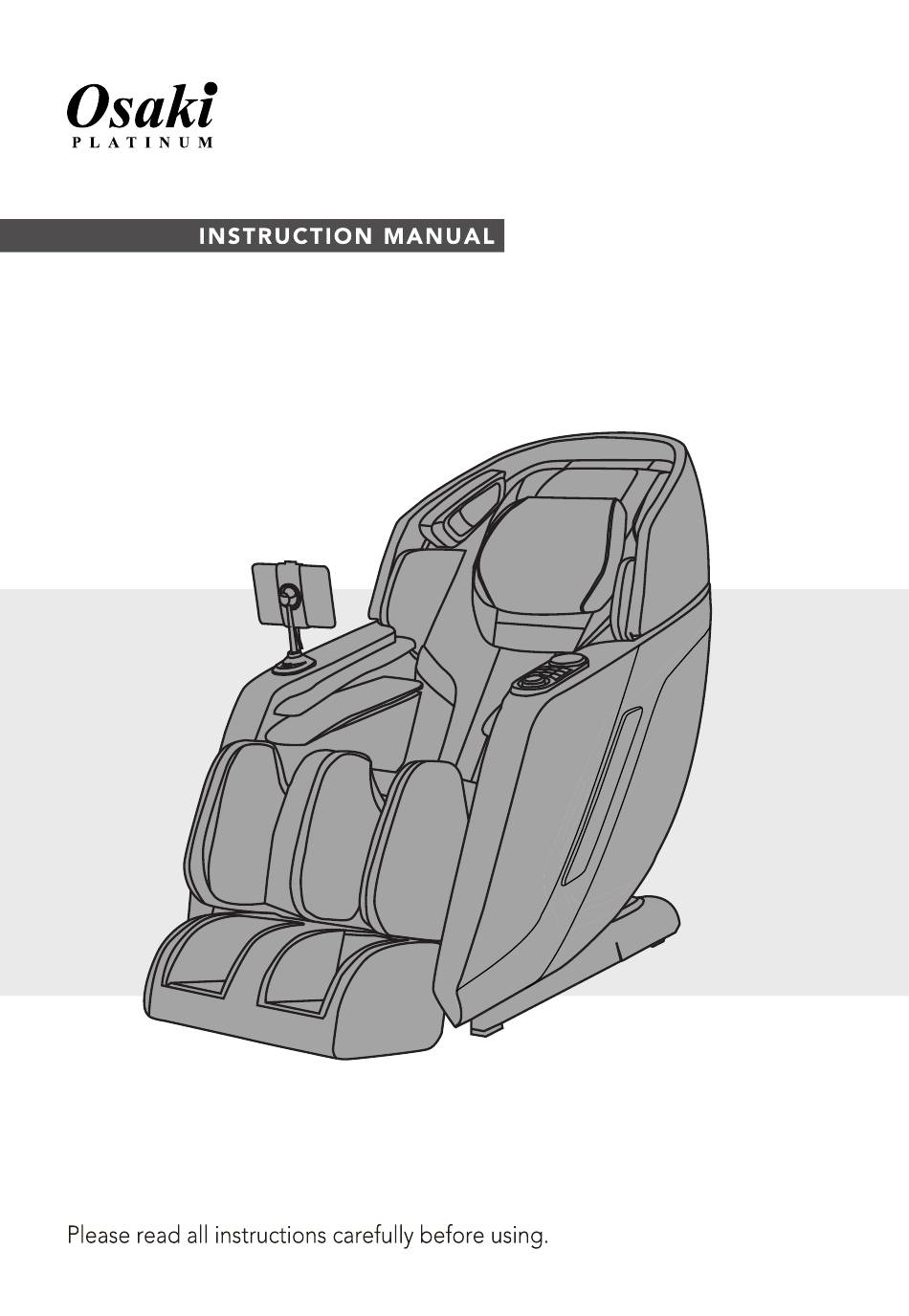

  • Page 1 OP-4D Ultima...
  • Page 2 When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER – To reduce the risk of electric shock: 1) Always unplug this appliance from the electrical outlet immediately after using and before cleaning.

  • Page 3: Table Of Contents

    Thank you for purchasing this product. Please read this user manual carefully before using to ensure proper installation and operation. Please keep this USER MANUAL properly for future reference. CONTENTS SAFETY PRECAUTIONS NAME AND FUNCTION OF EACH COMPONENT External Structure Internal Structure Armrest Quick Buttons Instructions of Armrest Quick Button...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Safety Precautions Before using, please read the SAFETY PRECAUTIONS carefully to ensure correct operation of this appliance. Precautions and warnings listed below will help to ensure proper operation of this appliance. The classes of accidents caused by incorrect use are classified into WARNING and CAUTION.Read all WARNINGS and CAUTIONS below and follow all instructions within this manual.
  • Page 5 SAFETY PRECAUTIONS Best Circumstances Do not use this appliance where temperature is over 40℃. Do not use this appliance in moist or dusty environment. Unplug from outlet during thunder or lightening storms. Do not use outdoors. Please place the product on the flat level floor. CAUTION Do not store near heat or open flame.

  • Page 6: Name And Function Of Each Component

    NAME AND FUNCTION OF EACH COMPONENT External Structure Speaker Headpiece Head pillow Back cushion Touch screen controller USB charging Armrest quick button port Armrest Controller plug connector Legrest unit Caster Internal Structure Shoulder massage airbags Massage mechanism Arm massage airbags Back heat Calf massage airbags (with heat)

  • Page 7: Armrest Quick Buttons

    NAME AND FUNCTION OF EACH COMPONENT Armrest Quick Buttons Power/ Auto massage Rotary switch Game mode Coffee mode Nap mode Back up Back down Heating button Airbags button Zero Gravity button Voice...

  • Page 8: Instructions Of Armrest Quick Button

    NAME AND FUNCTION OF EACH COMPONENT Instructions of Armrest Quick Buttons Power/Auto massage When massage chair is connected to power,long press this button to power on the controller(white indicator surrounding the button lights up),then short press this button to start auto massage program,you may toggle among 15 pre-set auto massage programs.long press this button again to turn off the massage chair.
  • Page 9 NAME AND FUNCTION OF EACH COMPONENT Back Down Press and hold to recline the backrest; release the button to stop. Heating Button When connected to power,press this button to turn on the back heat(red indicator lights up);press again to turn off the back heat(red indicator lights down).

  • Page 10: Tablet Instruction

    Tablet instruction Home Screen Home Screen may vary depending on the task you’ re performing. swipe to switch Home Screen � Menu Home Screen �...
  • Page 11 Tablet instruction Home Screen Home Screen may vary depending on the task you’ re performing. Standby Recommendations show on display screen. Tap the program you like to start massage. Body Scan...
  • Page 12 Tablet instruction Home Screen Home Screen may vary depending on the task you’ re performing. Massage Program Running Reset...
  • Page 13 Tablet instruction Menu Function Menu Massage programs/Massage chair adjustment/Settings Auto Massage Programs Tap the Auto icon to go to Auto screen, tap User/Focus/Classic/Feature to change category. You may choose among �� pre-set Auto wellness massage programs. Tap the program you like to start.
  • Page 14 Tablet instruction About Auto Massage Programs Deep Tissue A customized massage designed for the deep tissue relaxation and recovery. Dream Slimming A massage program helps to enjoy slimming at home. Gentle Treatment A gentle massage program, using super soft and slow massage techniques to help clear the meridians.
  • Page 15 Tablet instruction About Auto Massage Programs Intense Massage Designed to soothe muscles after sports activities and exercise. It can promoting circulation and speed up recovery time after intense exercise. Moderate Massage A full body stretching massage. The traction mainly targets at legs, buttocks, neck and shoulders.
  • Page 16 Tablet instruction Menu Function Menu Massage programs/Massage chair adjustment/Settings Adjustments You can adjust Zero Gravity, Massage Time, Back Recline, Legs Up/Down/Extend/Retract in Adjustments. Zero Gravity Zero �, Zero �, and Off (turn off Zero Gravity). Massage Time ��mins, ��mins and ��mins. Recline Tap and hold the icon to recline/incline the massage chair back.
  • Page 17 Tablet instruction Menu Function Menu Massage programs/Massage chair adjustment/Settings Manual Massage Tap the massage technique and the way you like to start, you can adjust the manual massage settings during the massage session.
  • Page 18 Tablet instruction Techniques Kneading, Sync, Knocking, Tapping, Shiatsu and Fascia Rubbing. Tap the icon to start. Part Whole, Partial and Point. When Point massage is working, Point focus icon will show on the screen. Tap and hold the icon to adjust the massage focus you desire.
  • Page 19 Tablet instruction Menu Function Menu Massage programs/Massage chair adjustment/Settings Options This page shows Airbags, Foot Rollers, Back Heat, Leg Heat options, you can adjust the Options settings during the massage session. Airbags Full, Shoulders and Legs. Tap the icon to start. Air Strength �...
  • Page 20 Tablet instruction Menu Function Menu Massage programs/Massage chair adjustment/Settings Settings You can check all settings of the touch screen controller in Settings.Tap the icon to see detailed information.
  • Page 21 Tablet instruction Screen Brightness Language...
  • Page 22 Tablet instruction Bluetooth Eco Mode Switch About...

  • Page 23: Offline Voice Control

    Offline Voice Control Voice Control English Switch to voice mode Power on Switch off Deep Tissue Dream Slimming Gentle Treatment Neck & Shoulder Back & Spine Waist & Buttock Intense Massage Moderate Massage Mild Massage Fascia Master Full Extension Sedentary Stretch Coffee mode Game mode Nap mode...

  • Page 24: Functions And Features

    FUNCTIONS AND FEATURES Functions And Features 1.Slide Forward While Reclining It can Slide forward while reclining to save space and provide utmost relaxing position. 2.Human hand quad style massage rollers Innovative Human hand quad style massage rollers and L-shaped sliding track conform to ergonomic principle.

  • Page 25: Preliminary Checks

    PRELIMINARY CHECKS Position & Placement for Installation Clearance space for the massage chair: Ensure there is an adequate clearance for the installation:It needs 10cm clearance for the reclining of the backrest;It needs 60cm clearance space for the extension of footrest and sliding forward of the chair. Keep it 1 meter away from the TV,radio or other audio/video appliance to avoid signal interference.

  • Page 26: Installation Method

    PRELIMINARY CHECKS Installation Method Step 1, Take all massage chair units out of the cartons Unpack the cartons and take out all sewing and other accessories out of the cartons. Step 2 , Install the Footrest Unit Lift the Footrest Massage Unit,fit the Hook of the footrest unit into the Coupling Shaft located at the Seat base(Keep the hook leveled with the coupling shaft), connect one side first then the other.
  • Page 27 PRELIMINARY CHECKS Step 3 , Install the Legrest Unit Raise the footrest unit,thread the Air Hoses into the Air Nozzle,and fit the Air Valve plug into the Air Valve Port which located at the face side of seat base,make sure they are well secured.(Check the illustration below for reference) Zip up the cover and cushion.
  • Page 28 PRELIMINARY CHECKS Step 2, Install the Controller Insert the lower end of tablet holder into the socket,turn the locknut clockwise to secure the holder into place(make sure the cradle face to the chair side). Step 6, Other Accessories Connect the power cable to the product power socket located at the power box. Connect power to chair,switch ON the power button,use the controller to raise the backrest to fully upright position.

  • Page 29: Floor Protection

    PRELIMINARY CHECKS Floor Protection We recommend to place a piece of carpet or soft mat underneath it to avoid damaging the floor. Massage Chair Floor Carpet Surrounding Environment Do not use the massage chair in high moisture environment such as near swimming pool or bathroom to prevent electric shock accident.

  • Page 30: Moving The Massage Chair

    PRELIMINARY CHECKS Moving the Massage Chair Roll the chair on its casters to the desired location. Incline the backrest to upright position. Turn off the power switch and unplug the appliance from the electrical outlet. Using two people,push down on the backrest and lift up on the front side by grabbing the moving Holder located to the front bottom of the armrest),roll the chair on its casters to the desired location(check the sketch for reference).

  • Page 31: Commissioning

    PRELIMINARY CHECKS Commissioning Use the controller to recline the backrest to its lowest position,raise and extend the footrest to its top position, make sure there is enough clearance before commissioning. Return the backrest and footrest back to its default position after commissioning and turn off the power switch.To choose the massage program, please check the Instructions of Control Panel and Instructions of Touchscreen Controller for reference.

  • Page 32: Footrest Extension

    PRELIMINARY CHECKS Footrest Extension Feet Press and hold “ ”button on the controller to extend or retract the footrest to the length you desire for better massage experience,release the button to fix the position. Feet Footrest Extended Footrest Retracted A footrest sensor is set at the bottom of footrest,the footrest will adjust the length automatically once the chair started.

  • Page 33: Product Storage And Maintenance

    CARE AND MAINTENANCE Care Instructions To treat stains on back panel,armrest,footrest,plastic parts or air hose,spot clean with mild detergent foam,then wipe it with a dry cleaning cloth. To treat stains on controller,power box,spot clean with a dry cleaning cloth. To treat stains on back cushion or pillows,use a water-based upholstery cleaner only,wipe it with moist cloth,then air dry.

  • Page 34: Troubleshooting

    TROUBLESHOOTING Symptoms Possible Causes Possible Solutions This sound is normal and comes from the air pump motor or other Noise is heard while in No need to take any mechanical parts rubbing against measures the cloth cover Insert the power plug The power cord is not secured properly into the power into the socket...

  • Page 35: Product Specifications

    TECHNICAL SPECIFICATIONS Product name: Osaki Platinum 4D Ultima massage chair Model number: OP-4D Ultima Rated voltage: 110-120V~ Rated frequency: 60Hz Rated current: 1.6A...
