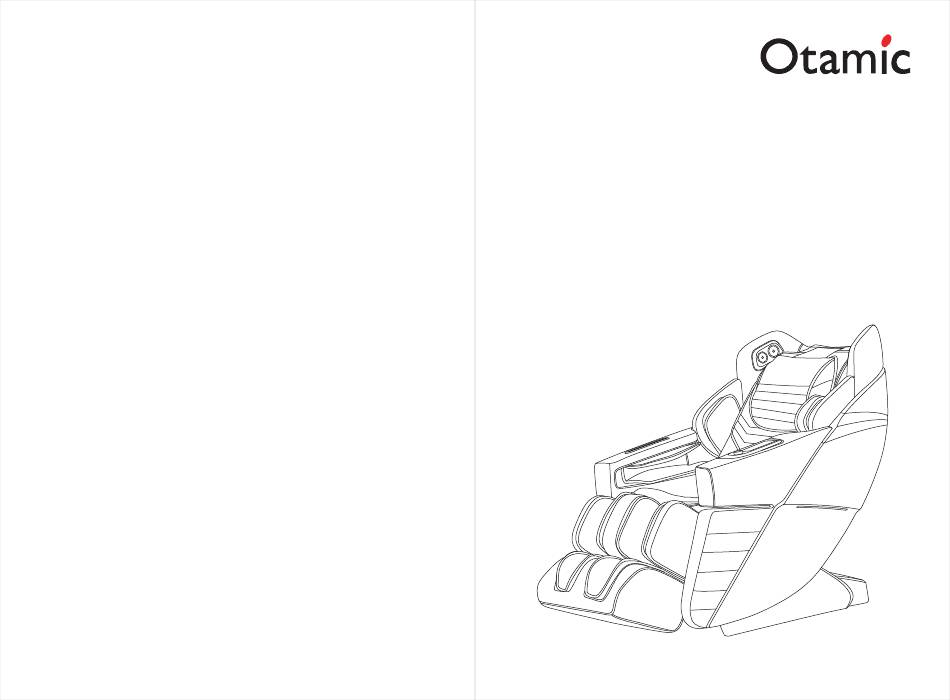

- Page 1 Otamic Pro- 3D Signature MASSAGE CHAIR OPERATION INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. Note: Our Company reserves the right to revise the design and description of this product without any further notice. -
Page 3: Safety And Maintenance
Safety and Maintenance Safety and Maintenance 1.Important Safety Warnings 4. Safety Precautions ·Do not allow children to touch any movable part of this product. ·Check whether voltage is consistent with the specification of this product. ·Use the well-grounded power supply unit suitable for this product. ·Never insert or pull out the plug with a wet hand. -
Page 4: Safety Warning
Safety Warning Safety Warning Warning Warning When the legrest of the massage chair is lifted, nobody should apply pressure on Do not remove or pull out the remote controller cable or the power cord in the the legrest to prevent the massage chair from falling forward which will damage this standby or power-on state to avoid any damage to this product or accidental electric product or result in personal injuries. -
Page 5: Name Of Components
Safety Warning Name of Components Warning Before using the massage chair, remove any hard objects in your pocket(s) or any jewelry carried with you (e.g. key, watch, other similar portable hard objects) to avoid any damage to this product or physical injury during massage. 1. -
Page 6: Function
Function Function ·The music player system is available. 3D digital audio systems are built into left ·This product is designed with a set of intelligent 3D massage manipulators with silent design that can move up and down and extend from front to back. and right upper arms. -
Page 7: Introduction To The Remote Controller
Introduction to the Remote Controller Introduction to the Remote Controller 1.Display: ·TFT color LCD showing the massage functions in the running state. 2.Switch: ·Turn on or off the massage. 3.AUTO key: ·Enter the automatic function mode selection interface. For more information about the functions, refer to Page 16 of the Operation Instructions. -
Page 8: Method Of Usage
Method of Usage Method of Usage I. Turn on the power supply of this product: 1) Lying angle adjustment ·After selecting any automatic function, the positions of the backrest and the leg Product connection Power switch diagram rest will be adjusted to the preset angles. Plugging-in diagram diagram of the product... - Page 9 Method of Usage Method of Usage Description Button ManualMode 30:00 MainMenu 30:00 30:00 Auto program Move the massage balls upward to a suitable shoulder position Knead> Range:Spot Manual Mode Move the massage balls downward to a suitable shoulder position Width:2 Other functions ·If you need to adjust the shoulder position after the massage program is started, Customise...
- Page 10 Method of Usage Method of Usage Function Description MainMenu 30:00 Fast Experience all the massage effects quickly. Auto program massage Manual Mode Comfortable The most comfortable massage experience. massage Other functions Gentle and comfortable deep massage to relieve your body Relaxing Customise massage...
- Page 11 Method of Usage Method of Usage Improve humpback and chest down; massage for each vertebra; MainMenu 30:00 Manual mode 30:00 Spine care for the spine health; and improve the protrusion of Massage Auto program Stop intervertebral disc. For sitting in the office for a long period of time, this function can Manual Mode Office Knead...
- Page 12 Method of Usage Method of Usage MainMenu 30:00 Otherfunctions 30:00 Otherfunctions 30:00 Auto Mode 30:00 Auto program 30:00 Upper air Upper air Fast massage ＞ Manual Mode Knead Lower air Lower air Other functions Back heat Back heat Calf knead Calf knead Customise Back speed...
- Page 13 Method of Usage Method of Usage 01) Intelligent storage - save or cancel Otherfunctions 30:00 Auto Mode 30:00 ·After entering the intelligent storage (saving) interface, press "Up Key" or "Down 30:00 Key" to select the massage function to be stored. Press "OK" to save or cancel. Upper air Fast massage ＞...
- Page 14 Method of Usage Method of Usage 5) Angle adjustment (main menu-angle adjustment) 02) Angle adjustment - leg angle ·Press "Menu Button" to enter the main menu interface. Press "Up Key" or "Down ·Legrest angle adjustment: adjust the legrest upward and downward. Key"...
- Page 15 Method of Usage Method of Usage 04) Angle adjustment - zero-gravity 01) Settings - language settings ·Angle adjustment for zero gravity: There are three levels of angle adjustment for ·Voice settings: including Chinese and English (the function has memory, that is, zero gravity and zero gravity OFF function.
- Page 16 Method of Usage Method of Usage 03) Intelligent Voice Control 7) Massage adjustment ·Intelligent voice control: enable or disable the intelligent voice control function (the ·In the state of the information interface, press "Left Button" or "Right Button" to function has a memory, that is, after such selection, power-off and restart, it will be select the massage adjustment button, and press "OK"...
- Page 17 Method of Usage Method of Usage 6.Lying angle adjustment button Note: ·According to the remaining massage time, when the displayed time is not enough Button Description for the addition and subtraction of a certain time, the operation will not be displayed (the upper limit of the time display is 40 minutes).
-
Page 18: Iii.introduction To Armrest Shortcut Keys
Method of Usage Method of Usage III.Introduction to Armrest Shortcut Keys Button Description Power button: Short press this button to pause the operation; if it is hold down for 3 seconds, power will be ON/OFF. If the pause time during massage exceeds 20 minutes, all the massage functions will be automatically turned off. -
Page 19: V.operation Instructions For Bluetooth Speaker Play
Method of Usage Method of Usage IV Voice Control Mode V. Operation Instructions for Bluetooth Speaker Play ·When the massage chair is turned on or in standby mode, the sound “Hi Alice” or 1.Enter the smart device main menu. Open "Settings" and select the "Bluetooth" option. -
Page 20: Vii.installation Instructions For Armrests
Method of Usage Method of Usage VII. Installation Instructions for Armrests 5.Fix the back end of the armrest with two M6 screws(Figure 5). 6.Fix the front end of the armrest with two M6 screws which has inserted the front 1.Unpack the two packages. Lift out the massage chair and armrest components. end hook of the armrest into the front end square opening of the massage frame in Carefully check the accessories and appearance for any damage. -
Page 21: X.floor Protection
Method of Usage Method of Usage X. Floor Protection ·Next, turn the legrest fixing cover over to cover the round tubes on both sides of · The prolonged heavy pressure on the massage chair may cause scratches on the the legrest (Figure 3). ·Fasten the legrest to the massage chair with two M5 screws (one on each side). -
Page 22: Product Specification
Product Specification Model: Otamic Pro- 3D Signature Name: Massage Chair Rated voltage: 110-120V~ 60Hz 220-240V~ 50Hz/60Hz Rated power:150W Rated time: 20min Safety structure: Class I Material description: PVC, PA, steel parts, electric and electron components MATERIAL LEATHER CLOTH WOOD...
