NEC NEAX 7400 ICS M100MX Manual

NEC NEAX 7400 ICS M100MX Manual

Integrated multimedia exchange, wsc system
Hide thumbs Also See for NEAX 7400 ICS M100MX:

Advertisement

Quick Links

Download this manual

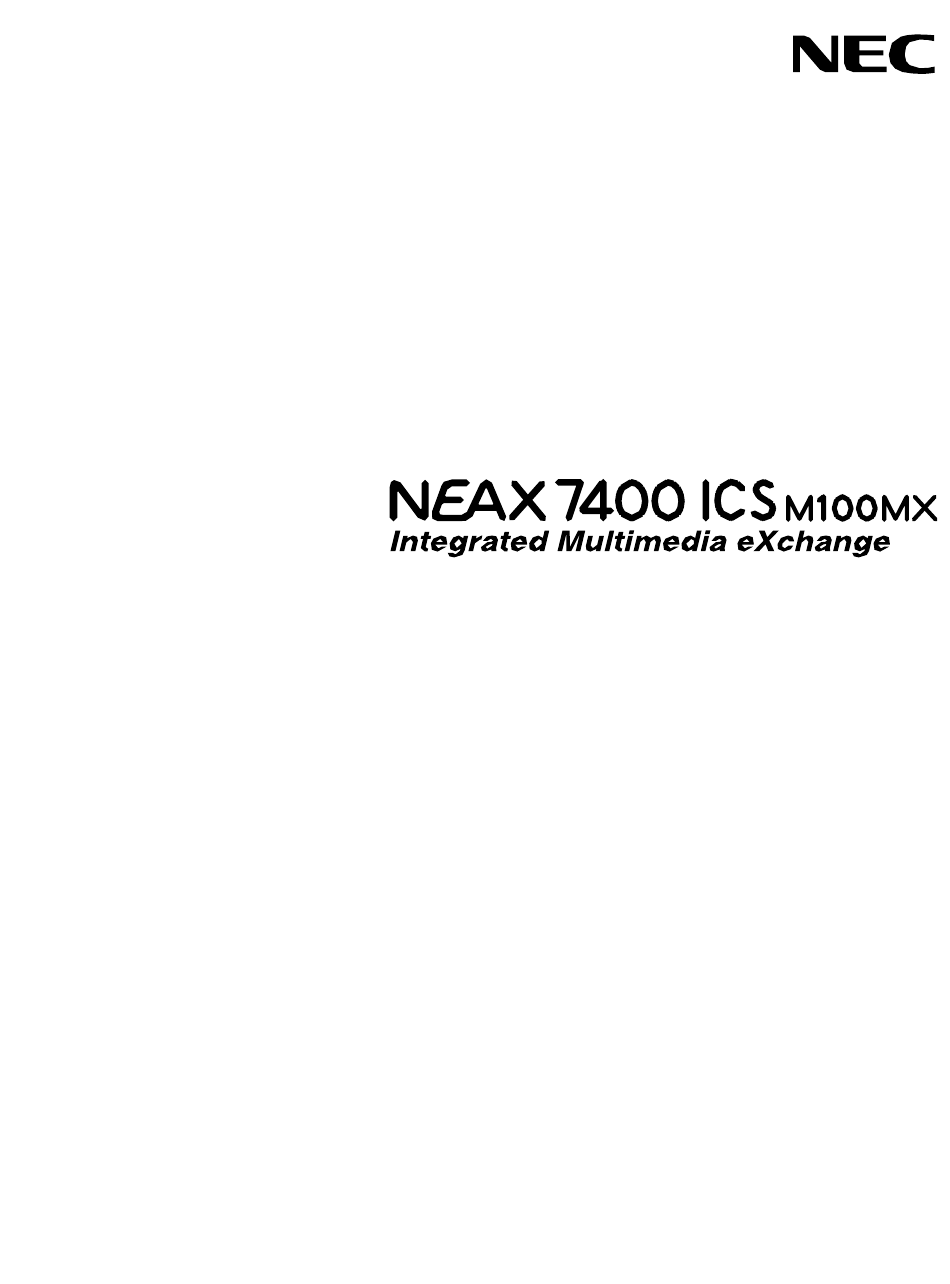

ND-70921(E)
ISSUE 1
WCS System Manual
(PHS)
SEPTEMBER, 1999
NEC Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEAX 7400 ICS M100MX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEC NEAX 7400 ICS M100MX

Summary of Contents for NEC NEAX 7400 ICS M100MX

  • Page 1 ND-70921(E) ISSUE 1 WCS System Manual (PHS) SEPTEMBER, 1999 NEC Corporation...
  • Page 2 NEC Corporation reserves the right to change the specifications, functions, or features, at any time, without notice. NEC Corporation has prepared this document for use by its employees and customers. The information contained herein is the property of NEC Corporation and shall not be reproduced without prior written approval from NEC Corporation.
  • Page 3 NEAX2000 IVS /NEAX7400 ICS M100MX ND-70921(E) WCS System Manual (PHS) ISSUE 1 Addendum-001 SEPTEMBER, 2000 GENERAL This addendum supplements the “NEAX2000 IVS /NEAX7400 ICS M100MX WCS System Manual (PHS) [ND-70921(E)]”. REASON FOR ISSUED This addendum is issued in order to add the Series 2100 software (R2.2 software) enhancement such as Calling Name Display-PS, Voice Mail Indication, the PN-30DTC-C card, the card mounting location of PIM for Backup CPU system, and to correct errors.
  • Page 5 ADD No. ADD No. PAGE No. PAGE No. 33-2 33-3 33-4 19-1 19-2 57-1 57-2 64-1 33-1 64-2 ADDENDUM-001 ADDENDUM-002 ADDENDUM-003 ADDENDUM-004 DATE SEPTEMBER, 2000 DATE DATE DATE ADDENDUM-005 ADDENDUM-006 ADDENDUM-007 ADDENDUM-008 DATE DATE DATE DATE NEAX 2000IVS /NEAX7400 ICS M100MX WCS System Manual (PHS) Addendum Revision Sheet 1/2 ND-70921(E) ISSUE 1...
  • Page 6 ADD No. ADD No. PAGE No. PAGE No. 64-3 64-4 70-1 70-2 75-1 75-2 ADDENDUM-001 ADDENDUM-002 ADDENDUM-003 ADDENDUM-004 DATE SEPTEMBER, 2000 DATE DATE DATE ADDENDUM-005 ADDENDUM-006 ADDENDUM-007 ADDENDUM-008 DATE DATE DATE DATE NEAX 2000IVS /NEAX7400 ICS M100MX WCS System Manual (PHS) Addendum Revision Sheet 2/2 ND-70921(E) ISSUE 1...
  • Page 7 PAGE No. PAGE No. ISSUE 1 ISSUE 2 ISSUE 3 ISSUE 4 DATE SEPTEMBER,1999 DATE DATE DATE ISSUE 5 ISSUE 6 ISSUE 7 ISSUE 8 DATE DATE DATE DATE NEAX 7400 ICS M100MX WCS System Manual (PHS) Revision Sheet 1/2 ND-70921(E)
  • Page 8 PAGE No. PAGE No. ISSUE 1 ISSUE 2 ISSUE 3 ISSUE 4 DATE SEPTEMBER,1999 DATE DATE DATE ISSUE 5 ISSUE 6 ISSUE 7 ISSUE 8 DATE DATE DATE DATE NEAX 7400 ICS M100MX WCS System Manual (PHS) Revision Sheet 2/2 ND-70921(E)
  • Page 9 TABLE OF CONTENTS INTRODUCTION ............................PURPOSE ............................. OUTLINE OF THIS MANUAL ......................REFERENCE MANUAL ........................CHAPTER 1 GENERAL INFORMATION ..................SYSTEM OUTLINE ..........................CARD NAME AND FUNCTION ..................... SYSTEM SPECIFICATIONS ......................CS SPECIFICATIONS ........................SYSTEM CAPACITY ......................... TIME SLOT ALLOCATION ......................
  • Page 10 TABLE OF CONTENTS TRUNK DATA PROGRAMMING (For Adjunct Analog) ............WCS FEATURE PROGRAMMING ....................57-1 Announcement-PS No Answer/Announcement-PS Out of Cell .......... Call Forwarding-Not Available ....................Calling Name Display-PS ......................64-1 ignal Sender DTMF S ........................roup Call-Automatic Conference (6/10-Party) ...............
  • Page 11 INTRODUCTION PURPOSE/OUTLINE OF THIS MANUAL INTRODUCTION PURPOSE This manual explains the system description, the hardware installation and programming proce- dure for the Wireless Communication System (WCS) on the NEAX2000 IVS /NEAX7400 ICS M100MX. OUTLINE OF THIS MANUAL This manual consists of four chapters and one appendix. The contents of Chapters 1 through 4 and appendix are outlined bellow.
  • Page 12 INTRODUCTION REFERENCE MANUAL REFERENCE MANUAL During installation, refer also to the manuals below: Command Manual: describes Customer Administration Terminal (CAT) operation, command function and setting data required for programming the system, and Resident System Program. Office Data Programming Manual: contains the Customer Specifications Sheets and Office Data Programming Sheets. Maintenance Manual: describes the maintenance service features and the recommended troubleshooting procedure.
  • Page 13 CHAPTER 1 GENERAL INFORMATION CHAPTER 1 GENERAL INFORMATION This chapter explains the WCS system outline, the equipment name and function, system specifications, system capacity and conditions. SYSTEM OUTLINE ..............CARD NAME AND FUNCTION ..........SYSTEM SPECIFICATIONS ............. CS SPECIFICATIONS ............... SYSTEM CAPACITY ..............
  • Page 14 CHAPTER 1 GENERAL INFORMATION SYSTEM OUTLINE SYSTEM OUTLINE The wireless communication system (WCS) provides interface with a Personal Station (PS) via a Cell Station (CS). There are three types of system configurations available as follows: (1) Integrated Type The system provides both PBX and WCS functions. (2) Adjunct Type (Analog Interface) The WCS is an adjunct system to the PBX linked by line-trunk connection.
  • Page 15 CHAPTER 1 GENERAL INFORMATION SYSTEM OUTLINE WCS System Outline (1) Integrated Type PBX with WCS NOTE term (2) Adjunct Type (Analog Interface) ANALOG (3) Adjunct Type (CCIS Interface) CCIS NOTE term CCH : Common Channel Handler DAT : Digital Announcement Trunk COT : Central Office Trunk : 24/30 channel Digital Trunk Interface : Cell Station...
  • Page 16 CHAPTER 1 GENERAL INFORMATION CARD NAME AND FUNCTION CARD NAME AND FUNCTION The table below shows the circuit card name and function for WCS. WCS Card Name and Function FUNCTIONAL CARD NAME FUNCTION NAME PZ-PW122 DC/DC PWR Power Supply Card for Cell Station (Zone Transceiver) Input: DC –24 V Output: DC –48 V (1.7 A)
  • Page 17 CHAPTER 1 GENERAL INFORMATION CARD NAME AND FUNCTION FUNCTIONAL CARD NAME FUNCTION NAME PN-CFTB 6/10 Party Conference Trunk Card Use of one card : Can control a conference of up to six participants. Use of two cards: Can control a conference of up to ten participants.
  • Page 18 CHAPTER 1 GENERAL INFORMATION SYSTEM SPECIFICATIONS SYSTEM SPECIFICATIONS System Specifications DESCRIPTION SPECIFICATIONS REMARKS Based on second generation wireless tele- Wireless Protocol phone system standard RCR-STD-28 com- plied • BS21 WIRE 0.4 mm 0.5 mm 0.65 mm DIAMETER POWER SUPPLY LOCAL LOCAL LOCAL Distance between...
  • Page 19 CHAPTER 1 GENERAL INFORMATION CS SPECIFICATIONS CS SPECIFICATIONS CS Specifications ITEM SPECIFICATIONS BS21 Output Power 10 mW Type of Interface S Interface Number of Simultaneous Speech Path Max. 3 Power Requirements Power feeding from the WCS: DC –48 V±5 V Power Consumption Max.
  • Page 20 CHAPTER 1 GENERAL INFORMATION SYSTEM CAPACITY SYSTEM CAPACITY WCS System Capacity CAPACITY DESCRIPTION Adjunct Adjunct Integrated (Analog) (CCIS) NOTE 1 With PZ-M537 No PZ-M537 PS Simultaneous With PZ-M537 Connections NOTE 1 No PZ-M537 Calling Area CS per Calling Area NOTE 1: When using a PZ-M537 card, the capacity of PSs can be expanded to 256.
  • Page 21 CHAPTER 1 GENERAL INFORMATION TIME SLOT ALLOCATION TIME SLOT ALLOCATION As shown below, the CSH (PN-SC03-A) card uses the time slot on the basic memory highway 4. Therefore, the total number of time slots for all CSH card must be 128 time slots or less including all other application processor cards, which use the highway 4.
  • Page 22 THIS PAGE LEFT BLANK INTENTIONALLY. – 12 – ND-70921(E) Rev.1.0 SEPTEMBER, 1999 AB011-10...
  • Page 23 CHAPTER 2 INSTALLATION CHAPTER 2 INSTALLATION This chapter explains the hardware installation procedure to provide WCS interface to the PBX. PRECAUTIONS ................. REQUIRED EQUIPMENT ............INSTALLATION PROCEDURE ..........MOUNTING PW122 CARD ............MOUNTING EXPMEM CARD ............ MOUNTING CSH CARD ............MOUNTING CSI CARD .............
  • Page 24 CHAPTER 2 INSTALLATION PRECAUTIONS PRECAUTIONS Static Electricity Guard You must wear a grounded wrist strap to protect circuit cards from static electricity. Static Electricity Guard • WHEN PLUGGING/UNPLUGGING A CIRCUIT CARD FRAME GROUND SCREW WRIST STRAP • WHEN HOLDING A CIRCUIT CARD NEVER TOUCH THE COMPONENTS OR SOLDERED SURFACE WITH BARE HANDS.
  • Page 25 CHAPTER 2 INSTALLATION PRECAUTIONS Static Electricity Guard • WHEN MAKING A SWITCH SETTING ON A CIRCUIT CARD CIRCUIT CARD WEAR A WRIST STRAP AND PERFORM THE WORK ON A GROUNDED CONDUCTIVE WORK SURFACE. • WHEN CARRYING A CIRCUIT CARD CONDUCTIVE CIRCUIT POLYETHYLENE CARD...
  • Page 26 CHAPTER 2 INSTALLATION PRECAUTIONS CAUTION You must hold the edge of a circuit card when plugging or unplugging the circuit card. If you touch another area, you may be exposed to hazard voltages. NEVER TOUCH THE COMPO- NENTS OR SOLDERED SUR- FACE WITH BARE HANDS.
  • Page 27 CHAPTER 2 INSTALLATION PRECAUTIONS Turning Power ON CAUTION 1. When the operating power is being supplied to the PZ-PW121 card, do not plug/unplug this circuit card into/from its mounting slot. 2. When the system is configured with two or more PIMs, the BUS cable is providing gang control for the PZ-PW121 card of PIM0 and other PIMs.
  • Page 28 CHAPTER 2 INSTALLATION PRECAUTIONS Turning Power OFF (1) Before turning power off; make sure that all line/trunk cards are not operating by no busy lamps indication. (2) Turn the SW1 switches of all the PZ-PW121 cards to OFF. First, turn OFF PIM0. Then, turn OFF PIM1 to PIM7.
  • Page 29 CHAPTER 2 INSTALLATION REQUIRED EQUIPMENT REQUIRED EQUIPMENT The Table below shows the equipment required to provide the WCS interface to the system. WCS Required Equipment EQUIPMENT DESCRIPTION QUANTITY REMARKS PZ-PW122 Power supply card for CS One per PIM (DC/DC PWR) 16 CS powered/ card PWR CNT CA-D...
  • Page 30 CHAPTER 2 INSTALLATION REQUIRED EQUIPMENT WCS Required Equipment EQUIPMENT DESCRIPTION QUANTITY REMARKS PN-24DTA-C (DTI) 24-channel DTI card For Adjunct Type (CCIS Interface) PN-30DTC-A 30-channel DTI card (DTI) PN-30DTC-C 30-channel DTI card (DTI) PN-SC00 (CCH) Common Channel Handler card – 19-1 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB014-11...
  • Page 31 THIS PAGE LEFT BLANK INTENTIONALLY. – 19-2 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB014-11...
  • Page 32 CHAPTER 2 INSTALLATION INSTALLATION PROCEDURE INSTALLATION PROCEDURE Install the equipment for WCS according to the procedure shown below. For installation of the PBX, refer to the Installation Procedure Manual. For installation of the CCIS interface in CCIS Adjunct system, refer to the CCIS System Manual. Installation Procedure START page 21...
  • Page 33 CHAPTER 2 INSTALLATION MOUNTING PW122 CARD MOUNTING PW122 CARD Mount the PW122 card into the PIM as shown below. ATTENTION Contents Static Sensitive Handling Precautions Required (1) Attach four screws preliminary to the PZ-PW122 card. (2) Mount the PZ-PW122 card into the PIM which accommodates the CSI cards, and fasten the screws.
  • Page 34 CHAPTER 2 INSTALLATION MOUNTING PW122 CARD (3) Connect the PWR CNT CA-E or PWR CNT CA-D, and POWER OUTPUT CABLE (–48 V, E) to the PZ-PW122 card as shown below. ATTENTION Contents Static Sensitive Handling Cable Connection between PZ-PW121/PZ-PW122 and BWB Precautions Required PZ-PW121 BWB (BACK WIRING BOARD)
  • Page 35 CHAPTER 2 INSTALLATION MOUNTING EXPMEM CARD MOUNTING EXPMEM CARD The EXPMEM (PZ-M537) card on the MP card is required when the number of PS ATTENTION Contents Static Sensitive is more than 128. Handling Precautions Required (1) Confirm the correct switch settings of the EXPMEM card. See CHAPTER 4. page 73 (2) Mount the EXPMEM card on the MP card as shown below.
  • Page 36 CHAPTER 2 INSTALLATION MOUNTING CSH CARD MOUNTING CSH CARD (1) Before mounting the CSH (PN-SC03-A) card, set the MB switch to UP ATTENTION Contents Static Sensitive position, and set the other switches to appropriate position. Handling Precautions Required See CHAPTER 4. page 73 (2) Mount the CSH card in the AP slots of PIM0 through PIM7.
  • Page 37 CHAPTER 2 INSTALLATION MOUNTING CSI CARD MOUNTING CSI CARD (1) Before mounting the CSI (PN-2CSIA-A) card, confirm the correct switch ATTENTION Contents Static Sensitive settings. See CHAPTER 4. page 73 Handling Precautions Required (2) Mount the CSI card in the LT slots of PIM0 though PIM7. PIM0-7: LT00-LT07 slots –...
  • Page 38 CHAPTER 2 INSTALLATION INSTALLATION OF CS INSTALLATION OF CS BS21 Overview BS21 Overview SYMBOL NAME FUNCTION Antenna An antenna to transmit/receive radio waves An indicator to show whether power of CS is ON or OFF, and operating condition of CS. LINE Connector (BCU) A connector for connecting the line cable from the (4 pin)
  • Page 39 CHAPTER 2 INSTALLATION INSTALLATION OF CS LED Indication of CS The table below shows the LED indication of the CS. LED Indication of CS LED INDICATION CS STATE ACTION GREEN Normal state – FLASH All voice channels are Wait for a moment. busy.
  • Page 40 CHAPTER 2 INSTALLATION INSTALLATION OF CS CS Installation (BS21) (1) Position and secure the CS Plate with three screws at the screw holes to wall as shown below. When drilling holes on the wall in advance, the holes should be within φ 3.0-3.2 mm, 20 mm depth.
  • Page 41 CHAPTER 2 INSTALLATION INSTALLATION OF CS (3) If CS power is supplied by local AC Adapter, connect the AC Cable Plug into the AC Adapter Jack on the CS firmly. Then put the AC Power Plug into an AC outlet socket. Connecting AC Adapter (BS21) AC ADAPTER (LOCALLY PROVIDED)
  • Page 42 CHAPTER 2 INSTALLATION INSTALLATION OF CS (4) Adjust an angle of the antenna on the CS by the installing place or the covered area so that it is perpendicular to the ground. The figure below shows the example. Adjusting of CS antenna (BS21) INSTALL TO THE WALL INSTALL TO THE CEILING INSTALL TO THE BACK OF CEILING...
  • Page 43 CHAPTER 2 INSTALLATION CONNECTION OF CS CONNECTION OF CS Connect the cable to a CS via the MDF as shown in the following pages. When you replace the BS01 (8 pin) with the BS21 (4 pin), you can use the existing 8 modular plug using the BS21 CABLE.
  • Page 44 CHAPTER 2 INSTALLATION CONNECTION OF CS Location of LT Slots and LTC Connectors for CS LTC0 LTC1 LTC2 LTC3 LT09 SLOT LT00 LT03 LT06 SLOT SLOT SLOT LT10 SLOT LT04 LT01 LT07 SLOT SLOT SLOT LT08 LT11 SLOT SLOT LT02 LT05 SLOT SLOT...
  • Page 45 CHAPTER 2 INSTALLATION CONNECTION OF CS Example of MDF Cross Connection for CS (BS21) • Using 4 Pole Modular plug PIM0 LTC0 PN-2CSIA-A (No. 1) LEN002 LT00 TO RB (No. 0) LEN000 TO TA ( ): CIRCUIT NUMBER LTC CONNECTOR LEN002 LEN000 Modular plug...
  • Page 46 CHAPTER 2 INSTALLATION CONNECTION OF CS Example of MDF Cross Connection for CS (BS21) • Using BS21 CABLE PIM0 LTC0 PN-2CSIA-A (No. 1) LEN002 LT00 TO RB (No. 0) LEN000 TO TA ( ): CIRCUIT NUMBER 3 4 5 6 LTC CONNECTOR Modular Plug...
  • Page 47 CHAPTER 2 INSTALLATION CONNECTION OF CS NOTE 2: Below is the specifications of 4 pole modular plug for CS. Terminal number Side view Front view FUNCTION POLARITY TERMINAL TERMINAL TERMINAL NUMBER NUMBER TERMINAL SIGNAL FEED EQUIPMENT Transmission Reception – – Transmission Reception –...
  • Page 48 CHAPTER 2 INSTALLATION CONNECTION OF CS NOTE 3: Below is the specifications of 8 pole modular plug for CS. RJ-45 Modular plug is highly recommended. Keep all wiring straight to the plug and perform all reverses at the cross connect for future changes.
  • Page 49 CHAPTER 2 INSTALLATION CONNECTION OF CS NOTE 4: You can use the 8 pin modular plug using the BS21 CABLE. BS21 CABLE 1000 mm (40 inch) – 33-4 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB033-11...
  • Page 50 THIS PAGE LEFT BLANK INTENTIONALLY. – 34 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB033-11...
  • Page 51 CHAPTER 3 SYSTEM DATA PROGRAMMING CHAPTER 3 SYSTEM DATA PROGRAMMING This chapter explains the programming procedure to provide the WCS feature to the PBX. HOW TO READ THIS CAPTER ..........PROGRAMMING SUMMARY ............ PS NATION CODE PROGAMMING .......... CS DATA PROGRAMMING ............PS DATA PROGRAMMING ............
  • Page 52 CHAPTER 3 SYSTEM DATA PROGRAMMING HOW TO READ THIS CAPTER HOW TO READ THIS CHAPTER In the programming procedure, the meaning of (1), (2) and markings are as follows. : 1st Data : 2nd Data : Initial Data With the system data clear command (CM00, CM01), the data with this marking is automatically assigned for each command.
  • Page 53 CHAPTER 3 SYSTEM DATA PROGRAMMING PROGRAMMING SUMMARY PROGAMMING SUMMARY Program the system data for the WCS, according to the following procedure. Initial Set Up of System START PS NATION CODE page 40 PROGRAMMING page 41 CS DATA PROGRAMMING page 48 PS DATA PROGRAMMING Integrated Type Adjunct Type (CCIS Interface)
  • Page 54 CHAPTER 3 SYSTEM DATA PROGRAMMING PROGRAMMING SUMMARY Changing CS Data in Service When you change the CS data (CM10, CM06, CMAD, CMAE) in service, make busy of the CS is required. In this case, do the following procedure. START MAKE BUSY OF CS (CME5 Y=3>2) CHANGE OF CS DATA (CM10, CM06, CMAD, CMAE)
  • Page 55 CHAPTER 3 SYSTEM DATA PROGRAMMING PROGRAMMING SUMMARY Replacing PS When you replace the PS with a new one, moreover assigning the same PS station number to the new PS, it is required to delete the PS station number downloaded to the WCS before down- loading the new PS data.
  • Page 56 CHAPTER 3 SYSTEM DATA PROGRAMMING PS NATION CODE PROGRAMMING PS NATION CODE PROGRAMMING DESCRIPTION DATA START CMAE Specify the Nation Code of the PS. • Y=00 03: Nation Code assignment for Austra- 001: Australia NOTE: Refer to Technical Information Y=00 •...
  • Page 57 CHAPTER 3 SYSTEM DATA PROGRAMMING CS DATA PROGRAMMING CS DATA PROGRAMMING Calling Area 1 Radio Zone PS Location Registration Calling Area 2 Each CS is provided with Calling Area, Group and Group CS number, given a maximum capacity to have 32 calling areas while each area has 8 groups. One group can house 32 group CSs. Calling Area: Calling Area consists of plural Radio Zones and the calling signal is sent to the CS that belongs to the same calling area.
  • Page 58 CHAPTER 3 SYSTEM DATA PROGRAMMING CS DATA PROGRAMMING Initial Set Up DESCRIPTION DATA START CM05 Assign an AP number to the CSH card. • The AP number must match the SENSE 04-15, 20-31: AP No. switch settings on the CSH card. 29: CSH (PN-SC03-A) card INITIAL Assign a CS number to the required LEN.
  • Page 59 CHAPTER 3 SYSTEM DATA PROGRAMMING CS DATA PROGRAMMING DESCRIPTION DATA Assign an area to be called to each CS. Y=00 CMAD • 000-127: CS No. NOTE: Confirm that the busy LED lamp XX Y ZZ on CSI card is flashing (60 IPM). XX: 00-31 (Calling Area No.) Y : 0-7 (Group No.) ZZ: 00-31 (Group CS No.)
  • Page 60 CHAPTER 3 SYSTEM DATA PROGRAMMING CS DATA PROGRAMMING DESCRIPTION DATA CMAD Assign a PAD data to each CS, if required. Y=01/08/09/10 Connecting Patterns • Y=08, 09 and 10 should be assigned when 000-127: CS No. the system is the Integrated Type or the See the following table: Adjunct Type (CCIS Interface).
  • Page 61 1 (1 LCCH Carrier). NOTE 1, NOTE 2 NOTE 2: Follow the initial data setting. When you change the data of CMAD Y=02/05/07, contact NEC. Set the sending level of the LCCH from the Y=05 • CS to the PS. 000-127: CS No.
  • Page 62 CHAPTER 3 SYSTEM DATA PROGRAMMING CS DATA PROGRAMMING DESCRIPTION DATA CMAE Assign the LEN of the Control CS which Y=00 • has a SYS-ID. 02: Assignment of CS with SYS-ID 000-758 : LEN Set the Control Signal Mode of the Calling Y=10 •...
  • Page 63 CHAPTER 3 SYSTEM DATA PROGRAMMING CS DATA PROGRAMMING Changing CS Data in Service When you change the CS data (CM10, CM06, CMAD, CMAE) in service, make busy of the CS is required. DESCRIPTION DATA START CME5 Make the CS busy. •...
  • Page 64 CHAPTER 3 SYSTEM DATA PROGRAMMING PS DATA PROGRAMMING PS DATA PROGRAMMING PS Data Programming Control CS (System ID) (PS-ID) Downloaded by the Data Set Adapter (PC) Data Set Adapter Download from MAT (1) PS Data Programming via Data Set Adapter Using the Data Set Adapter, the following data can be written onto each PS.
  • Page 65 CHAPTER 3 SYSTEM DATA PROGRAMMING PS DATA PROGRAMMING (3) PS Station Number Clear When you replace the PS with a new one, moreover assigning the same PS station number to the new PS, delete the PS station number downloaded to the WCS before downloading the new PS data.
  • Page 66 CHAPTER 3 SYSTEM DATA PROGRAMMING VIRTUAL LINE/TRUNK DATA PROGRAMMING VIRTUAL LINE/TRUNK DATA PROGRAMMING (For Integrated/Adjunct CCIS) This programming is required for Integrated Type or Adjunct Type (CCIS Interface). DESCRIPTION DATA START CM10 Assign a virtual station number to the re- 763-000: LEN NOTE 1 quired LEN.
  • Page 67 CHAPTER 3 SYSTEM DATA PROGRAMMING VIRTUAL LINE/TRUNK DATA PROGRAMMING The following data are set automatically by the virtual line-trunk path setting of CM5A Y=00. If you clear CM5A Y=00 setting data, the following data are also cleared automatically. DESCRIPTION DATA CM5A COMMAND MEANINGS...
  • Page 68 CHAPTER 3 SYSTEM DATA PROGRAMMING VIRTUAL LINE/TRUNK DATA PROGRAMMING DESCRIPTION DATA Change the trunk route for the virtual trunk Y=00 CM30 • number, if required. 256-511: Virtual Trunk No. 00-63 : Trunk Route No. Assign the data for the Virtual Line/Trunk •...
  • Page 69 CHAPTER 3 SYSTEM DATA PROGRAMMING TRUNK DATA PROGRAMMING TRUNK DATA PROGRAMMING (For Adjunct Analog) This programming is required for Adjunct Type (Analog Interface). DESCRIPTION DATA START CM10 Assign a trunk number to the required 000-763: LEN LEN. D000-D255: Trunk No. Assign the trunk route number to the trunk Y=00 DP or DTMF CM30...
  • Page 70 CHAPTER 3 SYSTEM DATA PROGRAMMING TRUNK DATA PROGRAMMING DESCRIPTION DATA Specify the answer signal from the distant Y=04 CM35 • office for outgoing connection to the trunk 00-63: Trunk Route No. route. 1 : Battery Reversal 7 : Answer signal does not arrive from C.O.
  • Page 71 CHAPTER 3 SYSTEM DATA PROGRAMMING TRUNK DATA PROGRAMMING DESCRIPTION DATA Specify the Sender prepause timing to the Y=21 CM35 • trunk route. 00-63: Trunk Route No. 00: 0 sec. 08 : 6.0 sec. NOTE: To reduce the connecting time, it 01: 0.5 sec.
  • Page 72 CHAPTER 3 SYSTEM DATA PROGRAMMING TRUNK DATA PROGRAMMING DESCRIPTION DATA Specify the DP Make Ratio. Y=25 CM35 • 00-63: Trunk Route No. 0 : 39 % Make Ratio 1 : 33 % Make Ratio Assign the DTMF signal width to the trunk •...
  • Page 73 CHAPTER 3 SYSTEM DATA PROGRAMMING TRUNK DATA PROGRAMMING DESCRIPTION DATA CM35 Specify the DTMF Sender release timing Y=46 • to the trunk route. 00-63: Trunk Route No. 0 : 2 sec. 1 : 4 sec. 2 : 6 sec. 3 : 8 sec. 4 : 12 sec.
  • Page 74 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING WCS FEATURE PROGRAMMING • Announcement-PS No Answer/Announcement-PS Out of Cell page 58 page 64 • Call Forwarding-Not Available • Calling Name Display-PS page 64-1 page 65 • DTMF Signal Sender • Group Call-Automatic Conference (6/10-Party) page 66 •...
  • Page 75 THIS PAGE LEFT BLANK INTENTIONALLY. – 57-2 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB053-11...
  • Page 76 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Announcement -PS No Answer/Announcement -PS Out of Cell Announcement -PS No Answer/Announcement -PS Out of Cell APPENDIX: WCS Features and Spec. DESCRIPTION DATA START CM10 Assign a Digital Announcement Trunk 000-763: LEN (DAT) card number to the required LEN.
  • Page 77 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Announcement -PS No Answer/Announcement -PS Out of Cell DESCRIPTION DATA CM41 Specify the duration of message for An- • nouncement -PS No Answer. 01-99: 4-396 sec. in 4 sec. increments If no data is set, the default setting is 116-120 seconds.
  • Page 78 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Announcement -PS No Answer/Announcement -PS Out of Cell DESCRIPTION DATA Assign the message group for PS No An- Y=10 CM49 • swer to each tenant. 00-63: Tenant No. 00-63: Message Group No. Assign the message group for PS Out of Y=12 •...
  • Page 79 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Announcement -PS No Answer/Announcement -PS Out of Cell (2) To record/replay/delete a message from a PS by dialling “1”, “2”, “3”, do the following programming. This method is available for both the Integrated Type and the Adjunct Type. DESCRIPTION DATA CM12...
  • Page 80 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Announcement -PS No Answer/Announcement -PS Out of Cell OPERATING PROCEDURE FOR ANNOUNCEMENT SERVICE (1) By dialling predetermined access cord from a station or a PS (For Integrated Type) To replay an announcement: Dial the access code to replay the announcement assigned by CM20.
  • Page 81 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Announcement -PS No Answer/Announcement -PS Out of Cell (2) By dialling “1”, “2”, “3”, from a PS (For Integrated Type and Adjunct Type) To replay an announcement: Dial “2”. Dial the Digital Announcement Trunk Circuit Number (000-127). Press the SEND or L1 key.
  • Page 82 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Call Forwarding-Not Available Call Forwarding-Not Available APPENDIX: WCS Features and Spec. DESCRIPTION DATA START CM51 Assign the destination VMS station for Call Y=20 • Forwarding-Not Available. 00-63: Tenant No. of Virtual Station X-XXXXXXXX: VMS Station No.
  • Page 83 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Calling Name Display-PS Calling Name Display-PS [Series 2100 software (R2.2 software) required] APPENDIX: WCS Features and Spec. To provide this feature, the BISON type PS is required. For Calling Name Display-CCIS, refer to the CCIS System Manual. DESCRIPTION DATA START...
  • Page 84 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Calling Name Display-PS DESCRIPTION DATA Assign a trunk name number to each trunk Y=03 CM35 • route. 00-63: Trunk Route No. 00-14: Trunk Name No. : Kind of trunk route assigned by CM35 Y=00 are displayed 16-63: Trunk Name No.
  • Page 85 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Calling Name Display-PS Character Code Table X: Upper digit Y: Lower digit ” & ’ < ¥ > Example: To set “John” for Station No. 2587, do the following operation. + 770 + + 2587 + –...
  • Page 86 THIS PAGE LEFT BLANK INTENTIONALLY. – 64-4 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB064-11...
  • Page 87 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING DTMF Signal Sender DTMF Signal Sender This programming is available only for the Adjunct Type (Analog Interface). APPENDIX: WCS Features and Spec. DESCRIPTION DATA START Specify the DTMF signal width. Y=26 CM35 •...
  • Page 88 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Group Call-Automatic Conference (6/10-Party) Group Call-Automatic Conference (6/10-Party) APPENDIX: WCS Features and Spec. DESCRIPTION DATA START CM10 Assign a Conference Trunk card number 000-763: LEN to the required LEN. ED00-ED03: Conference Trunk Card INITIAL CM56 Assign the stations which belong to each...
  • Page 89 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Group Call-Automatic Conference (6/10-Party) DESCRIPTION DATA Assign the access code of paging groups Y=0-3 (Tenant Group No.) CM20 • for Group Call-Automatic Conference (6/ X-XXXX: Access Code 10-Party). A200: Simultaneous Paging Group 0 for 6/10 Party NOTE: Even if an extension does not be-...
  • Page 90 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Group Call-2 Way Calling Group Call-2 Way Calling APPENDIX: WCS Features and Spec. DESCRIPTION DATA START Assign the stations which belong to each Y=00-07 • CM56 paging group, and their number within the Simultaneous Paging Group 0-7 group.
  • Page 91 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Number Sharing Number Sharing APPENDIX: WCS Features and Spec. DESCRIPTION DATA START CM12 Specify the combination of the main sta- Y=19 Assignment of main station and • tion and the sub station, also the contrary sub station term combination, as follows.
  • Page 92 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Number Sharing DESCRIPTION DATA CM15 Provide the capability of setting/cancelling • Y=128 the Number Sharing from the sub station. 00-15: Service Restriction Class A of main station 1 : Not provide 00-15: Service Restriction Class A of sub station 0: To provide Specify whether the sub station is con-...
  • Page 93 CHAPTER 3 SYSTEM DATA PROGRAMMING WCS FEATURE PROGRAMMING Voice Mail Indication Voice Mail Indication [Series 2100 software (R2.2 software) required] APPENDIX: WCS Features and Spec. To provide this feature, the BISON type PS is required. DESCRIPTION DATA START CM13 Provide PS stations with Message Waiting •...
  • Page 94 THIS PAGE LEFT BLANK INTENTIONALLY. – 70-2 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB065-11...
  • Page 95 CHAPTER 3 SYSTEM DATA PROGRAMMING MAINTENANCE DATA PROGRAMMING MAINTENANCE DATA PROGRAMMING DESCRIPTION DATA START CM08 Define fault information storing to be per- formed. 1 : To be performed Specify the processing at the time of the fault information memory overflow. 0 : No fault information is registered.
  • Page 96 THIS PAGE LEFT BLANK INTENTIONALLY. – 72 – ND-70921(E) Rev.1.0 SEPTEMBER, 1999 AB071-10...
  • Page 97 CHAPTER 4 CIRCUIT CARD INFORMATION CHAPTER 4 CIRCUIT CARD INFORMATION This chapter explains the mounting location, the meaning of lamp in- dications and the method of switch settings of each circuit card for the WCS. HOW TO READ THIS CHAPTER ..........MOUNTING LOCATION OF CIRCUIT CARD ......
  • Page 98 CHAPTER 4 CIRCUIT CARD INFORMATION HOW TO READ THIS CHAPTER HOW TO READ THIS CHAPTER This chapter explains each circuit card used in this system about the following items. Explana- tions are given in alphabetical order of the circuit card names within each circuit card category (Control, Application Processor, and Line/Trunk).
  • Page 99 CHAPTER 4 CIRCUIT CARD INFORMATION MOUNTING LOCATION OF CIRCUIT CARD Regular PIM MOUNTING LOCATION OF CIRCUIT CARD This section explains the conditions for mounting circuit cards for the WCS. Regular PIM The figure below shows circuit card mounting slots allocated in the regular PIM. Mounting Location of Circuit Card (Regular PIM) AC/DC LTC1...
  • Page 100 CHAPTER 4 CIRCUIT CARD INFORMATION MOUNTING LOCATION OF CIRCUIT CARD PIM for Backup CPU System PIM for Backup CPU System The figure below shows circuit card mounting slots allocated in the PIM0 for Backup CPU system. Mounting Location of Circuit Card (Backup CPU) AC/DC PIM0 (For Backup...
  • Page 101 THIS PAGE LEFT BLANK INTENTIONALLY. – 75-2 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB074-11...
  • Page 102 CHAPTER 4 CIRCUIT CARD INFORMATION LIST OF REQUIRED CIRCUIT CARD LIST OF REQUIRED CIRCUIT CARD The table below shows the required circuit cards to be explained in this section. List of Required Circuit Card EXTRACTION/ INSERTION WITH POWER ON LAMP SWITCH NAME X: ALLOWED...
  • Page 103 PZ-PW122 (DC/DC PWR) PZ-PW122 (DC/DC PWR) Locations of Lamps, Switches, and Connectors CONN CONN connector: To PWR1 connector on PIM BWB POWER OUTPUT CABLE (–48 V, E): To PWR0C connector on PIM BWB Lamp Indications LAMP COLOR FUNCTION NAME Green Remains lit while the operating power is being supplied –...
  • Page 104 PZ-PW122 (DC/DC PWR) Switch Settings SWITCH SETTING SWITCH NAME FUNCTION CHECK NUMBER POSITION For turning AC power on For turning AC power off CAUTION When the operating power is being supplied to this circuit card, do not plug/unplug this circuit card into/from its mounting slot.
  • Page 105 PZ-M537 (EXPMEM) PZ-M537 (EXPMEM) Locations of Lamps, Switches and Connectors FACE REAR CONNR CONNR: To CONN connector on PN-CP14/PN-CP20 (MP) or PN-AP00-B (AP00) – 79 – ND-70921(E) Rev.1.1 SEPTEMBER, 2000 AB074-11...
  • Page 106 PZ-M537 (EXPMEM) Lamp Indications This card has no lamps. Switch Settings SWITCH SETTING SWITCH NAME FUNCTION CHECK NUMBER POSITION SW (Dip SW) For normal operation (Memory backup ON) 1 2 3 4 Not used (Memory backup OFF) Not used Not used Not used The figure in the SWITCH NAME column and the position in in the SETTING POSITION...
  • Page 107 PN-SC03-A (CSH) PN-SC03-A (CSH) Locations of Lamps, Switches and Connectors SENSE DOPE7 DOPE6 DOPE5 DOPE4 DOPE3 DOPE2 DOPE1 DOPE0 Lamp Indications LAMP COLOR FUNCTION NAME Green Flashes at 120 IPM while this card is operating normally. DOPE7 Green Remains lit when No. 7 circuit D channel link is connected. DOPE6 Green Remains lit when No.
  • Page 108 PN-SC03-A (CSH) Switch Settings SWITCH SETTING SWITCH NAME FUNCTION CHECK NUMBER POSITION SENSE Set the switch to match the AP Number (04-31) (Rotary SW) to be set by CM05. SW1-1: ON 04 05 06 07 08 09 10 11 12 13 14 15 AP No.
  • Page 109 PN-2CSI-A (CSI) PN-2CSIA-A (CSI) Locations of Lamps, Switches and Connectors – 83 – ND-70921(E) Rev.1.0 SEPTEMBER, 1999 AB074-10...
  • Page 110 PN-2CSI-A (CSI) Lamp Indications LAMP COLOR FUNCTION NAME Green Remains lit when the corresponding circuit is in use. Remains lit when a loop-back is in progress. Not used (Flash [60 IPM]) B channel status : B2 channel of the No. 1 circuit is in use. : B2 channel of the No.
  • Page 111 PN-2CSI-A (CSI) LAMP COLOR FUNCTION NAME B channel status : B0 channel of the No. 0 circuit is in use. : B0 channel of the No. 0 circuit is in idle. Flash (60 IPM) : CS is not connected to the No. 0 circuit. CS is in make-busy status.
  • Page 112 THIS PAGE LEFT BLANK INTENTIONALLY. – 86 – ND-70921(E) Rev.1.0 SEPTEMBER, 1999 AB074-10...
  • Page 113 APPENDIX WCS FEATURES AND SPECIFICATIONS APPENDIX WCS FEATURES AND SPECIFICATIONS This appendix contains the WCS Features and Specifications which explains each service feature, operating procedure, and service con- ditions. WCS FEATURES AND SPECIFICATIONS – A1 – ND-70921(E) Rev.1.0 SEPTEMBER, 19999 AB0A1-10...
  • Page 115 ND-91285-007(E) ISSUE 1 Features and Specifications...
  • Page 116 NEC Corporation reserves the right to change the specifications, functions, or features, at any time, without notice. NEC Corporation has prepared this document for use by its employees and customers. The information contained herein is the property of NEC Corporation and shall not be reproduced without prior written approval from NEC Corporation.
  • Page 117 NEAX2000/NEAX7400 ICS M100MX ND-91285-007(E) WCS Features and Specifications ISSUE 1 Addendum-001 August, 2000 GENERAL This addendum supplements the NEAX2000/NEAX7400 ICS M100MX WCS Features and Specifications, ND-91285-007(E), ISSUE 1. REASON FOR ISSUE This addendum is issued to add information on the enhanced Release 2.1 and 2.2 software features, and to cor- rect errors.
  • Page 119 ADD. No. ADD. No. PAGE No. PAGE No. 10-1 10-2 29-1 29-2 ADDENDUM-001 ADDENDUM-002 ADDENDUM-003 ADDENDUM-004 DATE AUGUST, 2000 DATE DATE DATE ADDENDUM-005 ADDENDUM-006 ADDENDUM-007 ADDENDUM-008 DATE DATE DATE DATE NEAX2000/NEAX7400 ICS Model 100MX WCS Features and Specifications Addendum Revision Sheet 1/1 ND-91285-007 (E) ISSUE 1...
  • Page 121 ISSUE No. ISSUE No. PAGE No. PAGE No. ISSUE 1 ISSUE 2 ISSUE 3 ISSUE 4 DATE FEBRUARY, 2000 DATE DATE DATE ISSUE 5 ISSUE 6 ISSUE 7 ISSUE 8 DATE DATE DATE DATE NEAX2000/NEAX7400 ICS Model 100MX WCS Features and Specifications Revision Sheet 1/1 ND-91285-007 (E)
  • Page 123 Table of Contents Analog PBX Interface ............1 Announcement - PS No Answer / Announcement - PS Out of Cell .
  • Page 124 This page is for your notes. Page ii ND-91285-007 (E) Revision 1.0...
  • Page 125 Table of Features NEAX7400 ICS Feature M80VS/100 M100 MX N version R2.1 R2.2 → → → Analog PBX Interface → → → Announcement - PS No Answer → → → Announcement - PS Out of Cell → → → Automatic Release - Out of Cell Calls →...
  • Page 126 Table of Features by Configuration Type Adjunct Type LC-COT CCIS Feature Integrated Type Interface Interface Analog PBX Interface – – Announcement - PS No Answer Announcement - PS Out of Cell Automatic Release - Out of Cell Calls Call Forwarding - Not Available –...
  • Page 127 Analog PBX Interface Analog PBX Interface General Description This feature allows the WCS to be integrated with many types of PBXs and to activate various PBX services by sending hookflash signal and DTMF tone. Configuration Application Adjunct Type with the LC-COT interface Operating Procedure To place a call using Quick Dialing: 1.
  • Page 128 Analog PBX Interface To transfer the call in progress: 1. While connected to the first party, press the TRF key and receive Feature Dial Tone. The number displayed on the LCD is cleared. The held party hears Music on Hold, if provided by the PBX. 2.
  • Page 129 Announcement - PS No Answer / Announcement - PS Out of Cell Announcement - PS No Answer / Announcement - PS Out of Cell General Description This feature allows calls to a PS which cannot be paged in a predetermined period of time to be routed to the announcement notifying the calling party that the PS cannot answer.
  • Page 130 Announcement - PS No Answer / Announcement - PS Out of Cell By dialing “1”, “2”, “3” from a PS (for the Integrated Type and the Adjunct Type) To replay an announcement: 1. Dial “2”. 2. Dial the Digital Announcement Trunk Circuit Number (000 ~ 127). 3.
  • Page 131 Announcement - PS No Answer / Announcement - PS Out of Cell 5. 64 types of messages can be assigned to each tenant of the PS and each PS tenant group can have a different message. Besides, more than two tenant groups can share one message. 6.
  • Page 132 Automatic Release - Out of Cell Calls Automatic Release - Out of Cell Calls General Description When a PS user engaged in a call moves out of the service area or enters a radio zone where all the channels are busy and the communication becomes unavailable, the call will be disconnected automatically, and the other party receives reorder tone.
  • Page 133 Call Forwarding - Not Available Call Forwarding - Not Available General Description When a PS is power off or out of cell, a call directed to the PS is forwarded to a VMS, and a voice mail message can be recorded to the VMS and checked from the PS. Also the VMS can page the PS automatically after the voice mail message is recorded.
  • Page 134 Call Forwarding - Not Available Service Conditions 1. After an incoming call to a “Not Available-PS” is forwarded, if the PS becomes available (power on or goes into zone), the PS can originate or receive a call even if the pervious incoming call is connected to the VMS. 2.
  • Page 135 CCIS Interface CCIS Interface General Description This feature allows the WCS to be integrated with NEC PBXs with CCIS interface. Configuration Application Adjunct Type with CCIS interface Operating Procedure To place a call using Quick Dialing: 1. Press the L1 key and receive extension dial tone.
  • Page 136 CCIS Interface To transfer the call in progress: 1. While connected to the first party, press the TRF key and receive Feature Dial Tone. The number displayed on the LCD is cleared. The held party hears Music on Hold, if the PBX provides the service. 2.
  • Page 137 Calling Name Display - PS Calling Name Display - PS General Description Without answering incoming calls or hold calls terminates to a PS, the calling party’s name can be confirmed by the indications on the LCD. Configuration Application Integrated Type and Adjunct Type with CCIS interface Operating Procedure No manual operation is required.
  • Page 138 This page left blank intentionally. Page 10-2 ND-91285-007(E) Revision 1.1 AUGUST, 2000...
  • Page 139 Calling Number Display - PS Calling Number Display - PS General Description This feature provides a display on the LCD of a PS receiving a call, indicating the station number. Configuration Application Integrated Type and Adjunct Type with CCIS interface Operating Procedure No manual operation is required.
  • Page 140 DTMF Signal Sender DTMF Signal Sender General Description This feature allows a PS user to send the DTMF signal (tone) to the called party (terminal, voice mail system, etc.) while engaged in communication. Configuration Application Integrated Type and Adjunct Type Operating Procedure To send the DTMF signal: 1.
  • Page 141 Group Call-Automatic Conference (6/10-Party) Group Call-Automatic Conference (6/10-Party) General Description term This feature permits a PS user, D user or Single Line Telephone user within the system to establish a con- term ference among as many as six or ten parties. From a PS/D /Single Line Telephone, a maximum of 9 PSs can be paged simultaneously except the conference leader.
  • Page 142 Group Call-Automatic Conference (6/10-Party) Service Conditions 1. A maximum of nine stations are paged simultaneously except the conference leader. Even if more than nine stations are assigned to one group except the leader, the first nine stations are paged in order of registered number on the system data. term 2.
  • Page 143 Group Call - 2 Way Calling Group Call - 2 Way Calling General Description term This feature permits a PS/D /Single Line Telephone can page a maximum of fifteen parties simultaneously except the group call leader. After one of paged parties answers, the paging becomes the 2 Way Calling between the leader and the first answered party, and paging other parties stops automatically.
  • Page 144 Group Call - 2 Way Calling 5. A group call leader cannot page two or more groups simultaneously. A group cannot be paged simultaneously by the plural group call leaders. 6. If all stations within the paged group are busy, the group call leader hears a reorder tone. If a station does not answer the paging by certain time (which is determined by the system data), the group call leader hears a busy tone.
  • Page 145 Handover Handover General Description When the signal transmission quality becomes inferior, a PS re-originates a call automatically and seizes anoth- er radio channel, making the WCS handover the call to another CS to maintain the speech quality. Configuration Application Integrated Type and Adjunct Type Operating Procedure No manual operation is required.
  • Page 146 Individual PS Calling Individual PS Calling General Description This feature allows the calling party to page the individual PS. Configuration Application Integrated Type and Adjunct Type Operating Procedure To activate: 1. Dial the unique number assigned to each PS. The designated PS will be called. If the calling number display is available, the lower 11 digits of the number are displayed on the LCD of the called PS.
  • Page 147 Number Sharing Number Sharing General Description term This feature allows the D user to have a PS as Sub Station and to get service with one telephone number. term In case that one user has both D and PS, with this feature used, the user is not required to have separate two telephone numbers.
  • Page 148 Number Sharing Service Conditions term 1. Calling Number Display to D term term When D -A is connected to the PS (Sub Station), the station number of the D (Main Station) instead term of PS (Sub Station) is displayed on D a.
  • Page 149 Out of Cell Indication Out of Cell Indication General Description When a PS user moves out of the service area and the electric field strength becomes weak, this feature notifies it to the user with the LCD display. Configuration Application Integrated Type and Adjunct Type Operating Procedure No manual operation is required.
  • Page 150 PS Authorization PS Authorization General Description term This feature is to confirm the identity of a PS to avoid an unauthorized D PS from accessing the system. Configuration Application Integrated Type and Adjunct Type Operating Procedure No manual operation is required. The PS identity is confirmed automatically by checking whether the PS possesses the key information unique to each PS.
  • Page 151 PS Location Registration PS Location Registration General Description This feature allows the WCS to supervise the location of each PS, upon receiving the location registration re- quest, to allow call termination. Configuration Application Integrated Type and Adjunct Type Operating Procedure No manual operation is required.
  • Page 152 Preset Dialing Preset Dialing General Description This feature allows a PS user to confirm the number to be dialed before originating a call. Configuration Application Integrated Type and Adjunct Type Operating Procedure To originate a call: 1. Dial the desired number. The number will be stored and displayed on the LCD. 2.
  • Page 153 Quick Dialing Quick Dialing General Description This feature allows a PS user to receive dial tone and dial the desired number to originate a call. Configuration Application Integrated type and Adjunct Type Operating Procedure To originate a call: 1. Press the L1 key and receive dial tone. 2.
  • Page 154 Radio Channel Changeover Radio Channel Changeover General Description This feature is to supervise and changeover the channel automatically to avoid the interference and to maintain the speech quality. Configuration Application Integrate Type and Adjunct Type Operating Procedure No manual operation is required. Service Conditions 1.
  • Page 155 Redial - PS Redial - PS General Description This feature enables a PS to remember the numbers dialed in the preceding ten calls including the last number dialed. The stored numbers are sequentially displayed on the LCD, allowing the station user to make an outgo- ing call by selecting the desired number from the display.
  • Page 156 Speech Encryption Speech Encryption General Description This feature protects a call from being tapped. Configuration Application Integrated Type and Adjunct Type Operating Procedure No manual operation is required. Service Conditions 1. This feature is activated for every originating call from a PS and every terminating call to a PS. For every call, the encryption assignment message is sent from the PS to the CS.
  • Page 157 Station Speed Dialing - PS Station Speed Dialing - PS General Description This feature allows a PS user to dial the certain frequently called numbers using abbreviated call codes. Configuration Application Integrated Type and Adjunct Type Operating Procedure The Speed Dialing data is set via the user-definable data assignment. For detailed operation procedure, refer to the PS User’s Guide.
  • Page 158 Voice Mail Indication Voice Mail Indication General Description When a message is mailed in the PS , an indication of the envelop icon is displayed in the LCD of the PS. Configuration Application Integrated Type Operating Procedure To retrieve a voice mail message 1.
  • Page 159 This page left blank intentionally. Page 29-2 ND-91285-007(E) AUGUST, 2000 Revision 1.1...
  • Page 160 WCS Integrated Type WCS Integrated Type General Description This feature allows a system to have Wireless PBX feature. The system provides several integrated features add- ing on the adjunctive configuration. Configuration Application Integrated Type Operating Procedure To place a call using Quick Dialing: 1.
  • Page 161 WCS Integrated Type To transfer the call in progress: 1. While connected to the first party, press the TRF key and receive Feature Dial Tone. The number displayed on the LCD is cleared. The held party hears Music on Hold, if the PBX provides the service. 2.
  • Page 162 This page is for your notes. Page 32 ND-91285-007 (E) Revision 1.0...
  • Page 163 term APPENDIX 1: D Fixed Function Keys term term 75 Series 65 Series Description Answer To answer a waiting call Conf To establish a three-way conversation Feature To activate terminal setup functions and to program One-Touch Speed Dial/ Feature Keys Hold HOLD To place an internal or external call on hold...
  • Page 164 term APPENDIX 2: D LCD Displays term APPENDIX 2: D LCD Displays term term Description 75 Series 65 Series Clock/Calendar Display 10:06 PM MON 21 APR 1999 10:06 PM TUE 14 Busy BUSY XXXX XXXX Restriction RESTRICT XXXX XXXX Do Not Disturb XXXX XXXX Call Forwarding - All Calls...
