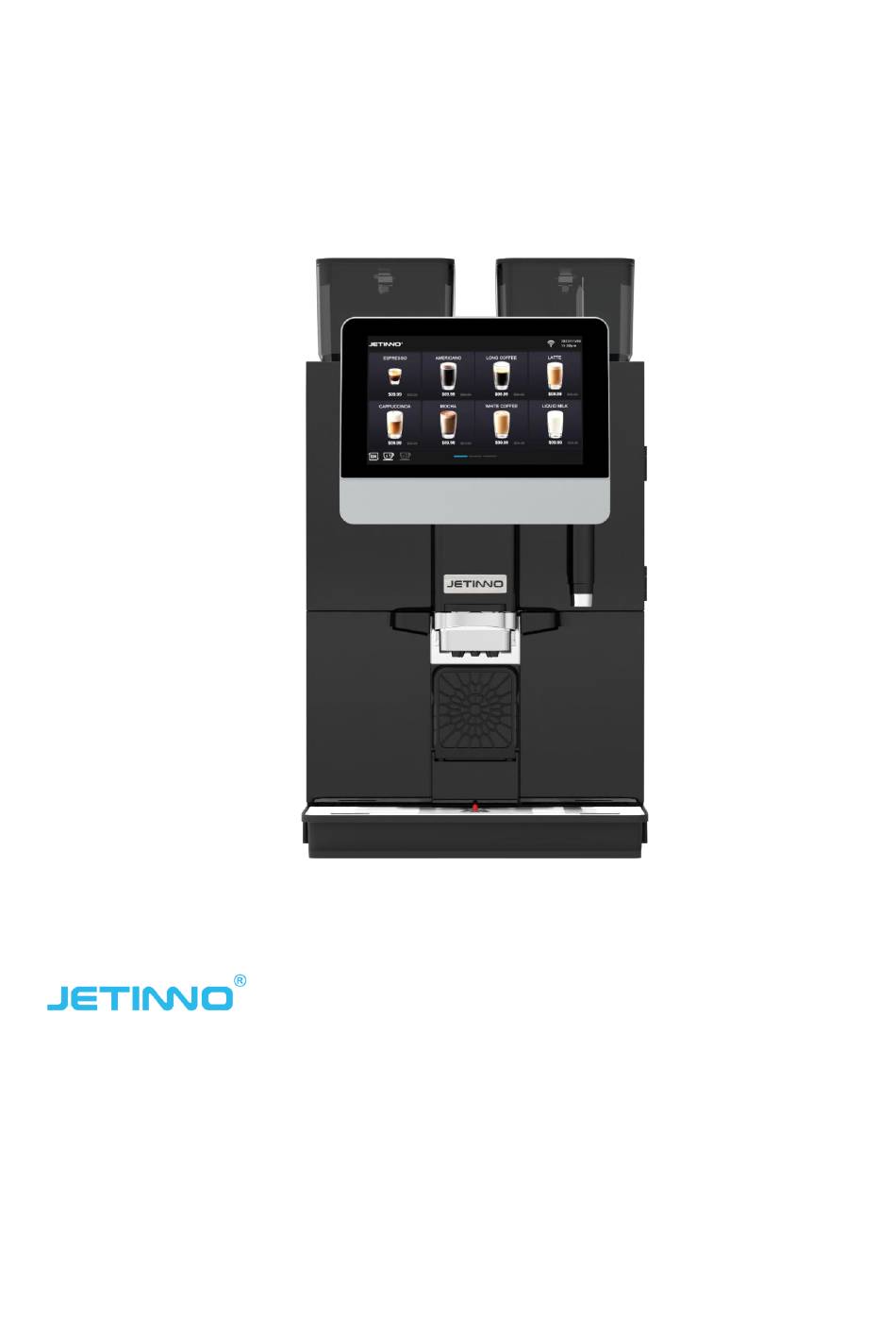

JL32 series coffee machine
Instruction Manual
Read the manual carefully before use and keep it safe
Guangzhou Jetinno Intelligent Equipment Co., LTD
www.jetinno.com
(86) 020-32038721
(86) 400-017-9997
Address: 4/F, Building a, Dehao Innovation Park, No.2 Ruitai Road, Huangpu District, Guangzhou City,Guangdo
ng Province
Postal code：510700
Advertisement
Table of Contents
Related Manuals for Jetinno JL32 Series
Summary of Contents for Jetinno JL32 Series
- Page 1 JL32 series coffee machine Instruction Manual Read the manual carefully before use and keep it safe Guangzhou Jetinno Intelligent Equipment Co., LTD www.jetinno.com (86) 020-32038721 (86) 400-017-9997 Address: 4/F, Building a, Dehao Innovation Park, No.2 Ruitai Road, Huangpu District, Guangzhou City,Guangdo ng Province Postal code：510700...
-
Page 2: Table Of Contents
Contents 1 Introduction ..............................4 1.1 Welcome to use ..........................4 1.2 Logos and symbol ..........................4 2 General Safety Tips ............................ 5 2.1 Danger to users ..........................5 2.2 Hazard to the machine ........................8 3 Product Description ............................. 9 3.1 Welcome to use .......................... - Page 3 5.4.3 Refrigerator connection ...................... 20 5.4.4 Refrigerator power supply connection ................20 5.5 Turning on ............................21 5.5.1 Coffee Machine ........................21 5.6 Network connection ........................22 5.7 Server connection .......................... 23 5.8 Setting Date/Time .......................... 24 5.8.1 Counters ..........................25 5.8.2 Diagnostic ..........................
- Page 4 7.1 Cleaning interval ..........................44 7.2 Cleaning plan ..........................45 7.3 Daily rinsing ............................ 45 7.3.1 Brewer rinsing ........................45 7.3.2 Milk system rinsing ......................46 7.3.3 Mixer rinsing ........................46 7.3.4 Automatic rinsing settings ....................47 7.3.5 Cleaning of water tray ......................48 7.3.6 Cleaning of waste bin .......................
-
Page 5: Introduction
1 Introduction 1.1 Welcome to use This instruction manual gives you the information of JL32 and other products and how to use them. If you do not use the coffee machine according to the relevant instructions in this manual, we do not assume any responsibility for the loss caused by this. -
Page 6: General Safety Tips
◼ Hot steam. Dangerous condition that may cause burns. The location of the water outlet creates this hazard. Only symbols are used in the following. ◼ Be sure to follow the precautions to prevent such hazards ◼ Hot surfaces. Dangerous conditions that can cause burns. Stream exit location. ◼... - Page 7 perform such work, especially as it relates to safety and hygiene. ◼ Install the coffee machine in a place where it can be looked after and maintained at all times. ◼ Self-use and operation should be supervised by trained personnel to ensure compliance with maintenance regulations and to resolve usage issues at all times.7 ◼...
- Page 8 Danger of poisoning from ingestion of cleaning agents. Be sure to observe the following: ◼ Cleaning agent storage should be kept away from children and unauthorized persons. ◼ Do not ingest cleaning agents. ◼ Do not mix cleaning agents with other chemicals or acidic substances. ◼...
-
Page 9: Hazard To The Machine
2.2 Hazard to the machine Improper use of the coffee machine can cause damage or contamination. ◼ Be sure to follow the following: ◼ If the carbonate contained in the water is harder than 5°DKH, install a scale filter, otherwise it will damage the coffee due to calcification. -
Page 10: Product Description
◼ If the coffee machine and its additional equipment are transported at a temperature below 10 °C, the coffee machine and its additional equipment must be placed at room temperature for three hours after transportation, and then connected to the power supply and started. Failure to comply with this regulation may result in a short circuit hazard or damage to electrical components due to condensation. -
Page 11: Technical Data
3.2 Technical Data Name Parameters Model JL32 series weight 30kg Rated voltage/frequency AC220-240V/50-60Hz Rated power Total power 2700W Fused current Coffee machine operating 5℃-40℃/10%RH-90%RH temperature/humidity communication interface USB;WIFI;4G Device display screen 10.1-inch display touch screen Support cup height Less than 165mm... -
Page 12: Set Up
◼ Contaminated water inlet pipes may pose a health hazard. It must be cleaned after installation, commissioning or commissioning again. ◼ Before the initial output of drinks, clean according to the cleaning program guided by the display screen. ◼ See "Cleaning" - "Daily Machine Cleaning" - "Screen Guided Cleaning Program" 4.1 Set Up 4.1.1 Locations Hazard to machinery. -
Page 13: Power Supply
All connectors of the device must be able to disconnect from the power grid. ◼ The JL32 series models can only be connected to a power supply with a system impedance of 0.293 ohms or less. Consult the authority of your system impedance information provider if necessary. -
Page 14: Water Interface/Drain
Connection value 1. Refer to the nameplate on the machine. 2. Optional device Refrigerator: When using a coffee machine to make coffee drinks, The refrigerator is specifically used to refrigerate milk. Pre cooled milk (2-5 ℃) can be used. Only specialized milk system cleaners can be used. 4.3 Water interface/drain 4.3.1 Conditions Poor quality raw materials and poor water quality can damage the machine. -
Page 15: Disassembly And Disposal Of Scrap
◼ Auto Debugger Run debugger automatically the first time you turn it on. All installation items will be explained in it. Technical service personnel can start the debugging program at any time. 4.5 Disassembly and disposal of scrap Proper disposal of coffee machines must be done in accordance with local regulations. ►... -
Page 16: Equipment Introduction
5.1 Equipment introduction 5.1.1 Machine external operating unit [A] coffee bean container [B] 10.1-inch touch screen (operation interface) [C] product spout [D] cup holder [E] water tray [F] powder canister [G] Hot water spout [H] Built-in water tank [ J ] Dehumidifying fan [ K ] External interface for water tray (please open the rubber plug for tray) [ L ] MDB socket... -
Page 17: Product Configuration Parameters
(Horizontal) (Horizontal) (Horizontal) Coffee bean container 1x 1500g 1x 1500g 1x 1500g Grinder 1x Jetinno PGH64 1x Jetinno PGH64 1x Jetinno PGH64 Italian high-pressure brewer P20(Double layer filter) P20(Double layer filter) P20(Double layer filter) Instant canister 1x 3L + 1x 2L... -
Page 18: Accessaries
Optional: Direct drinking Optional: Direct drinking in water tank; Optional: water; water; Direct drinking water; Deerror WiFi, optional Deerror WiFi, optional Deerror WiFi, optional Networking methods Payment function: Payment function: Payment function: WeChat, Alipay; WeChat, Alipay; WeChat, Alipay; Payment system Optional external MDB Optional external MDB Optional external MDB... - Page 19 For anti-theft slag bucket Install sheet metal in the (after installation, open waste slag bucket the door to remove the slag bucket) For coffee machine Power cord special function Three plug (16A) installation use Installation accessories for Used for the installation coffee machine (drain and use of special Inside diameter 20, outside...
-
Page 20: Unwrap
5.2 Unwrap After receiving the machine, unpack, remove the foam, uncover the PE bag, and lift the machine to the flat table top. 5.3 Check before turning on Check that the following prerequisites are met before turning on the coffee machine. ◼... -
Page 21: Connecting The External Wastewater Pipe
B、External water source (direct drinking water) Unscrew the cover on the water inlet valve, take out the interface from the machine, install the interface to the water inlet connection, turn it clockwise, and insert the tube into the interface. Note: The water connected to the system is the internal water source by default. The external water source has two ways: direct drinking water and barreled water. -
Page 22: Turning On
5.5 Turning on 5.5.1 Coffee Machine ► Check the power connection of the machine. Machine startup, turn on the power switch；Select the corresponding machine configuration based on the nameplate on the back of the machine Choose wastewater drainage method Choose water supply method Water filter selection Display the main interface and start heating... -
Page 23: Network Connection
The boiler heats and boils water, and when the water temperature reaches the set temperature, the machine is ready. 5.6 Network connection Press upper left corner of the screen for a while, enter the password test9527 in the pop-up dialog box, enter the machine background, and click "Machine Set-up". -
Page 24: Server Connection
On the Android interface, click the "Settings" button and click "WIFI" in the pop-up window. Turn on the switch, the machine will automatically search for WIFI, click on the name of the WIFI that needs to be connected, enter the password in the pop-up dialog box, and click "Connect". Click on the circle on the screen to enter the Android main interface, click on the "Coffee"... -
Page 25: Setting Date/Time
Click on "Software and Operation Version" ->"Telemetry" to turn on/off the online mode and open it. Click the return button in the upper right corner of the screen to return to the upper interface. Click on "Diagnostic Tests" ->"Status Inquiry" to view: Service Connection Installation Status; Service ，indicates successful connection to the server;... -
Page 26: Counters
Under offline model, click "Use network-provided time" to turn it off, manually "Set date", "Set time", ， back to the main interface of Android, click on the "Coffee" and "Select time zone". Click on shortcut keys icon, and re-enter the app. 5.8.1 Counters Press the upper left corner of the screen for a while, enter the password in the pop-up dialog box, and click "OK". -
Page 27: Diagnostic
Products by type Reset Counters interface Lifetime Counters interface by products. 5.8.2 Diagnostic Press the upper left corner of the screen for a while, enter the password (tester: test9527) in the pop-up dialog box, and click "OK". Enter the backend management interface and click the "Diagnostic" button. The diagnostic functions include software and operational versions, Errors, and Diagnostic Tests. - Page 28 Software and Operation Version - Machine Series No.: Users can set the machine number here; Telemetry: Users can turn on/off "online mode on/off" Users can check and update the firmware version of the I/O board here; Users can check and update application versions here; Software and Operation Version - Application: Software and Operation Version - Network Status: Users can check and set up the network here.
-
Page 29: Machine Reset
Diagnostic Tests - Status Inquiry: Users can check the status of all machine components here; Diagnostic Tests - Valves test: Users can test all valves inside the machine here. Heater test: Users can test all boilers inside the machine here; Motors test: Users can test all sensors inside the machine here. -
Page 30: First Use
Select the "error" icon and follow the prompts on the machine for handling; Click the "Reset total errors list" button, and the machine will automatically retest. 6 First use 6.1 Filling canister 1. Opens the canister lid with key and fill the material. 1) Wear a mask and disposable gloves;... -
Page 31: Adding Milk To The Milk Box In The Refrigerator
2. After place powder canister back to the machine, please press the rear, so that the gear fully bite, and then press the lock back to prevent not in place caused by loose gear and not fall powder meanwhile the back of canister warped. -
Page 32: Debugging And Calibration
6.3 Debugging and calibration Grinder calibration Before adjusting the grinder, please prepare a (low value) electronic scale! Grinder thickness adjustment First calibration, please empty coffee beans (before adjusting the grinder, empty the remaining powder in the grinder) 6.3.1 Method for adjusting the thickness of coffee bean grinding powder Adjustment knob for the thickness of coffee bean grinding powder, the clockwise direction is to adjust the thickness, the counterclockwise direction is to adjust the fine;... -
Page 33: Grinder Calibration
6.3.3 Grinder calibration Calibration is a software designed for the physical properties of instant canister, powders, and the degree of roasting of coffee beans. Prepare the electronic scale and cup before calibration. Not doing calibration will cause abnormal powder production of the machine! Before calibration, it is necessary to fill the grinder, milk tube, and canister with a full amount of material. -
Page 34: Fresh Milk Calibration
Place an empty cup on the electronic scale and reset it to zero, then place the cup at the powder outlet of the grinder; Click the start button again. Wait for the grinder to finish grinding. Remove the cup containing coffee powder and place it on an electronic scale for weighing. -
Page 35: Powder Calibration
Click the "Start" button. After the milk froth or hot milk is finished, remove the measuring cup containing the milk froth or hot milk, read the value of the milk froth or hot milk in the measuring cup with your eyes facing straight, input the read value into the blank space below [Input Milk Foam Volume]/[Input Hot Milk Volume], and click "Save". -
Page 36: Product Testing And Adjustment
Click the "Start" button to discard the powder that falls into the cup. Place the cup on the electronic scale to reset or peel it, and then place the cup at the canister outlet. Click the "Start" button. After the powder box is finished, remove the cup containing the powder and place it on the electronic scale for weighing. -
Page 37: New Drink
Click "Add steps", enter the corresponding parameters in the pop-up dialog box, gouache ratio. Continue to click "Add steps", enter the corresponding parameters in the pop-up dialog box, confirm the completion of the formula, click "Save" button, select the new formula in the formula interface, and then click "test", when the drink is finished, taste it, if it is OK, otherwise you can continue to modify the goureau ratio and continue to test until you get satisfactory coffee. -
Page 38: Drink Management
Enter the drink ID and drink name in the pop-up interface (drink ID and name can be obtained through the network management background - Reference - search, when the use of a single machine, sales data are not counted, drink ID and name can be customized). Select the recipe in the new drink interface (select the new recipe in the previous section - Americano 1), enter the drink production time, price, sort, select the drink picture, drink status, single or double drink, confirm and click the "Save"... -
Page 39: Drink Production
Click on the drink icon to edit the drink: drink ID (the entered ID needs to be consistent with the ID on the server), drink name, drink recipe, production time, price setting, sorting, normal display, delisting, single cup, double cup, and save function. -
Page 40: Operator Options
◼ 1. Product List Page: Display all currently sold drinks; 2. Concentration adjustment: coffee can be freely Language switching, sales mode, and left and right adjusted, and after adjustment, click OK. arrows are the up and down buttons. 3. Payment page: WeChat, Alipay, MDB cash, MDB 4. - Page 41 Screen saver: Turn on the picture playback switch, transfer the prepared pictures to a USB drive, insert the USB drive into the USB port (located at the bottom left of the display screen), and import the pictures from the USB drive;...
-
Page 42: Empty
First, create "background images and drink images" on the computer according to the requirements (size and naming of images), then transfer them to a USB drive. Then, insert the USB drive into the USB port (located at the bottom left of the display screen), and import the images from the USB drive; First, create "Brewing finished image"... -
Page 43: Water Tray
6.8.2 Water tray ◼ Pull out the water tray outward. Before disassembling the water tray, ensure that there is no drink output. ◼ ◼ When installing, ensure that the wastewater sensor is inside the wastewater tank. 6.9 Transportation conditions Improper transportation of the coffee machine may result in injury. Pay attention to general health and safety instructions. -
Page 44: Long Downtime (Over 1 Week)
If it has not yet started, start machine cleaning in the machine background management. Cleaning will begin Clean daily and weekly when necessary. Empty and clean the waste box and water tray. Please refer to the "Cleaning" section for specific data. After the automatic cleaning is completed, close the machine door, turn off the power switch, and unplug the power plug. -
Page 45: Cleaning
7 Cleaning Thorough cleaning and maintenance are the basic requirements for achieving food hygiene conditions. Only through regular maintenance (twice a week or increasing cleaning frequency based on specific usage), cleaning, and upkeep can the machine provide superior taste drinks and satisfy customers. 7.1 Cleaning interval Cleaning interval Automatic cleaning... -
Page 46: Cleaning Plan
The cleaning plan of "Jetinno Intelligent Deerror" (standard). A "manual" cleaning plan. The cleaning intervals described in this chapter comply with the cleaning plan of "Jetinno Intelligent Deerror". These settings comply with the Hygiene Management Standards for Ready made and Sold Autovending Machines. -
Page 47: Milk System Rinsing
7.3.2 Milk system rinsing At the top of the screen, click the Milk system rinsing button and select the "OK" button in the pop-up dialog box. The rinsing milk system interface pops up, and the machine executes the rinsing program. After the program ends, it automatically returns to the ordering interface, displaying "Operation successful". -
Page 48: Automatic Rinsing Settings
Click "OK" in the pop-up dialog box until the cleaning program ends. 7.3.4 Automatic rinsing settings Timed rinsing: Enter the machine background, Cleaning/Care, set cleaning settings, and set automatic cleaning time from Monday to Sunday at a certain time every day. Interval Rinsing Brewer: Go to "Product Set-up", select Coffee ->Auto-rinse time, and you can set the brewing machine's rinsing interval time and rinsing water volume. -
Page 49: Cleaning Of Water Tray
Interval rinsing mixer: Enter "Product Set-up" and select "Left Powder and Right Powder" respectively; Select "Auto-rinse interval time[min]" to set the interval time and rinsing water volume of the mixer. 7.3.5 Cleaning of water tray Sediments and bacteria can contaminate the water tray. Rinse and clean the water tray daily. -
Page 50: Cleaning Of Waste Bin
7.3.6 Cleaning of waste bin ◼ The coffee grounds in the waste bin are prone to mold formation. If the plaque spreads to the machine, coffee may be contaminated. ◼ Therefore, it is necessary to clean the waste bin every day. ◼... -
Page 51: Regular Cleaning
As shown in the picture above: hold down the buckle on both sides of the drinkoutlet mouth, pull down hard, remove the discharge mouth, and disassemble the milk foamer into a single component; Spout Sleeve Spout Duckbill check valve Steam nozzle Fresh milk heating chamber Every day, the steam nozzle, milk tube, milk tube connector, duck-bill check valve, fresh milk heating chamber,... -
Page 52: Display Screen Guided Cleaning Program
Brewer Cleaninging tablets Information Usage Cleaning of coffee machine system Cleaning purpose Remove oil residues from the coffee system Interval Daily Milk system cleaning tablets： ◼ Tablets can dissolve quickly in warm or cold water. ◼ Containing cationic surfactants to improve cleaning safety and strength. ◼... -
Page 53: System Cleaning
◼ Obstruction of wastewater drainage will cause the drip tray to overflow. ◼ Check the wastewater discharge outlet of the drip tray before starting the cleaning program. The cleaning process can be interrupted at any time. After the cleaning is interrupted, the coffee machine is not in a state of operational readiness. -
Page 54: Milk System Cleaning
Please operate according to the display interface: take out the milk hose and insert the cleaning container with 500ml water and 30ml milk cleaning solution. Put the empty container of 2L under the outlet (the one with the drainage function outside the water tray can not put the 2L container). Click “Next” and follow the prompts: open the door and place the cleaning tablets into the brewing chamber, then close the door. - Page 55 Please operate according to the display interface: Take out the milk tube and insert the cleaning container with 500ml water and 30ml milk cleaning solution. Put the empty container of 2L under the outlet (the one with the drainage function outside the water tray can not put the 2L container). Click “Next”, the machine is performing cleaning.
-
Page 56: Brewer Cleaning
7.4.5 Brewer Cleaning Enter the background of the machine and select "Cleaning/Care -> Brewer Cleaning". Click "OK" in the dialog box that pops up. Go to the next interface. Please operate according to the screen prompt: whether the water tray is empty and installed back (the water tray with drainage function outside the belt can be ignored). -
Page 57: Deep Cleaning Mixer
Cleaning, please wait... When the progress is complete, the next interface will pop up and the Brewer Cleaning is complete, click "OK" to return to the order interface. 7.4.6 Deep cleaning mixer Recommended cleaning time: the top cover of the agitator is cleaned 2-3 times a week, the upper and lower cover of the agitator body and the steam inlet of the agitator is cleaned once a week, and the V-shaped sealing ring, gland and impeller are inspected once every 3 months for damage. -
Page 58: Clean The Coffee Bean Container Weekly
◼ Damage to the touch screen during cleaning. ◼ The stain cannot be removed by grinding. Do not press the display with brute force, high pressure, or sharp objects. 7.5 Clean the coffee bean container weekly ◼ The rotary grinding blade of the grinder and the coffee bean slot opener blade are sharp and pose a risk of injury. -
Page 59: Descaling
“YES” to begin emptying the boiler. 7.7 Descaling Enter the background of the machine, click the "Cleaning/Care" button, and select "Descaling" in the dialog box that pops up. The descaling time is about 60 minutes. Press "OK" to start descaling and click "No" to cancel descaling. Click "OK"... - Page 60 Screen notice: pay attention to hot water and steam splashing from the outlet. Click on "Next"; The interface that pops up shows: "Water system is cooling, please wait" (issue an instruction to lower boiler temperature to 60 degrees), and a progress bar appears at the bottom of the screen. When the progress is complete, the next interface pops up.
- Page 61 The screen shows "The machine is descaling, please wait..." ", the progress bar appears at the bottom of the screen, when the progress is completed, it automatically jumps to the next interface, the screen displays "take out and empty the tank, rinse the tank with water", operate according to the screen prompt, take out the tank and empty it, rinse the tank with water, click "Next"...
- Page 62 Follow the prompt on the screen: "Fill the tank to the maximum water level (4L) and put it back" and click "Next" to go to the next interface. The screen prompts "Place a 2L empty container under the outlet", operate according to the prompt, confirm and click "Next"...
- Page 63 The screen displays "Descaling..., please wait" (Perform 1 rinse of the whole machine, about 0.75L water; Heat two boilers to standby temperature; 3S steam from the steam nozzle), a progress bar appears at the bottom of the screen; When the progress is completed, the screen jumps to the completion interface, the screen displays "descaling successfully", click to confirm completion, go to the standby state.
-
Page 64: List Of Common Problems
8 List of Common Problems Problems(Questions) Possible causes Solution Adjust the grinder and rotate to the side with The coffee is ground too fine the larger number The dose is much larger than Recalibrate the grinder expected Coffee flow rate is too slow Pills to clean the brewer or replace the Strainer blocking... -
Page 65: Preventive Measure
Use potions for deep cleaning of the milk Clogged steam line or steam outlet system Disassemble steam line or outlet, check Broken steam line and replace The temperature adjustment knob of Loosen the temperature adjustment knob of the milk frother is too tight the milk dispenser to the proper position Remove the milk frother to check all holes The frother is blocked... -
Page 66: Storage
9.1.2 Storage Be sure to observe the following: Keep out of reach of children and unauthorized persons. ◼ ◼ Keep away from heat, light and moisture. ◼ Store separately from acidic substances. ◼ Store in original packaging only. ◼ Store the cleaner separately. Do not store with food or drinks. -
Page 67: Finished Drink Powder
9.2.3 Finished drink powder The wrong use of drink powder can cause damage to your health! Be sure to follow the following: ◼ Inspect the package for damage before opening it. ◼ Store finished drink powder in a dry, cool place. ◼...
