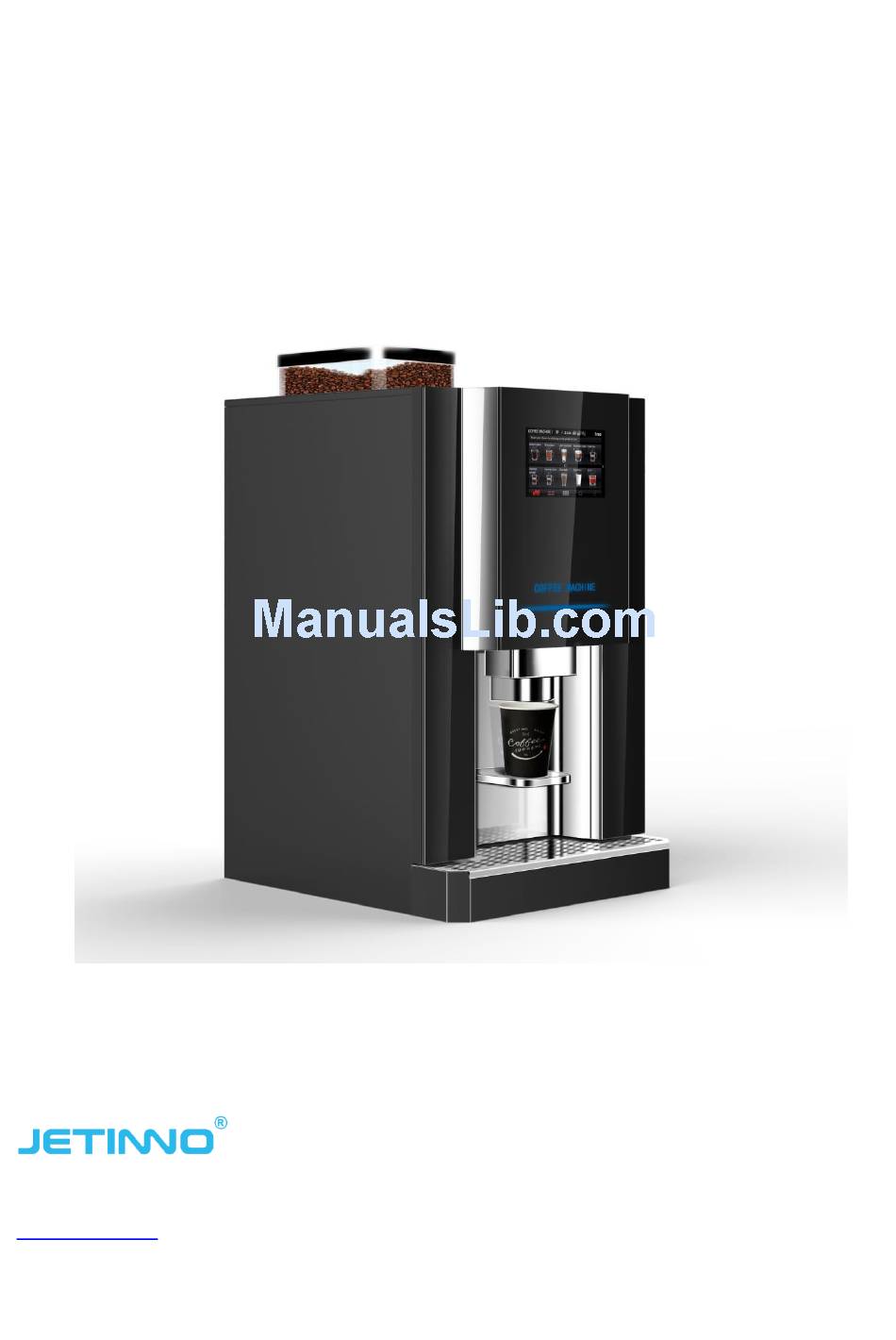

Page 1: Service Manual
SERVICE MANUAL Guangzhou Jetinno Electronics Appliance CO.,Ltd. 3/Floor, No. 3, Qiming building, Tianfeng Road, Science Park, Luogang District, Guangzhou, PRC (510660) www.jetinno.com... -
Page 2: Table Of Contents
Contents SERVICE MANUAL ......................... 1 BEFORE USE ........................4 ABOUT THIS MANUAL ......................4 IMPORTANT SAFTY ADVICE ....................5 WEAR PARTS ........................... 5 PACKAGING MATERIAL DISPOSAL ..................6 MACHINE OUT OF ORDER ..................... 6 ABOUT THIS MACHINE....................7 MACHINE CHARACTERISTICS ....................7 2.1.1 GENERAL INFORMATION .................... - Page 3 MAINTAIN INSTRUCTIONS ....................46 7.7.1 HOT WATER SYSTEM ....................46 7.7.2 EMPTY THE BOILER ....................... 48 7.7.3 EMPTY AIR BREAK ......................50 PROGRAMMING ......................51 SYSTERM BACKUP ....................... 51 SYSTERM RESTORE ......................52 SYSTERM UPDATE ........................ 53 CIRCUIT DIAGRAM ......................53 CONNECTION PLAN ......................
-
Page 4: Before Use
Danger of damage to machine Attention: Danger of functional errors Important: Information and advice for easier use Note: Caution: JETINNO Guangzhou is not liable for any personal damage or damage to the machine, if it has occurred Service Manual JLES4C... -
Page 5: Important Safty Advice
15) Maintenance, cleaning and repair works other than specifically addressed to the user may only be performed by trained service personnel from JETINNO! 16) For your own safety, and to ensure a long life for your machine, you are advised to only use the original... -
Page 6: Packaging Material Disposal
1.4 PACKAGING MATERIAL DISPOSAL The packaging material consists of the following material: Cardboard, corrugated cardboard, treated wood, polystyrene-elements and plastic foil. After installation, ask the client to check with the local communal cleaning service for possibilities to re-cycle or to dispose of the packaging material in an environmentally friendly way. 1.5 MACHINE OUT OF ORDER Machines out of order can not be returned. -
Page 7: About This Machine
2 ABOUT THIS MACHINE 2.1 MACHINE CHARACTERISTICS 2.1.1 GENERAL INFORMATION Size: H700mm, W420mm, D450mm Water mains: G3/8 or G3/4 Water inlet pressure: 0.5 – 7 BAR Net weight: 40~48kg Power mains: AC 230V/50 Hz or AC110V/60Hz Maximum power: 2700W (if AC220V) or 2000W (if AC110V) Interior View Service Manual JLTT-ES... -
Page 8: User Interface
2.2 USER INTERFACE Company logo Description: Small company logo. Information button: shows service contact information. Service Manual JLTT-ES... -
Page 9: Machine Configurations
Cup Detection status, it will highlight in blue color when machine detect a cup in dispensing area. Operator menu button, enable when door open, entry for operator menu. Current time Card-reader status icon, shown when card-reader device presents, green when card inserts Banknote reader icon, shown when bank note reader presents Coin changer/coin accepter icon, shown when coin device presents... - Page 10 Service Manual JLTT-ES...
-
Page 11: Machine Hydraulics Plan
For assertion of any claims, it must be checked for any damage or loss immediately on receipt and the carrier has to sign it on the consignment note. JETINNO is not liable for any damage or loss detected at a later stage. -
Page 12: Storage And Transport Environment
3.2 STORAGE AND TRANSPORT ENVIRONMENT Attention: Danger of damage through temperature! In order to avoid this kind of damage： Only run the machine at temperatures between +5° C and +35° C Only run the machine at humidity between 10% and 90%. ... -
Page 13: Drinks Sales Price
About the payment system, the machine is supplied with electrical arrangement for systems with protocol Executive, BDV, MDB and for monitoring 24 VDC validators. 4.3 DRINKS SALES PRICE A different price can be programmed for each selection; the standard setting foresees the same sales price for all selections. -
Page 14: Unpack The Machine
JETINNO Steps for first use： Unpack the drinks vending machine Put the machine where you want it to be Open the door via mechanism lock and check machine interior ... - Page 15 1. Find the key Note: Only trained personnel may open the drinks vending machine! JETINNO Guangzhou is not liable for any personal damage or damage to the machine which has been caused by neglecting these safety instructions and notes. In case of installation or power supply interruptions, the emergency lock will provide access to the inside of the machine at any time.
-
Page 16: Connect The Machine To Water Mains
The lock is located on the left side of the machine door Open the lock by hard key (key located at dispensing area when delivery) and pull up the lock, then door is unlocked. Find the key Check machine interior for any abnormal. -
Page 17: Fill The Containers
Danger of damages to the machine by voltage variations! Do not connect the machine with a network that might be subjected to voltage variations when turning on other machinery due to heavy duty. Danger! Must ensure good grounding effect of the the power outlet connect to the machine, otherwise it may cause the risk of electric shock! ... -
Page 18: Put Waste Bins On To The Machine
3. Open the top cover 2. Open the door 4. Put the bean hopper 1. Unlock the door Open the cover of product containers. Rotate the container outlet and fill in the products. Rotate the outlet of the container back. Important: The products may only be filled in loosely. -
Page 19: Fill The Boiler
will take a few minutes for system start and boiler heating up. 5.9 FILL THE BOILER The machine will start to fill boiler automatically when the system start working. Remark: If the boiler refill error, switch off the machine then switch on the machine after 3 seconds, the system will refill the boiler again. - Page 20 Find grinder here Make sure there is no coffee bean in the grinder. Loosen the counter nut with a spanner. Activate the grinder in the menu. With the grinder running, turn the adjustment screw clock-wise (fine), until the grinding wheels are touching.
-
Page 21: Calibrate The Container
Loosen the screw nut Fineness lever indication 5.10.2 CALIBRATE THE CONTAINER Calibration allows you to adjust the JLES4C machine to the composition of the used ingredients and the used containers. For the calibration process, you need a scale and a vessel. Important: Danger of wrong dosage! Before each calibration, a 3 times test-dosage must be performed to make sure the dispenser coils are... - Page 22 Press the ‘spanner’ icon Press the icon for setting Input the password Service Manual JLTT-ES...
- Page 23 Press “Operator menu button” in customer interface will go to operator menu Press “machine” button Press the ‘machine’ ‘icon Service Manual JLTT-ES...
- Page 24 Press the “container” you want to calibrate (one of those). Press “test” button Service Manual JLTT-ES...
-
Page 25: Set The Drink Recipe
Press “calibration 1” button Demount the component underneath the container you wish to calibrate (brewing unit or mixer) and dissemble it. Have a vessel ready to catch the ingredient amount and to weigh it. Have a suitable scale (with tenth-grams-Display 00.0) ready and zero it with the empty vessel. ... - Page 26 Note: To change the recipe settings, password level 100 is required. Open machine door with key Pressing “product” button Highlight the “Recipe” button by pressing it. Pressing the “product” that you want to change. Service Manual JLTT-ES...
- Page 27 Pressing the ingredients and changing the recipe by moving the bar Press “Test Product” button to make a test Service Manual JLTT-ES...
-
Page 28: Set The Machine Vending Mode
5.10.4 SET THE MACHINE VENDING MODE Open machine door with hard key and input the password Press “setting” button Pressing “options” button Service Manual JLTT-ES... - Page 29 Press the “Credit” button, then set “free vend” to “ON” or “OFF” Back to main page by pressing upper right “arrow” button and back to customer interface. Check the upper right “Vend mode” area Service Manual JLTT-ES...
-
Page 30: Use The Machine (End User)
Company logo 6 USE THE MACHINE (END USER) 6.1 GET THE DRINK FROM MACHINE Note: Customer can use own cup or use a cup from machine. If use a own cup, place the cup on mug cup table before choose a product If use a pot, push the mug cup table to the right or left. -
Page 31: Cleaning And Maintenance
Only a well looked-after machine can function perfectly! When designing these series, the company JETINNO has considered all vital criteria to enable the person who runs the machine to tho- roughly clean and maintain it with as little time and cost as possible. The service of the automatic cleaning program is one of these advantages. -
Page 32: Safety Regulations For Cleaning And Maintenance
If the cleaning temperatures are too high, they can damage plastic parts! When plastic machine parts are cleaned in the dishwasher, too high cleaning temperatures can cause damage. The cleaning temperature may not exceed 65 ° C! Designer parts made of aluminum must not be cleaned in the dishwasher! 7.1 SAFETY REGULATIONS FOR CLEANING AND MAINTENANCE Before starting any works on the drinks machine, please note the following safety instructions! -
Page 33: Hygiene
7.2 HYGIENE Only if you carefully clean and maintain it at the advised intervals and with the suggested methods, can an impeccably hygienic hot drinks quality and optimum functionality of the machine be guaranteed. In order to keep it clean and fully functional, there are three instructed cleaning intervals for drinks vending ma-chines (see “Cleaning works”). - Page 34 O-Ring V-Ring Nozzle arm Nozzle outlet holder Nozzle Nozzle outlet Mixer Dispensation hose Canister outlet Instant canister Canister Bean container Grinder outlet Middle plate Air chamber chamber Air break Exterior espresso brewing unit ES brewer Sieve head Brewer tube Sugar channel (door) Drip tray Cup table drip tray Door...
-
Page 35: Basic Cleaning Works
7.5 BASIC CLEANING WORKS Note: The interval shown in the table is the minimum frequency. The exact cleaning time depends, amongst other things, from the number of drinks the machine has prepared. 7.6 CLEANING INSTRUCTIONS 7.6.1 DOOR OPEN AND CLOSE OPEN THE DOOR BY HARD KEY ... - Page 36 Please notice that there are 2 types of container outlets, make sure it is correct to put onto the machine. Attention: Pull back the outlet to right position will make the mixer less pollution. Close the outlet by turn it upper side ...
-
Page 37: Clean The Mixers
7.6.3 CLEAN THE MIXERS This outlet is for water route if it is not specified Take out air channel Service Manual JLES4C... - Page 38 Disassembly the air channel Disassembly the mixer cover Service Manual JLES4C...
-
Page 39: Clean The Nozzle And Outlets
7.6.4 CLEAN THE NOZZLE AND OUTLETS Unscrew the knob Unplug the tubes Pull out the nozzle Un-screw the knob from the arm of the nozzle Unplug the tubes Pull out the nozzle for the arm Service Manual JLES4C... -
Page 40: Purification The Brewers
7.6.5 PURIFICATION THE BREWERS Open OUI and click the “program” button. Put cleaning agents into brewer, then click “start”. Service Manual JLES4C... - Page 41 Wait for automatically cleaning process ready. Close and back to OUI. Attention: Please purification the brewers once a week or after 1000 vends. Service Manual JLES4C...
- Page 42 7.6.5.1 CLEAN ES BREWER Normal cleaning Normally, the Espresso brewer is with less pollution, it not necessary to take out for cleaning. Service Manual JLES4C...
- Page 43 Clean the filter with clothes (Please make sure the upper filter is well cleaned) Disassembly the ES brewer from brewer driver for deep cleaning. Disconnect the tube from the push-in fitting, disconnect the cable connector Rotate the knob to left side, and pull down the knob to the bottom. Service Manual JLES4C...
-
Page 44: Clean Drip Tray
Pull the brewer unit from the driver Rotate the outlet nipple, then plug out the nipple. Attention: Weekly or 6000 vends, Purification and cleaning by operators Yearly or 25000 vends, Planned Predictive Maintenance Procedure by experienced operators or technicians ... -
Page 45: Clean Waste Cake Bin
7.6.7 CLEAN WASTE CAKE BIN Water lever detect pins Take out the waste bin after the drip tray removed Service Manual JLES4C... -
Page 46: Maintain Instructions
(Note: please make sure the water lever detect pin is right inside the drip tray) 7.7 MAINTAIN INSTRUCTIONS 7.7.1 HOT WATER SYSTEM If the hot water system have problems with function, normally it caused by component life duration and Service Manual JLES4C... - Page 47 scale inside the valves, boilers and fittings. Disassemble the hot water system from the machine. Unscrew rear cover of the machine Disconnect the DC&AC connectors. Service Manual JLES4C...
-
Page 48: Empty The Boiler
Disconnect the tubes from air break Disconnect the tubes from the valve chain Pull out whole water system 7.7.2 EMPTY THE BOILER Turn off machine water mains supply. Open machine door with key and press button as below. Take out waste cake bin and water system cover. Service Manual JLES4C... - Page 49 Company logo Service Manual JLES4C...
-
Page 50: Empty Air Break
7.7.3 EMPTY AIR BREAK Repeat the steps of empty air break Service Manual JLES4C... -
Page 51: Programming
8 PROGRAMMING There are 3 items: System backup System restore System update 8.1 SYSTERM BACKUP Open machine door with hard key Plug in USB disk into USB connector behind of touch screen Pressing “Setting” button Pressing “backup” button Service Manual JLES4C... -
Page 52: Systerm Restore
8.2 SYSTERM RESTORE make backup from the machine into a USB stick, the *.bak file run Restore.exe in PC(ask JETINNO after sales for this program) Use "Load" to open the *.bak file, the configuration of the machine is shown. Edit the configuration. -
Page 53: Systerm Update
press ok will export 3 files: autorun.bat,restore.restore,clone.exe copy exported 3 files to a USB stick 10) Open machine door with key. 11) Plug in the USB disk that contains required files. 12) System will automatically ask you to start. Restore done will automatically restart the vend UI. 8.3 SYSTERM UPDATE Open machine door with IR-key. -
Page 54: Ce , Ul, Cul Conformity Declaration
10 CE , UL, CUL CONFORMITY DECLARATION European directives: 2002/95/EC (RoHS) 98/37/EC 73/23/EC + 93/68/CE repealed by 2006/95/CE 89/336/EC + 92/31/CE + 93/68/CE repealed by 2004/108/EC 90/128/EC repealed by 2002/72/CE 80/590/EEC and 89/109/EEC repealed by EC 1935/2004 Harmonized standards Technical specifications: CEI EN 60335-1 : 2002 + A11:20005 + A1:2005 + A12:2006 + A2:2006 CEI EN 60335-2-75 : 2004 + A1:2005 + A11:2006 EN 50366:2003 + A1:2006... - Page 55 IPD setting is not reasonable Update IPD setting Container outlet is not on right position Adjust the outlet angle Dosage is too less than setting Recalibrate the container Instant water temperature is too high Update the IPD setting Boiler temperature for coffee Update setting ES brewer heating is unplugged after cleaning Plug it into heating bracket...
-
Page 56: Appendix
It is also allowed to revise in clients workshop by trained people. 12.2 IPD DESIGN MANUAL Jetinno IPD designer Manual Rev01.pdf. 12.3 OPERATOR MANUAL Jetinno Operator Manual Rev01.pdf 12.4 MENU EDITOR MANUAL Jetinno Product Menu Editor Manual Rev01.pdf 12.5 SPARE PARTS LIST Jetinno spare part list.pdf Service Manual JLES4C...
