Jetinno JL36 Series Instruction Manual

Hide thumbs

Advertisement

Table of Contents

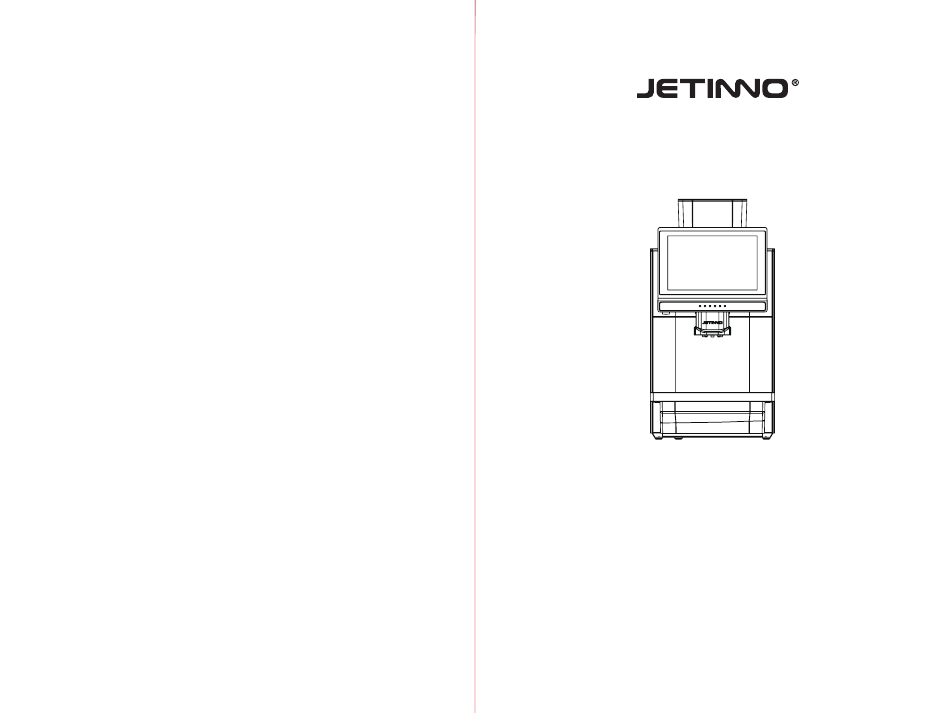

JL36 series coffee machine
GUANGZHOU JETINNO INTELLIGENT EQUIPMENT CO., LTD
Instruction Manual
Address： 4TH FLOOR, DEHAO INNOVATIVE PARK, NO.2,
RUITAI ROAD, HUANGPU DISTRICT, GUANGZHOU, CHINA
(86) 020-32038721
(86) 400-017-9997
www.jetinno.com
Read the manual carefully before use and keep it safe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JL36 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jetinno JL36 Series

Summary of Contents for Jetinno JL36 Series

  • Page 1 JL36 series coffee machine GUANGZHOU JETINNO INTELLIGENT EQUIPMENT CO., LTD Instruction Manual Address： 4TH FLOOR, DEHAO INNOVATIVE PARK, NO.2, RUITAI ROAD, HUANGPU DISTRICT, GUANGZHOU, CHINA (86) 020-32038721 (86) 400-017-9997 www.jetinno.com Read the manual carefully before use and keep it safe...
  • Page 2 CATALOGUE 6 First Run 7 Clean 6.1 Connecting to the Network 7.1 Cleaning interval 6.2 Connecting to the Server 7.2 Clean plan 6.3 Fill the box 7.3 Rinse daily 6.4 Fill the milk box- 7.3.1 The whole machine rinse in the refrigerator with milk 7.3.2 Brewer rinse 6.5 Commissioning and calibration 7.3.3 Milk Circuit rinse...

  • Page 3: General Safety Tips

    ・Be sure to follow the precautions to prevent such hazards. 1.1 Welcome to use This user manual introduces the JL36 series product information and usage. If the coffee machine is not used in accordance with the relevant instructions in this manual, we will Caution not be responsible for any losses caused by it.
  • Page 4 Danger Warning Electric shock hazard. Incorrect use of electrical equipment can result in an Danger of poisoning from ingestion of cleaning agents. electric shock. Be sure to observe the following： Be sure to observe the following： ・Cleaning agent storage should be kept away from children and unauthorized ・Work on electrical equipment should only be performed by electrical persons professionals.

  • Page 5: Product Description

    Note 2.2 Hazard to the machine Improper use of the coffee machine can result in injury； Note Climbing on top of the machine is strictly prohibited. Improper use of the coffee machine can cause damage or contamination. Be sure to follow the following： ・If the carbonate contained in the water is harder than 5°DKH, install a scale filter, otherwise it will damage the coffee due to calcification.
  • Page 6 Caution 3.2 Technical Data Contaminated water inlet pipes may pose a health hazard. It must be cleaned Name parameters after installation, commissioning or commissioning again. Before the initial output of drinks, clean according to the cleaning program Model number JL36 guided by the display screen.
  • Page 7 3.5 Power supply 3.6 Water interface/drain 3.5.1 3.5.1 Condition 3.6.1 Conditions Danger Note Electric shock hazard! An immediate danger situation that can result in serious injury or death Poor quality raw materials and poor water quality can damage the machine. Be sure to follow due to electrocution.

  • Page 8: Operation

    3.8 Disassembly and disposal of scrap 4.1 quipment introduction Proper disposal of coffee machines must be done in accordance with local 4.1.1 Machine external operating unit regulations. Contact a service partner agency. coffee machine （front） coffee machine （Back） ・ Coffee Hopper Touch + display machine heat dissipation Hot water mouth...

  • Page 9: Machine Installation

    5 Machine installation 4.1.2 Accessories The spare parts with machine Automatic coffee machine when supplying accessories e. g: 5.1 Unwrap After receiving the machine, cut off the nylon belt, remove the four clips and pull out the Graphic Item name Function Product Parameter carton up;...
  • Page 10 1、 External water source 5.4.2 Connect the wastewater discharge pipe Unscrew the lid, remove the connector from inside the machine, rotate the connector If the drainage function outside the drip tray needs to be connected to the waste water clockwise on the inlet valve interface, insert the inlet pipe into the interface, and install pipe, the waste water discharge pipe is installed at the bottom of the machine and fixed the blue buckle.
  • Page 11 5.5.2 Machine setting When the water is out, empty the water in the cup and put the cup back under the mouth and click "Next"; In the interface, click "Start" button. When the water is out, take the cup Long press, in the upper left corner of the screen, enter the password in the pop-up dialog with water and read the value of the hot water in the cup.

  • Page 12: First Run

    Count the life counter bydrink type 5.5.6 Machine state Enter the background management interface， Click on the information icon， Go to the “Status Details” ， follow the machine to do the process； Click the "Machine reset" button， The machine will automatically re-detect it. Click on "Export order"，...
  • Page 13 Enter the background management interface， click “ settings” ， select “Common” ， Click “ Network 6.2 Connect the server status” . Click “ User settings” -> “ general setting” ， Click “ Server/remote” button. Select the Wifi， enter the password in the pop-up interface， click “ connect” .After connected， click the arrow on the upper left corner of the screen,back to the machine management Click in the interface “...
  • Page 14 6.3 Fill the canister 6.5 Commissioning and calibration Pull out the drip tray, remove the key, insert the key into the bean box cover, turn the key, Grinder calibration remove the bean box cover; add coffee beans and cover the bean box cover. Note Before adjusting the grinder, prepare (low value) electronic weighing！...
  • Page 15 6.5.3 Grinder calibration Follow the interface prompts， prepare the electronic scale， Coffee Hopper quantity to maintain half warehouse level， empty the waste bin and put it back in place， then click on Calibration， it’ s the software function for the physical characteristic and baking degree of the "Next"...
  • Page 16 6.5.4 Fresh milk calibration After the hot milk finish， check the value of the hot milk in the measuring cup， fill in the blank with input put quantity， and click the Finish " button. Different milk concentrations are different, and the fresh milk needs to be calibrated. Ensure enough fresh milk during calibration.
  • Page 17 6.6 Product testing and adjustment Click on "Recipe"， Choosing the corresponding drink will pop up the corresponding formula， Click " Test ” can test drinks ； recipe interface include “ select list ” 、 “ add recipe ” “export recipe ”...
  • Page 18 Tips:： If you accidentally delete the recipe， you can import the default recipe file on the Jetinno folder. Click “ select list” ， The pop-up dialog box contains all, select, unselect, delete, exit, button; select the drinks to delete the drinks in the drink list.
  • Page 19 Tips： Before adding a new drink, the first new drink in the drinks setting. Click the "Export Drink" button, select the drink to be exported (either single, multiple, all) in the pop-up dialog box, and then click the "OK" button, the exported drink is stored in the machine, named after the current time on the machine.When using the Export-out button, it is recommended to export both recipes and drinks.When using the import in button, pilot the recipe and then guide the drink.
  • Page 20 Enter the management background， click “ machine setting” ， then choose “ payment 1、 Product list page mode” option. 2、 Concentration and cup volume adjustment. If open the free mode， it means no need to pay; Click the "QR code payment" switch, 3、...
  • Page 21 UI setting: display switch, point single mode, custom UI. In the production of advertising: set the switch of the advertising picture in production, set the advertising picture in production, the rotation broadcast interval time, import and remove button. The display switches include: cancel the drink production on / off, on / off the shortcut menu on / off, hot water on / off, boot cleaning on / off, home page temperature display General picture: Apply logo picture, start picture, background picture, drinks picture, on / off, regular restart system on / off, black coffee CUI on / off.
  • Page 22 6.12 Empty 6.14 Power off 6.12.1 Coffee waste bin 6.14.1 End of run Note Click the "Quick Maintenance menu" button on the screen， click on the "soft shutdown" button， then click “Yes” ， machine automatically turns off the machine after performing High temperatures may cause damage.
  • Page 23 7 Clean The following two cleaning plans are available for technical service personnel configuration： ・ “Jetinno Intelligent Default " (standard) cleaning plan. Thorough cleaning and maintenance are the basic requirements to meet the food ・A "Manual" cleaning plan. hygiene conditions. Only regular maintenance, cleaning and maintenance (twice a week or to improve the cleaning frequency), can the machine provide superior taste drinks and satisfy the customers.
  • Page 24 7.3.2 Brewer rinse 7.4 Cleaner Click the "Quick Maintenance menu button" button， then Click the “Brewer Flush” option. Warning Cleaners can cause poisoning！ Only the cleaners recommended by the equipment manufacturer are allowed Cleaners should be kept away from the children Do not eat or touch detergent with hand The instructions and the package must be carefully read before using the detergent.
  • Page 25 7.5 Daily machine cleaning 7.5.1 Display screen guides the cleaning program Prepare the equipment required for cleaning Brewer cleaning piece [1 piece]. Milk stain cleaning pill [1 tablet]. Household washing aid. Clean Kitchen Clean Towel [2 pieces] Collect containers Press the screen prompt, open the top cover, add 1 cleaning pill, and click Start the cleaning program "Next"...
  • Page 26 7.5.3 Brewer clean 7.5.4 Milk Circuit clean Click the “Quick Maintenance Menu button” ， In the pop-up interface, select the Brewer Clean daily, put the milk stain cleaning agent to the cleaning box, and insert the milk tube Clean. In the displayed dialog box, select [OK] to go to the next step, select [Cancel] to into the cleaning box.
  • Page 27 7.5.5 Automatic cleaning setting Cleaning method of the coffee waste bin： Long press the upper left corner of the screen, enter the password in the displayed dialog box (tester: test9527), and click "OK". Click on the "Clean / Maintenance". Push the mouth up to the top, remove the drip tray from the machine, remove the coffee grounds box, pour out the coffee grounds, and clean the coffee grounds box thoroughly with water and household cleaner.
  • Page 28 7.5.8 Disassembly and cleaning of the milk frother and coffee nozzle 7.5.9 Clean the wet air duct 1、 To ensure the normal operation of the milk frother and for hygienic reasons, if you have Push the spout upwards to the top, pull out the drip tray, remove the sponge, and shake made milk before, please be sure to clean the milk circuit on the same day.
  • Page 29 Follow the prompts in the pop-up interface: Place a container larger than 500ml under the 7.6 Weekly cleaning outlet, click "Next", the waterway emptying begins, there is a progress bar in the interface, when the progress is completed, the interface prompts: "Boiler emptying has been 7.6.1 Clean Coffee Hopper completed 100%, click the "Confirm"...

  • Page 30: Safety And Warranty

    8.1.2 Storage 9 Safety and warranty Be sure to follow the following points： Please store it beyond the reach of children and unauthorized personnel ・ Pay attention to heat prevention, light and moisture prevention when saving ・ If the user does not comply with the use and installation instructions of the machine, the Conserved separately from the acidic substances ・...
  • Page 31 10 List of common questions 11 Authentication Meet the standards： Problems Possible causes Solutions GB 4706.1-2005 ; The coffee outlet flow rate is too slow Adjust the grinder and rotate it toward the larger number. Recalibrate the grinder The powder is much larger than expected GB 4706.72-2008 ;...
