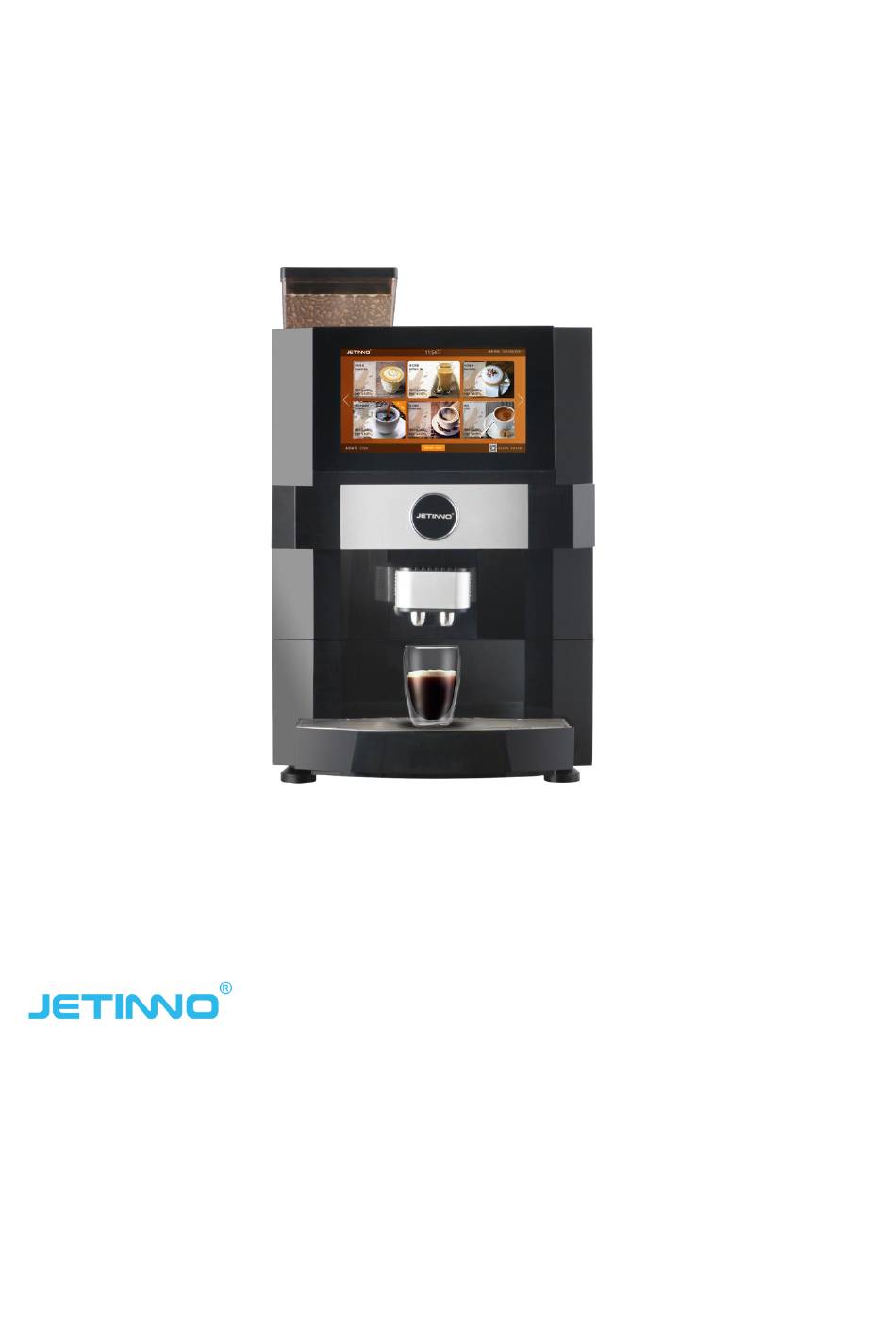

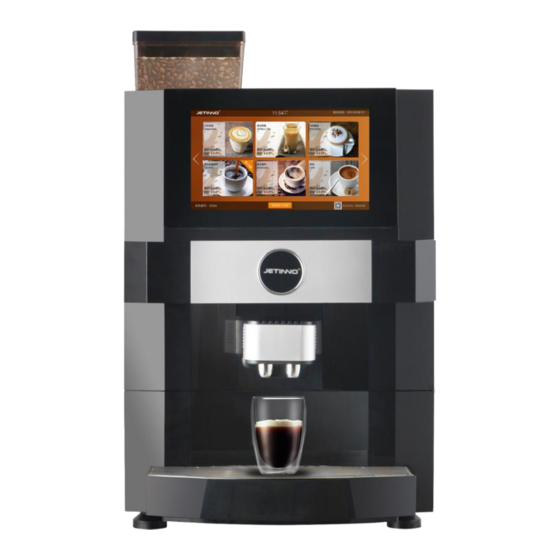

- Page 1 JL22 Machine Service Manual Read the manual before operation and keep it carefully Guangzhou Jetinno Intelligent Equipment Co.,Ltd. www.jetinno.com (86) 20-32038721 (86) 400-017-9997 Add: 4F, A Building, Creator Park, No.2,Tairui Rd, Science Park, Huangpu District, GZ, GD, PRC. 510663...
-
Page 2: Table Of Contents
Preface ..........................3 About this service manual ...................... 3 Important Safety Warnings ....................4 Spare parts ..........................5 Handling packaging materials ....................5 Machine scrap .......................... 5 About machine ........................ 6 Technical specification ......................6 Key parameters ........................7 Machine view ........................... 7 Product page .......................... - Page 3 10.6.4 Mixer Cleaning ......................... 25 10.7 Regular Maintenance ......................25 10.7.1 Clean the Brewer......................25 10.8 Maintenance Guidelines ......................28 10.8.1 Empty boiler ........................28 10.8.2 Empty air break ........................ 29 APP Installation ......................29 Preventive Measures ....................31 12.1 Cleaner ............................
-
Page 4: Preface
1 Preface Thank you for purchasing JL22 series products! Before using the machine, read the instruction manual of this coffee machine carefully to ensure the normal operation of the machine. In order to protect your rights and interests, unpack and inspect the goods, and check in detail whether the machine is damaged or lacks accessories. -
Page 5: Important Safety Warnings
Caution! When transporting, installing, setting up and maintaining the machine, if the operation is not Jetinno carried out according to the instructions, will not be responsible for any personal injury or damage to the machine; Any alterations and structural adjustments to the machine are strictly prohibited, and in these... -
Page 6: Spare Parts
2) This mainly applies to mechanical parts and parts of the hot water system, such as hoses, seals, etc; 3) Defects caused by wearing parts are not covered by warranty; 4) Defects and malfunctions must be resolved by factory-trained technical service personnel, Jetinno contact your professional retailer or after-sales service center. 1.4 Handling packaging materials Packaging materials include: cardboard, corrugated cardboard, treated wood, polystyrene components and plastic film. -
Page 7: About Machine
2 About machine 2.1 Technical specification item specification model JL22 size 400（W）*667 (H)*550D)mm weight 42kg rated voltage/frequency Domestic (220V/50Hz/foreign (110V/60Hz) to determine the local power grid rated power 3000W rated current power supply wire length >1.5m Operation temperature/humidity 5℃-35℃/10%RH-90%RH rated pressure 0.6MPa... -
Page 8: Key Parameters
2.2 Key parameters instant powder making time：30~40s 220ml; Espresso≤45s 30ml) (brewing time 35s) the setting affect flavor and making time; hot water outlet speed: 10ml/s; machine starting time：<2 min; payment method：WeChat/Alipay/banknote device/coin device/other MDB device; Gcommunication interface：WIFI,4G(optional); operation system：Android; 2.3 Machine view ①... -
Page 9: Product Page
Coffee machine(back) ① ② ⑤ ③ ④ ⑥ ①payment interface ②dust cover ③submersible pump power supply ④water intake ⑤power switch ⑥power cable 2.4 Product page Company LOGO Time/date Product icon Slide page Product name Product price Coin refunds Service hotline and machine number 3 Shipping and Storing 3.1 Shipping... -
Page 10: Storing And Shipping Environment
3.2 Storing and shipping environment Attention: Danger of high temperature damage! To prevent damage to the machine, please note that Can only be used under +5°C to +35°C, low temperature icing can seriously damage the machine Ambient humidity range 10%RH - 90%RH ... -
Page 11: Placement Of Machine
Note: The machine is not suitable for outdoor installation, or placed in a strong light environment, cannot be installed in the environment of air and water spray, need to be installed in 5°C to 35°C dry room. Ensure that the fan is effectively ventilated, the back of the machine is not less than 50cm from the wall, and the side installation space is not less than 30cm;... -
Page 12: Connect To Water Source
Note: Only professionals can open the device! Jetinno is not responsible for any intentional damage or damage caused by ignoring these safety instructions and notes. 4.3 Connect to water source Take out the submersible pump from the The other end of the submersible pump is... -
Page 13: Power On
4.4 Power on warning: Wrong voltage is a risk of damage to the machine! Different countries have different voltages! Make sure that your machine is suitable for the local electrical network connection. The supply voltage and frequency can be found on the machine nameplate. warning Voltage variations are a risk of damage to the machine! Do not connect the machine to a network that may be subject to voltage variations... -
Page 14: First Running
5 First running 5.1 Filling the canister Open machine door with keys Open machine cover 3.open cover 4. place coffee hopper 2. open the door 1. key unlock Wear a mask and disposable edible gloves. Open the top cover of the material box and add the powder corresponding to the material box. Note: When the machine is filled for the first time or after cleaning, it needs to be tested several times to ensure that the canister outlet is filled. -
Page 15: Grinder Calibration
6.2 Grinder calibration The calibration software is for the physical characteristics of the instant canister powder, the physical characteristics of the powder and the degree of roasting of the coffee beans. Before calibration you need to prepare the electronic scale and cups. Important: No calibration will result in abnormal machine output! Make sure that the canister outlet is filled before calibration, which can be achieved by the "Start... -
Page 16: Instant Canister Calibration
Instant Canister Calibration Canisters calibration is a program of measuring the dispensing speed of instant canisters with specific powder. Before calibration, you need to prepare an electronic scale and cups and the calibration method is same as grinder calibration above. Important : Lack of Calibration will cause a dispensing malfunction! Before calibration, click [start test] to fill the canister outlet, a non-full outlet will lead to inaccurate... -
Page 17: Recipe Management And Testing
Note : The calibration method of sugar, cocoa is same as instant material. Every time using new canisters, motors, different powder or new machines, re-calibration is needed. No need to do calibration when refilling canisters with same powder. 6.4 Recipe Management and Testing Long press the upper left logo, enter password: jn9527 into the pop-up dialog box, click [recipe]. -
Page 18: Setting Drink Prices
2) Click the [Payment Configuration] button to set the payment mode in the pop-up dialog box. 3) When [Free] mode is enabled, no payment is needed. 4) When MDB cash, MDB swipe card switch are enabled, the machine would make products only after customers pay successful 5) [Server List] Offline mode should be enabled in free mode. -
Page 19: Software Upgrade
U disk, press [OK] to start upgrading the system. Note: Do not power off machine when machine is in the middle of upgrading, the software will automatically restart after a successful upgrade, please wait patiently. Refer to Chapter 11 for software installation and upgrade instructions. Service Manual JL22... -
Page 20: Cleaning
Thorough cleaning and maintenance is a basic requirement to maintain food hygiene. Only regular (twice a week or more frequently depending on situations) maintenance, cleaning and servicing can keep machine in good conditions to make tasty and clean drinks. Jetinno thoroughly took all criteria into consideration, to reduce maintenance costs and improve operational efficiency. Attention:... -
Page 21: Hygiene
Choose the cleaning solution recommended in the cleaning guidelines chart 10.4 Basic Cleaning Note: Cleaning should be done according to actual conditions of the machine. If there is no special situation, please strictly follow the cleaning guidelines. 10.5 Cleaning Guidelines Cleaning and maintenance frequency list Service Manual JL22... - Page 22 Frequency list of cleaning and maintenance of Jetinno coffee machine Letter symbol definition “A” Wipe clean with a damp cloth “B” Clean with a wet cloth with disinfectant (the use of disinfectant is subject to the instructions of the corresponding brand) “C”...
- Page 23 Do not pour powder into the waste water bucket. (3) Pay attention to the conditions of O rings and V rings when cleaning ES brewer, tea brewer and mixer. If there is any damage, replace the old sealing rings with new ones. Service Manual JL22...
-
Page 24: Daily Cleaning
Login backend interface-cleaning Tab-Module-Machine-Manual cleaning-One-click cleaning/ Quick cleaning. One-click cleaning is cleaning whole water system including tubes one time. Quick cleaning is cleaning selected module on the pop-up menu. Brewer cleaning: module-brewer 1 manual cleaning-quick cleaning Mixer cleaning: module-mixer 1/2 manual cleaning-quick cleaning. Service Manual JL22... -
Page 25: Drink Spout Cleaning
Pinch the buckles on both sides of the drink spout with your fingers, pull down hard, and take out the drink spout; Take it under the tap and rinse it and put it back in the machine; The drink spout is cleaned and installed. Service Manual JL22... -
Page 26: Drip Tray And Waste Bin Bucket Cleaning
10.7 Regular Maintenance 10.7.1 Clean the Brewer Clean tablets “URNEX” Information Usage ES brewer cleaning Purposes Remove oil residue from ES brewer Interval Twice per week Service Manual JL22... - Page 27 If the brewer has more than 100,000 infusions in 3 years, the brewer and driver module can be refurbished by Jetinno if necessary. Procedure for disassembling the brewer: Enter the background management of the machine, turn out the brewing cavity of the brewer, and...
- Page 28 Replace the lower filter or clean the lower filter, dry the water, and reinstall it with a screwdriver. Note: Regular cleaning of the brewer should be done at 3000 cups or once a season! Service Manual JL22...
-
Page 29: Maintenance Guidelines
Pull out the water tray, turn on the drain switch, install the water tray, enter the password into the background, disconnect the water source connected to the machine or unplug the pump power plug, click the lower right corner [cleaning], click [empty boiler]. After waiting for five minutes, close the door and unplug the machine. Service Manual JL22... -
Page 30: Empty Air Break
Copy the Jetinno folder: click "File Management" in the machine desktop. After that tap on the USB stick you inserted and copy the "Jetinno" folder (long press the folder and then click the copy button in the upper right corner. ）... - Page 31 Click on the USB stick you inserted (Usbstorage). Long press the "Jetinno" folder and tap the copy button on the top right corner. Paste the copied “Jetinno” folder in the following path: "File Management" - "Local" - "Internal Storage" and directly overwrite the previous Jetinno folder.
-
Page 32: Preventive Measures
Cleaning agent and descaling agent can only be used for specified purposes (refer to the label). Do not eat or drink when using cleaner. Take care there is sufficient ventilation when using cleaner. Wear gloves when using cleaner. Wash your hands thoroughly after using cleaner. Service Manual JL22... -
Page 33: Storage
Do not add contaminative or corrosive water in the coffee machine. Carbonate hardness shall not exceed 5–6° DKH (German carbonate hardness) or 8.9–10.7° FKH (French carbonate hardness). Total hardness must be higher than the carbonate hardness. Service Manual JL22... -
Page 34: Coffee
The coffee beans should be stored in dry, cool and dark areas. The coffee beans should be stored separated from the cleaner. Use the earliest purchased beans at first. When a package is opened, should be sealed to keep the product fresh and prevent contamination Service Manual JL22... -
Page 35: Safety And Warranty
Damage caused by failed to use the manufacturer's original spare parts，or incorrect installation and hasty use of the machine by a third party. Machine defects caused by the modification or improper repair by the user or a third party ，without our permission. Machine defects caused by improper or incorrect use. Service Manual JL22... -
Page 36: Frequently Asked Questions
First use of the machine, there is air in the water system again. Be sure if the machine is online, enhance the The machine Bad Internet signal can't show signal two-dimensio out of service nal code. 4G card Contact after-Sales service of Jetinno Service Manual JL22... -
Page 37: Certification
IEC 60950 At present, there is no CCC certification for vending machines in the Chinese market, but only CQC certification for this product. Jetinno can only provide the inspection report of the machine and the relevant food contact parts. Service Manual...
