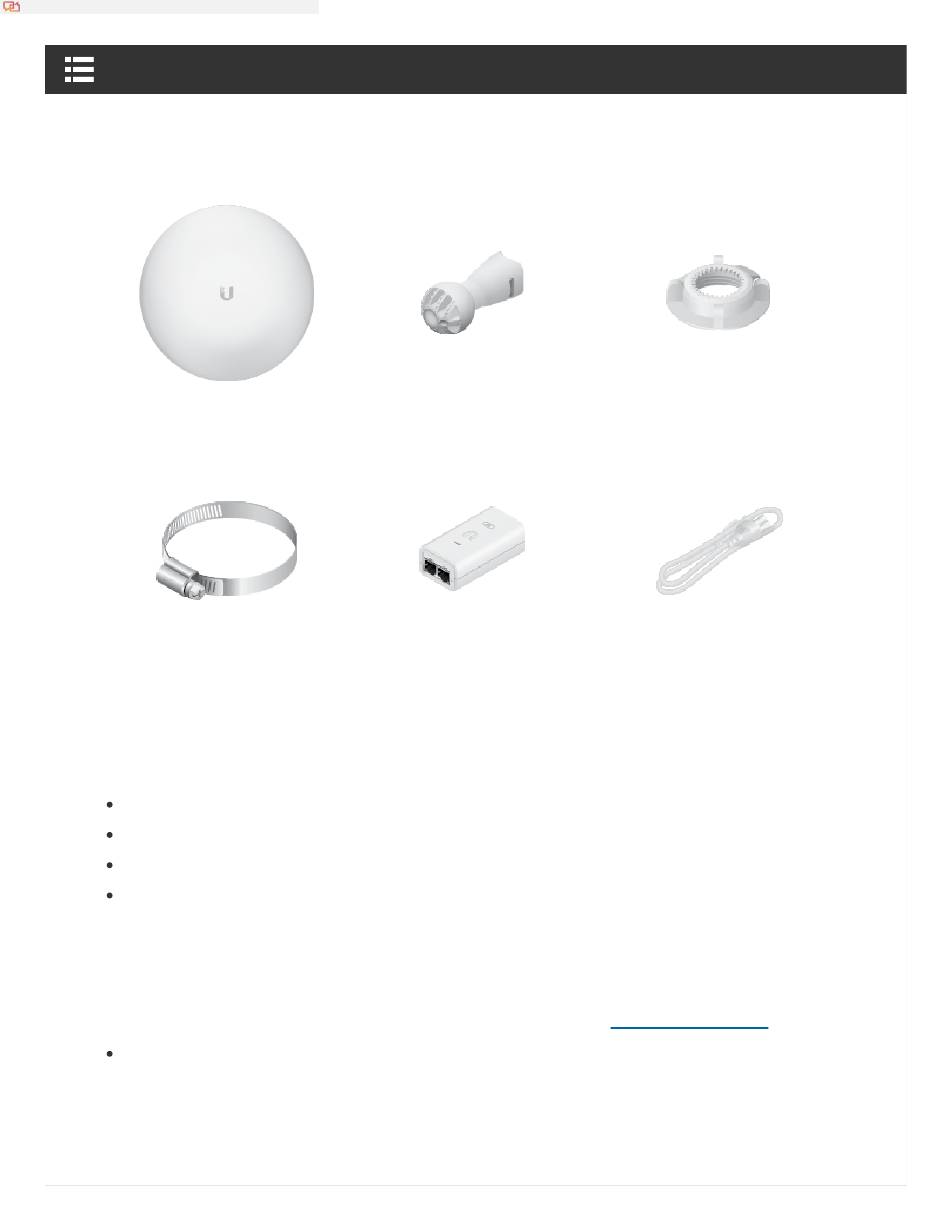

Package content
metal strip
Installation requirements
Clear line of sight between GigaBeam access point and station
Pole mount: 7mm socket wrench or screwdriver
Wall mounting: wall mount (not included)
Category 5 (or higher) shielded cabling with drain wire must be used on all
Ethernet connections and must be connected to the PoE AC ground.
We recommend that you protect your networks from harmful outdoor
environments and electrostatic discharge phenomena with Ubiquiti's industrial-
grade shielded Ethernet cable. For more information,
Surge protection must be used in all outdoor installations. We recommend
that you use two Ethernet surge protectors (model ETH-SP-G2), one near the
device and the other at the building entry point. The ETH-SP-G2 will absorb
surges and safely discharge them to the ground.
GBE Quick Start Guide
GBE
Gigabit PoE (24V, 0.5A) with
Ball joint assembly
Mounting bracket
visitui.com/toughcable
Lock ring
Power cord
