Ubiquiti UniFi US-24-250W Quick Start Manual

Ubiquiti UniFi US-24-250W Quick Start Manual

Hide thumbs Also See for UniFi US-24-250W:

Advertisement

Quick Links

2022/09/01 23:58
Click for
Package Contents
Table of Contents

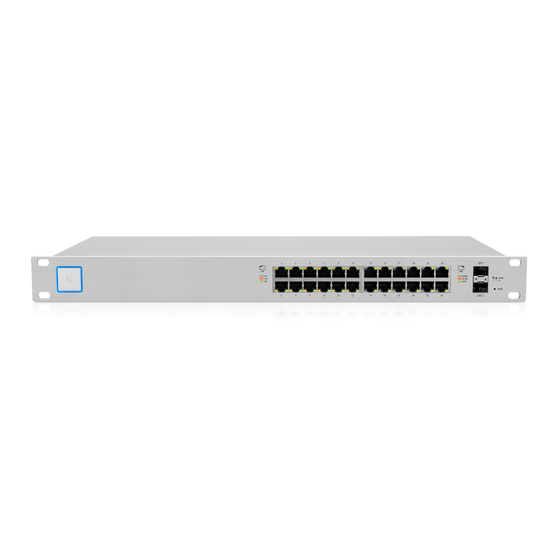

UniFi Switch
Cage Nuts (Qty. 4)
Installation Requirements
Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the
AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit:
Note:
should be housed inside a protective enclosure.
IMPORTANT:
regulation to prevent equipment damage due to stability issues with local
AC power.
https://dl.ui.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html
US-24-250W, US-24-500W Quick Start Guide
×
Although the cabling can be located outdoors, the UniFi Switch itself
We strongly recommend using UPS backup and power
US-24-250W, US-24-500W Quick Start Guide
Power Cord
Mounting Screws (Qty. 4)
ui.com/toughcable
1/11
