HP C5687A - SureStore DAT 40i Tape Drive Installation Instructions Manual page 2

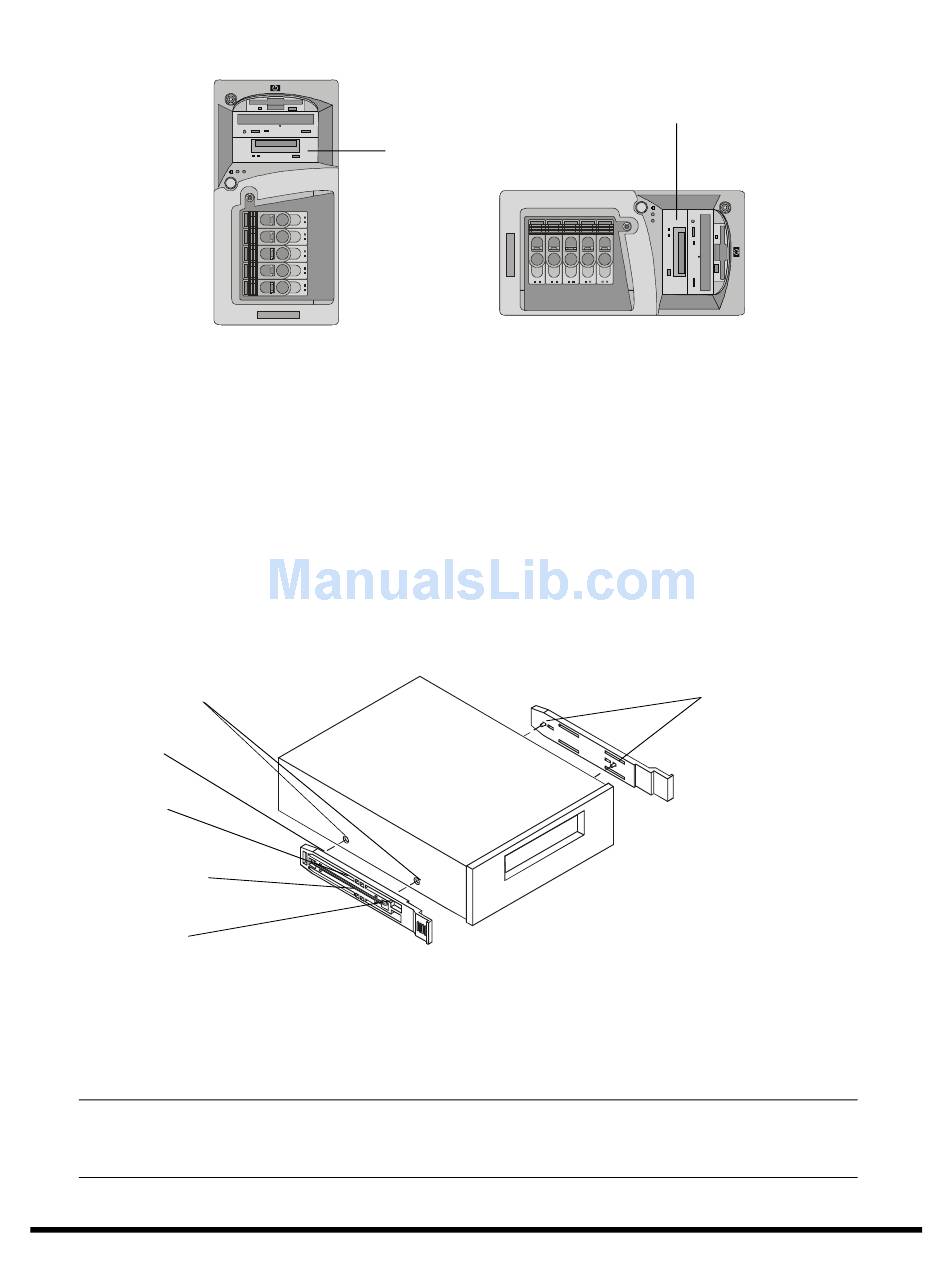

Figure 1. HP Surestore Supported Locations for the HP Server tc3100
Installing the Plastic Rails (Models DAT 24i and DAT 40i)
The plastic drive rails are secured to the drive by spring tension.
To install the plastic drive rails:
1. Insert one end of the wire rod on the rail into the mounting hole at the rear of the drive
2. Apply pressure to the middle of the rail allowing the remaining wire rod end to be inserted into the mounting hole at
the front of the drive. Ensure that the rail is seated against the side of the drive.
3. Repeat the installation for the second mounting rail.
Mounting Holes
Insert this wire rod
end first
Apply pressure
to middle of rail
Wire Rod
Insert this wire
rod end last
HP Server tc4100 Configuration
The HP Server tc4100 can accept any of the following HP Surestore tape drives:
NOTE
2
P2 Location
Pedestal
Figure 2. Plastic Drive Rails
In any of these server configurations, the CD-ROM is normally mounted in location
P1 in the pedestal configuration and in location R3 in the rack mount configuration
(see Figure 3).
R2 Location
Shelf Mount
(Figure
Wire Rod Ends
HP Part Number 5990-3463
2).
