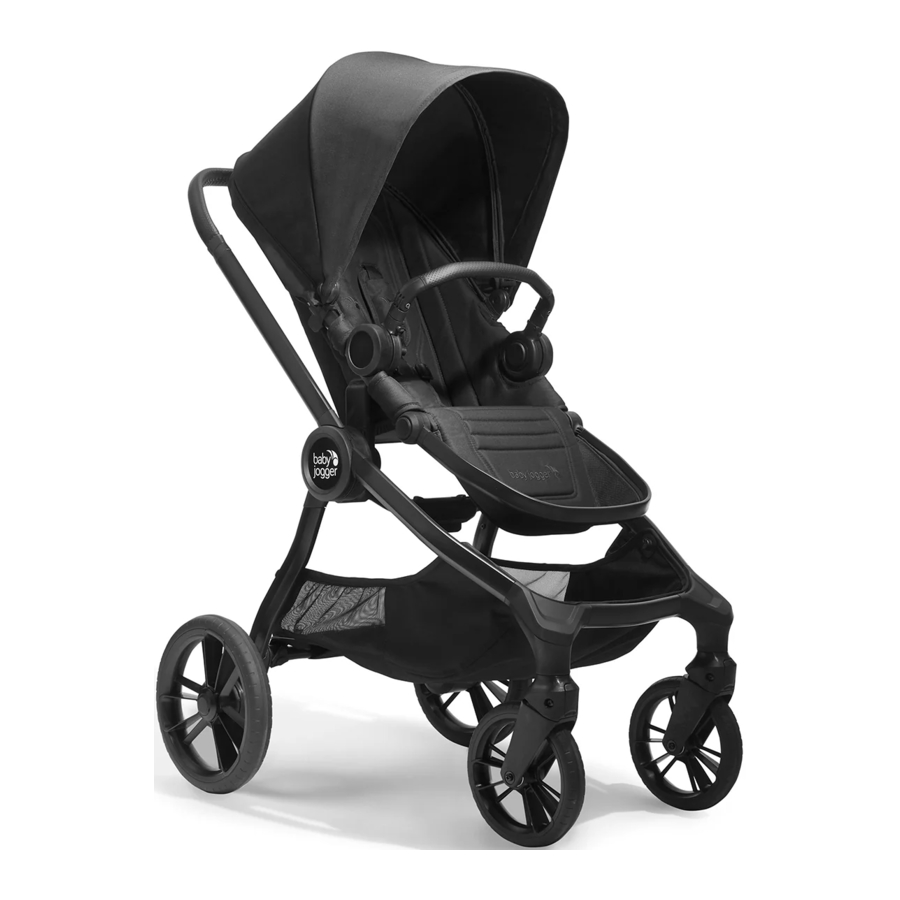

Baby Jogger city sights Manual

Overview

12. Seat Back Storage
13. Storage Basket
14. Footwell
15. Footwell Adjustment Button
16. Harness Buckle
17. Harness Pads
18. Storage Lock
19. Seat Fold Actuator Buttons
20. Seat Removal Button
21. Belly Bar

FRAME

1. Unpack the pushchair frame from the box and set the wheels aside. Unlock the pushchair by pulling the storage lock lever.

2. Lift the handlebar away from the lower frame. The pushchair will click into place.

3. Place the pushchair in the upright position.

   Ensure that all the locking devices are engaged before use.


FRONT WHEEL

4. Installation

   • Lay pushchair on its back so the handlebar is resting on the floor.
   • Attach the front wheel by sliding it into the front wheel mount until it clicks. Gently pull on the front wheel to make sure it is properly attached.
5. Removal

   • While pressing the front wheel release button, gently slide the front wheel out of the front wheel mount.

SWIVEL FEATURE

6. To unlock, push the swivel button down to allow the front wheel assembly to swivel.
   Push the swivel button up to lock the front wheel assembly in a fixed position for long distance strolling.

   When loading and unloading child, lock the front wheel in a fixed position.


REAR WHEELS

7. Installation

   • Align the rear wheel axle with the wheel mount on the pushchair frame and insert it into the wheel mount until it clicks into place. You will hear a click.
   • Gently pull on the rear wheel to make sure it is properly attached.
8. Removal

   • While pressing the wheel release button, gently slide the rear wheel out of the wheel mount.

BRAKE

9. To lock the brakes: push the brake lever down to engage the brakes.
   To release the brakes: lift the brake lever up.

   Lock the brakes before loading and unloading your child and whenever the pushchair is not moving.


ASSEMBLING THE SEAT CANOPY

10. Unfold the seat so it is straight.

11. Attach the canopy's brackets to the sides of the seat frame.

12. Slide the canopy back over the back of the seat.

13. Pull forward to open canopy and push backwards to close canopy.

14. To use the canopy window, unzip the canopy and push forward to open window.


PLACE THE SEAT ON THE FRAME

15. Align the seat mounting brackets with the mounting brackets on the pushchair frame. Insert the seat onto the brackets until it clicks into place. Ensure that both sides of the seat are securely fastened into the frame before use by pulling up on the seat.
    NOTE: The seat may be installed either forward-facing or rear-facing.


REMOVE THE SEAT

16. Press the buttons on the inside of the seat and pull up.

    Always remove your child from the seat before removing the seat from the frame.


ATTACHING BELLY BAR

17. Attach belly bar to both mounts on the hub of the seat..

18. To open belly bar, push in on the button on the mount and rotate belly bar out of the way.
    To remove belly bar, press on both buttons and remove.


ADJUSTING SAFETY HARNESS

19. From the back of the seat, unzip the vertical zipper on the seat back and open the pocket to locate the plastic square stopper. Turn stopper and pass through the openings in the PE board and seat fabric.

    Vertical zipper is not for storage.


20. Reinsert stopper at seat opening closest to child's shoulders. Pass back through seat fabric and PE board. Tug on strap to ensure stopper is locked. Repeat on both sides.

    Avoid serious injury from falling or sliding out. Always properly adjust and fasten safety harness.

    Always use the crotch strap in combination with the shoulder straps and waist belt.

21. Slide the harness pads up to access plastic guide on strap.

22. Hold the plastic guide and pull strap to tighten or loosen.


USING SAFETY HARNESS

23. Insert side strap buckle into harness buckle on both sides.

24. Insert connected harness and side strap buckles into the sides of the crotch buckle.

25. Press button on crotch buckle to release.


RECLINE THE SEAT

26. Lift the seat recline button located at the top of the seat, behind the canopy.

27. Pull down to lower the seat and pull up to raise the seat until it clicks into the desired position.

    When making adjustments to the stoller seat, make sure child's head, arms, and legs are clear of moving seat parts and pushchair frame.


ADJUSTABLE FOOTWELL

28. Adjust the angle: Press the adjustment buttons on the footwell and move it up or down until it clicks into the desired position.


HANDLE HEIGHT ADJUSTMENT

29. Squeeze the handle adjustment button and slide the handle up or down to the desired length.


SEAT BACK STORARGE

30. To access the seat back storage, unzip the horizontal zipper.


FOLDING

• Remove your child from the seat.
• The pushchair may be folded with or without the seat attached.
• Stroller can be folded with seat forward facing or rear facing. For most compact fold, fold with seat forward facing with handle in lowest position.

31. To fold the seat, squeeze the buttons under the recline handle and rotate the seat forward.

32. Slide the top actuator button to either side, push bottom button in, pull up on the cross bar and allow the frame to fold. Make sure the storage lock lever clicks into place.



BASKET REMOVAL

33. Unfasten the top snaps of the basket around the frame.

34. From the bottom of the stroller, unhook the basket from the front frame.

35. Undo the 2 outside snaps around the rear axle. Undo the fastening strip in the center of basket to expose the brake line. Remove the basket. Reverse the steps to reattach the basket to the frame.


REMOVING THE SEAT FABRIC

36. Unsnap the 6 snaps from the seat frame.

37. From the bottom, undo the fastening strip to expose the metal frame.

38. Pull the seat pad off the top of the frame.

39. Slide the seat fabric out of the channel in the footwell bar.
    Reverse the steps to reattach the seat pad to the seat frame.


CARE AND MAINTENANCE

To preserve the longevity of your pushchair, it is important to perform simple, regular maintenance. From time to time, make sure that the joints and folding areas are still in good condition. If you hear any squeaking or feel tension, you can take your pushchair to a local bike shop for added lubrication. All repairs should only be carried out by an authorized dealer.

Seat Fabric/Canopy/Basket

• Refer to your care tag on the seat pad, canopy, and basket for washing instructions.
  • Wipe clean with damp cloth
  • Machine wash separate in cold water, delicate cycle
• Do not use solvents, caustic or abrasive cleaning materials.
• Do not press, iron, dry clean, tumble dry or wring the fabric.
• If the seat covers need to be replaced, only use parts from a Baby Jogger Authorized Dealer. They are the only ones that are guaranteed to have been safety tested and designed to fit this seat.

Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle or alter any part of the seat folding mechanism or brakes.

Wheel Care

• The wheels can be cleaned using a damp cloth. They will need to be dried completely with a soft towel or cloth.

STORING

• Sunshine can fade seat fabric and dry out tyres, so storing your pushchair indoors will prolong its good looks.
• DO NOT store outside.
• Ensure that the pushchair is dry before storing for prolonged periods.
• Always store the pushchair in a dry environment.
• Store the pushchair in a safe place when not in use (i.e. where children cannot play with it).
• DO NOT place heavy objects on top of the pushchair.
• DO NOT store the pushchair near a direct heat source such as a radiator or fire.

Safety

ADDITIONAL SAFETY INFORMATION

• This pushchair seats one passenger.
• The seat unit is suitable for one child up to 22 kg or 4 years whichever comes first. This seat unit is not suitable for children under 6 months.

• Total weight load recommended for this pushchair is 29.5 kg. 22 kg in the seat, 0.5 kg in the seat back pocket, and 7 kg in the basket. Excessive weight may cause a hazardous unstable condition to exist.
• For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
