Summary of Contents for ATO SOP D056

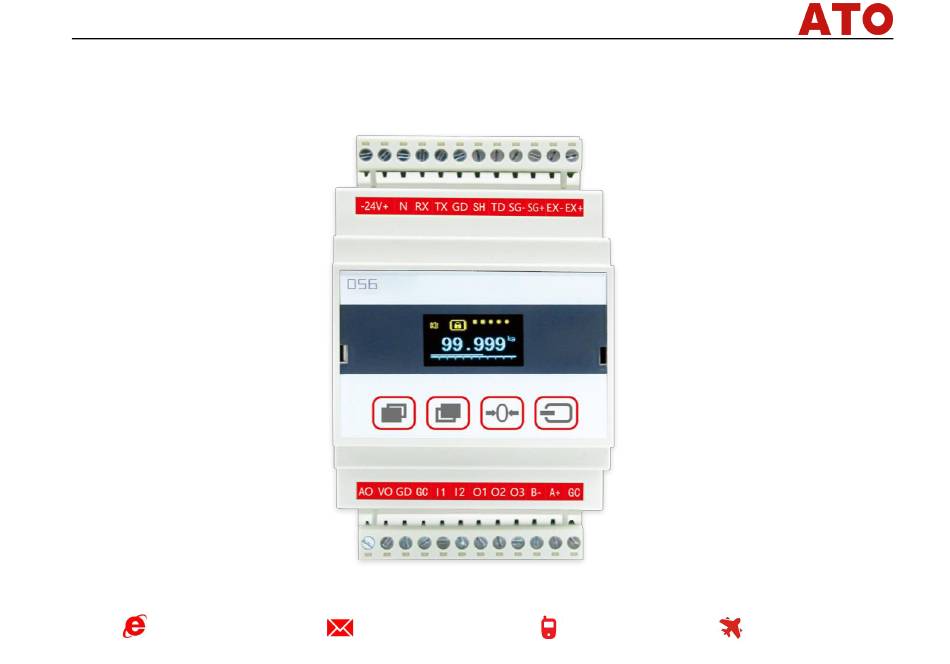

  • Page 1 D056 User Manual SOP D056 User Manual www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 2 In order to use the product for a long time, please read the operation manual carefully and keep it properly for any review. The contents of this manual shall not be reproduced without the permission of the Company. www.ato.com sales@ato.com Global Shipping...
  • Page 3 The installation, commissioning and maintenance of this product shall be conducted by qualified engineering and technical personnel.  The Company shall not bear any direct or indirect loss other than the product itself.  The Company reserves the right to change the product specification without notice. www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 4 Otherwise, it may cause deformation and discoloration.  Do not rub or tap the display section.  The installation, commissioning and maintenance of this product shall be conducted by qualified engineering and technical personnel. www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 5: Table Of Contents

    D056 User Manual catalogue SOP D056 User Manual ..............................1 catalogue ................................... 4 1. functional characteristics ............................1 2. Technical characteristics ........................... 1 3. Packaging and appearance ..........................2 3.1 Boacking contents ............................2 3.2 Holhole dimension drawing ........................3 4.
  • Page 6 8. parameter list ..............................34 8.1 Method 2 Peak Capture parameter Table ....................34 8.2 Method 1 Comparison parameters table of upper and lower limits ............42 8.3 Communication address table ........................54 9.Warranty Description ............................59 www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 7: Sop D056 User Manual

    Display scale 999999 or 99.999 Bridge supply voltage: 5V/100mA, proportional collection Temperature drift is less than 20ppm Transmission Output 0~10 or-5~5V and 4-20mA Power supply voltage: 12~30V DC, <5W -20~70 ℃ Relative humidity <90% (no dew) www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 8: Packaging And Appearance

    D056 User Manual 3. Packaging and appearance 3.1 Boacking contents Instrument instructions*1 certificate*1 Binding post*2 Resistance*1 Product*1 www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 9: Holhole Dimension Drawing

    D056 User Manual 3.2 Holhole dimension drawing Cable specification:0.3-0.5mm²Multi-stock soft cord EO508Pipe-type preinsulated terminal www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 10: Catalogue

    Connect the signal output input terminal without the power supply to avoid electric shock. Note that you use the DC24V power supply. Note that carefully verify that the terminal line is correct before turning the power on. www.ato.com sales@ato.com Global Shipping...

  • Page 11: Installation Schemram

    D056 User Manual 4.1Installation Schemram www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 12: Wiring Definition Diagram

    D056 User Manual 4.2Wiring definition diagram RS232 plug EX+/- power +/- Power SG+/- signal+/- 24V DC 5W Sensor Transform output Current / voltage RS485 export www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 13: Menu Structure

    Long press to press the zero clearance Enter the function menu menu selection Switch up and down Return Enter the corresponding function enter password Current bit increase or decrease Move the Current Position to Right Confirm the current input www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 14 Retun Interface Testing Switch-over options Return Modify the current project Initialise Selection function Return Perform the current function Nonlinear correction (only used to use from small to large after scale calibration) www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 15: Main Picture Description Key

    Bar value bar bar Reverse display when negative Note: the functions of different screen buttons are different, please refer to the menu structure diagram in details Time of above figure modified to instrument 10S www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 16: Caliation Methoda

    The primary and secondary passwords cannot be the same, otherwise the instrument will prompt an error. For functions that need to be repowered to take effect, they www.ato.com sales@ato.com Global Shipping...
  • Page 17  Enter the current load truth value→ Data addition and decrease， Move the Current Position to Right， affirm。 5.3.3 Coefficient calibration The coefficient calibration method is calibration by modifying the range coefficient parameter value to www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 18  Digital calibration method is the most convenient, as long as modify parameter sensitivity coefficient and sensing range, no known object is needed to be calibrated; but meanwhile, there is easy to be errors, about 1% -9%. Use this method with caution and allow the measurement to be used. www.ato.com sales@ato.com Global Shipping...
  • Page 19 Confirm the input and return to the Back Step。  Press fy press quit，Exit prompts for sensitive calibration，press Confirm complete calibration。 5.3.5 interface testing  Operation screen→press  Display the menu→ Select the interface test function，press enter www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 20  Nonlinear correction screen→To load the sensor(Try to align from small to large) →Press the system stabilizes stable  Enter the accurate value screen→ Data addition and decrease， Move the Current Position to Right， enter。 www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 21 Select to Restore the Factory、Data backup or data recovery capabilities。 Perform the corresponding functions。If you choose to restore the factory, you also need to choose to restore to mode 1 or mode 2。Repower required after factory and recovery data backup。 www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 22: Operate Mode

    (parameter 9=2), comparison limits 1 and 2 the interval comparison, 1 the lower limit, and comparison value 2 the upper limit. Turn off the output when the comparison condition is invalid, and exit the comparison. www.ato.com sales@ato.com Global Shipping...

  • Page 23: Peak Capture Mode

    When capture time is 0 and open definition is 3, Invalid start capture, Invalid end capture. The trigger threshold start mode ends the capture automatically when the measurement returns within the www.ato.com sales@ato.com...
  • Page 24 3 and 4. Output 3 is valid when both peak and valley values are valid. The alarm duration is controlled by the parameter delay time, which can be opened by open reset (defined as reset). measured value Capture is Effective Capture End Peak value Open in valid triggered, invalid valley ended peak capture www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 25 D056 User Manual Measured Value Open on valid＞100ms Capture Time Capture is Effective Capture End Peak Value Valley Peak capture of on trigger, delay end www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 26 D056 User Manual Measured Value Trigger the threshold tend to be stable System stability Gate Tritrigger measured within Peak Value threshold Peak Value Valey Peak capture ending after threshold trigger and stability www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 27: Serial-Port Communication Description

    The other is RS232 communication, which is a non-isolated output and suitable for close communication. The two serial ports simultaneously support both three communication protocols, Modbus-RTU protocol (subsystem), ASC active upload and HEX fast upload (parameters 31 and 36). www.ato.com sales@ato.com Global Shipping...
  • Page 28 Return to the packet length of <160 bytes 03 order Main station inquiry Package ack interval Package ack interval Station response 10H Command Package Length <160 bytes Main station to modify the slave station parameters Constation confirmation www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 29 D056 User Manual Communication mode 2: ASC active transmission mode 7 ASCII formats client Server Package ack interval Package interval is affected by instrument operation speed, but the minimum packet interval is greater to the set value. www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 30 D056 User Manual Communication mode 3: HEX fast transmission mode 5 bytes Last byte is the checkbit client Server Measurement frequency instrument is set by the parameters measure Active Send Send data synchronized with measurement without delay www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 31: Modbus-Rtu Protocol

     Read the measurements Active Send Machine code Order order Read Number Check value Order start address Machine code Instrument return Machine code, command, number of bytes, measurement value (floating point number 1000), check value www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 32 Later number floating check Order parameters code Address (float) own number of words) of bytes number 1000 code 00 00 00 02 41 C8 Instrument return Machine Address Number of modifications check code order code www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 33 Calibration. Complete the scale calibration through the communication command: clear the zero first, then add the weight, write the weight weight to the address FB4H, and then 11 to the FB8H address when the system is stable. www.ato.com sales@ato.com Global Shipping...

  • Page 34: Ascii Active Sending Of The Protocol

    7.3ASCII Active sending of the protocol Communication mode 2 is the ASCII code active transmission mode, and the instrument actively sends a 7-bit ASCII code value (including decimal and negative display) at the set minimum interval. Represents in space www.ato.com sales@ato.com Global Shipping...

  • Page 35: Hex Quick-Send Protocol

    The table below gives a lower limit on the communication rates at different acquisition speeds. picking rate data break - ms Baud rate lower limit Package Transfer time - ms 9600 19200 38400 1.25 57600 1600 0.625 115200 0.43 www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 36: Communication Reliability Issues

    Cable connection resistance at both ends 120Ω at both ends 120Ω Communication Communication place place Communication place Communication place M ai n and slave communication stations are partially wired together slave station n slave station 1 slave station 2 www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 37 Use of special lines： STP ， Line diameter 0.5-1mm² Communication cable star method is wrong Using parallel lines, a single wire is the wrong Too close to the high current cable or tied together is wrong www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 38: Communication Faq

     If the user is not familiar with the communication instructions, you can send the monitored data to our technical www.ato.com sales@ato.com Global Shipping...
  • Page 39 If the communication code error rate is high or the communication is intermittent, it may be a system interference problem. Communication routine The Company provides communication routines for common PLC (Huikawa H3U, Mitsubishi FX3U, Siemens S7 200), touch screen and configuration software and contact our customer service staff as required. www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 40: Parameter List

    Calibrpoint 0.000-50.000 2.000 s General Peak capture time length (15) parameters Correction 0.0-60.0 1.0 s General Output has a valid time length value: (14) parameters Calibrpoint -9999.9-99999.9 General Trigger threshold for peak capture and automatic www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 41 Calibrpoint 00-01 General For 1, turn on the upper power zero clearance (11) parameters function Correction 00-01 General For 1, open automatic zero value: (10) parameters Calibrpoint 00-10000 20 d General Auto-Zero Range (10) parameters www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 42 0-not have;1-ModbusRTU; 2-Active Send ASC; value: (6) parameters 3-AS16Fast Active Send Calibrpoint 00-05 Advanced N81 ;1-N82 ;2-E81; 3-E82; parameters 4-081;5-082; Correction 00-08 Advanced 0/2400/4800/9600/19200/ value: (5) parameters 38400/57600/115200/256000 Calibrpoint 00-128 Advanced Machine code for instrument communication www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 43 The AD code value of the instrument zero point value: (1) 1000000 parameters Calibration 10-1999999 10000 Advanced For calibration, see Section 6.4 point (1) parameters Secondary 0.1000-10.0000 2.0000 Advanced Sensor sensitivity, see section 6.5 password mV/V parameters Level-I 20000-999999 120000 Advanced Hardware fullness www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 44 0 - 1 Advanced 1, read TEDS after reup measuring parameters range LIN0 00-01 Advanced For 1, turn this function on parameters LIN1 00-99999 Advanced parameters Sensitivity 00-99999 Advanced factor parameters Measing Advanced coefficient parameters www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 45 99999.9 Advanced parameters Agreement 0.1000-5.0000 1.0000 Advanced parameters Package ack 2.0-99999.9 99999.9 Advanced interval parameters Communicati 0.1000-5.0000 1.0000 Advanced on Address parameters Communicati 2.0-99999.9 99999.9 Advanced on rate parameters Data format 0.1000-5.0000 1.0000 Advanced parameters www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 46 Acquisition 0.1000-5.0000 1.0000 Advanced rate parameters Rating 2.0-99999.9 99999.9 Advanced quantitativ parameters e range Show 0.1000-5.0000 1.0000 Advanced decimal parameters decimal Display 2.0-99999.9 99999.9 Advanced Unit parameters ZZero range 0.1000-5.0000 1.0000 Advanced parameters www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 47 0.1000-5.0000 1.0000 Advanced filtering parameters Zero-bit 2.0-99999.9 99999.9 Advanced trace parameters Stability 0.1000-5.0000 1.0000 Advanced stability parameters conditions Zero-bit 2.0-99999.9 99999.9 Advanced range parameters Trigger the 0.1000-5.0000 1.0000 Advanced threshold parameters Time 2.0-99999.9 99999.9 Advanced www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 48: Method 1 Comparison Parameters Table Of Upper And Lower Limits

    Less than 01 output when factory value parameter Comparare -99.999-999.999 5.000 General From the factory, greater than this value of 02 parameter output Compariso -99.999-999.999 10.000 General From the factory, greater than this value of 03 value parameter output www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 49 05 d General Determine stable stability per second stability parameter condition Zero-bit 00-200 02 d General Zero tracking range, keeping instrument display trace parameter zero for no load Primary 00-50 General Eliminate eliminate the measurement measurements www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 50 Auto-Zero 00-01 General For 1, open the automatic zero return function parameter ZZero 00-10000 100 d General Auto-Zero Range range parameter Creep 00-200 00 d General Eliminate the drift resulting from long-time www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 51 Acquisiti 00-09 Advanced 6.25/12.5/25/50/100/200/400/800/1600/3200 Every on rate parameter second Open 00-44 Advanced 1-Zero clearance; 2-reset; 3-operation Defindefi parameter nition Modeling 00-04 Advanced 0-Invalid; 1-Real-time measurement; parameter 2-communication control; 3-peak; 4-Fast real-time definitio value www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 52 Advanced Communication of communication tion parameter Address Package 0.001-9.999 0.010 s Advanced Communication interval between transmission and parameter ASCII transmission interval Agreement 00-03 Advanced 232 Communication protocol parameter Format (2) 00-03 Advanced 232 Communication format www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 53 Code value when measured at zero point code value 1000000 parameter Measing 10-1999999 10000 Advanced For calibration, see Section 6.4 coefficie parameter Sensitivi 0.1000-10.0000 2.0000 mV/V Advanced Sensor sensitivity, see section 6.5 ty factor parameter www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 54 (flow) 00-16383 16000 Advanced Transmission full degree, measured full degree parameter corresponding voltage (flow) TEDS 0 - 1 Advanced 1, read TEDS after reup parameter Linear 00-01 Advanced For 1, turn this function on www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 55 Secondary 00-99999 Advanced password parameter Calibrati 2.0-99999.9 999.999 Advanced Nonlinear correction force value, Kg point parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter Calibrpoi 2.0-99999.9 999.999 Advanced nt (2) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 56 Calibrpoi 2.0-99999.9 999.999 Advanced nt (4) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter Calibrpoi 2.0-99999.9 999.999 Advanced nt (5) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter Calibrpoi 2.0-99999.9 999.999 Advanced nt (6) parameter www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 57 999.999 Advanced nt (7) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter Calibrpoi 2.0-99999.9 999.999 Advanced nt (8) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter Calibrpoi 2.0-99999.9 999.999 Advanced nt (9) parameter Correctio 0.1000-5.0000 1.0000 Advanced www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 58 Correctio 0.1000-5.0000 1.0000 Advanced value: parameter (10) Calibrpoi 2.0-99999.9 999.999 Advanced nt (11) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter (11) Calibrpoi 2.0-99999.9 999.999 Advanced nt (12) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter (12) www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 59 Correctio 0.1000-5.0000 1.0000 Advanced value: parameter (13) Calibrpoi 2.0-99999.9 999.999 Advanced nt (14) parameter Correctio 0.1000-5.0000 1.0000 Advanced value: parameter (14) Calibrati 2.0-99999.9 999.999 Advanced Point parameter (15) Correctio 0.1000-5.0000 1.0000 Advanced value parameter (15) www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 60: Communication Address Table

    0X 08 0X 408 Zero-bit range 0X 18 0X 418 Peak Time 0X 0A 0X 40A Stability 0X 1A 0X 41A stability conditions Time lardelay 0X 0E 0X 40E Zero-bit trace 0X 1E 0X 41E www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 61 0X 52 0X 452 Show decimal 0X 2C 0X 42C range decimal Display Unit 0X 2A 0X 42A Rating 0X 34 0X 434 quantitative range Show decimal 0X 2C 0X 42C Acquisition 0X 36 0X 436 www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 62 0X 442 Agreement (2) 0X 46 0X 446 Address Package ack 0X 44 0X 444 Format (2) 0X 48 0X 448 interval Agreement (2) 0X 46 0X 446 Baud Rate (2) 0X 4A 0X 44A www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 63 0X 6C 0X 46C 0X 68 0X 468 Linear 0X 70 0X 470 calibration TEDS 0X 6C 0X 46C Level-I password 0X 74 0X 474 Linear calibration 0X 70 0X 470 Secondary 0X 76 0X 476 www.ato.com sales@ato.com Global Shipping 800-585-1519...
  • Page 64 Instrument model 5000 Software Version 5002 Number Hardware Version 5002 Linear 5004 Number calibration Software Version 5004 Factory Number 5006 Number Factory Number 5006 Production batch 5008 number Production batch 5008 Standby 5010 number Standby 5010 www.ato.com sales@ato.com Global Shipping 800-585-1519...

  • Page 65: Warranty Description

    3、Products removed or repaired without the Company warranty point. 4、 No product number or warranty number inconsistent or altered with the product number for repair. 5、Damage not caused by product quality during the warranty period. www.ato.com sales@ato.com Global Shipping 800-585-1519...
