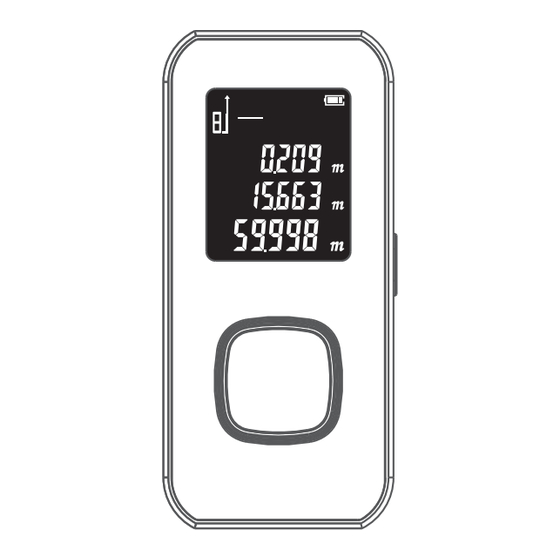

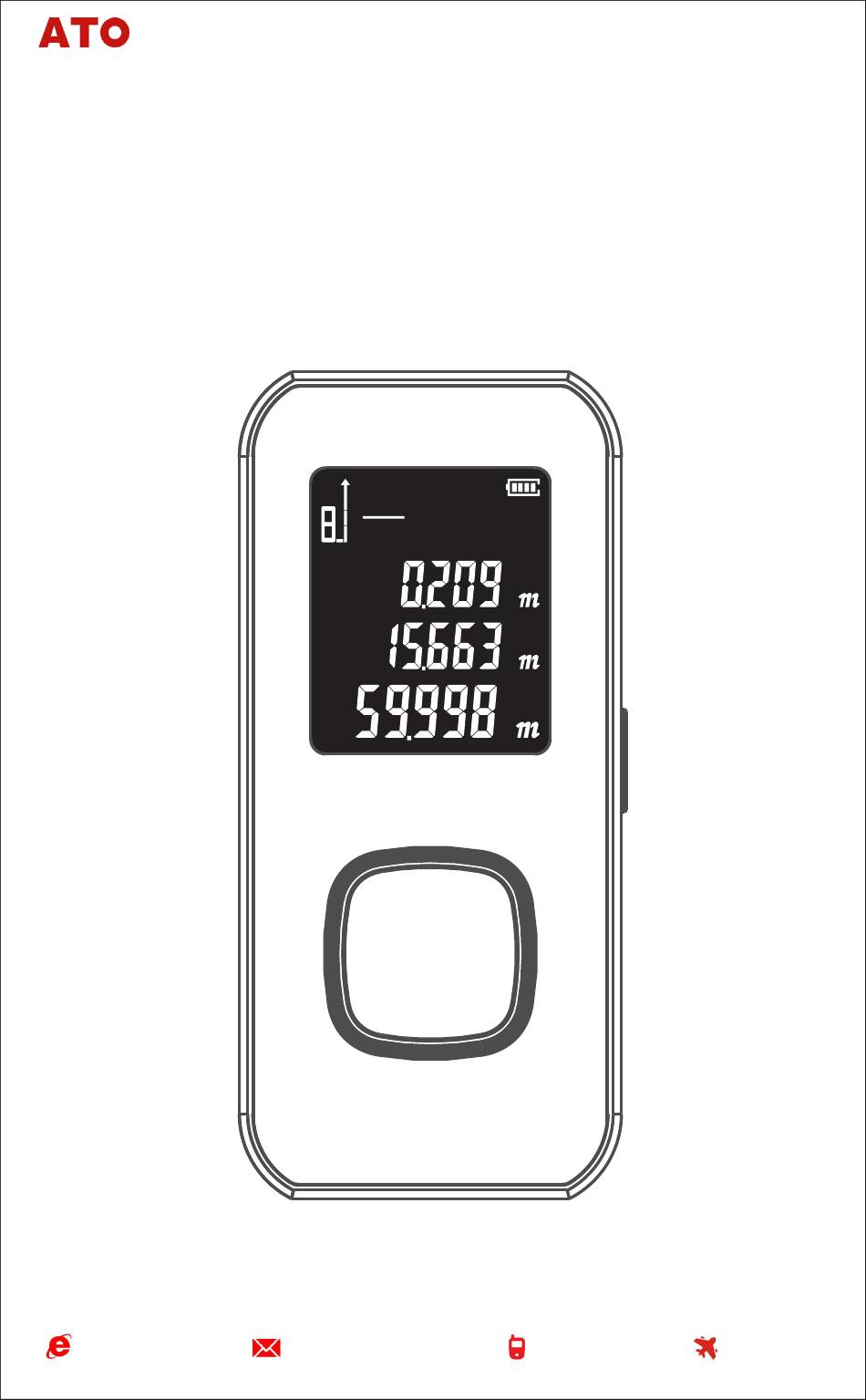

- Page 1 Protable Laser Distance Meter User Manual www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 2 Any quality issues or any questions on the meter, please contact local distributors or manufacturer in time, we are ready to offer solutions for you. - 1 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
-
Page 3: Product Overview
Product Overview Laser Emitting Lens Power/Measure Button Laser Receiving Lens Mode Switch Type-C Charging Port - 2 - www.ato.com sales@ato.com Global Shipping 800-585-1519... - Page 4 Under on state, long press Under on state, long press for 3s to turn off the for 3s to turn off the device, or it will automatically shut off without any operation within 150 seconds. - 3 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 5 Self-calibration &Sound on/off Self-calibration Function The self-calibration function is mainly used to correct data. If the deviation occurs when the user measures the distance, this function can be used for distance correction. - 4 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 6 "on" means to turn on the sound, off means to turn off the sound; 3. Save settings: Press 3. Save settings: Press to save settings and return to to save settings and return to the state to be measured. - 5 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 7 The device automatically calculates the area and shows the result in the major display area. The measuring results of the length and width of the rectangle will be showed in the auxiliary display area. - 6 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 8 The device automatically calculates the volume and shows the result in the major display area. The measuring results of the height and width of the cube will be showed in the auxiliary display area. - 7 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 9 Total area = Height x (Width 1+ Width 2) By analogy, press By analogy, press to measure the width(n) of the to measure the width(n) of the wall (n); Total area = Height x(Width 1+ Width 2+...+ Width n) - 8 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 10 Legs must be shorter than hypotenuse, or there will be "err" showed at screen. In order to guarantee the accuracy, please make sure all measurements are started from the same point and in the order of hypotenuse and legs. - 9 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
- Page 11 Low battery voltage Charge the battery Beyond working Use the device in the specified Err4 temperature temperature. Pythagoras measuring Re-measure and ensure that Err5 breaks the rules hypotenuse is longer than legs. - 10 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
-
Page 12: Technology Specifications
Technology Specifications ITEM SW-24A SW-25A SW-26A 0.05-60m Measurement Range 0.05-40m 0.05-50m Precision ±(2mm+d 1/10000) * Continuous √ Measurement √ Metope Area Measurement Area/Volume √ Measurement √ Perimeter Measurement Pythagorean √ Measurement √ Min/Max Value Ⅱ Laser Level 630-670nm,<1mW Laser Type... - Page 13 Packing List Please check if all accessories are complete according to the following list. Item Unit Note Meter User Manual Gift Box Charging Cable - 12 - www.ato.com sales@ato.com Global Shipping 800-585-1519...
