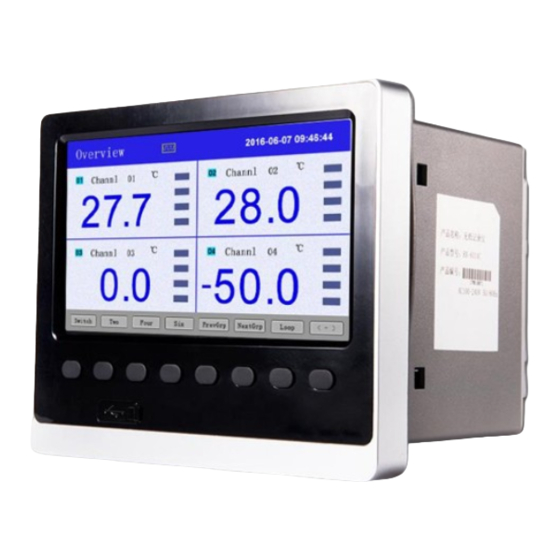

- Page 1 Paperless Recorder PAPERLESS RECORDER USER MANUAL SKU: ATO-PLR-CH48 Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 2: Table Of Contents
VI. Instrument Accessories............................33 I. Overview Universal input of color paperless recorder (capable of inputting by means of configuration: standard voltage, standard current, thermocouple, thermal resistance, millivolt, etc.). It can be equipped with 18-channel alarm Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 3: Main Technical Parameters
Nine options including 1, 2, 4, 6, 15, 30, 60, 120 and 140 s can be selected. Storage length 24 days (1 s interval) – 5825 days (240 s interval) (continuous record without power-off) Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 4: Notes For Use And Installment
● For general notes for use of the storage media, please refer to the instruction manual attached by the used storage medium. 3.2 Instrument Installment 3.2.1 Installment Site Please install the instrument at the following sites. ● Installment disk Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 5: Installment Method
7-inch TFT true-color LCD is adopted for the display part of this instrument. For display contents cannot be seen clearly from an extremely eccentric angle, so please install the instrument at the places where observers can watch from the front face. 3.2.2 Installment Method ● Installment dimensions (Unit: mm) Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) - Page 6 ▲ Two sides of the instrument are fixed by four installing supports. (2) Refer to the right figure for the installment figure. ● Wiring diagram of the instrument Tail Terminal Figure of the Instrument Wiring instruction Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 7: Instrument Function And Operation
④: USB flash disk mark "With display" means there is USB flash disk connected with the instrument. "Without display" means no USB flash disk is connected with the instrument. ⑤: Cycling display mark Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 8: Real-Time Curve Menu
⑩: Display/hidden mark of curves: "√" means to display the curve, or means to hide the curve. ⑾: Operation keys: Press the "Switch" key to switch to other displays Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 9: Bar Graph Menu
4.5 Digital Display Menu This menu is for simultaneously displaying the real-time data and the states of alarm of multiple flow input channels. Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 10: Historical Curve Menu
4.6 Historical Curve Menu This menu can be set according to the curve combination, and is for simultaneously displaying the curves of historical data of six channels (the curve precision is 0.5% ± 1 word). Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 11: Alarm List Menu
This menu is for displaying the alarming records of channels, and is under the state of relay output. At most 100 alarming records can be kept, and the new alarming records will replace the former ones when there are 100 records. Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 12: File List Menu
This menu is for displaying the stored information and storage states of the files. At most 100 file list records can be kept, and the new records will replace the former ones when there are 100 records. Automation www.ato.com sales@ato.com Global Shipping... -
Page 13: Menu For Printing (Available For Instruments With Printing Function)
The paperless recorder can print historical data and curves with the serial mini-printer connected to the RS-232 printer port. The baud rate of the printer is "4800" with 8 data bits and no odd-even check Automation www.ato.com sales@ato.com Global Shipping... - Page 14 Diagram of the connection of the instrument and the the serial printer: A: Manual printing The instrument will start to print data or curve after the "Data" or "Curve" key is pressed. Recording format of curve printing: CH1: ℃ End: 11-09-24 10-00-00 Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 15: Menu For Backup (Available For Instruments With Backup Function)
The users can back up the recorded historical data of all the channels of the instruments to the USB flash disks or the SD cards with this operation menu. The backup data can be reproduced, analyzed and printed with the Automation www.ato.com sales@ato.com Global Shipping... -
Page 16: Menu For Power-Down Recording
At most 100 alarming records can be kept, and the new power-down records will replace the former ones when there are 100 records. Automation www.ato.com sales@ato.com Global Shipping... -
Page 17: Menu For Configuration
The password comprises 6 numbers and "*"Notes: none of the configuration menus is accessible if the password is incorrectly set. And the default password is 000000. Hereunder is the brief introduction of each configuration menu: Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) -
Page 18: System Configuration
"Data Clearing" part and the "OK" key is pressed, and press the "Yes" key to clear data and press "No" key to give up clearing data; The "Exit" key can be pressed to exit from this menu. 4.12.2 Recording Configuration Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) - Page 19 Operation: in this menu The cursor can be moved by pressing the "Left" or the "Right" key; The values can be adjusted by pressing "Up", "Down", "Increase", or "Decrease" key; Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 20: Displaying Configuration
Exit from the menu by pressing “Exit”. The dialog box of “Save changed parameters?” will pop up in case of any change to the contents, and then select “Yes” to save the changed parameters while select “No” if not. 4.12.4 Channel Configuration Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free) - Page 21 By default, K = 1.0, b = 0.0, which means no correction is conducted. x refers to the displayed project quantity of the channel before the correction Automation www.ato.com sales@ato.com Global Shipping...
-
Page 22: Introduction Of The Input Method Of The "Bit Number" Of The Channel Configuration
Press the "Left", "Right", and "Up" keys to move the cursor to choose the characters in need. Press the "Cursor" key: move the cursor to the input method field to switch the input method; ▲ will pop Automation www.ato.com sales@ato.com Global Shipping... - Page 23 11. Press "Finish" key to exit from the input method to finish the bit number input. Notes: the "Right" key should be pressed to move to the next page if the Pinyin has more than 9 letters. II. Capital letter input method menu Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
- Page 24 5. Press "Choose" key to input the character "a" that will be displayed in the input field; 6. Press "Finish" key to exit from the input method to finish the bit number input. IV. Numeric input method Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
- Page 25 5. Press "Choose" key to input the character "#" that will be displayed in the input field; 6. Press "Finish" key to exit from the input method to finish the bit number input. Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 26: Introduction Of The Input Method Of The "Unit" Of The Channel Configuration
1. Press "Ok" key to enter the unit input method menu (it is common units input method by default); 2. The drop-down menu will pop up when the "Ok" key is pressed with the following common units: ℃、 Automation www.ato.com sales@ato.com Global Shipping... - Page 27 III. Lowercase letter input method menu Input lowercase letter "a": 1. Press "Ok" key to enter the input method menu; 2. Press "Cursor" key to move the cursor to the input method field; Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 28: Analog Output
* Output type: 0 ~ 10 mA, 0～20 mA, 4～20 mA, 0 ~ 5 V, 1 ~ 5 V, 0 ~ 10 V, and No are optional; * Lower output limit and upper output limit: adjust the upper limit and lower limit of the measurement range Automation www.ato.com sales@ato.com Global Shipping... -
Page 29: Function List
* In terms of the EtherNet communication mode, several instruments are allowed to get linked to the principal computer; data exchange is conducted at the communication speed of 10 M; it is applicable for the Automation www.ato.com sales@ato.com Global Shipping... - Page 30 9 to 16 respectively; The latter digits of the previous digits 120:00000000 00000000, from low to high, represent the states of alarms of the alarms 17 and 18 respectively. Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
- Page 31 Read-write 1200…57600 respectively. For example: If the address The 1st and 2nd bytes of the 192.168.100.2, then Short Read-write IP address the 2 bytes of the register address from low to high Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
- Page 32 Lower limit of the Float Read-write measurement range Upper limit of the Float Read-write measurement range Accumulation function Char Read-write It is the value 10 Filtering coefficient Char Read-write times larger than Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
- Page 33 Output correction zero factor Float Read-write 0…4 respectively correspond LCD off Char Read-write parameters: min … never. respectively corresponds Time display cycling Char Read-write parameters: 4-30 seconds. Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
- Page 34 (Note 1). 0…3 respectively correspond Alarm type of alarm trigger Char Read-write ultimate lower limit…ultimate upper limit. Relay and trigger relay bit 0 … 17 respectively Char Read-write numbers correspond to alarm Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
-
Page 35: Instrument Accessories
SD card Equipped when users order for the storage function of SD cards and with its capacity determined by that the users order for Automation www.ato.com sales@ato.com Global Shipping +1 800-585-1519 (Toll-free)
