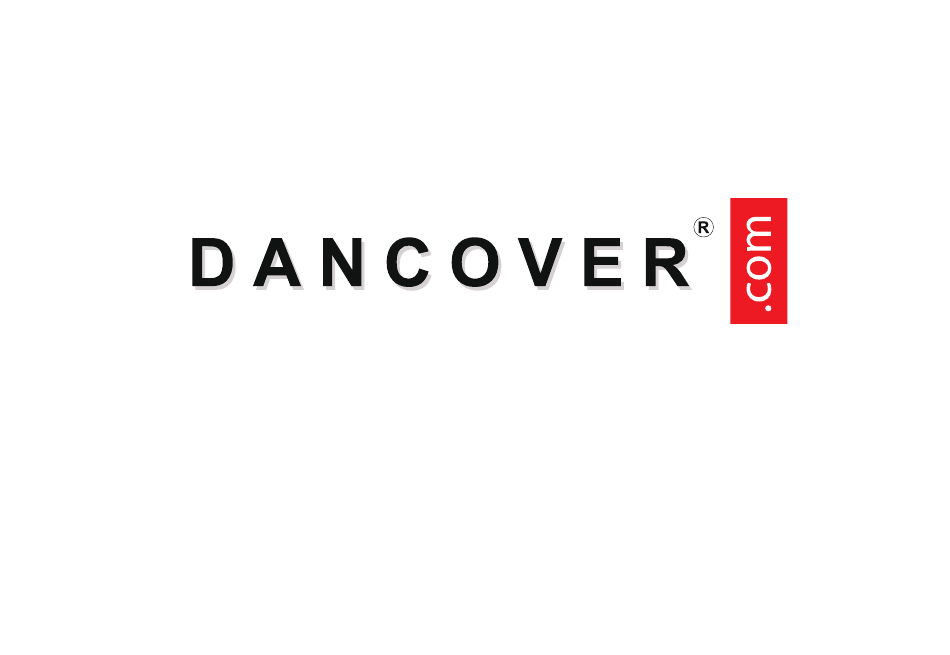

  • Page 1 Manual Orangery/Gazebo 4,2x2,86x2,84m 05-02-2025...
  • Page 2 GREENHOUSE Assembly instructions ▒╚└² 25.400 Product Size(LxWxH): 420x286x284cm...
  • Page 3 Dear customer, Congratulations on the purchase of your new Greenhouse. Please carefully read the following guide before commencing construction. Warning: Before undertaking any work on your greenhouse take all the necessary time to identify any possible hazards including underground and overhead power lines and underground water pipes etc. Site Selection.
  • Page 4 PARTS LIST Qty. PART Qty. Qty. Qty. Qty. PART PART PART PART M6*12 L42A 1700 L18A 1700 1700 M5*25 L42B 1612 L18B L02A 2070 M6*14 L42C 1612 L22A 1392 L02B 2070 M6*60 L42D 1680 L22B 1392 1700 74*74*46 1415 L22C 1376 1380 L43A L05A...
  • Page 5 Part 681x1697 700x1697 681x1651 ▒╚└² 25.400 675x835 681x1691 681x1058 669x626 03/34 665x495...
  • Page 6 concrete floor 4973mm=4973mm Pic 1 concrete frame 4210mm Pic 2 You don’t want to grow in your greenhouse Pic 1 (concrete floor ) Once the concrete base is installed, place it where you want to install the greenhouse. Make a concrete floor a little bigger than your greenhouse. Don't forget to dig 4 holes for the 4 of W09.
  • Page 7 4pcs L43A(B) 4pcs L43A(B) L43A(B) 2pcs 2pcs W08B L43A L43B W08A L43A L43B Qty. PART L43A 1415 L43B L43B 2105 L43A W08A L43B L43A W08B M6*12 05/34 Ø4*12...
  • Page 8 4210 4380 concrete pile W09 foundation pouring Pic 3 Qty. PART 06/34 M6*60...
  • Page 9 L50A(C) L50A(B) L50C(D) L50D(B) L50A(C) L50D(B) L02A (L50A) L50A(B) L02A(B) L02A L50B L50B (L02B) (L50A) (L02B) Qty. PART 1700 L02A 2070 L50A L50D L02B 2070 L50B L50C L50A 1380 L02A L50B L50B 1380 L50C 2070 L50A L02B L50D 2070 M6*12 25.400 07/34...
  • Page 10 L40B L40B L40B L40A L40B L40A Qty. PART L40A 2070 2070 L40B 08/34 Ø4*16...
  • Page 11 L40D L40D L40D L40C L40D L40C Qty. PART L40C 1380 1380 L40D 09/34 Ø4*16...
  • Page 12 L40F L40F L40F L40E L40F L40E Qty. PART L40E 2070 2070 L40F 10/34 Ø4*16...
  • Page 13 L40E(C) L40D L40D(F) L40A L40C L40F L40B L40C L40E L40D L40A L40D L40B L40C Qty. PART 11/34 74*74*46...
  • Page 14 L40A L40B L02A L02B ▒╚└² 25.400 Note: L40A/L40B and L02A/L02B should be in the same direction. Qty. PART M6*12 12/34...
  • Page 15 L40D(F) L42A L42A L40D(B) L40A(C) L40F(D) L40C(E) L50A(B/C/D) L40C(E) x8PCS x8PCS L42A L43A(B) L43A(B) L02A(B) L40A(B) L43B L02A(B) L42A L42A Qty. PART 1700 L42A 1700 L42A 94*46*2 M6*12 48 13/34 Ø4*16...
  • Page 16 L08A L08A 2PCS L40A(B/C/D/E/F) L50A L08A (B/C/D) Slide 2 S01 into L08A in advance which is used for assembling L22A 、 L22B 、 L22C 、 L22D 、 L08A L22E and L22G in Page18 and L18A and L18B in Page 22. L08A L08A L50C(D)
  • Page 17 x12PCS x12PCS Qty. PART 1436 2123 29*22*10 ▒╚└² 25.400 165*137*62 ▒╚└² 25.400 M6*12 32 15/34...
  • Page 18 L42C L42C L42B L42B L40E(F) L40A(B) L40C Slide a S01 inL42B in L40D advance, which is used for L08A assembling L22E 、 L22H L42A and L22I in Page 19. L42C x6PCS L42C L42B L42C L42C L42C L42C L42B L42B L42C L42C L42B Qty.
  • Page 19 L08B(C) L42D L08B L40A(BCDEF) L40E L40F L08A L08C L42A L42B L42D L08C L42D L08B L40A L42D L40B L08C L08B L42D L08B L08C L08B L08C Qty. PART L08B L08C L42D 1680 M6*12 16 17/34...
  • Page 20 L22D(B) L22C(F) L22A(C) L22D(G) L42A L22C(F) L22G(D) L22A(B) L08A L22A (B/C/D /F/G) L22G L22D L22C L22F L22A Qty. PART L22A 1392 L22B L22C L22D L22B 1392 L22C 1376 L22D 1376 L22F 2066 2066 L22G 25.400 M6*12 16 18/34...
  • Page 21 L22H(E) L22E(H/I) L22E(I) L42B(C/D) L22I L22E L42D L22H L22H L22H L22I L22E L22I Qty. PART L22E 1303 L22H 1341 1341 L22I M6*12 25.400 19/34...
  • Page 22 L40C/D/E/F) L46B L46A(B) L46A 2pcs L46B L46A Qty. PART L46A 25.400 L46B M6*12 20/34...
  • Page 23 Rubber Assembly When installing the glass, pay When finish the assemble of the attention to the same distance rubber, cut off the extra rubber. between the two ends of the glass and the aluminum profile Part 681x1697 700x1697 681x1058 21/34 1700...
  • Page 24 4pcs L18A(B) Notice! View from inside When finish the assemble of the 25.400 rubber, cut off the extra rubber. L42A L18A L18A L18A L18B L08A L18B L08A L18B L18B L08A L18A Qty. PART L18A L18B 25.400 Ø4*16 16 22/34...
  • Page 25 Rubber Assembly Roof glass installation Step 1 When installing the glass, pay attention to the same distance between the two ends of the glass and the aluminum profile When finish the assemble of the ▒╚└² 25.400 rubber, cut off the extra rubber. ▒╚└²...
  • Page 26 ▒╚└² 25.400 Push J23 into L10, when the J23 bottom reaches the Insert J24 into L10 glass, then move J24 slowly and be careful not carefully so that it snaps to damage it into J23 Z05 passes through J23 and J24, make it slightly reach L10 to prevent J23 from slipping out of L10...
  • Page 27 Rubber Assembly Roof glass installation Step 2 When installing the glass, pay attention to the same distance between the two ends of the glass and the aluminum profile When finish the assemble of the rubber, cut off the ▒╚└² 25.400 extra rubber.
  • Page 28 ▒╚└² 25.400 Qty. PART M6*12 26/34 669*626...
  • Page 29 ▒╚└² 25.400 27/34...
  • Page 30 L18A Qty. PART 28/34 Ø4*6...
  • Page 31 L40A/B L47A 4pcs L40A/B L47B L47A L47B L47B 2pcs Qty. PART L47A 1325 L47B M6*12 29/34...
  • Page 32 L40A/B L05A/B L47A/B 4pcs L05A L05B Qty. PART L05A 1380 ▒╚└² 25.400 1380 L05B M6*16 30/34...
  • Page 33 Right Door Assembly Notice: The holes must be on the top of the L13A L13A L13B L13A L13B Rubber strip assembly L13A L13A Qty. PART Qty. Qty. 1652 PART PART M6*16 L13A 31/34 Ø4*16 16 1700 L13B...
  • Page 34 Left Door Assembly Notice: The holes must be on the top of the L13A L13A L13B L13A L13B Rubber strip assembly L13A L13A Qty. PART Qty. Qty. 1652 PART PART M6*16 L13A 32/34 Ø4*16 16 1700 L13B...
  • Page 35 Door Door Right Door Qty. PART M5*25 Left Door 33/34 Ø12*Ø6*18...
  • Page 36 Door glass installation Slightly loosen S01/M01, adjust L12 up and down to make the door slide smoothly, and then tighten S01/M01. L13A ▒╚└² 25.400 ▒╚└² 25.400 Part Qty. PART 665x495 Ø24*10 ▒╚└² 25.400 34/34 1700...
