1.2 Equipment Required for Configuring Network
The following indicates the equipment and materials required for controlling LC systems from an
iPad. An iPad can be used to control LC systems by adding a wireless LAN adapter to the existing
network.
iPad
Name
iPad Model:
RAM:
Operating System:
• Specifications indicated in the Remarks column have been pre-verified.
Wireless LAN Adapter and Network Cable

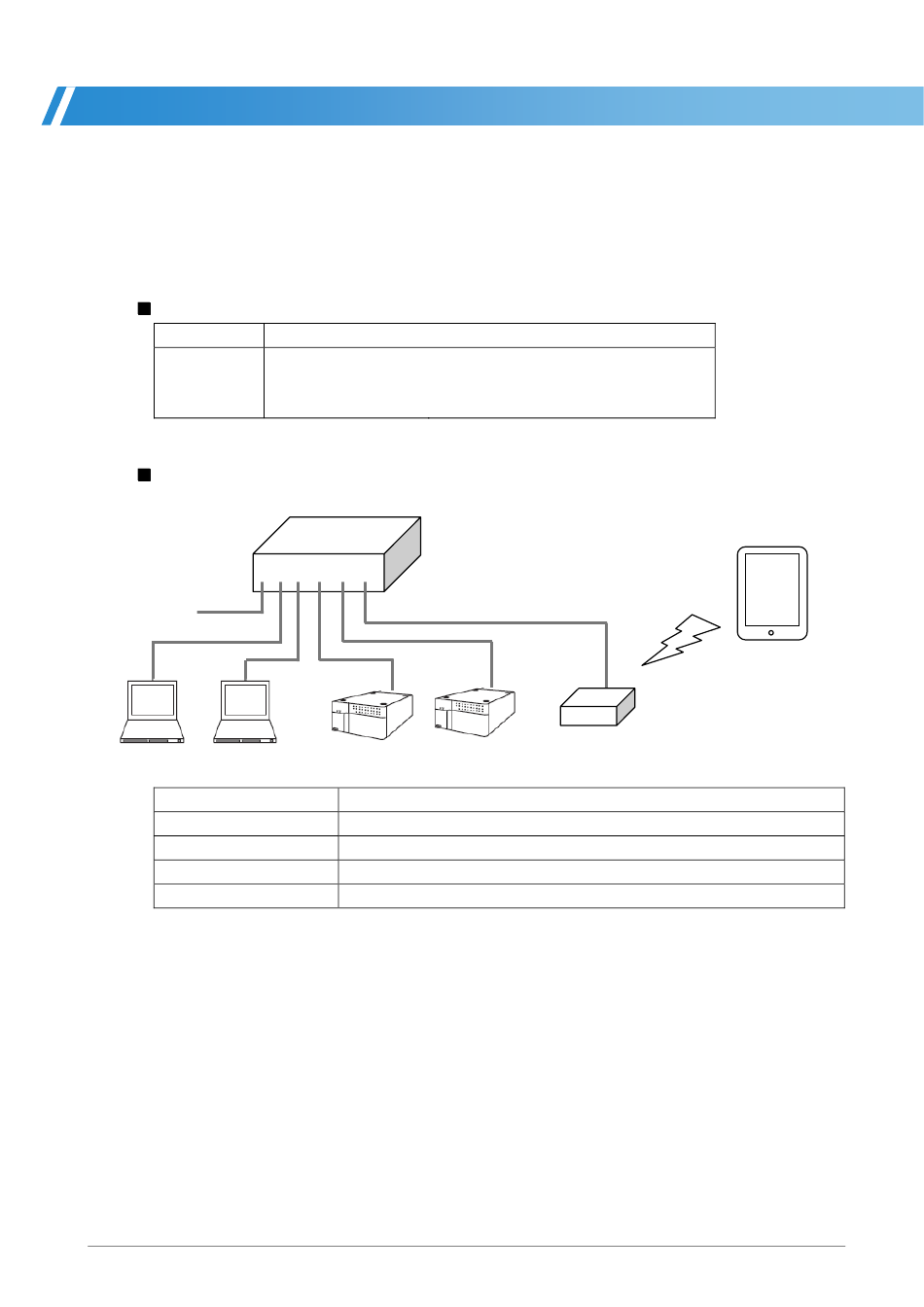

Network Configuration Example
To
Network
Comput Comput
Name
Wireless LAN Adapter
Straight LAN Cable
Switching Hub
Cable Holder
• Use commercially available products that meet the specifications indicated in the Remarks
column.
• Use a wireless LAN adapter with connectivity to an iPad guaranteed by the manufacturer.
• Before configuring the network, consult the network administrator of the department or office
where the system will be used.
Remarks
Wi-Fi model
16 GB
iOS Ver. 3.22
100Base-Tx
Switching Hub
LC
LC
(CBM-20A)
(CBM-20A)
Wireless LAN base unit (router or access point)
Category 5 or higher UTP straight cable
100Base-Tx compatible
Required for routing LAN cable along floors and walls
Category 5
UTP Cable
Wi-Fi Communication
Wireless LAN Adapter
Remarks
iPad
