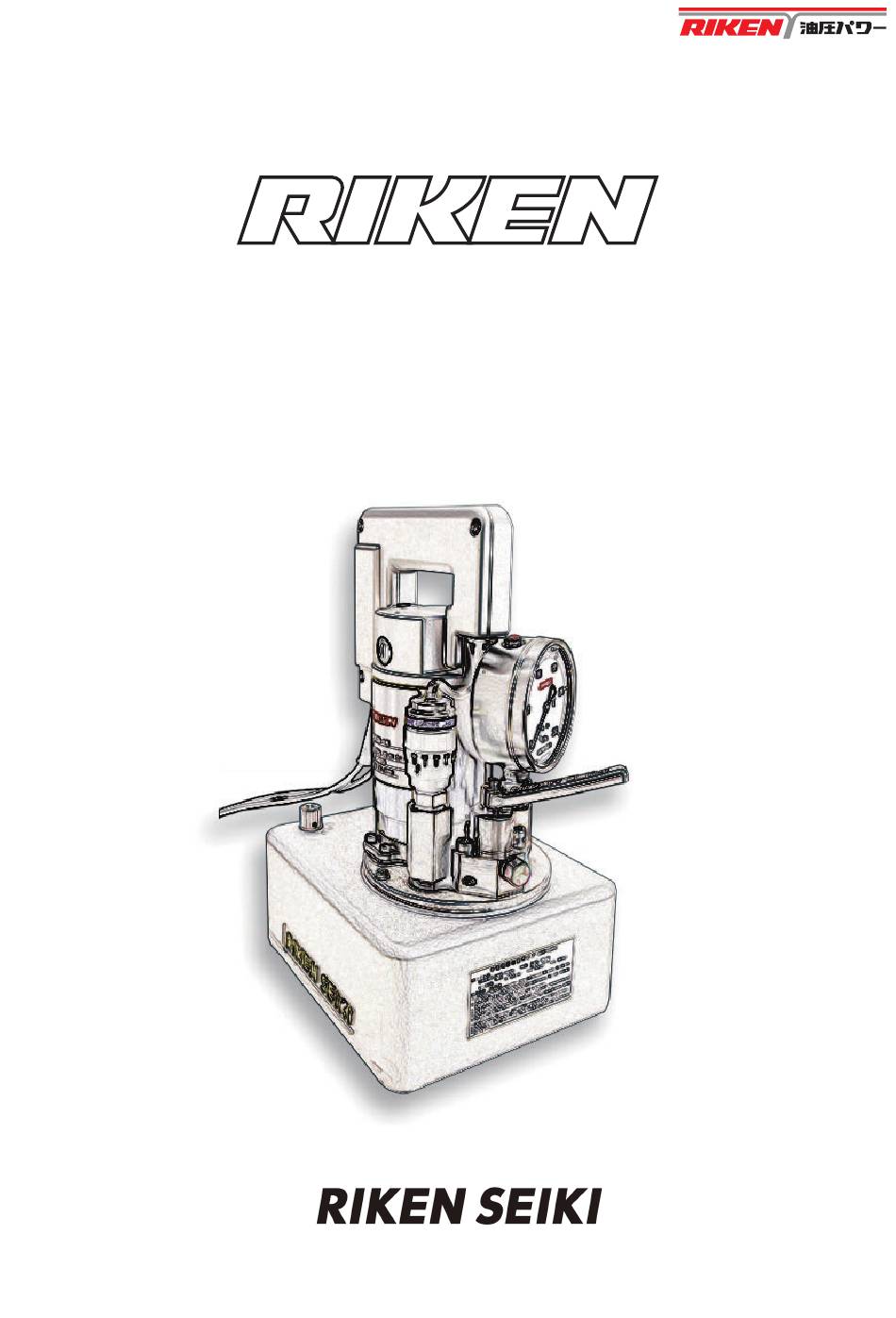

- Page 1 COMPACT ELECTLIC. HYDRAULIC PUMP SMP-200 Series INSTRUCTION MANUAL RIKEN KIKI CO., LTD...
- Page 2 Foreword Thank you very much for purchasing this electrically powered pump produced by Riken Kiki Ltd. This manual explains the use and safety features of these motor powered pumps and contains information valuable to both experienced and also first time users of these electrically powered pumps.
- Page 3 (8) To prevent electric shock, ensure the pump earth wire is connected to the electrical plug. (9) Any modification to these pumps without the consent of Riken could cause damage as well as compromise the safety of the operator of these electric pumps. Contact Riken before any modifications are carried out.
- Page 4 (16) The high pressure hose is a consumable item. Even if the hose exterior appears to be in good condition, it is possible internal damage such as pin holes have occurred. Riken recommend periodic replacement based upon how frequently hoses have been used combined with specific application conditions.
-
Page 5: Table Of Contents
Table of Contents 1.Overview ........................... 5 2.Model Explanation ......................6 3.Shared Specification ......................7 4.Name of Parts ........................8 5.Description on each Part ....................10 6.Warning and Cautions ....................11 7.Fixed Installation Method ....................13 8.Preparation Before Use ....................14 9.Preventive Maintenance .................... -
Page 6: Overview
（３） Use in areas where the surrounding temperature is 0 to 40 degrees Celsius. （４） Hydraulic equipment used with this pump should be products manufactured by Riken. （５） Use only with a high pressure hose, or high pressure pipe and connectors that have a maximum working pressure of 200 MPa. -
Page 7: Model Explanation
2. Model Explanation B: 3 Way Valve Manual Operation Type 2:2L C: 4Way Valve Manual Operation Type 4:4.5 6:6.5L Tank Oil Amount 1:100V 2:200V 3:230V Motor Voltage Series Compact Electric Hydraulic Pump... -
Page 8: Shared Specification
3. Shared Specifications ・ SMP-200＊ ＊ Ma ximum Usage Pr essure High Pr essur e Side ２ ０ ０ ＭＰa Low Pressure Side ３ＭＰa Discharge Amou nt Hig h Pressure Side ０ .１ Ｌ ／ min Low Pressure Side ２ . ０ Ｌ ／ min Motor Airtig ht Type , E-Type Insulat ion ４... -
Page 9: Names Of Parts
4. Names of parts (1) SMP-200-xxB Description Reservoir Electric motor Operation switch, SW-4A Power cable, 3M Pressure switch, SPS-2K Pressure gauge 3-way manual valve, SMV-2K-3 Air valve with oil level gauge Oil drain port, Rc1/4(PT1/4) Oil return port, Rc3/8(PT3/8) Hydraulic Circuit Oil output port, M14×1.5... - Page 10 (2) SMP-200-xxC Description Reservoir Electric motor Operation switch, SW-4A Power cable, 3M Pressure switch, SPS-2K Pressure gauge 4-way manual valve, SMV-2K-4 Air valve with oil level gauge Oil drain port, Rc1/4(PT1/4) Oil return port, Rc3/8(PT3/8) Hydraulic Circuit Oil output port, M14×1.5 22) Operation valve (SMV-2K-4) To control the directions of the oil flow.
-
Page 11: Description On Each Part
5. Description on each Part (1) SMP-200-xxB 1) Reservoir To store hydraulic working oil. 4) Electric motor Power source to operate pump. 6) Operation switch (SW-4A) To start and stop electric motor operation. 9) Power cable To connect with power source. 3 metres length, with grounding clip, and 2P 12A 125V. -
Page 12: Warning And Cautions
A variety of valves are available from Riken to provide pressure (load) holding when required. Contact Riken or your local sales agent for suitable valves to provide hold and release functions. - Page 13 Showa Shell Sekiyu Tellus Oil 46 or similar oil). Phosphoester, water glycol, and w/o emulsion oils cannot be used. The electric pump will malfunction due to deterioration of packing and corrosion of the equipment. Contact Riken should it be necessary to use these types of unapproved oils.
-
Page 14: Fixed Installation Method
7. Fixed Installation Method 4-M6 depth 9 （１） Install the pump in a level and safe location. Rubber leg Utilizing using the screw holes on the bottom of the oil tank. Remove the rubber from the legs. Remove the adhesive from the screw area. Ensure that the power voltage matches the voltage of （２）... -
Page 15: Preparation Before Use
When using the ROC-2K Series one-touch coupler, move ROC-2K-H with the ring in WARNING: a pulled back position and align them with ROC-2K-R thoroughly, then release the ring. The coupler will connect after automatically locking. Also, ensure that connection has been performed properly by pulling ROC-2K-H coupler forward and checking that it does not come loose. - Page 16 ⑥ In the case of double-acting, perform the same procedures for both high pressure hoses. ⑦ After air release, check the amount of hydraulic oil in the tank. If the oil level is low, replenish to the correct level on the dip stick. Air,Followed by oil ⑧...
-
Page 17: Preventive Maintenance
9. Preventive Maintenance （１） Inspection of Items Before Operation CAUTION: Turn off power, and inspect the cable for loose connections. （Ａ） Tighten loose connections if it is found. （Ｂ）With the cylinder piston fully retracted, check the dip stick to ensure the level of hydraulic oil is normal. -
Page 18: Explanation Of Pressure Switch
⑤ Attach the main body of the pump to the oil tank not forgetting to fit the O-ring (Structure Diagram No. 2) which seals the main body of the pump to the reservoir. Appropriate （Ｃ）Method for Supplying Hydraulic Oil range ①... -
Page 19: Operating Method
11. Operating Method (1) SMP-200-B The single-acting cylinder is operated using the operation valve (manual, 3way). Maintaining of pressure is possible in the set pressure of the pressure switch. Pressure switch (SPS-2K) 3way manual valve (SMV-2K-3) Close Open Electric circuit High pressure hose Single -acting ram ・To operate the single-acting ram(s) by use of the 3-way manual valve. -
Page 20: ②Smp-200-Xxc
(2) SMP-200-C Pressure switch (SPS-2K) Left side 4way manual valve (SMV-2K-4) Port A Right side Port B Electric circuit High pressure hose Double -acting ram ・To operate the double-acting ram(s) by use of the 4-way manual valve. ・Holding the pressure at the set pressure of the pressure switch is available during operation. ・At the neutral position, the hydraulic working oil displaced from the pump returns to the tank. -
Page 21: Adjusting The High Pressure Safety Valve
Neutral Position 4-way Manual Valve (SMV-2K-4) ＊ If the abnormal conditions happen, switch "OFF" the operation switch to stop the electric motor operation. 12. Adjusting the High Pressure Safety Valve The pressure of this pump is factory-set at 210MPa{2142kgf/c㎡}. If adjustment the set pressure is required, follow the procedures listed as below. - Page 22 Pressure 0 Increase Pressure Do not touch other parts other than High pressure safety valve. Contact RIKEN authorized agents when any help is required.
-
Page 23: Common Faults And Solutions
13. COMMON FAULTS AND SOLUTIONS Condition Cause Measure Inspect the contact area of the Wear or damage to the motor brush. Replace the brush if it has brushes. become too short (8 mm or less). The power plug is not inserted Confirm that electricity is flowing correctly, or electricity is not to the outlet. -
Page 24: Internal Structure Diagram
14. Internal Structure Diagram ＳＭＰ－２００－ B,C SMV-2K-4 (For SMP-200-C) 35 45 SMV-2K-3 (For SMP-200-B) -
Page 25: Parts List
Parts List ＳＭＰ－２００－ B,C Code No. Description Quantity Pump body O ring, NOK S120 Hex. socket head bolt, M6 x 14 Hex. socket head bolt, M5 x 14 Cam shaft Needle bearing Bearing holder Deep groove ball bearing Piston O ring, P10A Ball disc Ball disc set Spring... - Page 26 Code No. Description Quantity O ring, P3 Back-up ring, for P3 Back-up ring, for P3 Pressure gauge adaptor High pressure safety valve body High pressure safety valve set Ball retainer High pressure spring Hex. socket head screw, M8x8 Spring adjusting screw Steel ball, φ3.18 Cap for safety valve Spring...
- Page 27 Code No. Description Quantity Pressure switch Suction port flange Suction port flange set Packing Carbon brush Carbon brush set Brush cap...
-
Page 28: Electrical Wiring, Terminal Connection List
15. Electrical Wiring, Terminal Connection List SPS-2K SW-4A SMP-200B SMP-200C Ａ Ｂ Ｃ Ｄ Ｅ Ｆ Ｇ Ｈ Ｉ Ｊ... -
Page 29: Handling The High Pressure Hose
16. Handling the High Pressure Hose *SAFETY PRECAUTIONS ・Only use high pressure hoses designed for a working pressure of 200 MPa, manufactured by RIKEN. ・Use a hose equal to or greater the rated minimum curve radius (R). Also, install the hose so that the... -
Page 30: After Sales Service And Repair
After Sales Service and Repair Before contacting your sales representative or sales agent to request service or repair to your Riken pump, read the contents of this manual thoroughly and inspect the fault again. If the problem persists, please contact either your sales agent or your local service representative who will arrange for repairs to be carried out.
