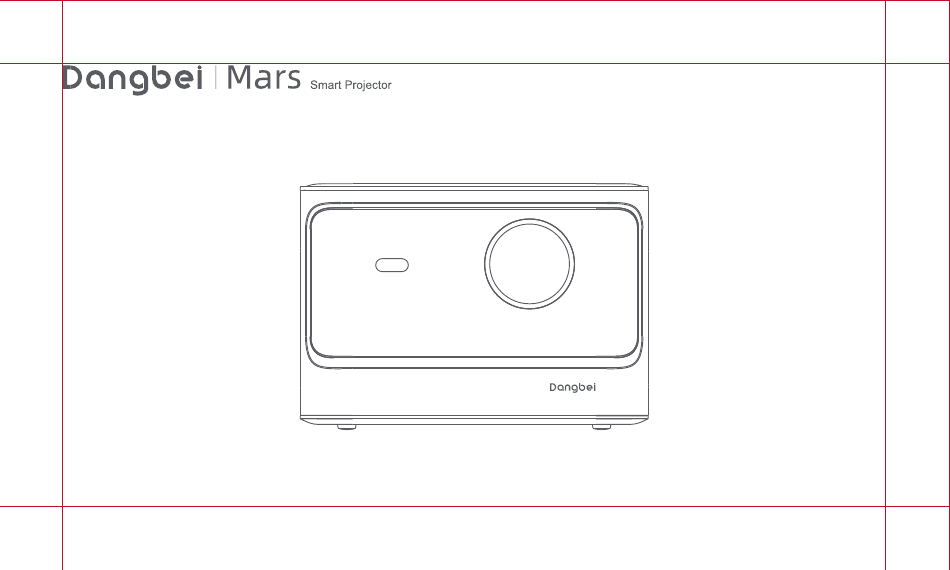

Page 1
Customer Support : (US/CA) support@dangbei.com (EU) support.eu@dangbei.com (JP) support.jp@dangbei.com User Manual...
Page 2
Language Contents English ·············································································· 01-18 Read before Use ····································································· 01 Deutsch ············································································· 19-37 Packing List ············································································· 02 Français ············································································ 38-56 Projector Overview ·································································· 03 Italiano ·············································································· 57-75 Remote Control Overview························································ 05 Español ·············································································· 76-94 Getting Started ········································································ 06 日本語 ·············································································· 95-113 Network Settings ·····································································...
Page 3
We shall not be liable for any personal injury, property damage, or other damages caused by the failure of the user to comply with the Product Instructions or precautions. * Dangbei reserves the right to interpret and modify the Product Instructions.
Page 4
Packing List Before using this product, please check that all items are included in the box. Projector Remote Control Wipe cloth (batteries not included) Power Adapter User Manual Power Cable...
Page 5
Projector Overview Overview and interface description. HDMI(ARC) HDMI USB2.0 S/PDIF Air Ventilation(Outlet) USB2.0 do not block. TOF/Camera Lens DC IN Front view Rear view Left View...
Page 6
Air Ventilation(Inlet) Light Sensor Power button(LED)* PTZ bracket socket do not block. (do not cover) Right View Top View Bottom View Power Button LED Indicator Guide Button LED Status Description Solid White Power Off Power on Power button Flashing White Upgrading Firmware...
Page 7
Remote Control Overview ㆍOpen the battery compartment cover of the remote control. ㆍInstall 2 AAA batteries (not included) *. ㆍPut back the battery compartment cover. Power Mute Turn ON/OFF projector Temporally cuts off the sound Navigation Press to confirm a selection or entry Pause/Resume play Home Return...
Page 8
Getting Started 4.2m 1.Placement 150 inches Position the projector on a stable, flat surface in front of the projection surface. A flat and white projection surface is recommended. 120 inches 3.37m Please follow the instructions below to determine the distance between the projector and the projection surface, and the corresponding projection size: 2.8m...
Page 9
2.Power on ① Connect the projector to the power outlet. ② Press the power button on either the projector or the remote control to turn on the projector.
Page 10
3.Remote Control Pairing ㆍPlace the remote control within 10cm of the projector. ㆍFor first-time use, follow the on-screen projector instructions: Simultaneously press and hold the [Volume Down] and [Right] buttons until the indicator light begins to flash. (This means that the remote control is entering pairing mode.) ㆍThe connection is successful when the indicator light stops flashing.
Page 11
Network Settings Focus Settings Go to [Settings] -- [Network]. ㆍGo to [Settings] -- [Focus]. ㆍTo use Auto focus, select [Auto], and the screen will automatically become clear. ㆍTo use Manual focus, select [Manual], and use the up/down buttons on the navigation keys of the remote control to adjust the focus based on what is displayed.
Page 12
Image Correction Settings 1.Keystone Correction ㆍGo to [Settings] -- [Keystone]. ㆍTo use Auto keystone correction, select [Auto], and the screen will automatically be corrected. ㆍTo use Manual keystone correction, select [Manual] to adjust the four points and the image shape. 2.Intelligent Screen Fit ㆍGo to [Settings] -- [Keystone] , and turn on [Fit to Screen].
Page 13
Bluetooth Speaker Mode Screen Mirroring & Casting 1.Mirrorcast ㆍOpen the Bluetooth Speaker application on the device. ㆍTurn on the Bluetooth of your mobile phone/tablet/laptop, To mirror the screen of an Android/Windows device to the select the device of [Dangbei_PRJ], and connect to it. projector, open the app Mirrorcast, and follow the on-screen ㆍUse the projector to play audio from the devices mentioned instructions.
Page 14
Inputs More Settings 1.Picture Mode ㆍGo to [Inputs] -- HDMI/HOME/USB. ㆍWatch the content from the different signal sources. Go to [Settings] -- [Picture Mode] to choose a picture mode from [Standard/Custom/Cinema/Sport/Vivid]. 2.Sound Mode Go to [Settings] -- [Audio] to choose a sound mode from [Standard/Sport/Movie/Music].
Page 15
Specifications 0.47 in, DLP Dual Frequency 2.4/5.0 GHz 1920 x 1080 246 × 209 × 173 mm 1.27:1 9.69 × 8.23 × 6.81 inches 2 x 10 W 4.6kg/10.14lb...
Page 16
Troubleshooting 1.No audio output a. Check if the remote control "Mute" button is pressed. b. Check if the projector interface "HDMI ARC" or Bluetooth is connected to an external audio device. 2. No image output a. Press the power button on the top cover. The power button indicator light will turn off if the projector is powered on successfully. b.
Page 17
Ensure that there are no interferences or obstructions between the projector and remote control. d. Check the battery and installation polarity. 10. Connect the Bluetooth devices Enter settings, open the Bluetooth option to check the Bluetooth device list, and connect the device. 11. Others Please feel free to contact us at support@dangbei.com...
Page 18
Important Precautions ㆍDo not look directly at the projection beam with your eyes, because the strong beam may harm your eyes. RG2 IEC 62471-5:2015 ㆍDo not block or cover the heat dissipation holes of the device to avoid affecting the heat dissipation of the internal parts, and damaging the device.
Page 19
STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 20
STATEMENT CAN ICES-3 (B)/NMB-3 (B) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Page 21
USB Output : 5V 0.5A Manufacturer : Shenzhen Dangs Science and Technology Co., Ltd. Address:901,GDC Building,Gaoxin Mid 3nd Road, Maling Community,Yuehai Sub-district, Nanshan District,Shenzhen, China. Customer Support : (US/CA) support@dangbei.com (EU) support.eu@dangbei.com (JP) support.jp@dangbei.com For FAQs and more information,please visit : mall.dangbei.com...
