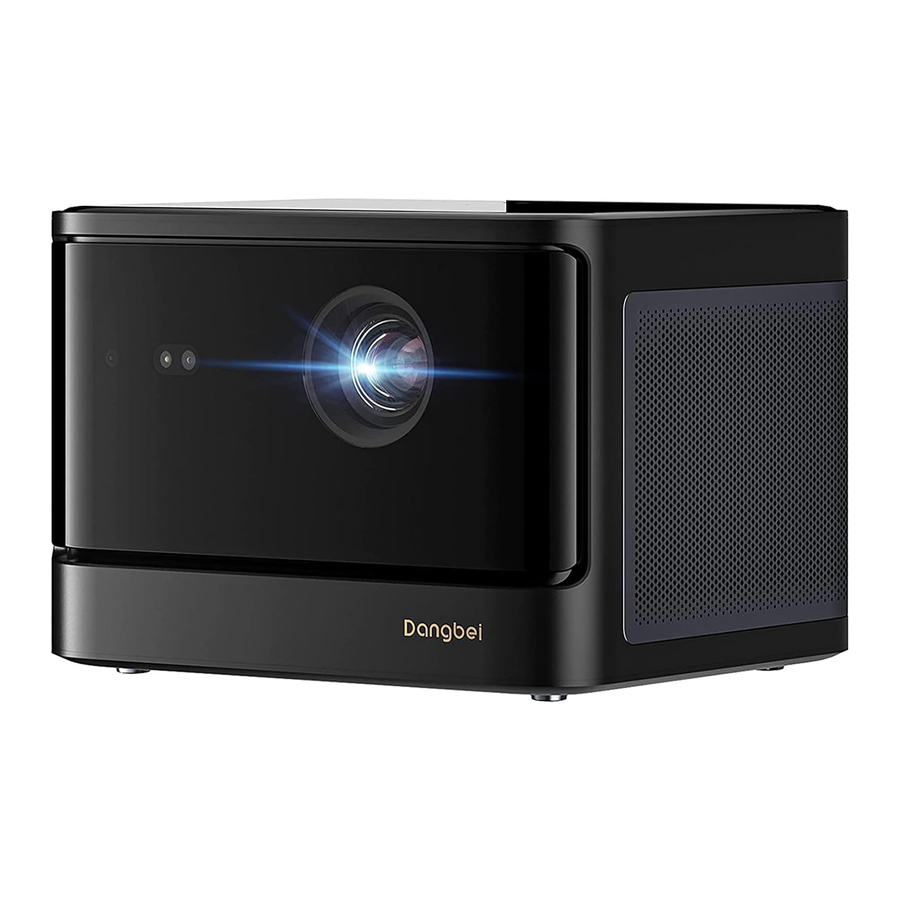

Dangbei Mars - Smart Projector Manual

Read before use

For your safety and interests, please read the Product Instructions carefully before using the product
AII Product Instructions shown are for illustration purposes only The actual product may vary due to product enhancements.

We shall not be liable for any personal injury, property damage, or other damages caused by the failure of the user to comply with the Product Instructions or precautions.

Packing List

Before using this product, please check that all items are included in the box

Projector Overview

Overview and interface description.

Power Button LED Indicator Guide
Button	LED Status	Description
Power button	Solid White	Power Off
	Off	Power on
	Flashing White	Upgrading Firmware

Remote Control Overview

• Open the battery compartment cover of the remote control.
• Install 2 AAA batteries (not included)

• Put back the battery compartment cover

* Please insert new batteries according to the polarity indication.

Getting Started

Placement

Position the projector on a stable, flat surface in front of the projection surface. A flat and white projection surface is recommended.
Please follow the instructions below to determine the distance between the projector and the projection surface, and the corresponding projection size:

* The best recommended projection size is 100 inches.

Power on

1. Connect the projector to the power outlet.

2. Press the power button on either the projector or the remote control to turn on the projector.


Remote Control Pairing

• Place the remote control within 10 cm of the projector.
• For first-time use, follow the on-screen projector instructions:
  Simultaneously press and hold the [Volume Down] and [Right] buttons until the indicator light begins to flash
  (This means that the remote control is entering pairing mode.)
• The connection is successful when the indicator light stops flashing.

* If the pairing is unsuccessful, repeat the above steps until the remote control indicator Iight stops flashing.

Network Settings

Go to [Settings] - [Network]

Focus Settings

• Go to [Settings] - [Focus]
• To use Auto focus, select [Auto], and the screen will automatically become clear.
• To use Manual focus, select [Manual], and use the up/down buttons on the navigation keys of the remote control to adjust the focus based on what is displayed.


Image Correction Settings

Keystone Correction

• Go to [Settings] - [Keystone].
• To use Auto keystone correction, select [Auto], and the screen will automatically be corrected.
• To use Manual keystone correction, select [Manual] to adjust the four points and the image shape.


Intelligent Screen Fit

• Go to [Settings] - [Keystone] and turn on [Fit to Screen].
• Follow the on-screen instructions to automatically adjust the projected image to fit the screen.

Intelligent Obstacle Avoidance

• Go to [Settings] - [Keystone] - [Advanced], and turn on [Avoid Obstacles].
• Follow the on-screen instructions to automatically adjust the projected image to avoid any objects on the projection surface.

Bluetooth Speaker Mode

• Open the Bluetooth Speaker application on the device.
• Turn on the Bluetooth of your mobile phone/tablet/laptop, select the device of [Dangbei_Mars], and connect to it.
• Use the projector to play audio from the devices mentioned above, or connect the projector to a speaker/headphone to play the audio from the projector.


Screen Mirroring & Casting

Mirrorcast

To mirror the screen of an Android/Windows device to the projector, open the app Mirrorcast, and follow the on-screen instructions.

Homeshare

To stream content from an iOS/Android device to the projector, open the app Homeshare, and follow the on-screen instruction.

* Mirrorcast does not support iOS devices.
Homeshare only supports apps with DLNA protocol.

Inputs

• Go to [Inputs] - HDMI/HOME/USB
• Watch the content from the different signal sources.


More Settings

1. Picture Mode
   GO to [Settings] - [Picture Mode] to choose a picture mode fro [Standard/Custom/Cinema/Sport/Vivid].
2. Sound Mode
   Go to [Settings] - [Audio] to choose a sound mode from [Standard/Sport/Movie/Music].
3. Projection Mode
   Go to [Settings] - [Projection] to choose the placement method of the projector.
4. Zoom
   Go to [Settings] - [Zoom] to decrease the image size from 100% to 50%.
5. Product Info
   Go to [Settings]-- [About] to check the product information.

Specifications

Troubleshooting

No audio output

1. Check if the remote control "Mute" button is pressed.
2. Check if the projector interface "HDMI ARC" or Bluetooth is connected to an external audio device.

No image output

1. Press the power button on the top cover. The power button indicator light will turn off if the projector is powered on successfully.
2. Ensure that the power adaptor has power output

No network

1. Enter settings, and check the network connection status in the network option.
2. Ensure that the network cable is correctly inserted to the projector interface "LAN'.
3. Ensure that the router is correctly configured.

Blurry Image

1. Adjust the focus or keystone.
2. The projector and screen/wall must be positioned with an effective distance.
3. Projector lens is not clean.

Non-rectangular Image

1. Place the projector perpendicular to the screen/wall if keystone correction function is not used.
2. Use the keystone correction function to adjust the display.

Automatic keystone correction failed

1. Ensure that the Camera/TOF on the front panel is not blocked or dirty.
2. The best automatic keystone correction distance is 2.0-4.0m, horizontal ±30º.

Autofocus failure

1. Ensure that the Camera/TOF on the front panel is not blocked or dirty.
2. The best autofocus distance is 2.0-4.0m, horizontal ±20º.

Intelligent Screen Fit failure

1. Ensure that the projector is correctly positioned, so that the projected image extends beyond the edges of the screen.
2. Ensure that the projection screen has a colored border/frame on all four sides, so that the projector can recognize the frame.
3. Ensure that the red box pattern is within the screen frame, and is not blocked.

The Remote Control is unresponsive

1. Ensure that the remote control is successfully paired via Bluetooth connection. If the pairing is successful, the indicator light will not flash when the button is pressed.
2. If the pairing is unsuccessful, and the Remote Control is at IR communication, the indicator light will flash when the button is pressed.
3. Ensure that there are no interferences or obstructions between the projector and remote control.
4. Check the battery and installation polarity.

Connect the Bluetooth devices

Enter settings, open the Bluetooth option to check the Bluetooth device list, and connect the device.

Others

Please feel free to contact us at support@dangbei.com

Important Precautions

• Do not look directly at the projection beam with your eyes, because the strong beam may harm your eyes.
  RG2IEC62471-512015

• Do not block or cover the heat dissipation holes of the device to avoid affecting the heat dissipation of internal parts and damaging the device.
• Keep away from humidity, exposure, high temperature, low pressure, and magnetic environment.
• Do not place the device in areas susceptible to excessive dust and dirt.
• Place the device in a flat and stable station, and do not place the device on a surface that is prone to vibration.
• Do not allow children to handle the device without supervision.
• Do not place heavy or sharp objects on the device.
• Avoid extreme vibrations, because these may damage the internal components.
• Please use the correct type of battery for the remote control.
• Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive power adapter, bracket, etc.)
• Do not disassemble the device. The device should only be repaired by staff authorized by the manufacturer.
• Place and use the device in a 0-40⁰C environment.
• The plug is considered as a disconnected device of the adapter.
• The adapter should be installed near the equipment, and should be easily accessible.
• Protect the power cord from being walked on or pinched, particularly at the plugs, convenience receptacles, and the point where this exits from the device.
• Unplug this device if there are lightning storms or when unused for a long period of time.
• Where the power plug or an appliance coupler is used to disconnect the device, the disconnected device would remain readily operable.
• Never touch the power cable or power connector with wet hands.
• Risk of expIosion if batter is replaced by an incorrect type. Dispose of used batteries according to local regulations.
