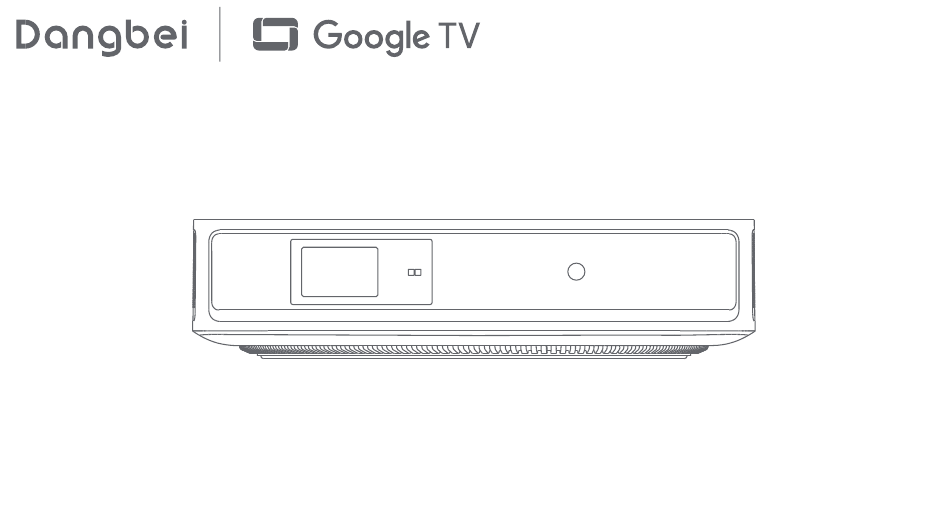

- Page 1 Atom Smart Projector U s e r Ma nua l...
- Page 2 Language Contents English ············································································· 01-21 Read before Use ································································· Packing List ·········································································· Deutsch ··········································································· 22-42 Projector Overview ····························································· Français ·········································································· 43-63 Remote Control Overview ················································· Italiano ············································································ 64-84 Getting Started ··································································· Español ············································································ 85-105 Network Settings ································································ 日本語 ··············································································· 106-125 Focus Settings ····································································...
- Page 3 All Product Instructions shown are for illustration purposes only.The actual product may vary due to product enhancements. We shall not be liable for any personal injury,property damage,or other damages caused by the failure of the user to comply with the Product Instructions or precautions. * Dangbei reserves the right to interpret and modify the Product Instructions.
- Page 4 Packing List Before using this product,please check that all items are included in the box. Projector Remote Control AAA batteries Power Adapter User Manual Power Cable...
- Page 5 Projector Overview Overview and interface description. Lens dTOF CMOS HDMI (ARC) 3.5mm Audio Power button (LED)* USB2.0 DC IN 19V/6.23A Front View Rear View Ventilation holes (Do not block) Speakers Ventilation holes (Do not block) Right View Left View...
- Page 6 PTZbracket socket Top View Bottom View Power Button LEDIndicator Guide Description Button LEDStatus Standby mode / Poweroff / Bluetoothspeakermode pairing successful In projection Power button Blinking Firmware update / Bluetooth speaker mode pairing in progress...
- Page 7 Remote Control Overview ǁOpen the battery compartment cover of the remote control. ǁInstall 2 AAAbatteries *. ǁPut backthe battery compartment cover. Red Side Key (Up) Power Pressto poweron/switch to standbymode/wake up Pressfor manualfocus.Pressand hold for Pressand hold for2secondsto poweroff 2secondsforautofocus. Black Side Key (Down) Google Assistant Pressto access[Projector]...
- Page 8 Getting Started 3.2m 120inches 1.Placement Position the projector on a stable,flat surface in front of the projection surface.A flat and white projection surface is recommended. 100 inches 2.7m Please follow the instructions below to determine the distance between the projector and the projection surface, and the corresponding projection size: 80 inches 2.1m...
- Page 9 2.Power on ① Connect the projector to the power outlet. ② Pressthe power button on the projector or remote control to turn on the projector. 3.Standby Mode / Power off Pressthe power button on the projector or remote control to enter standby mode. Pressand hold the power button on the projector or remote control for 2 seconds to turn off the projector.
- Page 10 3.Remote Control Pairing ǁTurn on the projector and wait for the Bluetooth pairing prompt on the screen. ǁBring the remote control within 10cm / 0.33 ft of the projector. ǁSimultaneously press and hold the keys. ǁRelease the keys after the indicator light starts flashing. ǁWait until you hear two "beep"sounds,indicating a successful pairing.
- Page 11 Network Settings Focus Settings Method 1:Pressthe red side key (up) for manual focus. ǁGo to [Settings],select [Network & Internet], Pressand hold for 2 seconds for autofocus. and turn on Wi-Fi. Method 2:Go to [Projector],select [Focus],and choose either ǁChoose your network and enter the correct password. manual focus or autofocus.
- Page 12 Image Correction Settings 1.Keystone Correction ǁGo to [ Projector]-- [Image Correction]. ǁSelect [Auto Keystone Correction],and the screen will automatically be corrected. ǁSelect [Manual KeystoneCorrection],and use navigation keys to adjust the four points and the image shape. 2.Intelligent Screen Fit ǁGo to [Projector]-- [Image Correction],and turn on [Fit to Screen]. ǁFollow the on-screen instructions to automatically adjust the projected image to fit the screen.
- Page 13 Bluetooth Speaker Mode Google Assistant Your TVis more helpful than ever.Use your voice to find ǁGo to [Settings],select [Projector],and click on movies,stream apps,play music and control the TV. [Bluetooth speaker mode]. Ask Google Assistant to find a specific title,search by genre, ǁ...
- Page 14 Chromecast built-in™ Easilycast movies,shows,photos,and more from your phone or tablet,right to your TV. To cast in-app content: Simply tap the Cast button from apps you already know and love.No new logins or downloads required. 1.Connect your device and the projector to the same wireless network. 2.Open the streaming app on your device.
- Page 15 Inputs More Settings HDMI 1.Color Temperature Go to [Settings] -- [Display&Sounds]-- [Picture] -- [Color Insert the HDMIdevice into the HDMIport. Temperature] to select from [Standard/Warm/Eye-care]. Go to [Inputs] ,select the HDMIoption. 2.Projection Mode USB Drive Go to [Settings]-- [Projector]-- [Advanced Settings]-- [Projection Download the File Explorerapp from Google Play.
- Page 16 Specifications 0.33 in, DLP Display Technology Bluetooth Version 1920 x 1080 Dual Frequency 2.4/5.0 GHz Display Resolution WI-FI 195 × 195 × 47.5 mm 1.2 : 1 Throw Ratio Dimensions (Lx W x H) 7.68 x 7.68 x 1.87inches 2 x 5 W 1.28kg/2.82lb Weight Speakers...
- Page 17 Troubleshooting 1.Noaudio output a.Check if you have double-clicked the black side key on the remote control to put the projector in mute mode. b.Check if the projector interface "HDMIARC"orBluetooth is connected to an external audio device. 2. No image output a.Press the power button located on the rear of the projector.The power button indicator light will turn off if the projector enters projection mode successfully.
- Page 18 11.Connect the Bluetooth devices Enter settings,open the [Remotes&Accessories] to pair more bluetooth devices. 12.Others Please feel free to contact us at support@dangbei.com...
- Page 19 Important Precautions ㆍDo not look directly at the projection beam with your eyes,because the strong beam may harm your eyes. RG2 IEC60825-1:2014 ㆍDo not block or cover the heat dissipation holes of the device to avoid affecting the heat dissipation of the internal parts, and damaging the device.
- Page 20 Statement Google TVis the name of this device's software experience and a trademark of Google LLC. Google,YouTube and Chromecast built-in are trademarks of Google LLC. This equipment has been tested and found to comply with the limits for a Class Bdigital device,pursuant to Part 15of the FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 21 THIS DEVICECOMPLIES WITH DHHS RULES21CFR CHAPTER I SUBCHAPTER J. CAN ICES-3(B)/NMB-3 (B) This Class Bdigital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe Best conforme à la norme canadienne ICES-003. Thisdevice contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,Science and Economic Development Canada’s licence-exempt RSS(s).Operationis subject to the following two conditions: (1)This device may not cause interference.
- Page 22 EU DECLARATION OF CONFORMITY Product :Smart Projector Trademark :Dangbei Model Designation :DBOD02 Manufacturer’s Name :Shenzhen Dangs Science and Technology Co.,Ltd. Manufacturer’s Address :901,GDC Building,Gaoxin Mid 3nd Road,Maling Community,Yuehai Sub-district,Nanshan District, Shenzhen,China. Manufacturer’s Phone :86-755-26907499 We, Shenzhen Dangs Science and Technology Co.,Ltd.declareunder our sole responsibility that the above referenced...
- Page 23 UKCA DECLARATION OF CONFORMITY Product :Smart Projector Trademark :Dangbei Model Designation :DBOD02 Manufacturer’s Name :Shenzhen Dangs Science and Technology Co.,Ltd. Manufacturer’s Address :901,GDC Building,Gaoxin Mid 3nd Road,Maling Community,Yuehai Sub-district,Nanshan District, Shenzhen,China. Manufacturer’s Phone :86-755-26907499 We, Shenzhen Dangs Science and Technology Co.,Ltd.declareunder our sole responsibility that the above referenced product is in conformity with the applicable requirements of the following directives: RoHS Directive : SI 2022 No.622...
