Dangbei Mars Pro - Smart Projector Manual

Projection Size Description

* The best recommended projection size is 100 inches

Packing List

Before using this product, please check that all items are in the box

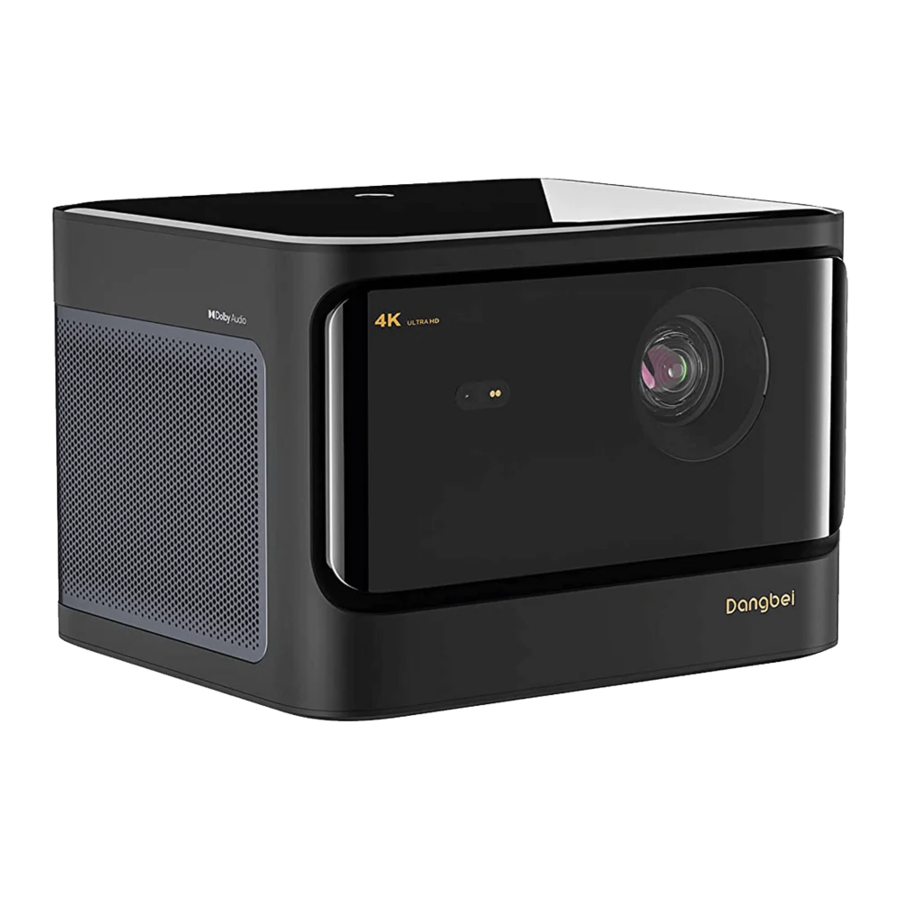

Projector

Overview and interface description

* LED Indication
Standby mode: LED 50% brightness.
Bluetooth mode: LED flashes slowly when it is waiting for pairing; after pairing is successful, the LED will be 100% brightness.

Remote Control

• Open the battery compartment cover of the remote control.
• Install 2 AAA batteries *

• Put back the cover

* Please insert new batteries according to the polarity indication

Remote Control Pairing

• Place the remote control within 10cm of the device.
• Press the Home key and Menu key simultaneously until the indicator light begins flashing and a "Di" is heard.
• This means that the remote control enters the pairing mode.
• When a "DiDi" is heard, the connection is successful.

* If pairing is unsuccessful, repeat the above steps after the remote control indicator light stops flashing.

Network Settings

Connect the Wi-Fi Network

• Enter [Settings] - [Network]
• Select the wireless network, and enter the password

Connect the Wired Network

• Plug the network cable into the device LAN port (PIease ensure the network with the internet).

* The device supports both wired and wireless networks, when both are connected, the system will optimally use the wired network.

Focus Settings

Method 1: Hold to press the remote control side key to automatically focus adjustment.

Method 2: Enter [Settings] - [Focus] - [Auto focus].

Method 3: Enter [Settings] - [Focus] - [Manual focus].
Press the up/down button of the navigation key to adjust the focus according to the displayed screen.
When the screen is clear, stop the operation.

* Manual focus: Adjust the picture clarity by pressing the up and down keys on the remote control.

Keystone Correction Settings

• Enter [Settings] - [Keystone correction] - [Automatic correction] The screen will be automatically corrected.
• Enter [Settings] - [Keystonecorrection] - [Manual correction] To adjust the four points and the size of the frame.

• The device supports automatic keystone correction.
  The correction effect may deviate Slightly under different usage scenes and can be further adjusted by manual correction.

• Manual correction


Bluetooth Speaker Mode

• Short press the remote control [Power key], select Bluetooth Speaker mode.
• Bluetooth try to pair the device which name included "Dangebei Speaker".
• When it is pairing successful, you can hear the beep Bluetooth connection is successful". After that, you can enjoy the music.
• Short press the remote control [Power key] again, exit the Bluetooth Speaker mode.

1. Press the Power key

2. Connecting equipment

3. Enjoy the music


Screen Mirroring

You can wirelessly cast the screen of your smartphone or tablet onto the projection surface.
Please open the screencast APP to learn more about the operation method.

More Settings

You can set up your device by pressing the right button on the remote control on any page displayed by the device.
To configure more settings, go check the full settings page.

More Functions

Software update
Online upgrade: Enter [Settings] - [system] - [system upgrade]

Important Precautions

• Do not look directly at the projection beam with your eyes, because the strong beam may harm your eyes.

• Do not block or cover the heat dissipation holes of the device to avoid affecting the heat dissipation of internal parts and damaging the device.
• Do not throw things to the device top cover, or knock the edge. It has the risk to broke the glass.
• Keep away from humidity, exposure, high temperature, low pressure, and magnetic environment.
• Do not place the device in areas susceptible to excessive dust and dirt.
• Put the device to the flat and stable station, do not put it to the place prone to vibration.
• Please use correct type of battery for the remote control.
• Only use attachments/accessories specified or provided by the manufacturer. (such as the exclusive supply adapter, bracket etc)
• Do not disassemble the device personally, repair the device only staff authorized by the company.
• Place and use the device in an environment of 0ºC-40ºC.
• Do not use the earphones for a long time. Excessive sound from the earphones can damage your hearing.
• The plug considered as disconnect device of adapter.
• As with any bright source, do not stare into the direct beam. RG2IEC62471-512015
